Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330101-00-79-10-02-05 |

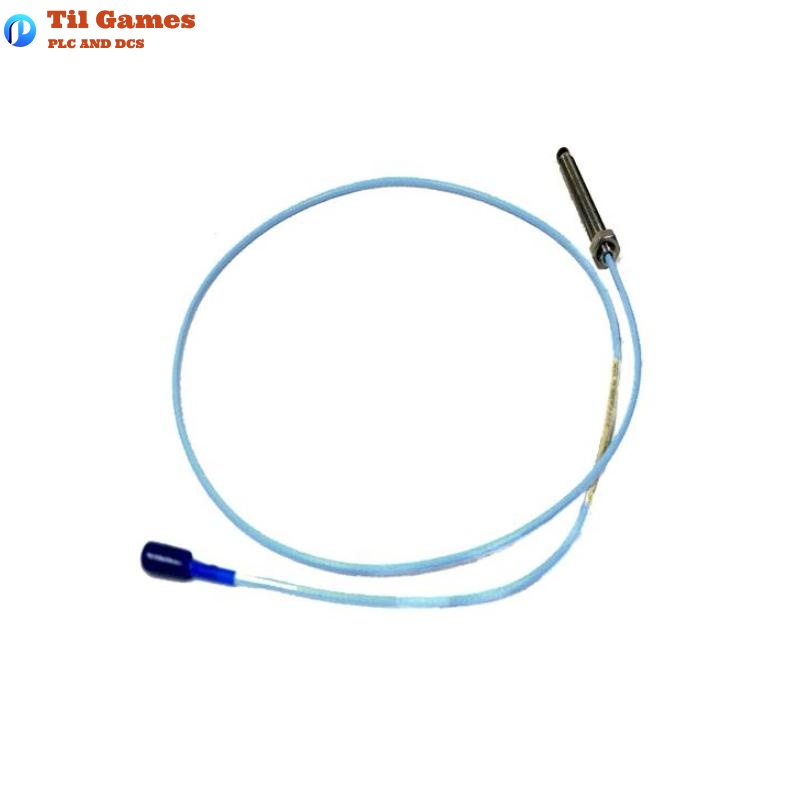

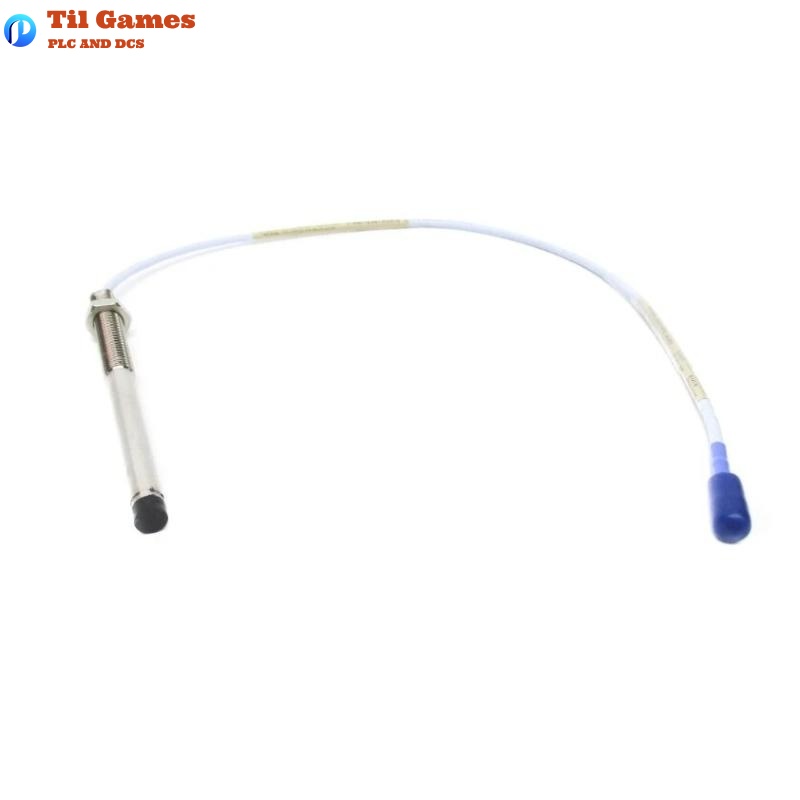

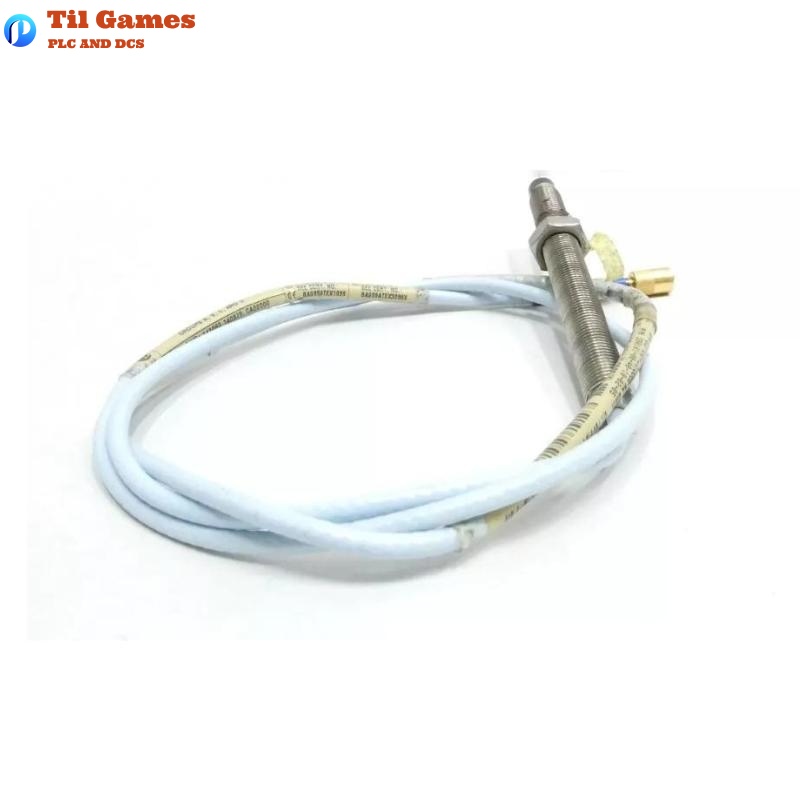

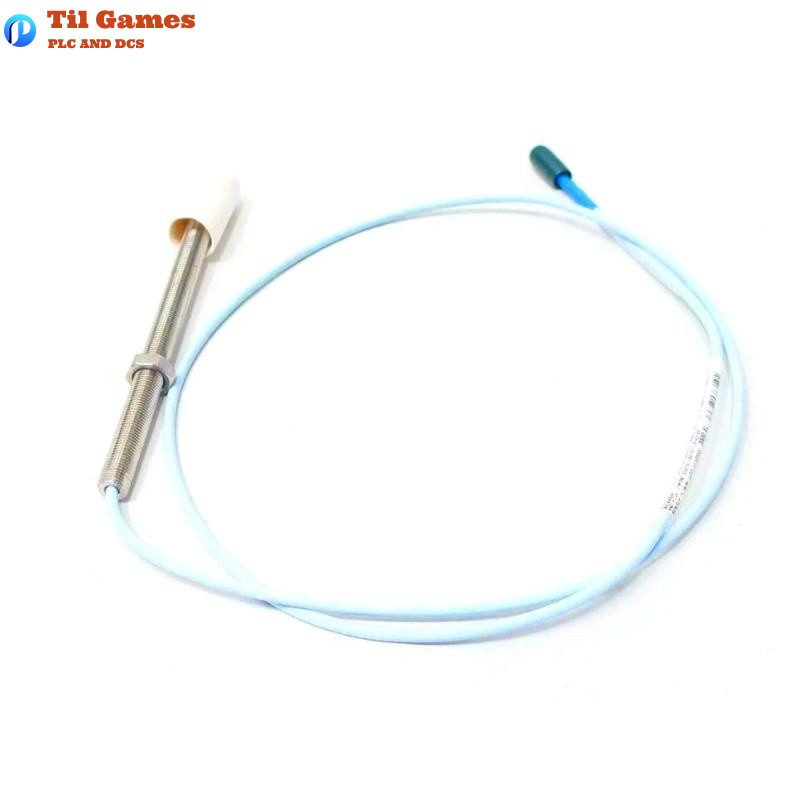

| Product Type | 3300 XL 8 mm Proximity Probe |
| Tip Diameter | 8.0 mm (0.31 in) |
| Probe Thread Size | 3/8-24 UNF |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Cable Type | 75Ω triaxial, FEP insulation |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Connector Torque | 0.565 N·m (5 in·lbf) |
| Armor | Not armored |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Pressure Seal | Viton® O-ring |
| Maximum Tensile Strength | 330 N (75 lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Recommended Gap Setting | -9 VDC (approx. 1.27 mm or 50 mils) |
| Linear Range | 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% |
| DSL (Standard 1 m System) | ±0.025 mm (±1 mil) |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Compliance | API 670, CE Mark, FCC, RoHS, SIL 2/3 |
FAQ
FAQ
Q1: What are the typical applications of this probe?
A1: It is commonly used for vibration and position monitoring on fluid-film bearing machines, as well as for Keyphasor and speed measurements.
Q2: Does this model comply with API 670?
A2: Yes, the standard 5-meter system meets API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Do the probe and extension cable need to be calibrated together?
A3: No, all components are fully interchangeable and factory calibrated, eliminating the need for matching or bench calibration.
Q4: Is it suitable for high-temperature applications?
A4: The standard probe supports up to +177°C. For higher temperatures, use the ETR version which supports up to +218°C.
Q5: Does the probe prevent oil leakage?
A5: The optional FluidLoc cable helps prevent oil or liquid leakage through the interior of the cable.
Q6: Are special tools required for installation?
A6: No, the ClickLoc connectors are designed to be hand-tightened and do not require special tools.
Q7: Is it compatible with older 3300 series components?
A7: Yes, it is electrically and physically interchangeable with legacy 3300 5 mm and 8 mm series components.
Q8: What is the minimum recommended target size?
A8: The minimum target diameter is 15.2 mm (0.6 in), and recommended shaft diameter is at least 76.2 mm (3 in).
