Technical Specifications
| Parameter | Specification |
|---|---|

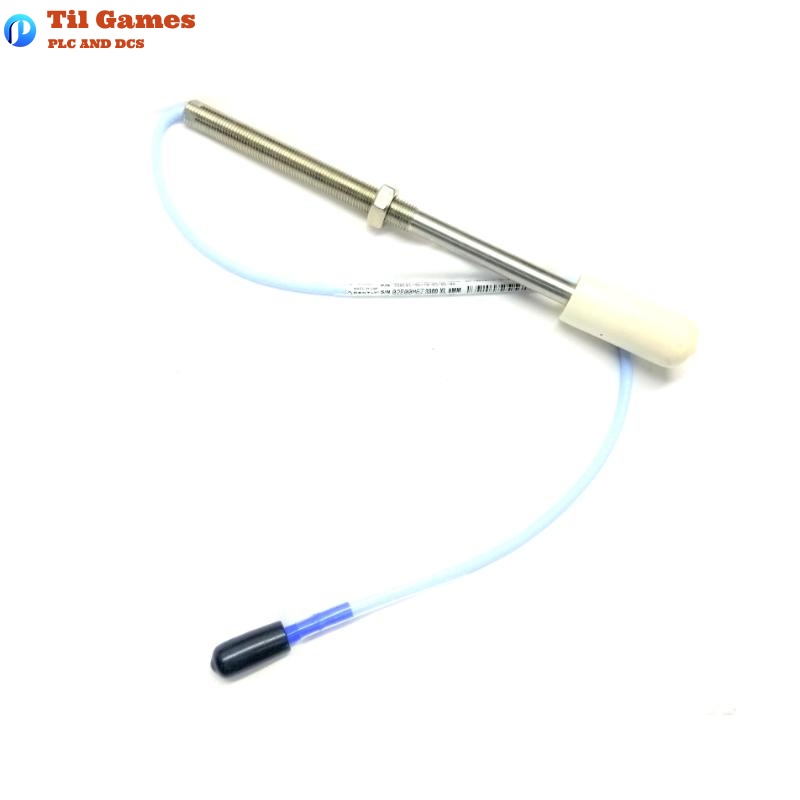

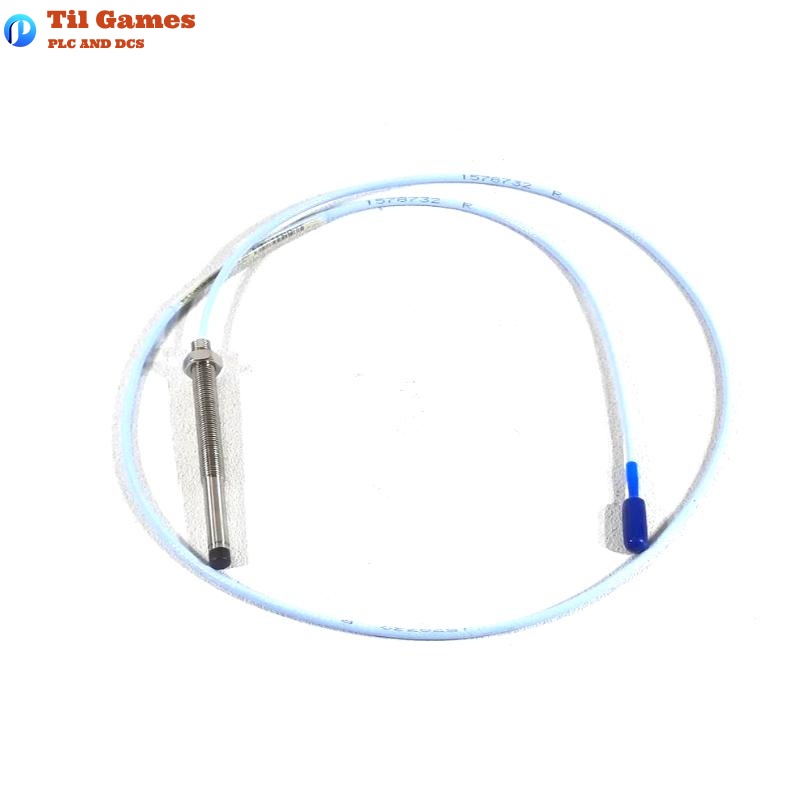

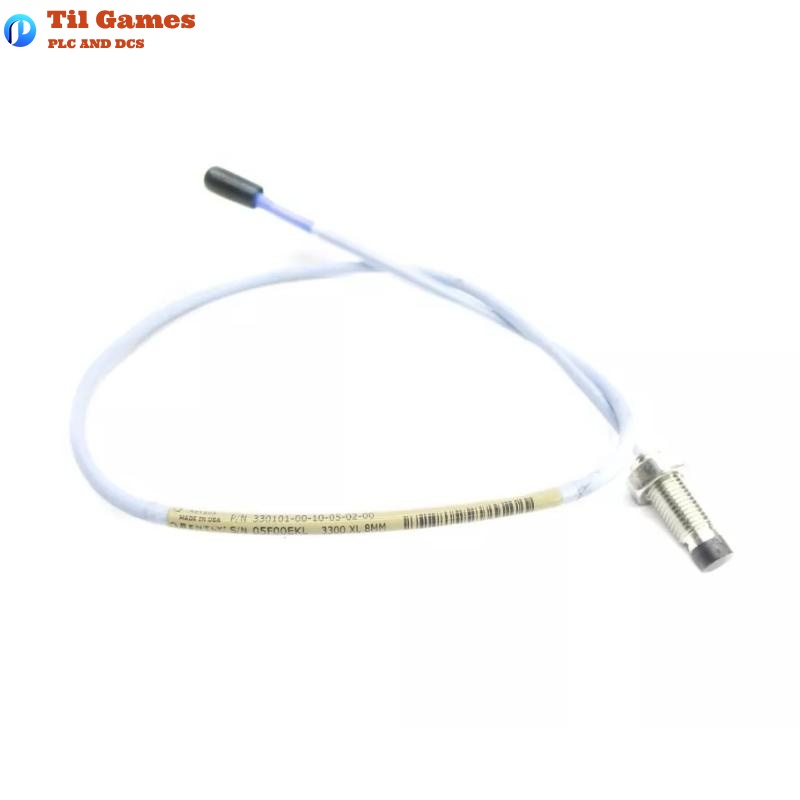

| Model Number | 330101-00-96-10-02-05 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75 Ω triaxial FEP-insulated standard cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% (1 m system) |
| DSL Accuracy | ±0.025 mm (±1 mil) typical for 1 m systems |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Sensor) | -52°C to +100°C |
| Humidity Resistance | <3% change in ASF after 56 days at 93% RH |
| Field Wiring | Max 305 m (1000 ft), 0.2 to 1.5 mm² (16 to 24 AWG) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB with up to 305 m of field wiring |
| Shaft Diameter Minimum | 50.8 mm (2 in); Recommended: 76.2 mm (3 in) |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max |
| Output Resistance | 50 Ω |
| Capacitance (Ext. Cable) | 69.9 pF/m |
| Cable Bend Radius | Minimum 25.4 mm (1.0 in) |
| Connector Torque | Max 0.565 N•m (5 in•lbf) |
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What types of measurements does this probe support?
A1: It supports both static (position) and dynamic (vibration) measurements for fluid-film bearing machines.
Q2: Do I need to match the probe, cable, and Proximitor sensor?
A2: No. All 3300 XL 8 mm components are fully interchangeable with no need for matching or bench calibration.
Q3: What is the recommended gap setting?
A3: The recommended gap is 1.27 mm (50 mils), corresponding to approximately -9 Vdc output.
Q4: What shaft sizes is this probe suitable for?
A4: The minimum shaft diameter is 50.8 mm (2 in), with 76.2 mm (3 in) or larger recommended to reduce crosstalk.
Q5: What is the operating temperature range?
A5: The standard probe operates from -52°C to +177°C; the Proximitor sensor from -52°C to +100°C.
Q6: Does a 1-meter system include an extension cable?
A6: No. The 1-meter system consists of only the probe and Proximitor sensor without an extension cable.
Q7: Is this product certified for hazardous areas?
A7: Yes, it holds certifications including CSA, ATEX, and IECEx for use in Zone 0 and Zone 2 environments.
Q8: Can the cable prevent oil leakage?
A8: Yes. FluidLoc cable options are available to prevent oil or fluid from leaking through the cable interior.
