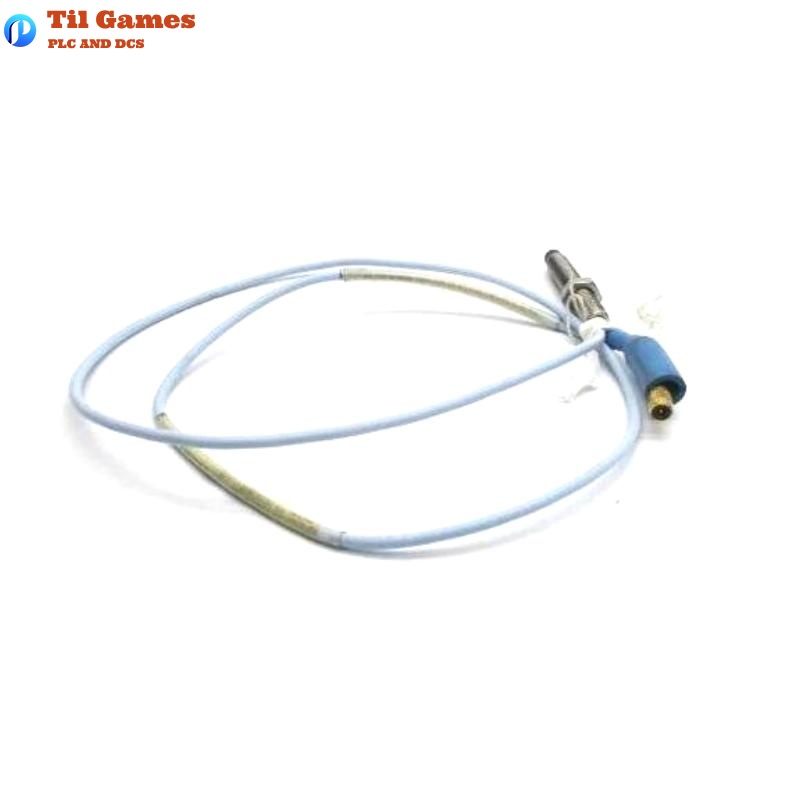

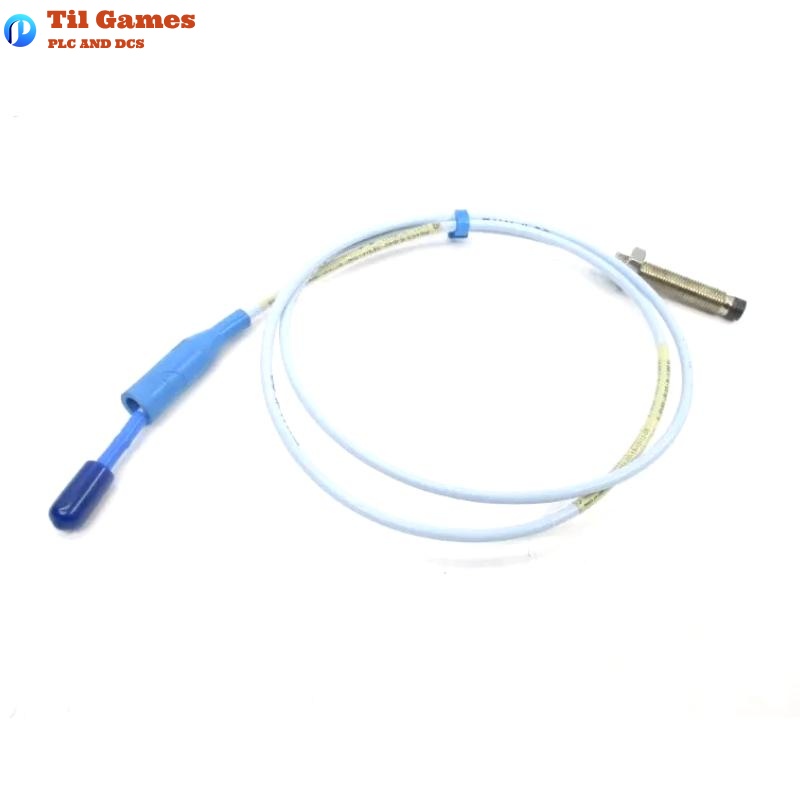

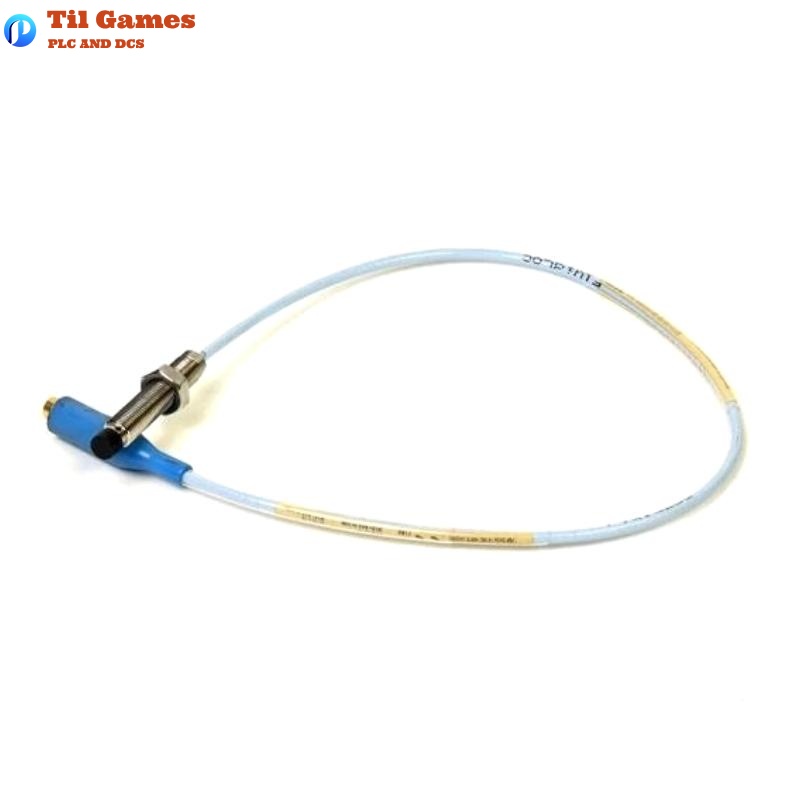

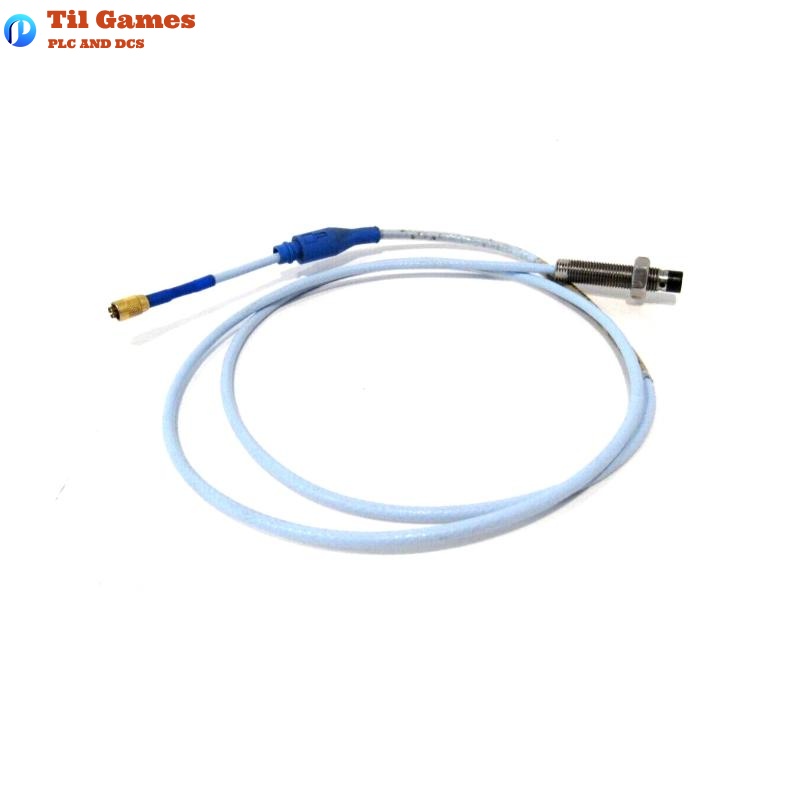

Bently Nevada 330101-01-29-10-01-05 3300 XL 8 mm Proximity Probe

FAQ

Q1: What is the linear measurement range of this probe?
A1: The linear range is from 0.25 mm to 2.3 mm (10 mils to 90 mils).

Q2: What is the recommended gap setting for installation?
A2: The recommended gap setting is approximately 1.27 mm (50 mils), correlating to about -9 Vdc.

Q3: What are the total length and weight of the 330101-01-29-10-01-05?
A3: The total length is 1.0 meter and the total system weight is approximately 0.323 kg.

Q4: Is this probe compliant with the API 670 standard?
A4: Yes, the 3300 XL 8 mm system is fully compliant with API 670 requirements for configuration, range, accuracy, and stability.

Q5: Can this probe operate in high-temperature environments?
A5: The standard probe supports up to +177°C, and the ETR variant supports up to +218°C for the tip and +260°C for the cable.

Q6: Do the probe, cable, and Proximitor require matched calibration?
A6: No, all components are fully interchangeable and do not require matching or bench calibration.

Q7: Is the probe resistant to RF interference?
A7: Yes, the 3300 XL Proximitor Sensor offers improved RFI/EMI immunity and does not require shielded conduits.

Q8: What applications is this probe designed for?
A8: It is primarily used for vibration and position measurements on fluid-film bearing machines, Keyphasor referencing, and speed monitoring.
