Technical Specifications
| Item | Specification |
|---|---|

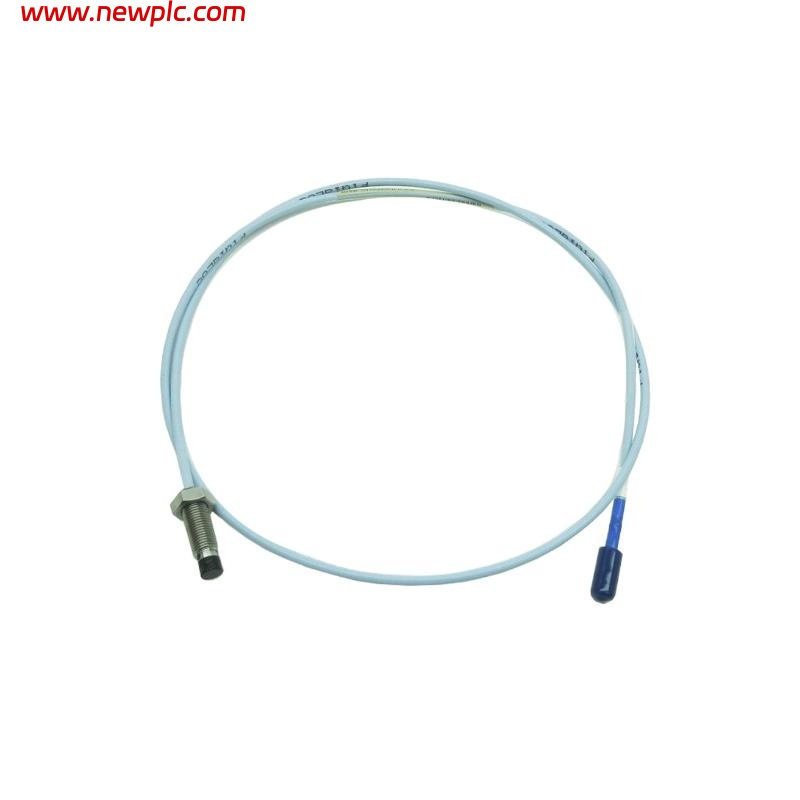

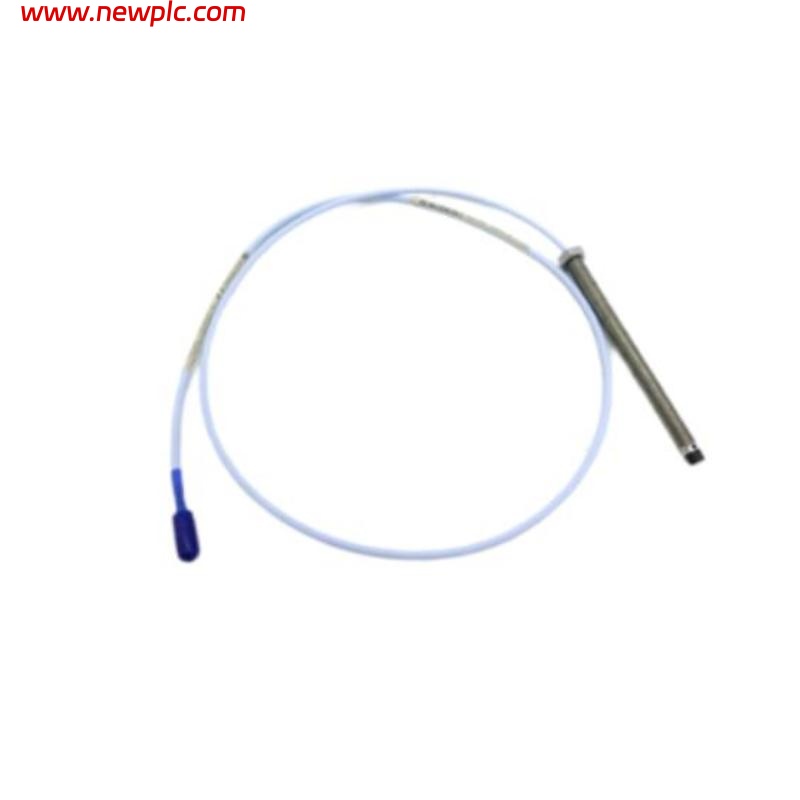

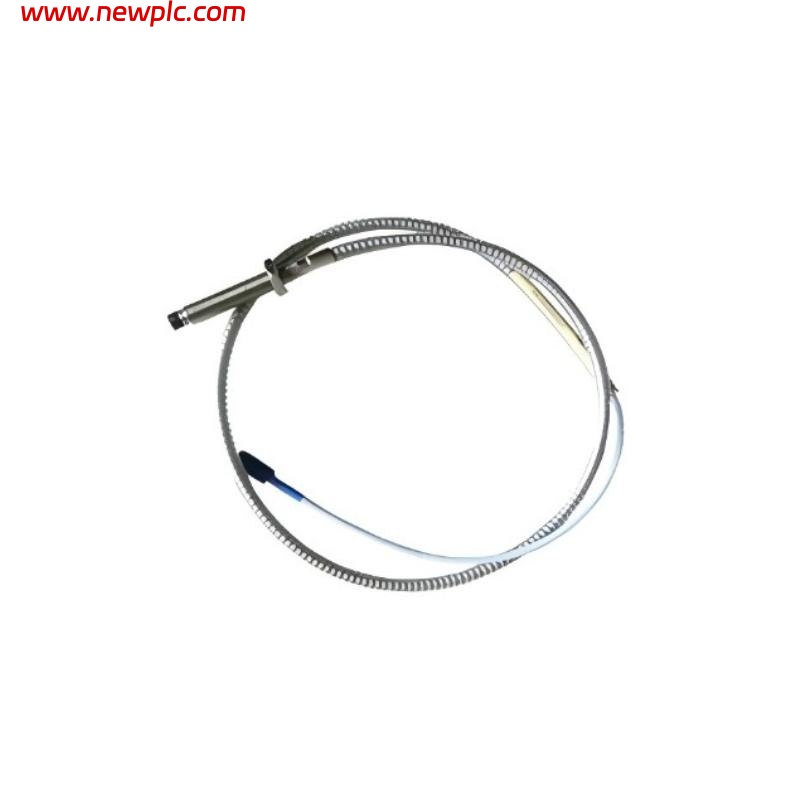

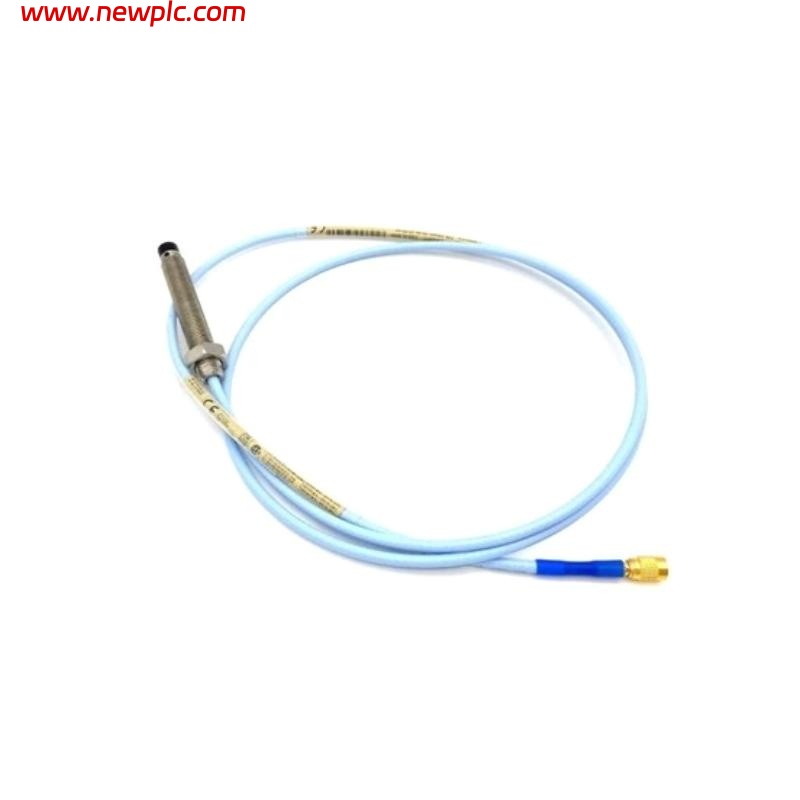

| Model | Bently Nevada 330101‑02‑60‑05‑01‑05 |
| Type | Proximity Sensor Probe (Eddy‑Current Displacement Sensor) |
| Product Category | Machine Condition Monitoring Sensor |
| Product Family | Bently Nevada 3300 XL Series |
| Function | Measures shaft vibration, position, and displacement in rotating machinery |
| Measurement Principle | Eddy‑current (proximity) sensing |
| Probe Tip Diameter | 8 mm (standard proximity probe tip) |
| Measurement Range | Typical ±2.5 mm (±0.1 in) (industry standard for proximity probes) |
| Sensitivity | Standard for 8 mm 3300 XL probe family |
| Frequency Response | Suitable for vibration and displacement monitoring in industrial machinery |
| Output Signal | Analog differential voltage proportional to displacement/vibration |
| Housing Material | Stainless steel rugged probe body |
| Protection Rating | Industrial sealing for oil, dust, and vibration resistance |
| Cable Length | 1.0 m (integral cable) |
| Connector Type | Rugged industrial connector |
| Mounting Method | Threaded installation or housing assembly mounting |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial rotating machinery such as turbines, compressors, pumps |
| Matching Components | Works with 3300 XL Proximitor Sensor and monitoring modules |
| Dimensions | Probe tip diameter 8 mm; approximate length ~60 mm (body) + cable |
| Weight | Approximately 0.33 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 330101‑02‑60‑05‑01‑05 probe?
It is used to measure shaft vibration, position, and displacement in rotating industrial machinery for condition monitoring and protection.
Q2: What does the “330101” designation indicate?
It identifies this unit as a 3300 XL series proximity sensor probe designed for industrial machinery monitoring.
Q3: What does the “02‑60‑05‑01‑05” configuration mean?
It indicates the probe’s unthreaded length (02), a 60 mm probe body length, a 1.0 m integral cable (05), a standard connector option (01), and hazardous area approval (05).
Q4: Which monitoring systems is this probe compatible with?
It is designed to work with Bently Nevada 3300 XL Proximitor Sensor modules and associated condition monitoring hardware.
Q5: Can this probe be used in harsh industrial environments?
Yes, its stainless‑steel body and industrial‑rated sealing allow reliable use in environments with oil, dust, and vibration.
Q6: What type of output signal does this probe provide?
It provides a differential analog voltage output proportional to shaft displacement or vibration.
Q7: What is the operating temperature range?
It operates reliably from –35 °C to +177 °C.
Q8: What are the physical dimensions and approximate weight of this probe?
The probe has an 8 mm tip diameter, approximately 60 mm body length plus a 1.0 m cable, and weighs around 0.33 kg.
