Technical Specifications
| Item | Specification |
|---|---|

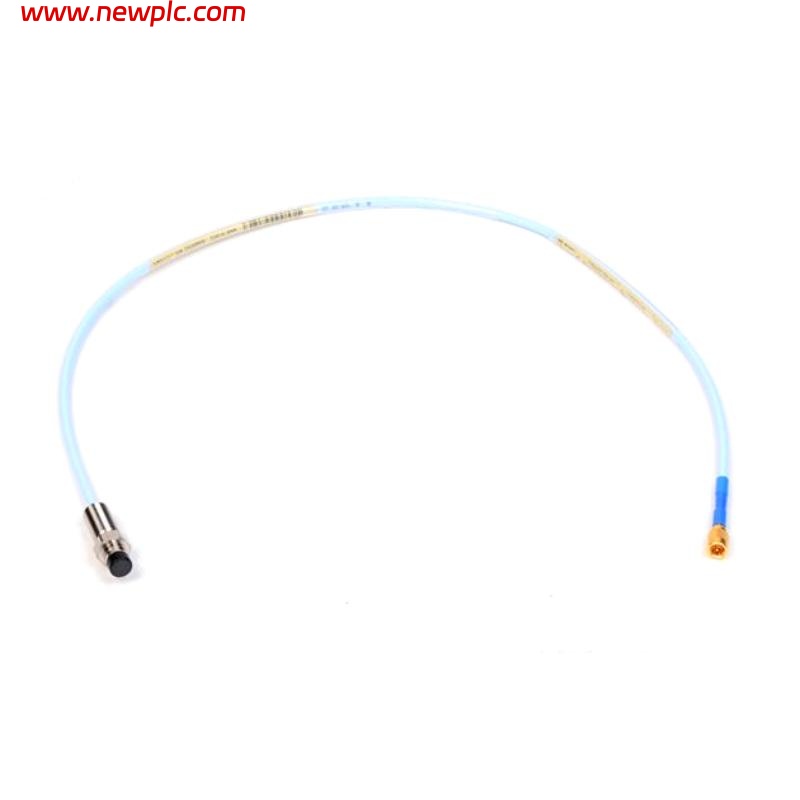

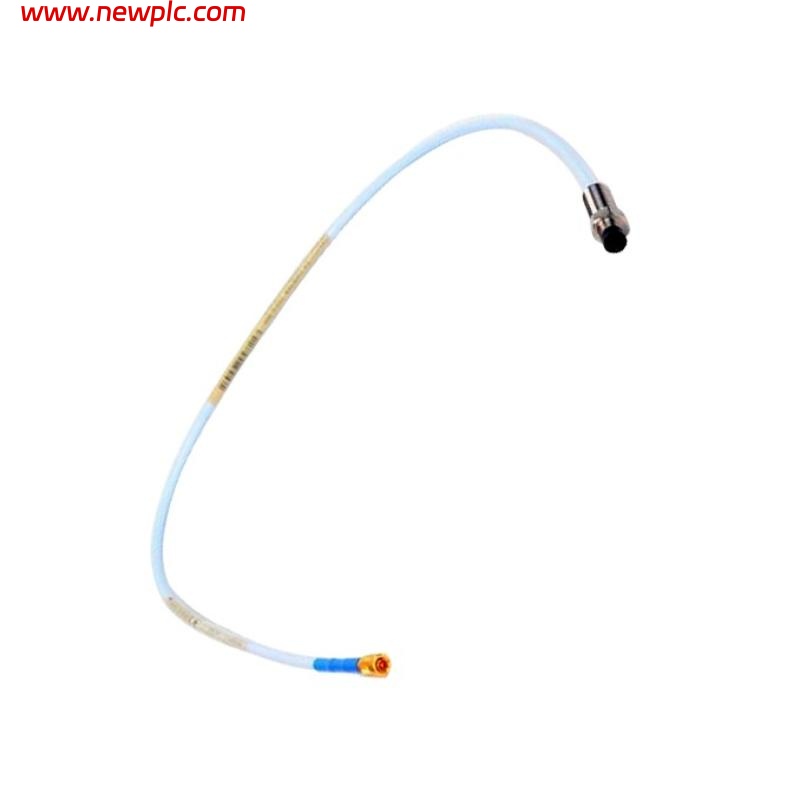

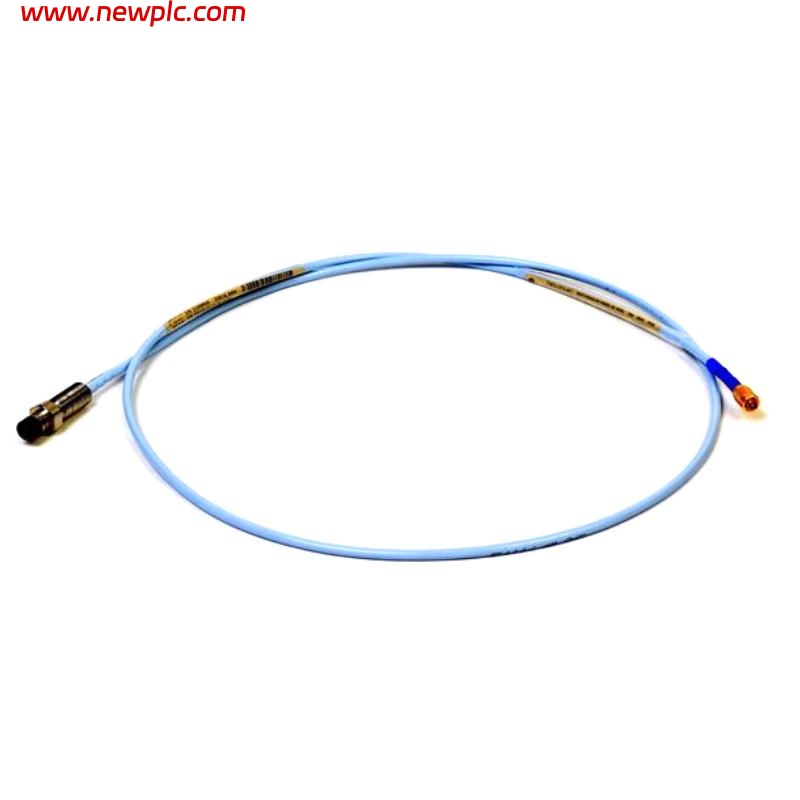

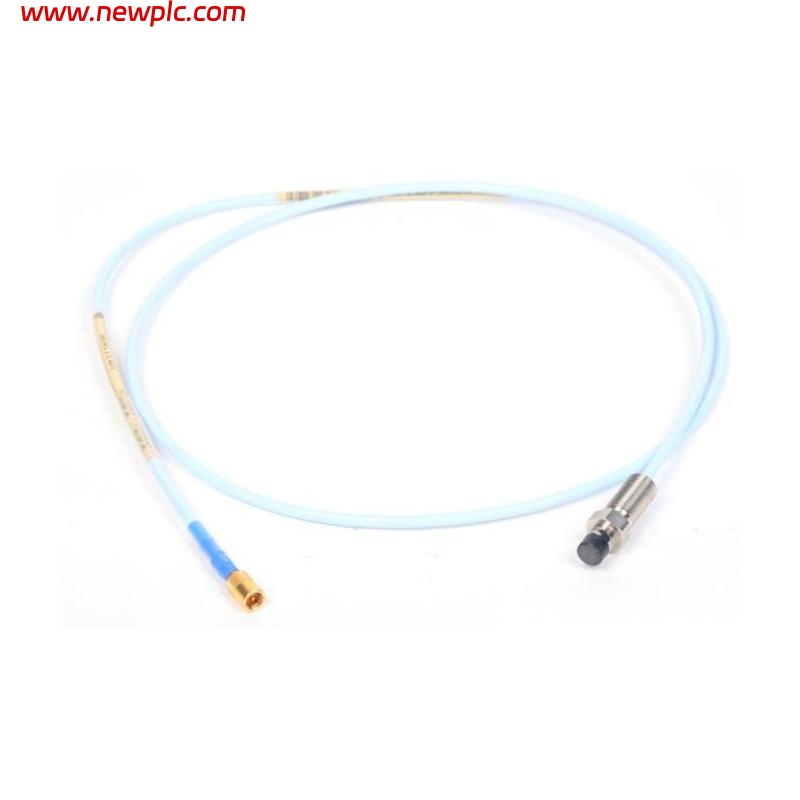

| Model | Bently Nevada 330105‑02‑12‑05‑00‑05 |
| Type | Proximity Sensor Probe (Eddy‑Current Displacement Sensor) |
| Product Category | Machine Condition Monitoring Sensor |
| Product Family | Bently Nevada 3300 XL Series |
| Function | Measures shaft displacement, position, and vibration in rotating machinery |
| Measurement Principle | Eddy‑current (proximity) sensing |
| Probe Tip Diameter | 8 mm (standard proximity probe tip) |
| Measurement Range | Typical ±2.5 mm (industry standard for 8 mm probes) |
| Sensitivity | Standard analog sensitivity for 8 mm 3300 XL probes |
| Frequency Response | Suitable for vibration and displacement monitoring in industrial equipment |
| Output Signal | Analog voltage proportional to displacement/vibration |
| Housing Material | Stainless steel rugged probe body |
| Protection Rating | Industrial sealing for oil, dust, and vibration resistance |
| Cable Length | 0.5 m (integral cable) |
| Connector Type | Rugged industrial connector |
| Mounting Method | Threaded installation or housing assembly mounting |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial rotating machinery condition monitoring |
| Matching Components | Works with 3300 XL Proximitor Sensor and monitoring modules |
| Dimensions | Probe tip diameter 8 mm; approximate body length ~12 mm |
| Weight | Approximately 0.30–0.35 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 330105‑02‑12‑05‑00‑05 probe?
It is used to monitor shaft displacement, position, and vibration in rotating machinery as part of a condition monitoring system.
Q2: What does the “330105” designation indicate?
It identifies this part as a configured 3300 XL proximity sensor probe within the Bently Nevada product family.
Q3: What does the configuration “02‑12‑05‑00‑05” represent?
It specifies the probe’s unthreaded length (02), body length (~12 mm), integral 0.5 m cable (05), standard connector (00), and hazardous area approval (05).
Q4: Which monitoring systems is this probe compatible with?
It is compatible with Bently Nevada 3300 XL Proximitor Sensor modules and related condition monitoring hardware.
Q5: Can this probe operate in harsh industrial environments?
Yes, the stainless‑steel body and rugged sealing make it suitable for use in oil, dust, and vibration‑rich environments.
Q6: What type of output signal does this probe provide?
It provides an analog voltage output proportional to shaft displacement or vibration.
Q7: What is the typical operating temperature range?
The probe is designed to operate reliably from –35 °C to +177 °C.
Q8: What are the dimensions and weight of the probe?
The probe has an 8 mm tip diameter, approximately 12 mm body length, and weighs about 0.30–0.35 kg.
