Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-15-40-10-02-00 |

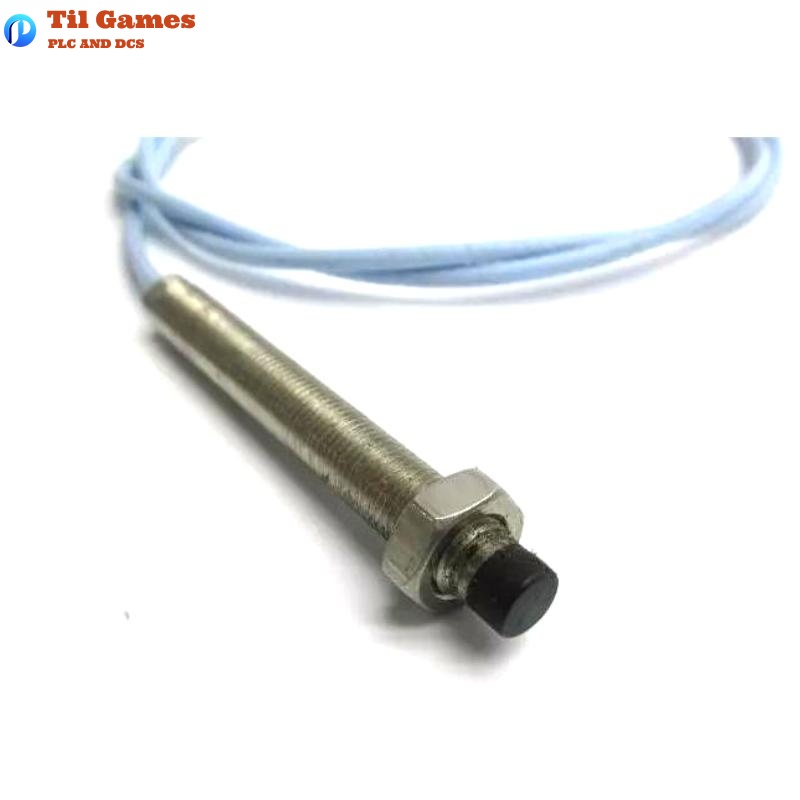

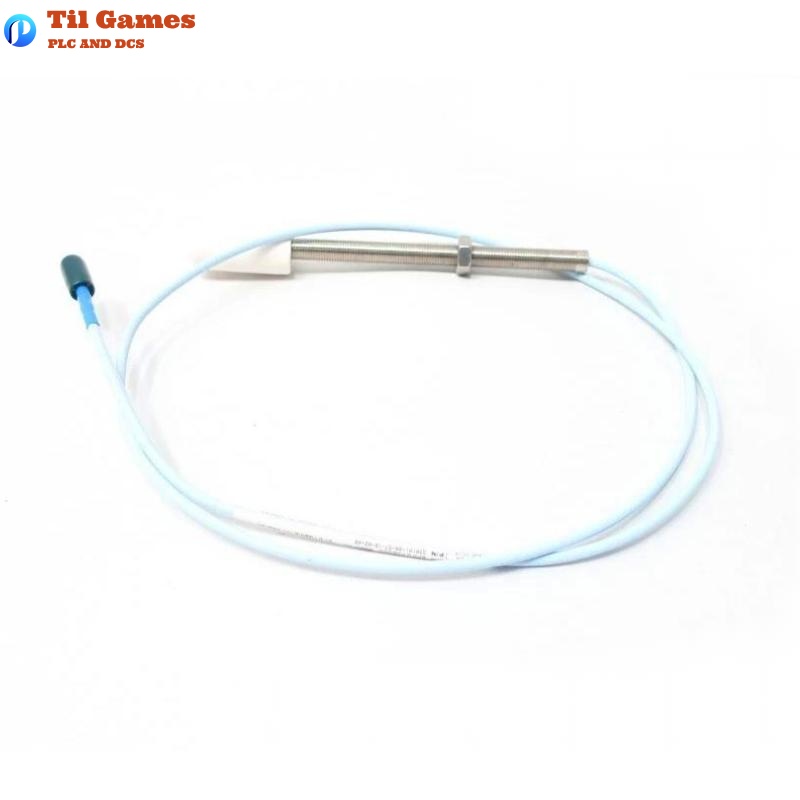

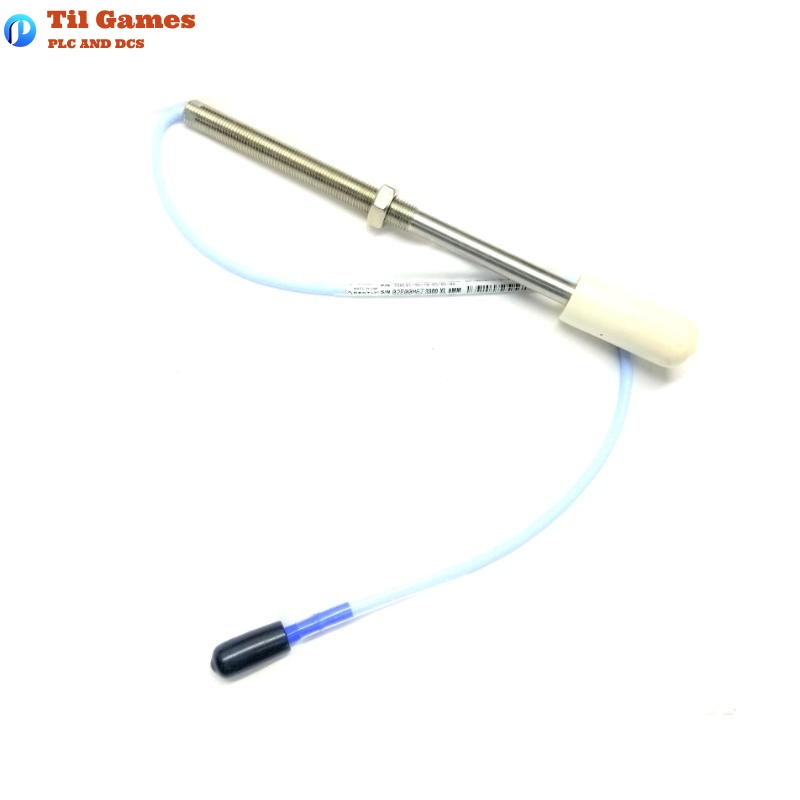

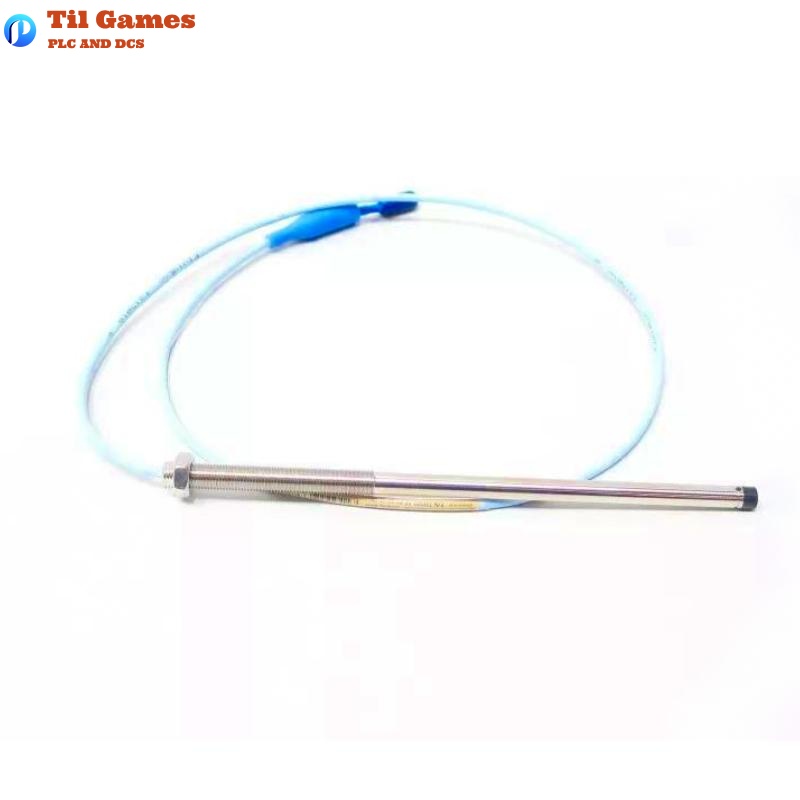

| Product Type | 3300 XL 8 mm Proximity Probe |
| Application | Vibration and position measurement on fluid-film bearing machines |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) (approx. -9 Vdc output) |
| Scale Factor (1 or 5 m System) | 7.87 V/mm (200 mV/mil) ±5% |
| Scale Factor (9 m System) | 7.87 V/mm (200 mV/mil) ±6.5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Temperature Range (Standard) | -52°C to +177°C (Probe), -52°C to +100°C (Sensor) |
| Temperature Range (ETR) | Up to +218°C (Probe tip), +260°C (Cable), +100°C (Sensor) |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter | ≥50.8 mm (recommended ≥76.2 mm) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc gold-plated |
| Minimum Bend Radius | 25.4 mm |
| Probe Length | 1.5 meters |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Environmental Protection | IP54 (with proper installation) |
| Certifications | CE, FCC, RoHS, ATEX, IECEx, SIL 2/SIL 3, cNRTLus |
FAQ
FAQ
Q1: What are the primary applications of this probe?
A1: It is mainly used for vibration and position monitoring in fluid-film bearing machinery and for Keyphasor phase and speed measurements.
Q2: Does this model comply with API 670 standards?
A2: Yes, it meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Is individual calibration required for each component?
A3: No. All 3300 XL components are fully interchangeable and do not require matched calibration.
Q4: What is the recommended gap setting for this probe?
A4: The recommended gap is 1.27 mm (50 mils), corresponding to an output of approximately -9 VDC.
Q5: What is the maximum temperature this probe can withstand?
A5: The standard probe endures up to +177°C, while the ETR variant can withstand up to +218°C (probe tip) and +260°C (cable).
Q6: How is connector reliability ensured?
A6: The ClickLoc connectors lock with a finger-tight twist and emit a “click” when properly engaged, requiring no tools.
Q7: Can this model be used with non-XL 3300 components?
A7: Yes, but doing so limits system performance to that of the non-XL components.
Q8: How stable is the probe in high humidity conditions?
A8: It shows less than a 3% change in Average Scale Factor when tested under 93% humidity for up to 56 days.
