Technical Specifications
| Parameter | Description |
|---|---|

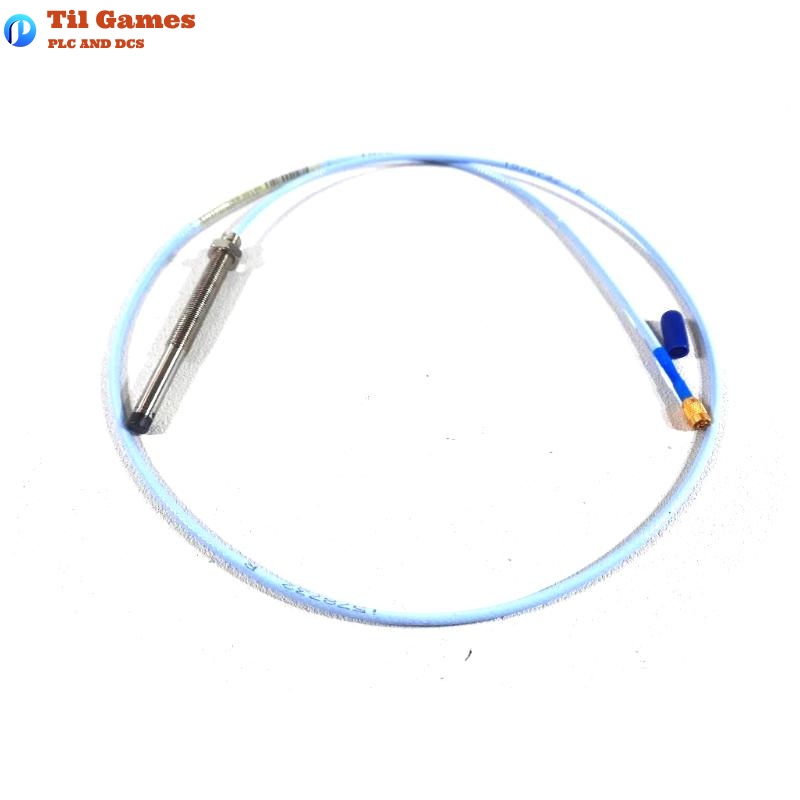

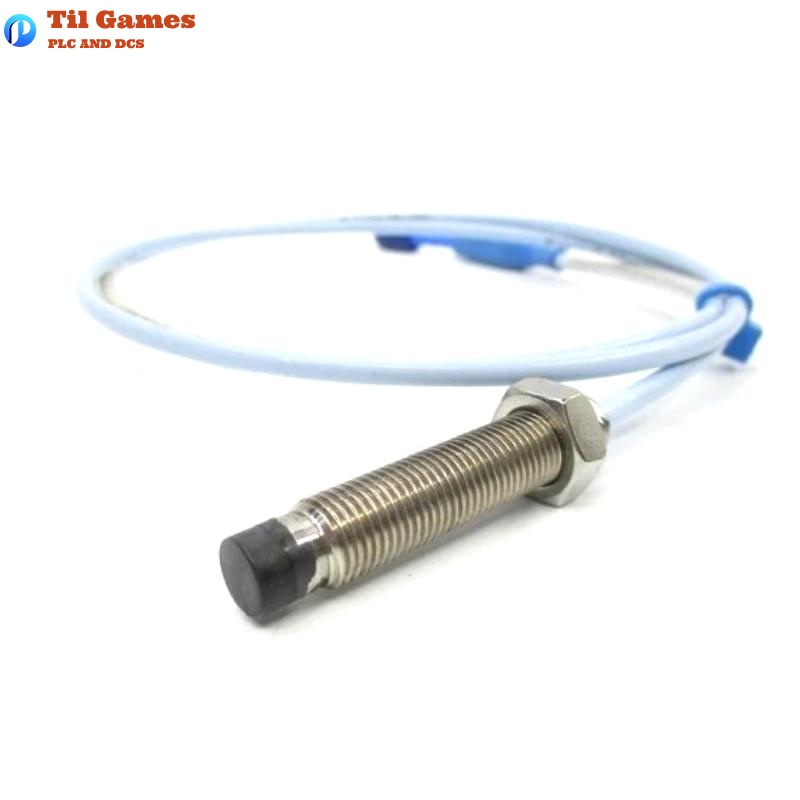

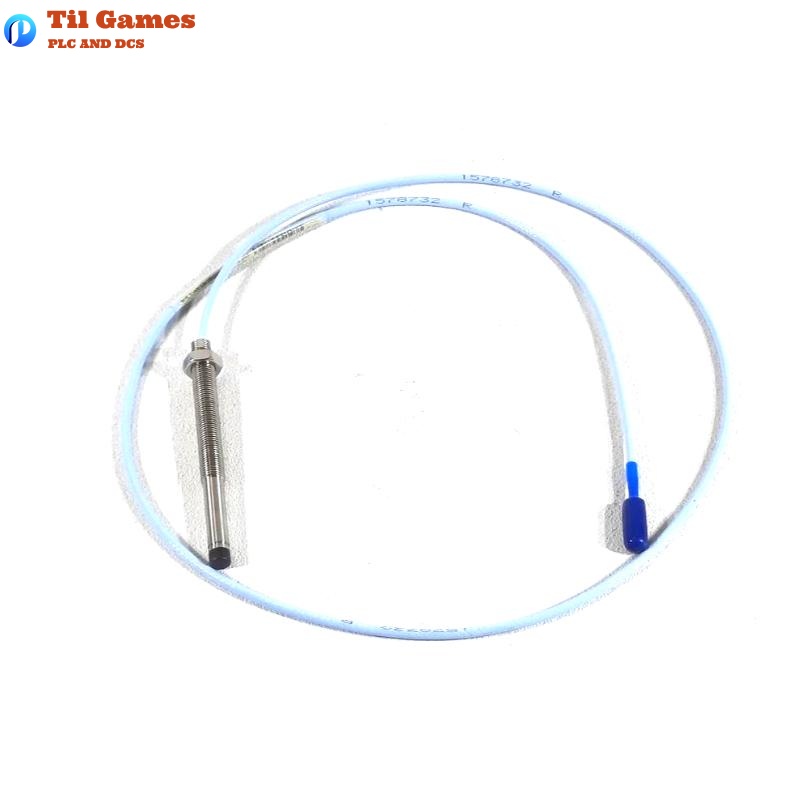

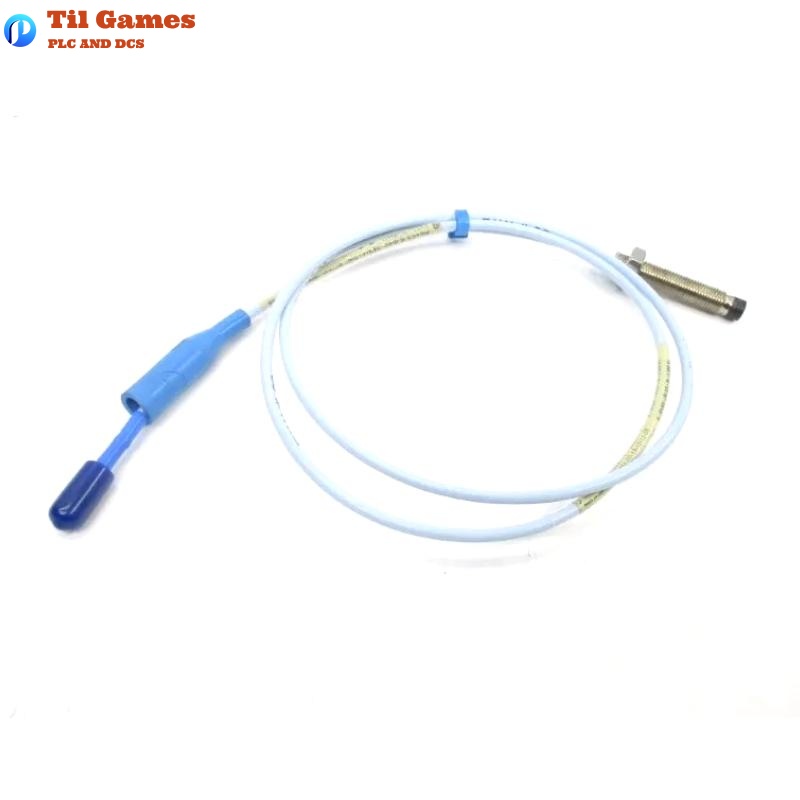

| Product Model | Bently Nevada 330101-16-28-10-12-05 3300 XL 8 mm Proximity Probe |
| System Components | Probe, Extension Cable, Proximitor Sensor |
| Sensing Principle | Eddy Current, Non-contact |
| Output | Voltage proportional to gap (displacement/vibration) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (1 m, 5 m); ±6.5% (9 m); ±18% (ETR) |
| DSL Accuracy | ±0.025 mm (1 mil) for 1 m & 5 m; ±0.038 mm (1.5 mils) for 9 m & ETR |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Temperature Range | -52°C to +177°C (Standard), up to +218°C (ETR probe), +260°C (ETR cable) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω Triaxial FEP/PFA Insulated (standard/ETR), FluidLoc optional |
| Connector Type | Miniature ClickLoc, gold-plated brass or beryllium copper |
| Torque Limits (Standard) | 33.9 N·m max; 11.2 N·m recommended |
| Power Supply | -17.5 to -26 VDC |
| Output Resistance | 50 Ω |
| Humidity Resistance | ≤3% change in ASF at 93% RH (IEC 68-2-3) for 56 days |
| Field Wiring Distance | Up to 305 meters (1000 feet) |
| Environmental Protection | IP54 minimum with proper installation |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What types of measurements does this probe support?
A1: It supports non-contact displacement, vibration, Keyphasor reference, and speed measurements.
Q2: What is the recommended installation gap?
A2: The recommended gap is 1.27 mm (50 mils), producing approximately -9 VDC output.
Q3: What is the maximum operating temperature?
A3: Standard probes operate up to 177°C; Extended Temperature Range (ETR) probes up to 218°C, and ETR cables up to 260°C.
Q4: Is this model compatible with non-XL 3300 series components?
A4: Yes, it is electrically and physically interchangeable, but overall system performance will be limited to the non-XL specifications.
Q5: Does the probe and cable require specific length matching?
A5: Yes, the total length of the probe and extension cable must match the Proximitor Sensor system length.
Q6: Is the output linear?
A6: Yes, the output voltage is linear over the range of 0.25 mm to 2.3 mm (10 to 90 mils).
Q7: Are special tools needed for connector installation?
A7: No special tools are required. The ClickLoc connectors lock with finger-tight torque and a “click” sound.
Q8: What environments is this probe suitable for?
A8: It is designed for high EMI/RFI resistance, high temperature, and high humidity environments—suitable for power generation, petrochemical, and heavy industries.
