Technical Specifications
| Parameter | Specification |
|---|---|

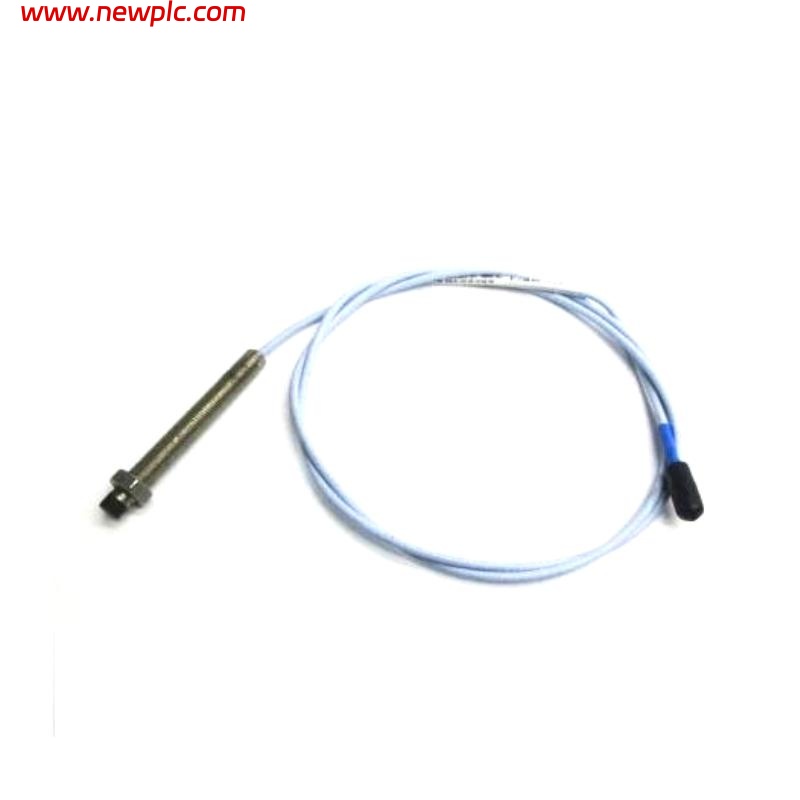

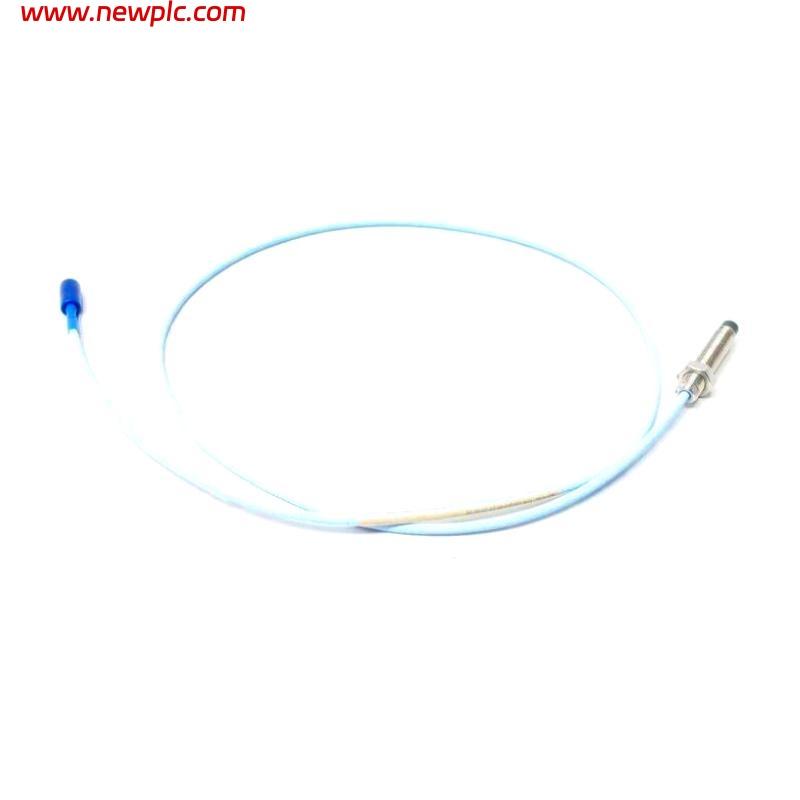

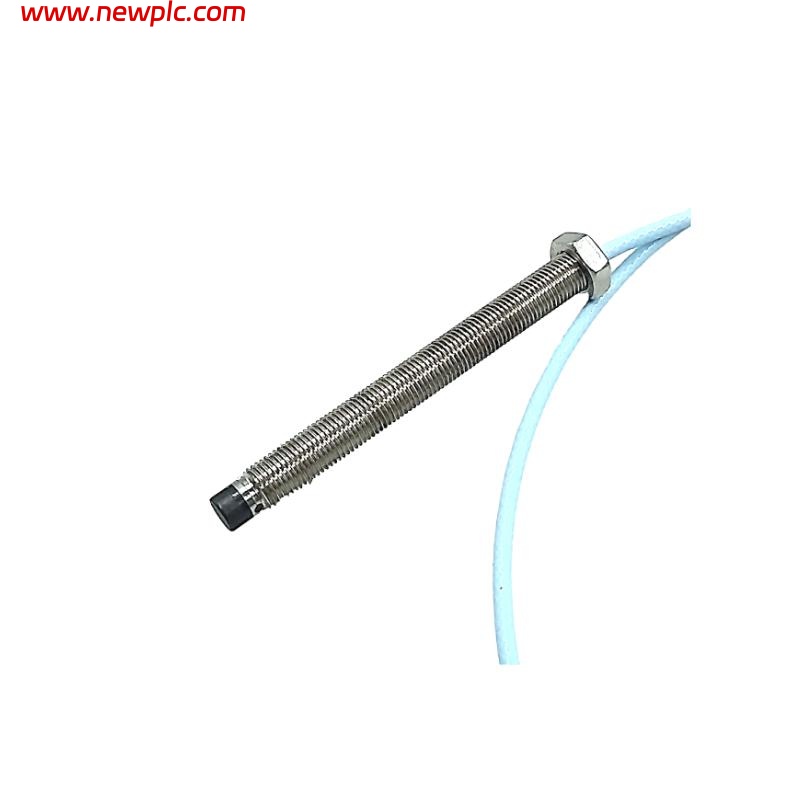

| Model | Bently Nevada 330101-29-50-10-02-05 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | 3/8-24 UNF |
| Probe Length | 1.0 meter (3.3 feet) |
| Weight | 0.323 kg |
| Total System Length | 1.0 meter (probe only) |
| Material – Tip | Polyphenylene sulfide (PPS) |
| Material – Case | Stainless Steel (AISI 303/304) |
| Cable Type | 75 Ω triaxial, FEP insulation, miniature coaxial ClickLoc connector |
| Recommended Gap Setting | Approx. 1.27 mm (50 mils) at -9 Vdc |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | -52°C to +177°C (-62°F to +350°F) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Tensile Strength | 330 N (75 lbf) probe-to-cable, 270 N (60 lbf) cable-to-extension connector |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Mounting Torque | Max. 33.9 N·m (300 in·lbf), recommended 11.2 N·m (100 in·lbf) |
| Environmental Rating | Meets API 670, CE mark, RoHS, SIL2/SIL3 certified, hazardous area approvals |
FAQ
FAQ
Q1: What are the main applications of this probe?
A1: It is mainly used for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Q2: Is this probe compatible with older 3300 series probes?
A2: Yes, the 3300 XL 8 mm probe is both electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm probes.
Q3: What is the recommended gap setting?
A3: The recommended gap is approximately 1.27 mm (50 mils), corresponding to about -9 Vdc output.
Q4: What is the minimum bend radius for the cable?
A4: The minimum allowed bend radius for the cable is 25.4 mm (1.0 inch).
Q5: What is the linear measurement range of the probe?
A5: The linear range is 0.25 mm to 2.3 mm (10 mils to 90 mils).
Q6: Which certifications does this product have?
A6: It complies with API 670, CE, RoHS, and SIL2/SIL3 standards, and is approved for use in hazardous areas.
Q7: What is the maximum operating temperature?
A7: The standard probe operates within -52°C to +177°C (-62°F to +350°F).
Q8: What is the weight of the probe?
A8: The 1-meter version of the probe weighs approximately 0.323 kg.
