Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330101-46-65-10-02-05 |

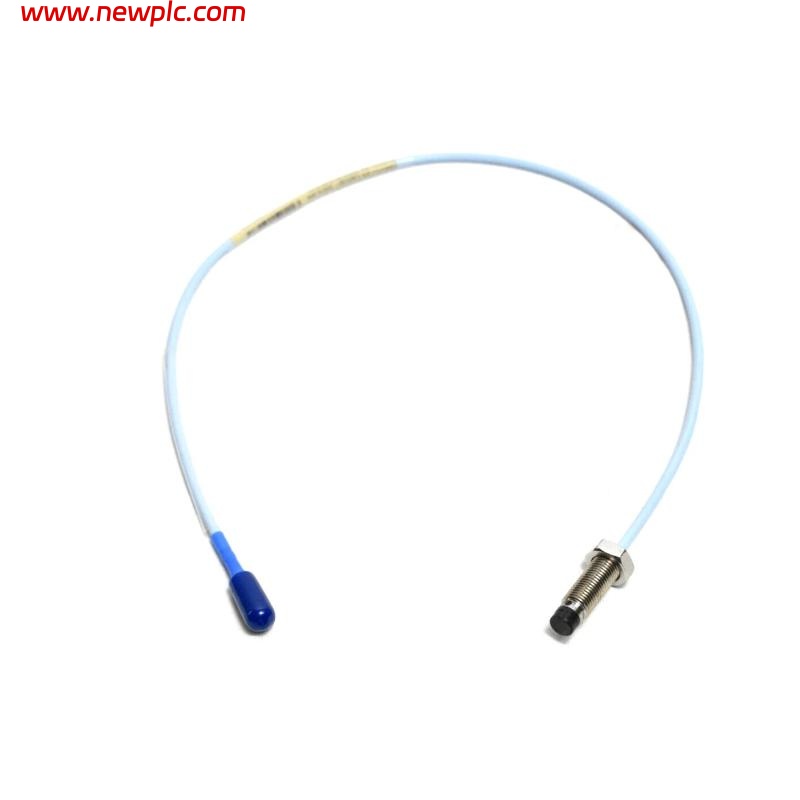

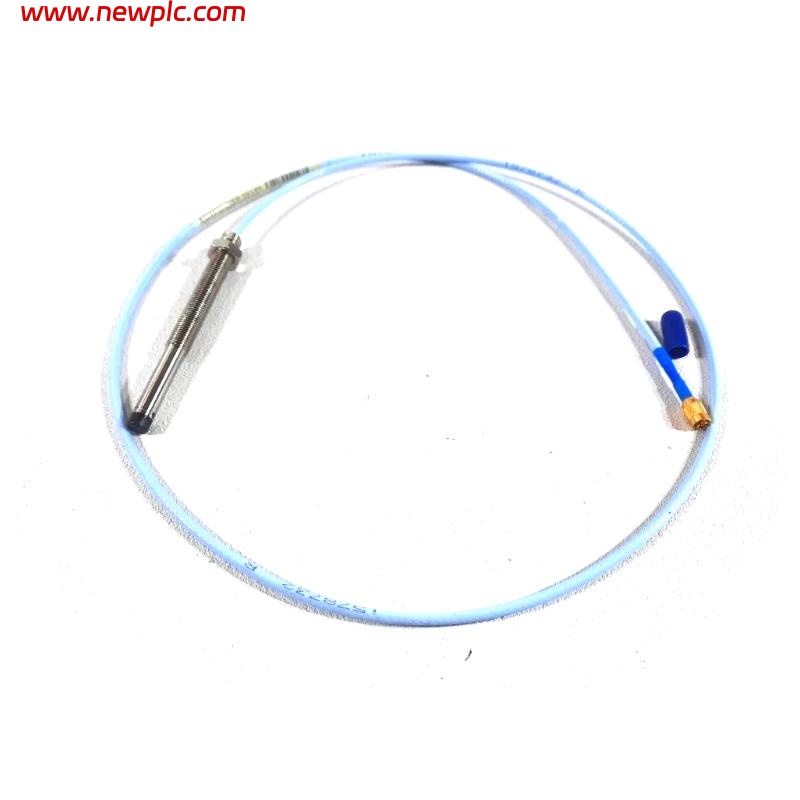

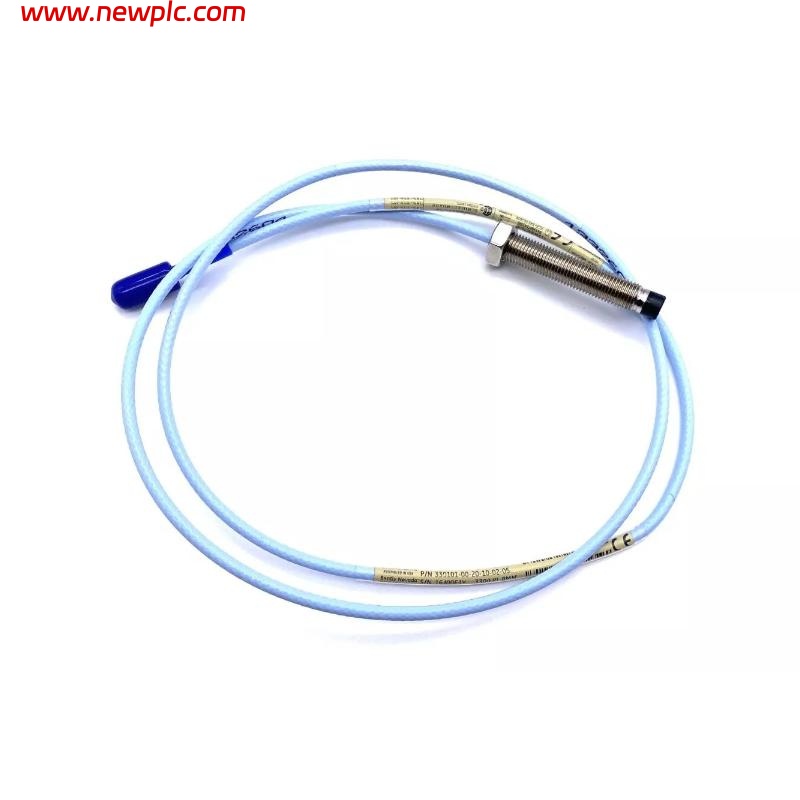

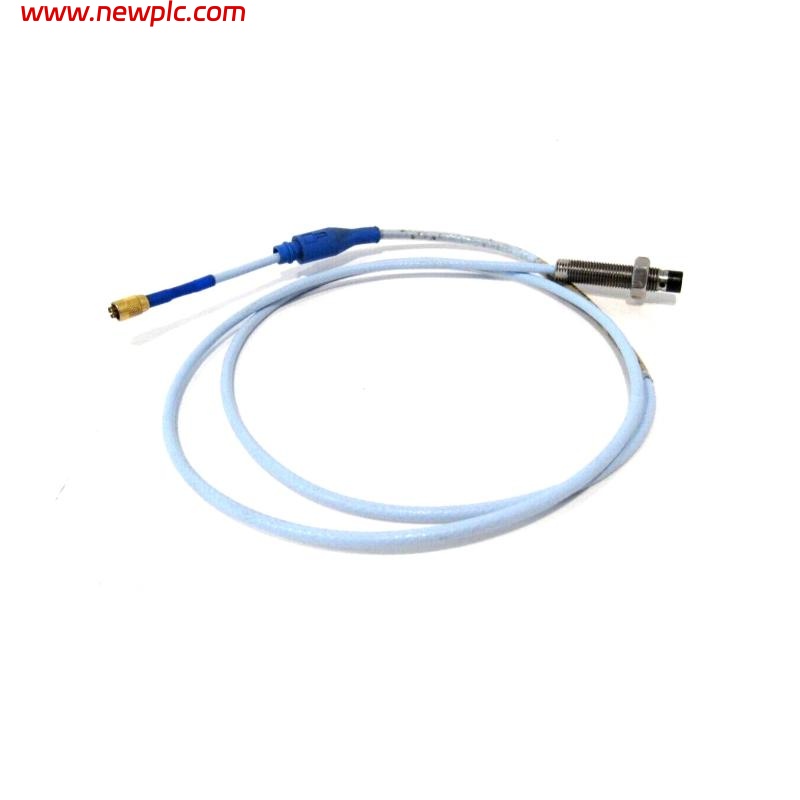

| Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 0.25–2.3 mm (10–90 mils) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Cable | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc |
| Temperature Range (Probe) | -52°C to +177°C |
| Temperature Range (Cable) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Shaft Diameter (min recommended) | 76.2 mm (3 in) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What is the measurement range of this probe?
A1: The measurement range is 0.25–2.3 mm (10–90 mils), with a linear range of 2 mm (80 mils).
Q2: What is the recommended gap setting?
A2: The recommended gap is approximately 1.27 mm (50 mils).
Q3: What materials are used in the probe?
A3: The probe tip is made of PPS, and the case is made of AISI 303 or 304 stainless steel.
Q4: What is the maximum temperature the probe can withstand?
A4: The standard probe can operate up to +177°C.
Q5: What is the minimum shaft diameter for use?
A5: The recommended minimum shaft diameter is 76.2 mm (3 inches).
Q6: What is the total length and weight of this model?
A6: The total length is 1.0 meter, and the weight is approximately 0.323 kg.
Q7: What type of connector does it use?
A7: It uses a miniature coaxial ClickLoc connector.
Q8: What is the frequency response range?
A8: The frequency response range is 0–10 kHz, ±3 dB.
