Technical Specifications
| Parameter | Value |
|---|---|

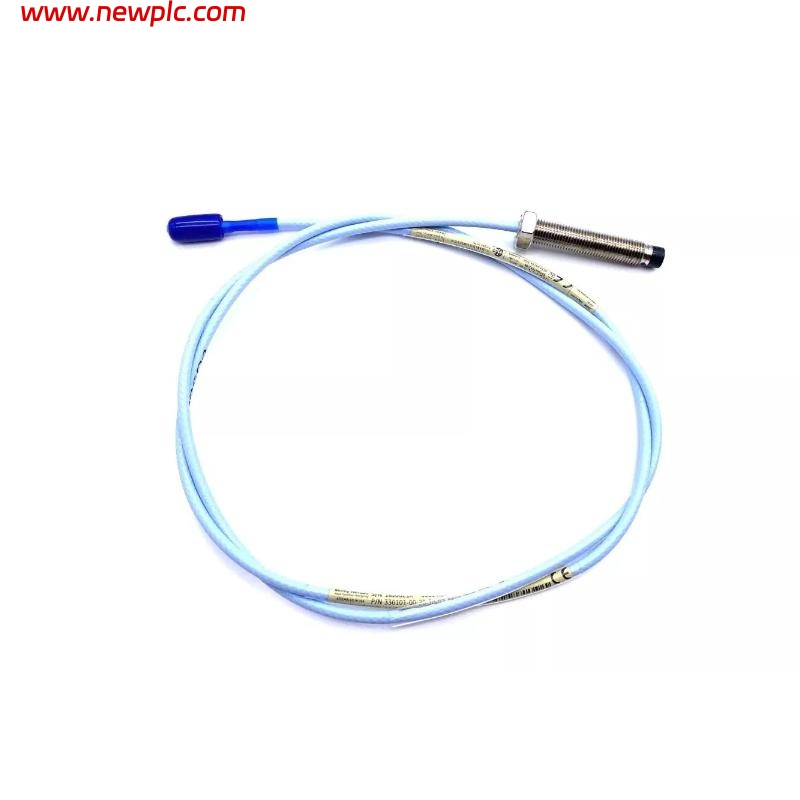

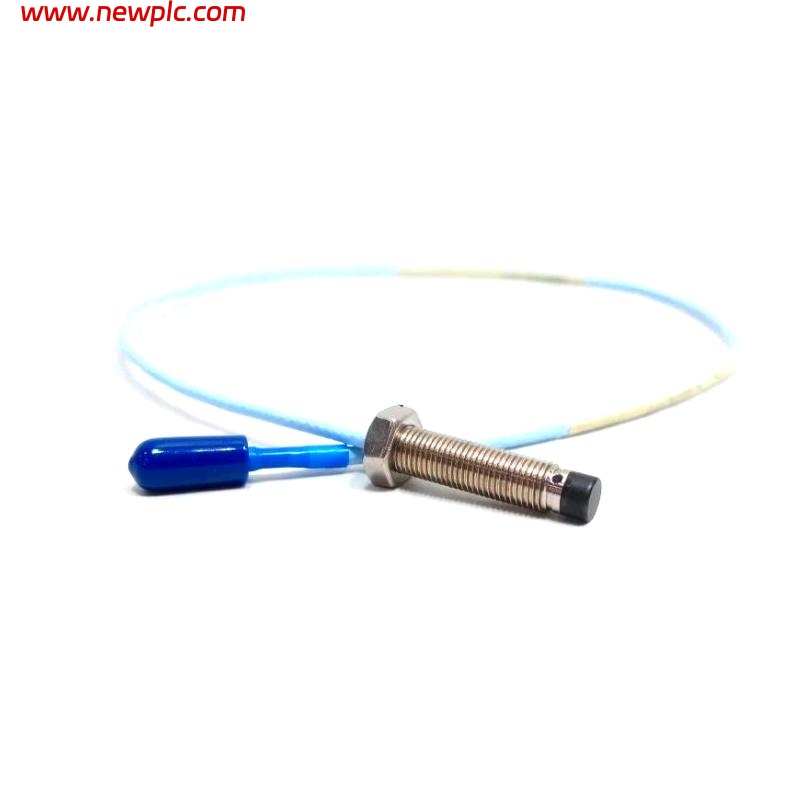

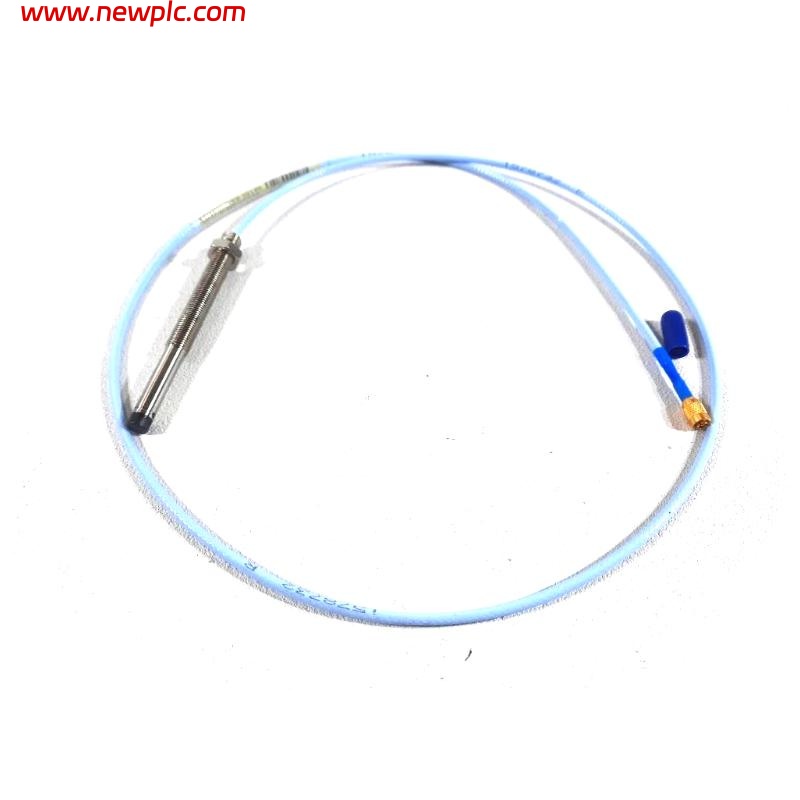

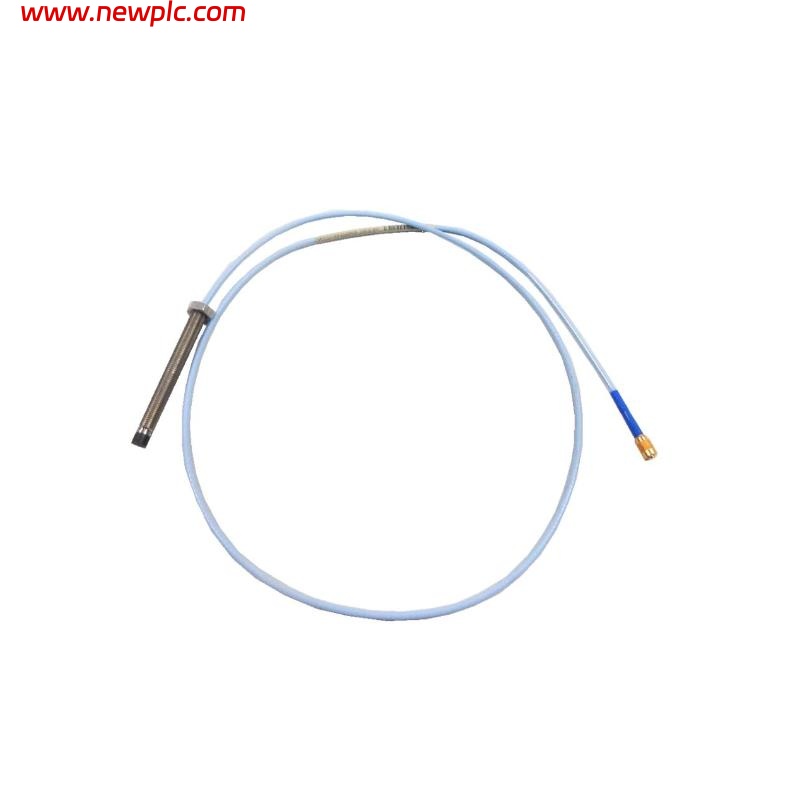

| Model | Bently Nevada 330101-55-75-10-02-00 |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Cable Type | 75Ω triaxial, FEP insulated |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | Probe: -52°C to +177°C |
| Storage Temperature | Probe: -52°C to +177°C |
| Humidity Resistance | ≤3% change @ 93% RH for 56 days |
| Tensile Strength | 330 N (probe to lead), 270 N (lead to cable) |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
FAQ
FAQ
Q1: What is the recommended installation gap for the 330101 probe?
A1: The recommended gap setting is approximately 1.27 mm (50 mils).
Q2: Can this probe operate in high-temperature environments?
A2: Yes, the standard probe can operate up to +177°C; extended temperature versions are available.
Q3: What is the frequency response of the system?
A3: The system has a frequency response from 0 to 10 kHz (+0, -3 dB).
Q4: What is the linear measurement range?
A4: The linear range of the probe is 2 mm (80 mils), from 0.25 to 2.3 mm.
Q5: What materials are used for the probe tip and housing?
A5: The probe tip is molded PPS, and the housing is stainless steel (AISI 303/304).
Q6: How does the probe handle humidity?
A6: It is designed to have ≤3% change in scale factor when exposed to 93% relative humidity for up to 56 days.
Q7: Is the probe cable robust for industrial use?
A7: Yes, it features a patented CableLoc design providing 330 N pull strength.
Q8: Can the probe be used interchangeably with older systems?
A8: Yes, it is backward compatible and physically/electrically interchangeable with non-XL 3300 5 mm and 8 mm components.
