Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Bently Nevada 330101-XX-XX-10-02-05 MOD:147773-00-12 |

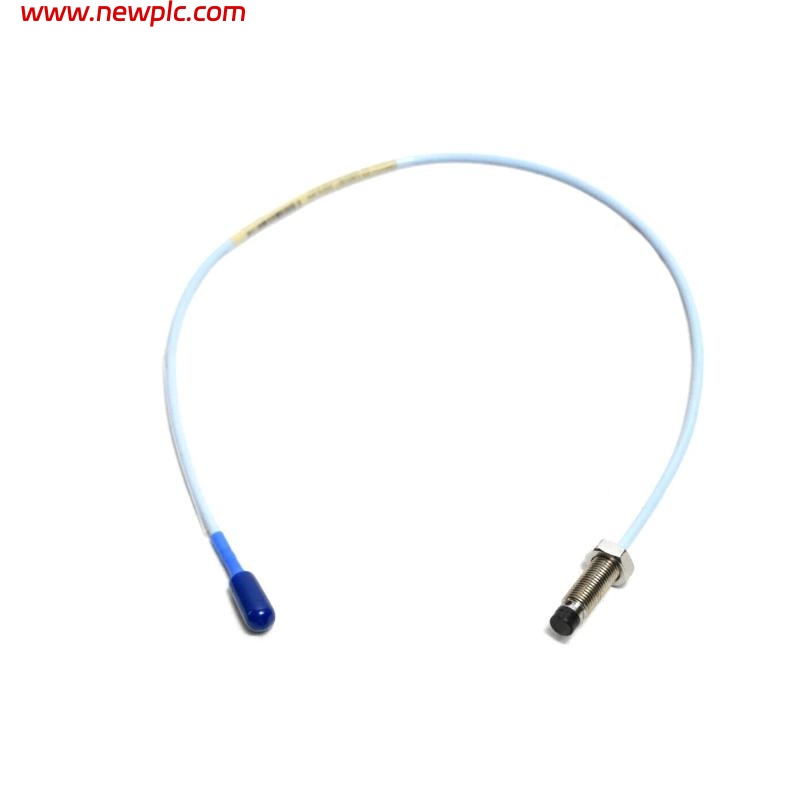

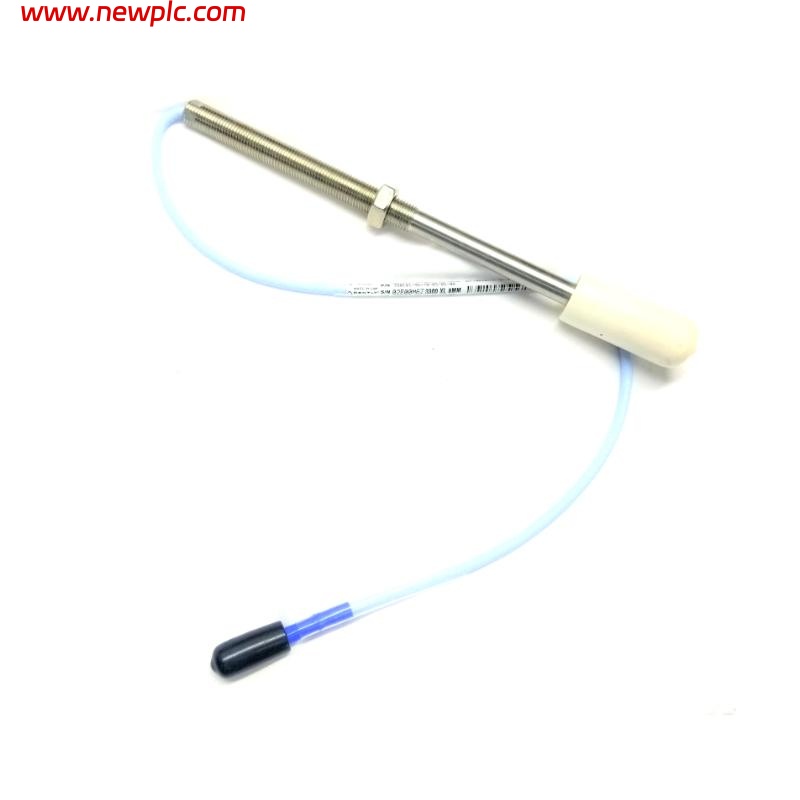

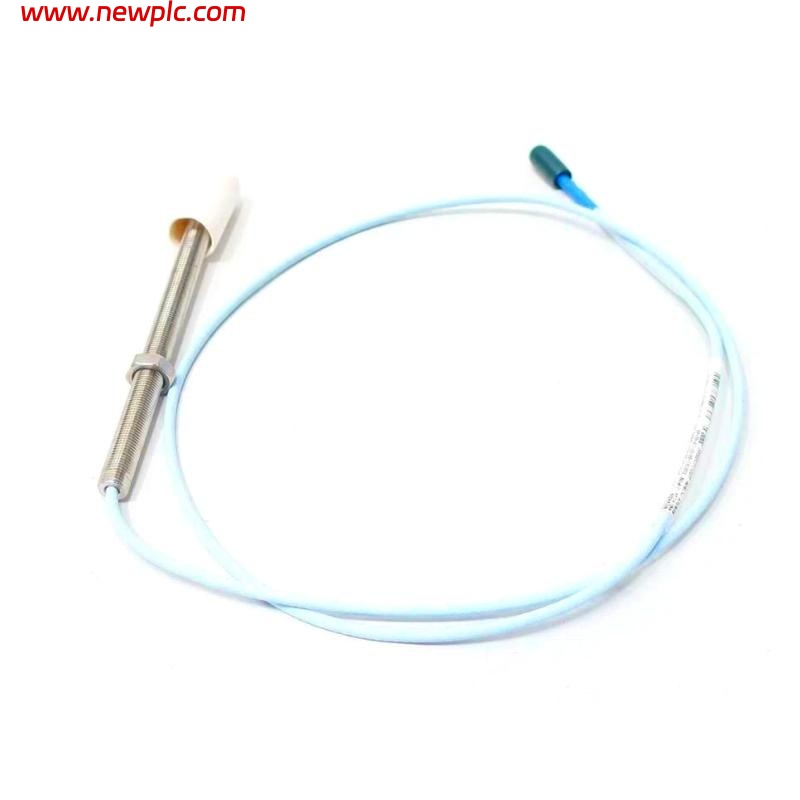

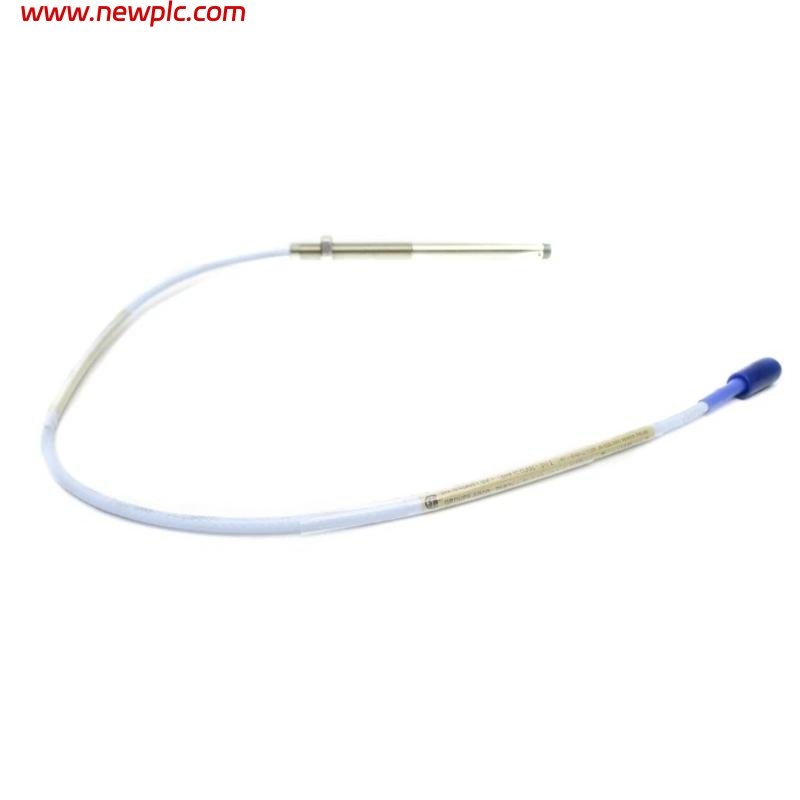

| Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc, standard |
| Recommended Gap Setting | ~1.27 mm (50 mils), -9 VDC |
| Linear Range | 2 mm (80 mils), from ~0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% (standard 1–5 m system) |
| Deviation from Straight Line | ≤ ±0.025 mm (standard 1–5 m system) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Operating Temperature | -52°C to +177°C (standard) |
| Storage Temperature | -52°C to +177°C (standard) |
| Relative Humidity | ≤3% ASF change at 93% RH |
| Compliance | API 670 compliant; CE, FCC, RoHS, SIL2/SIL3 certified |
| Hazardous Area Rating | CSA, ATEX, IECEx (with proper barriers) |
FAQ
FAQ
Q1: What measurement applications is this probe suitable for?
A1: It is suitable for vibration, position, Keyphasor reference, and speed measurements.
Q2: What is the recommended installation gap?
A2: The recommended gap is approximately 1.27 mm (50 mils), corresponding to -9 VDC output.
Q3: Is this probe compliant with API standards?
A3: Yes, it fully meets API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q4: Does the product have hazardous area certifications?
A4: Yes, it is CSA, ATEX, and IECEx certified for hazardous areas when used with proper barriers.
Q5: Is the cable oil-resistant?
A5: Yes, when ordered with the optional FluidLoc cable, it prevents oil and liquid ingress.
Q6: What is the linear measurement range of the probe?
A6: The linear measurement range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Q7: What is the operating temperature range?
A7: The standard probe operates from -52°C to +177°C, and the same applies for storage.
Q8: Is calibration required before use?
A8: No, the probe, extension cable, and Proximitor sensor are fully interchangeable without on-site calibration.
