Technical Specifications
| Parameter | Specification |
|---|---|

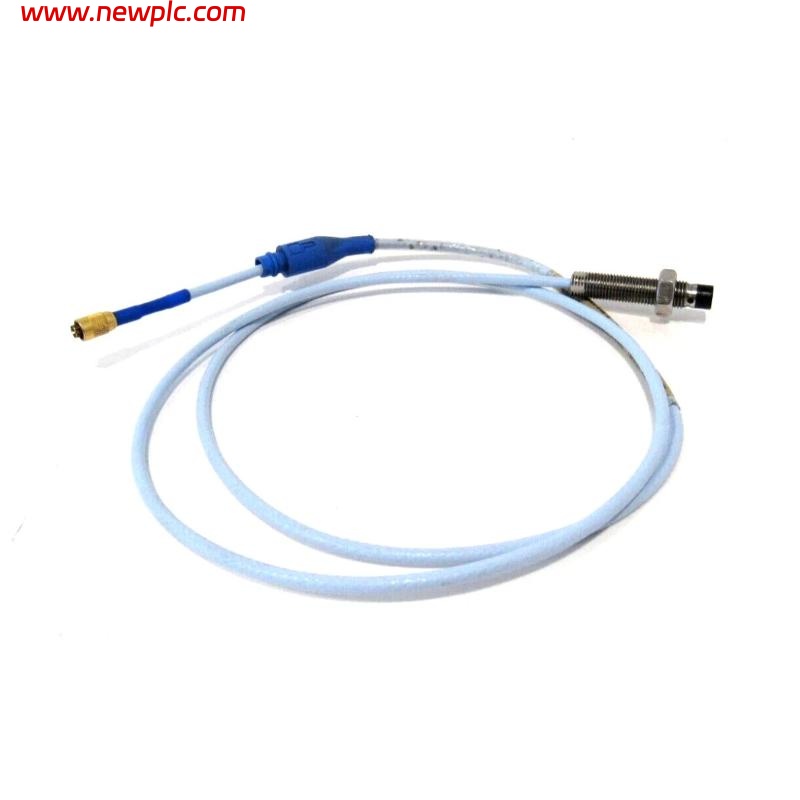

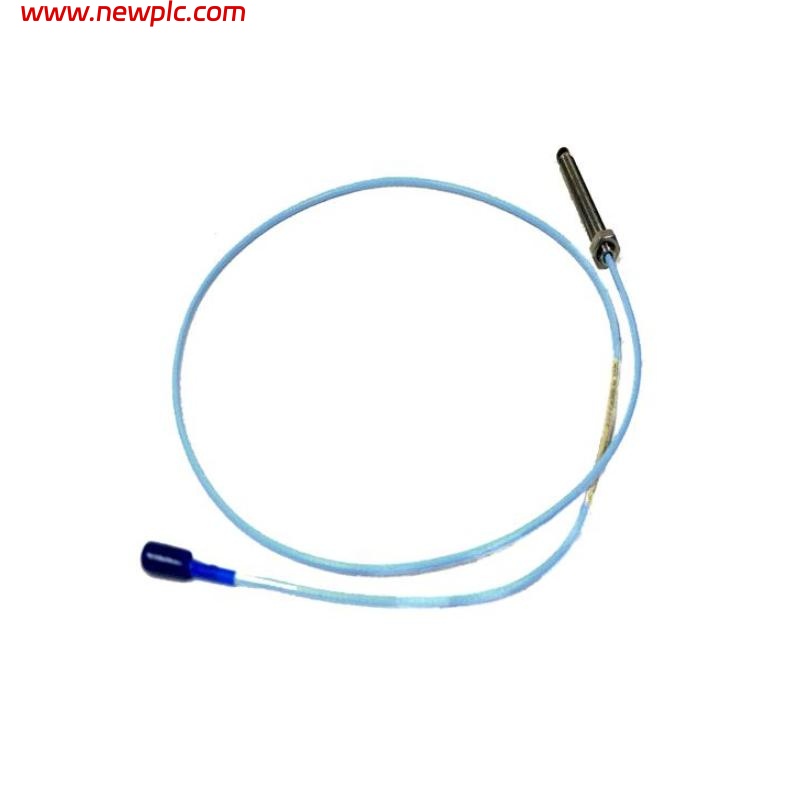

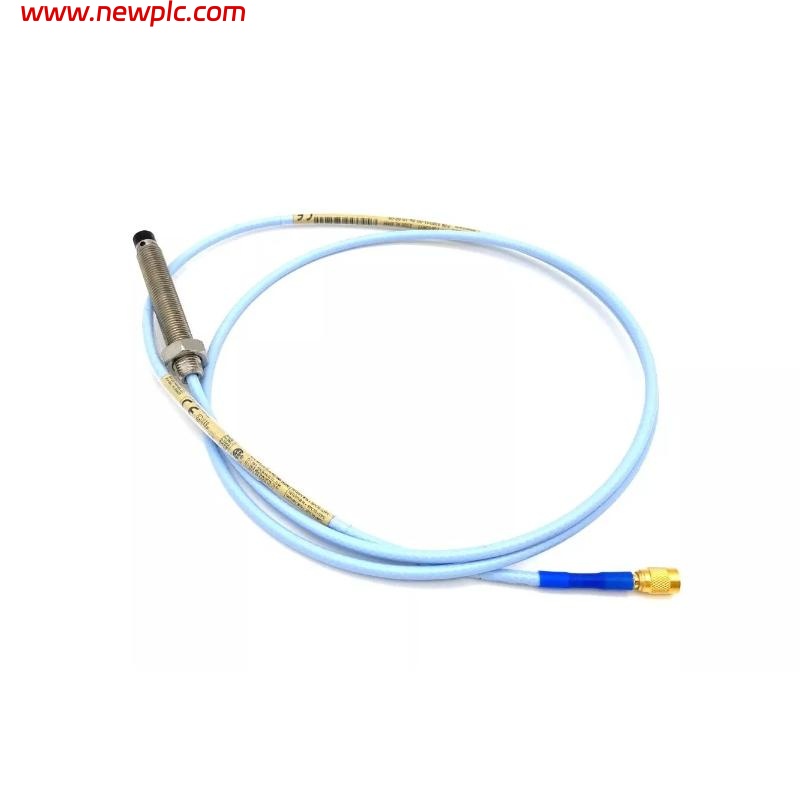

| Model | Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12 |
| Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 2.0 meters |
| Weight | 0.646 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP-insulated |
| Minimum Bend Radius | 25.4 mm |
| Tensile Strength (Probe to Lead) | 330 N |
| Connector Type | Miniature coaxial ClickLoc |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Relative Humidity | ≤3% change @ 93% RH |
| Minimum Shaft Diameter | Recommended ≥76.2 mm |
| Frequency Response | 0 to 10 kHz, ±3 dB |
FAQ
FAQ
Q1: What is the recommended gap setting for this probe?
A1: The recommended gap setting is 1.27 mm (50 mils).
Q2: What is the linear measurement range of the 330101 probe?
A2: The linear measurement range is 2 mm (80 mils).
Q3: What is the maximum operating temperature of this probe?
A3: The maximum operating temperature is +177°C.
Q4: What is the minimum shaft diameter this probe can be used on?
A4: The recommended minimum shaft diameter is 76.2 mm for optimal accuracy.
Q5: What is the minimum bend radius of the cable?
A5: The minimum bend radius of the cable is 25.4 mm.
Q6: What is the frequency response range of this product?
A6: The frequency response range is 0 to 10 kHz, ±3 dB.
Q7: What type of connector does this probe use?
A7: It uses a Miniature coaxial ClickLoc connector with a locking mechanism.
Q8: What is the weight of this probe?
A8: The weight is 0.646 kg.
