Technical Specifications
| Parameter | Value |
|---|---|

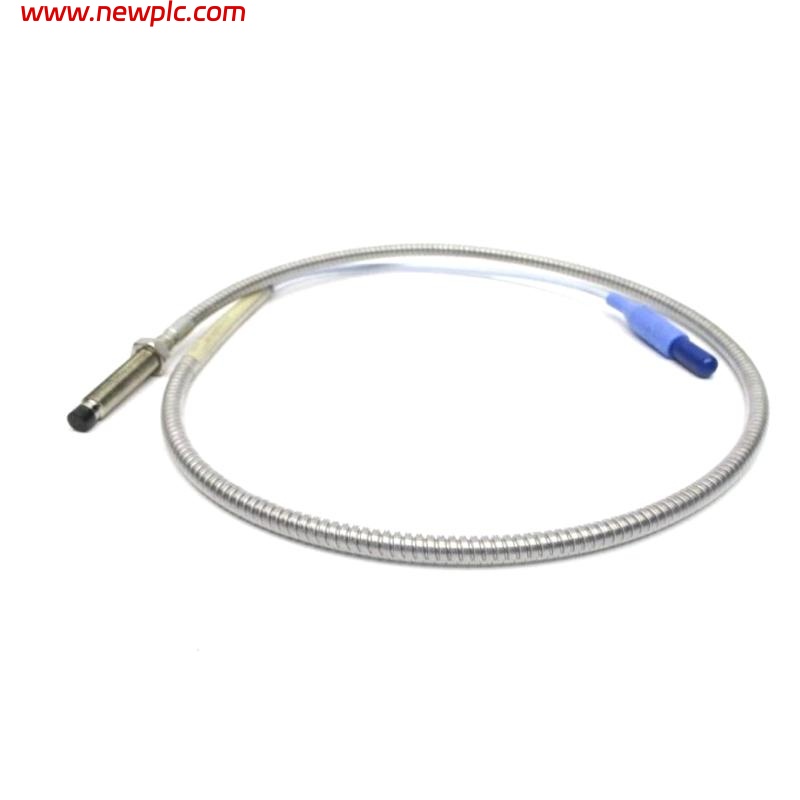

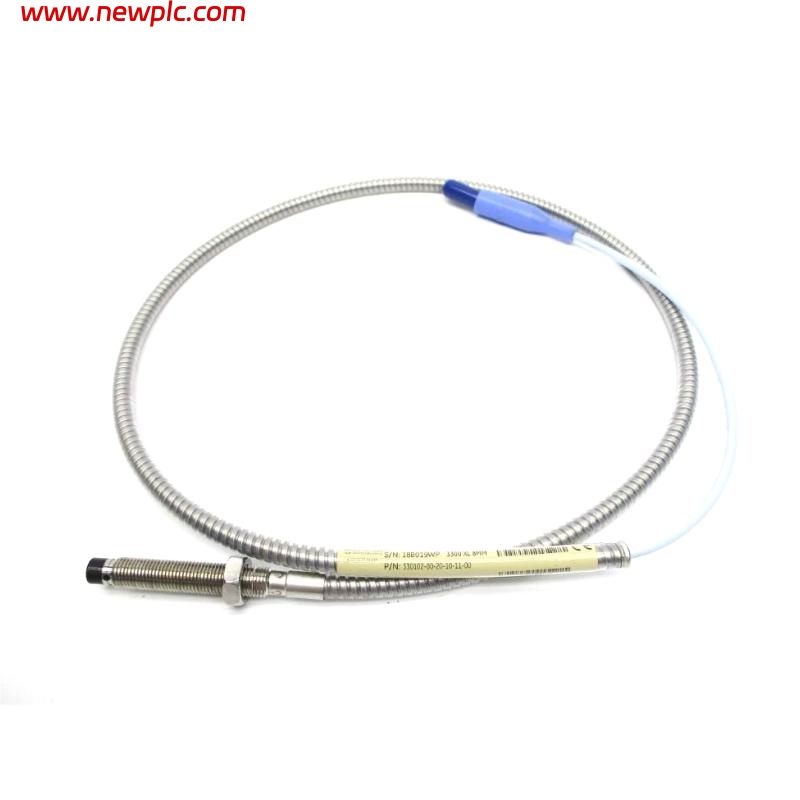

| Model | Bently Nevada 330102-00-20-10-01-05 3300 XL 8 mm Proximity Probe |
| Thread Type | 3/8-24 UNF with armor |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |

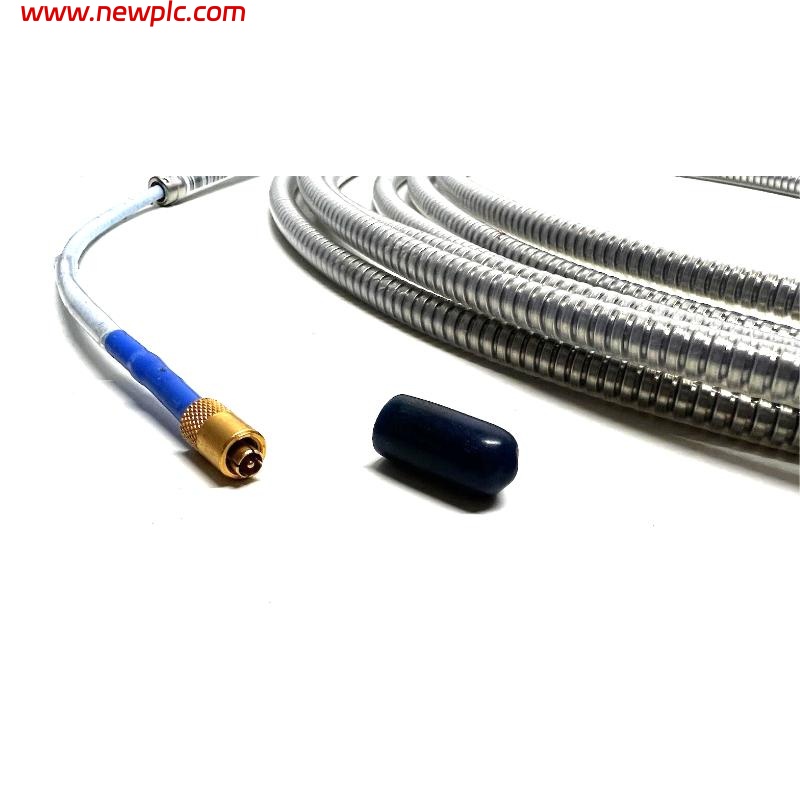

| Cable Type | 75Ω triaxial FEP insulated with ClickLoc connector and protector |
| Minimum Bend Radius | 25.4 mm |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 to 2.3 mm |
| Incremental Scale Factor | 7.87 V/mm ±5% (for 1 m system) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Temperature Range (Probe) | -52°C to +177°C |
| Pressure Seal | Viton® O-ring |
| Tensile Strength | 330 N (probe case to cable) |
| Environmental Compliance | FCC Part 15, RoHS, CE Mark, SIL2/SIL3 |
| Hazardous Area Approvals | CSA, ATEX, IECEx |
| Connector Torque (max) | 0.565 N•m |
FAQ
FAQ
Q1: What is the primary application of this probe?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Q2: Does this model comply with API 670 standards?
A2: Yes, the standard 5-meter system complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Is it compatible with non-XL series components?
A3: Yes, it is electrically and physically interchangeable with 3300 5 mm and 8 mm non-XL components, though system performance will match the lowest-rated component.
Q4: What is the operating temperature range of the probe?
A4: The operating temperature range is -52°C to +177°C.
Q5: Can it prevent fluid leakage?
A5: Yes, with the optional FluidLoc cable, it prevents oil and other fluids from leaking through the cable.
Q6: What is the recommended minimum shaft diameter?
A6: The recommended minimum shaft diameter is 76.2 mm (3 inches) for optimal accuracy.
Q7: Are special tools required for installation?
A7: No, the ClickLoc connectors are designed to be finger-tightened with an audible “click”.
Q8: Does it have hazardous area certifications?
A8: Yes, it is certified for use in hazardous areas, including CSA, ATEX, and IECEx for Zone 0/1/2 applications.
