Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330102-00-24-10-02-00 |

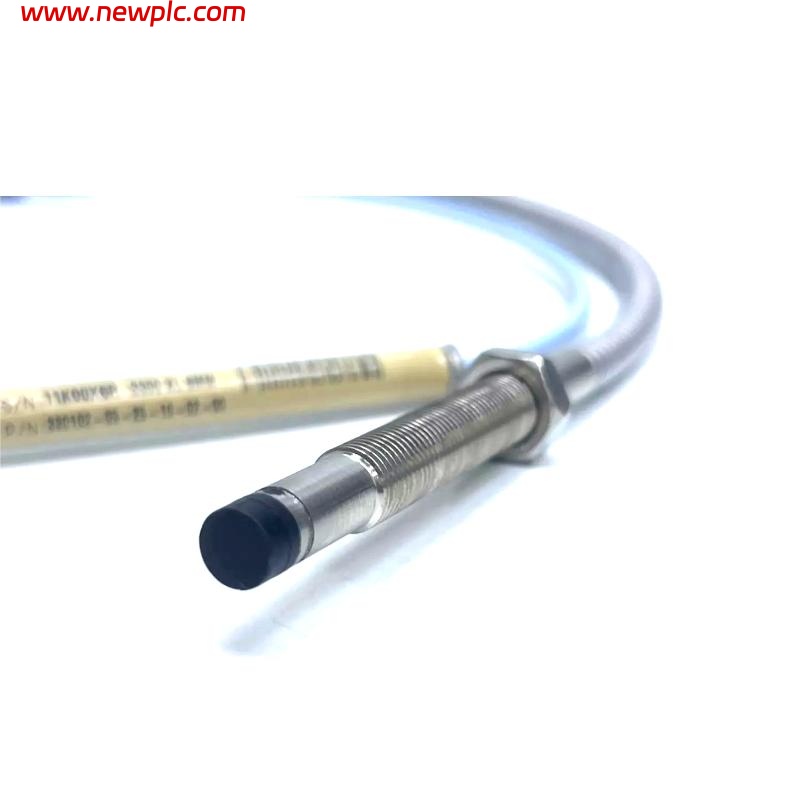

| Probe Type | Forward mount, armored, 8 mm proximity probe |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Probe Case Material | AISI 303 or 304 stainless steel |

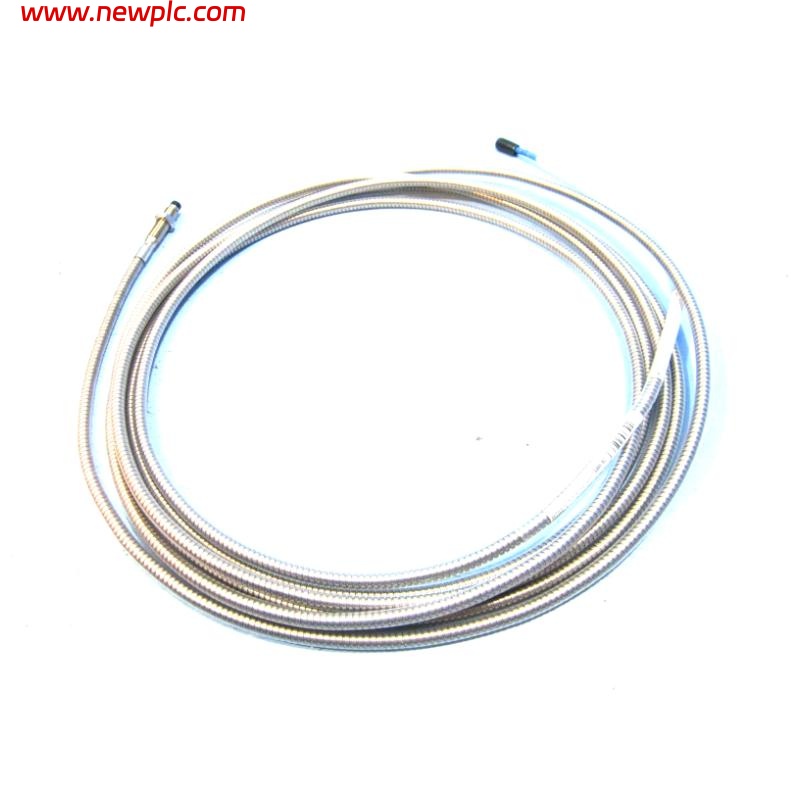

| Cable Type | 75Ω triaxial, FEP insulated, armored |

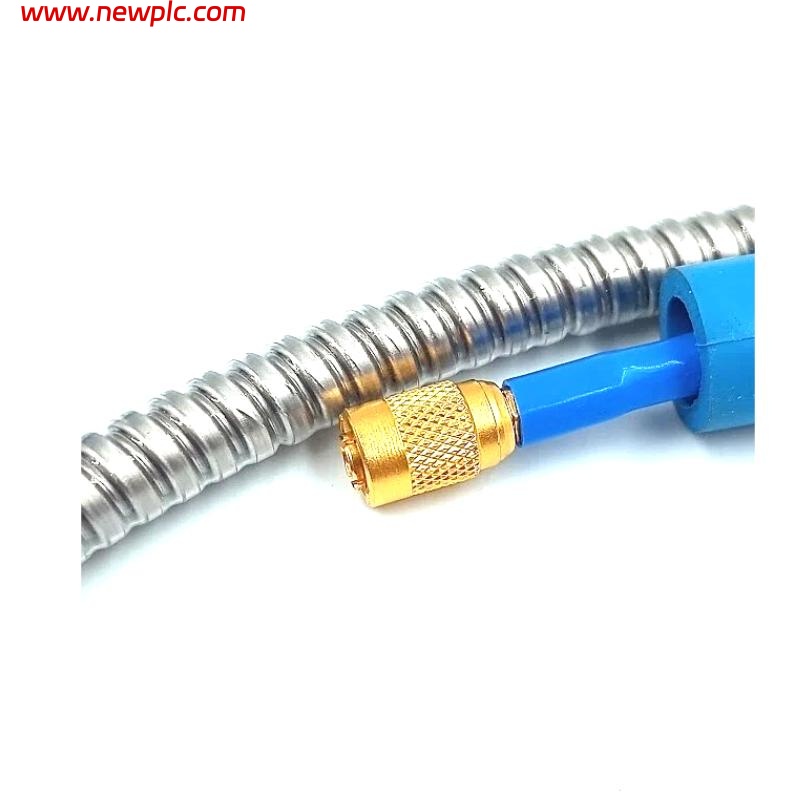

| Connector Type | Miniature coaxial ClickLoc connector |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Total Length | 1.0 meter |
| Recommended Gap | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (1 m system) |
| System Accuracy (DSL) | ≤ ±0.025 mm (±1 mil) for 1 m system |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C |
| Weight | 0.323 kg (probe), approx. 0.4 kg total with extension |
| Minimum Target Shaft Diameter | 50.8 mm (2 in); Recommended: ≥76.2 mm (3 in) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Environmental Protection | Suitable for Class I, Zone 0, AEx/Ex ia IIC T5/T1 Ga installations |
FAQ
FAQ
Q1: What are the main applications of the Bently Nevada 330102-00-24-10-02-00 probe?
A1: It is mainly used for shaft vibration and axial position monitoring in fluid-film bearing machines, as well as for Keyphasor phase reference and speed measurements.
Q2: Does this probe comply with API 670 standards?
A2: Yes, this model fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: What is the output voltage proportional to?
A3: The output voltage is directly proportional to the distance between the probe tip and the observed conductive surface.
Q4: Is this probe compatible with older non-XL 3300 series components?
A4: Yes, the 330102 probe is both electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm components.
Q5: What is the maximum operating temperature supported by the probe?
A5: The standard probe supports up to +177°C; the Extended Temperature Range version supports up to +218°C.
Q6: What is the recommended minimum spacing for installation?
A6: Recommended spacing is ≥40 mm for axial and ≥38 mm for radial measurements to limit crosstalk to ≤50 mV.
Q7: What installation torque is recommended for the probe?
A7: Recommended torque is 11.2 N•m (100 in•lbf), not to exceed 33.9 N•m (300 in•lbf).
Q8: Does the probe require matched components for proper operation?
A8: No, all 3300 XL 8 mm components are fully interchangeable, eliminating the need for matched pairs or field calibration.
