Technical Specifications Table
| Item | Specification |
|---|---|
| Product Model | 330102-00-16-10-02-00 |

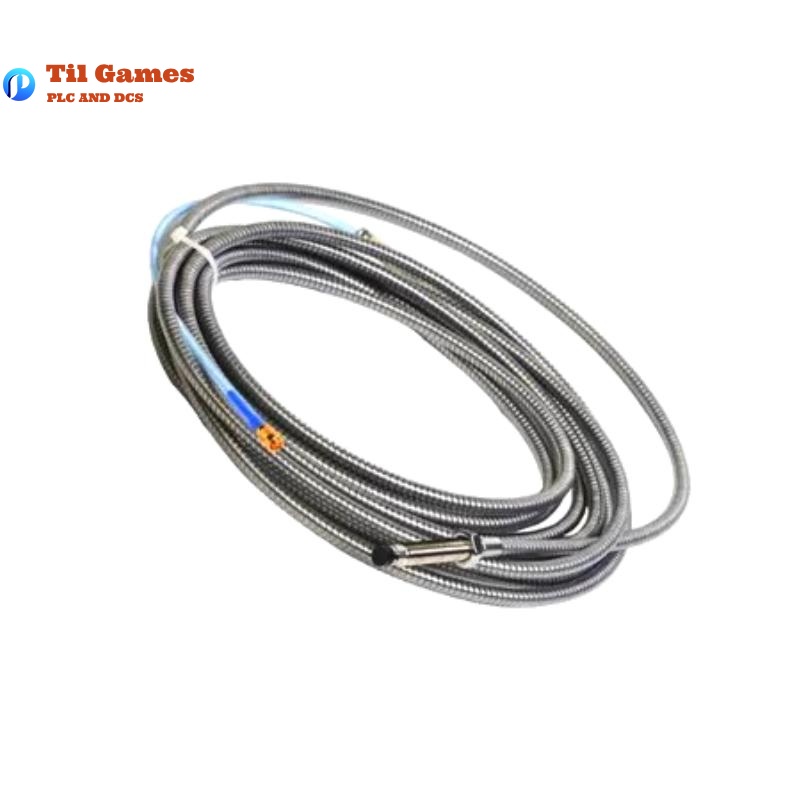

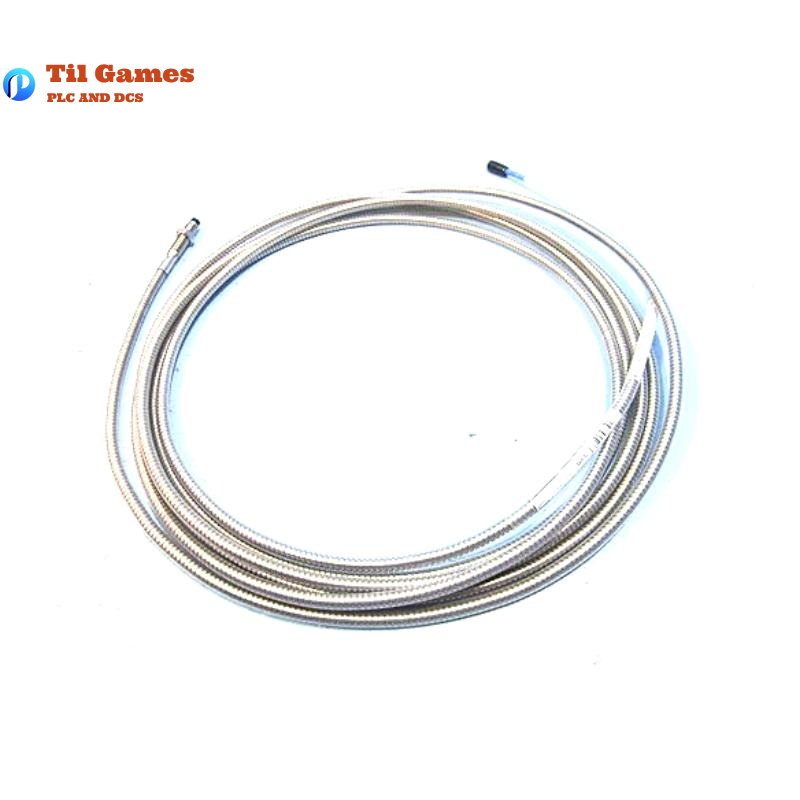

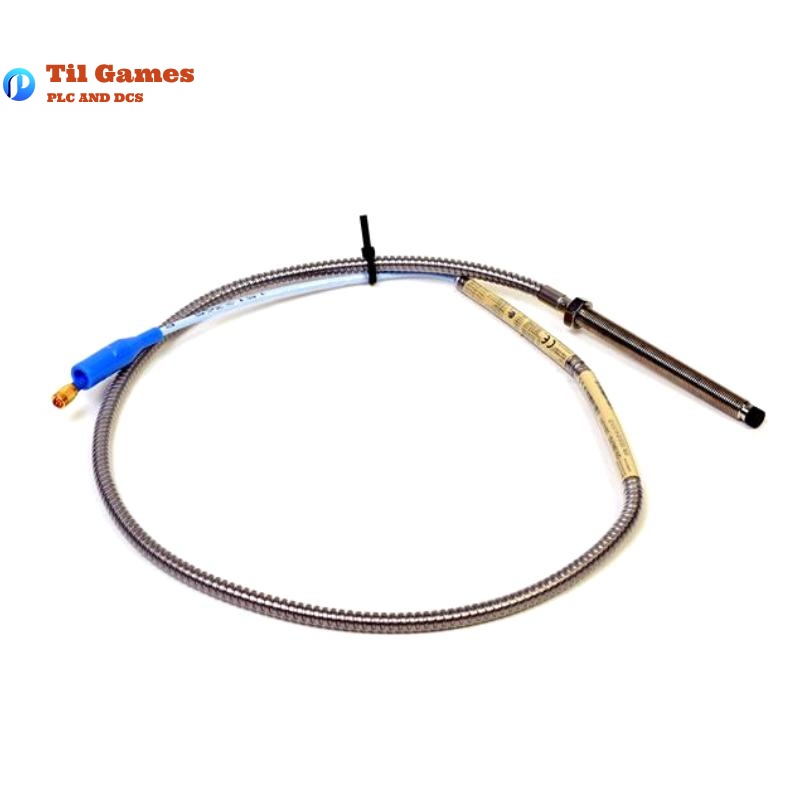

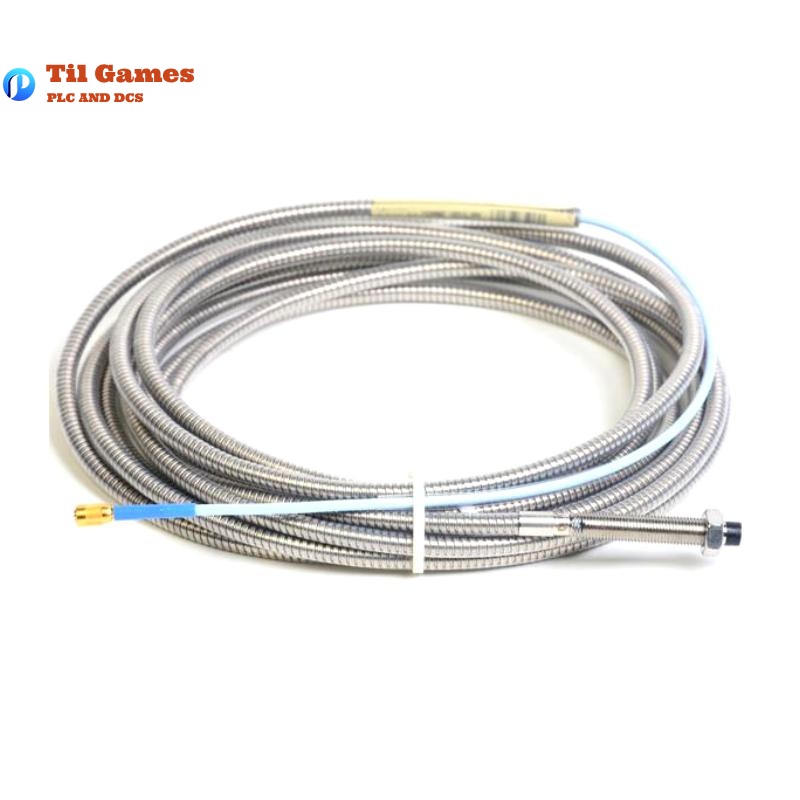

| Probe Type | 3300 XL 8 mm Proximity Probe with armor |
| Tip Diameter | 8 mm (0.31 in) |
| Materials | Tip: PPS; Case: AISI 303 or 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated cable with armor |
| Cable Armor OD | 7.67 mm (0.302 in) |
| Total Length | 1.0 meter (3.3 feet) |
| Tensile Strength | 330 N (probe to lead); 270 N (lead to extension cable) |
| Recommended Torque | 11.2 N·m (100 in·lbf) |
| Power Requirements | -17.5 Vdc to -26 Vdc, max 12 mA current |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (1 meter system) |
| Linear Range | 2.0 mm (80 mils), recommended gap: 1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Recommended Shaft Size | Minimum 76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat surface) |
| Operating Temperature | -52°C to +177°C (Probe) |
| Storage Temperature | -52°C to +177°C (Probe) |
| Humidity Resistance | <3% ASF variation @ 93% RH, per IEC 68-2-3 for 56 days |
| Total System Weight | Approx. 0.323 kg (Probe portion, 1 meter length) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What can this probe measure?
A1: It measures shaft displacement, vibration, and speed. Ideal for fluid-film bearing machinery monitoring.
Q2: Can the probe work without an extension cable?
A2: Yes. The 1-meter version operates without a separate extension cable.
Q3: Is the 330102 probe suitable for high-temperature applications?
A3: The standard version supports up to 177°C. Use ETR models for higher temperature needs.
Q4: Is it compatible with other 3300-series components?
A4: Yes. It is electrically and physically compatible with both XL and non-XL 3300 5 mm and 8 mm systems.
Q5: What is the recommended gap voltage setting?
A5: -9 Vdc, which corresponds to a 1.27 mm (50 mils) physical gap.
Q6: How are the connectors secured?
A6: The probe uses ClickLoc connectors that click into place. No tools are required.
Q7: What is the pressure capability of the probe?
A7: The probe is designed with a Viton O-ring for pressure sealing but is not pressure-tested at the factory.
Q8: Does this system comply with API 670?
A8: Yes, the 3300 XL 8 mm standard system complies with API 670 for mechanical design, linear range, accuracy, and thermal stability.
