Technical Specifications
| Item | Description |
|---|---|

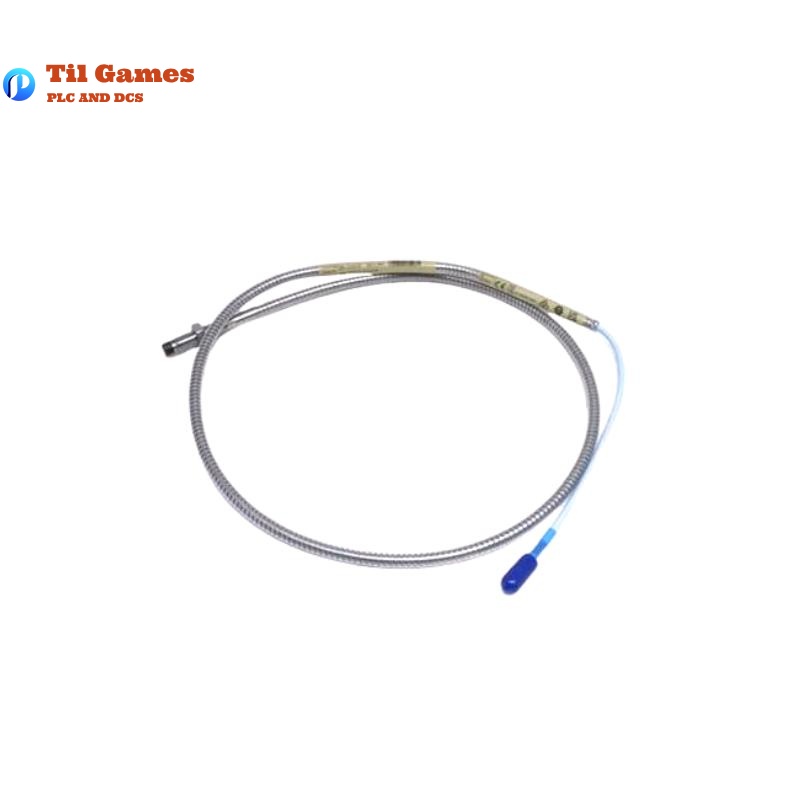

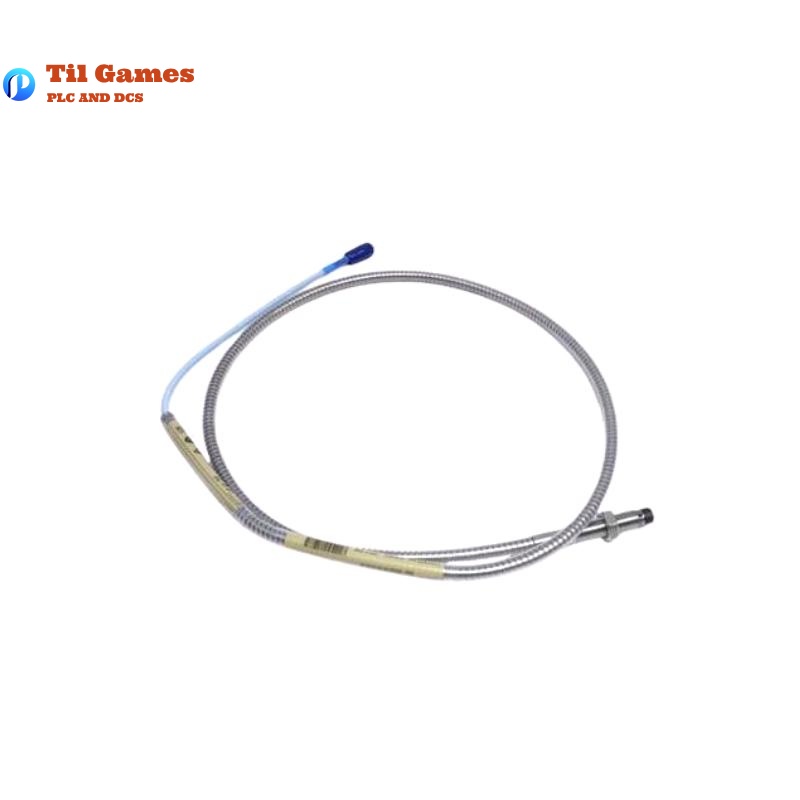

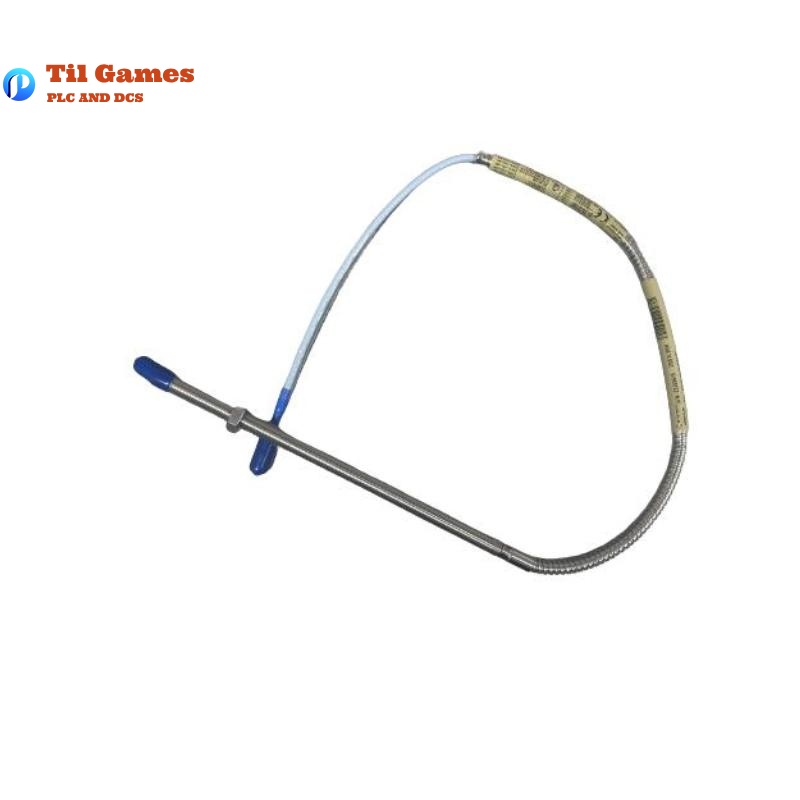

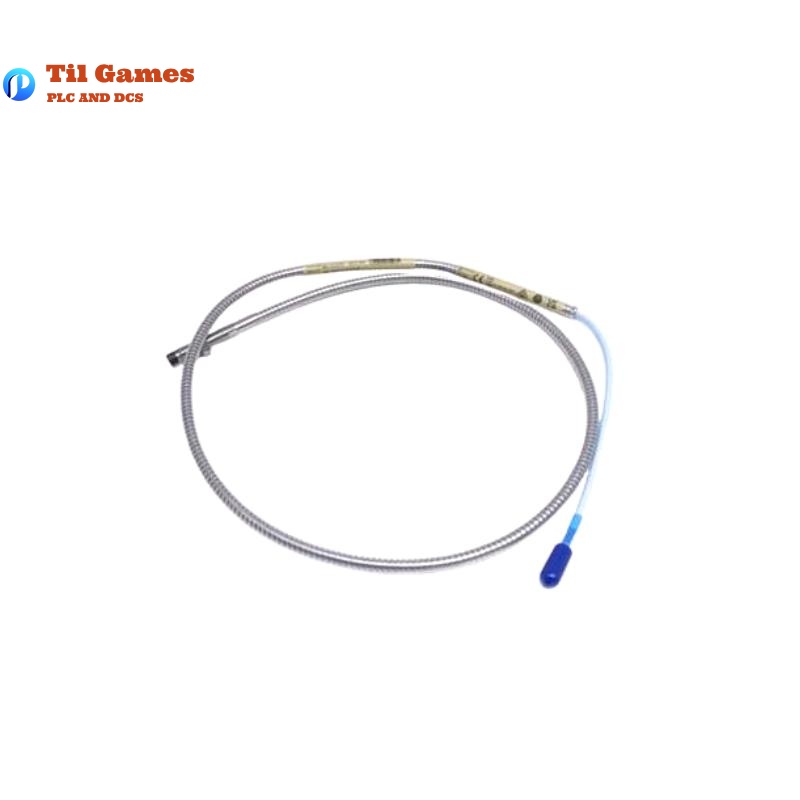

| Probe Model | Bently Nevada 330102-00-28-10-02-05 |
| System Components | 3300 XL 8 mm probe + Extension cable + 3300 XL Proximitor Sensor |
| Probe Type | 8 mm eddy current proximity probe with armor |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Cable Type | 75Ω triaxial cable, FEP insulated; armored with AISI 302/304 SST |
| Mount Thread | 3/8-24 UNF-2A (inch thread) |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (5-meter system) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Target Size | ≥ 15.2 mm (0.6 in) diameter |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Total Length | 1.0 meter (no extension cable included) |
| Total Weight | Approx. 0.323 kg (0.71 lb) |
| Operating Temp (Standard) | -52°C to +177°C |
| Storage Temp (Probe) | -52°C to +177°C |
| Humidity Effect | <3% change in Average Scale Factor at 93% RH for up to 56 days |
| Certification | Complies with API 670, CE, RoHS, SIL 2/3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this probe suitable for high-temperature applications?
A1: Yes, with the ETR version, the probe can withstand up to 218°C and extension cables up to 260°C.
Q2: Is it compatible with older 3300-series systems?
A2: Yes, it is backward-compatible with 3300 5 mm and 8 mm systems, though performance is limited by non-XL parts.
Q3: What is the recommended probe gap setting?
A3: The recommended gap is approximately 1.27 mm, corresponding to -9 VDC output for optimal linear range.
Q4: What shaft diameter is suitable for use with this probe?
A4: Shafts with diameter ≥ 76.2 mm are recommended to minimize cross-talk and maintain accuracy.
Q5: Do the connectors require special tools?
A5: No, ClickLoc connectors are finger-tight with anti-loosening features, no tools needed.
Q6: Does the probe feature oil-resistant sealing?
A6: Yes, the optional FluidLoc cable prevents fluid ingress through the cable interior.
Q7: What is the maximum pull strength on the probe?
A7: The probe assembly can withstand up to 330 N (75 lbf) from probe to cable.
Q8: What certifications does the probe system hold?
A8: Certified under CSA, ATEX, IECEx, and SIL levels, suitable for hazardous environments.
