Technical Specifications
| Parameter | Value |
|---|---|
| Model | Bently Nevada 330102-00-25-50-11-00 |

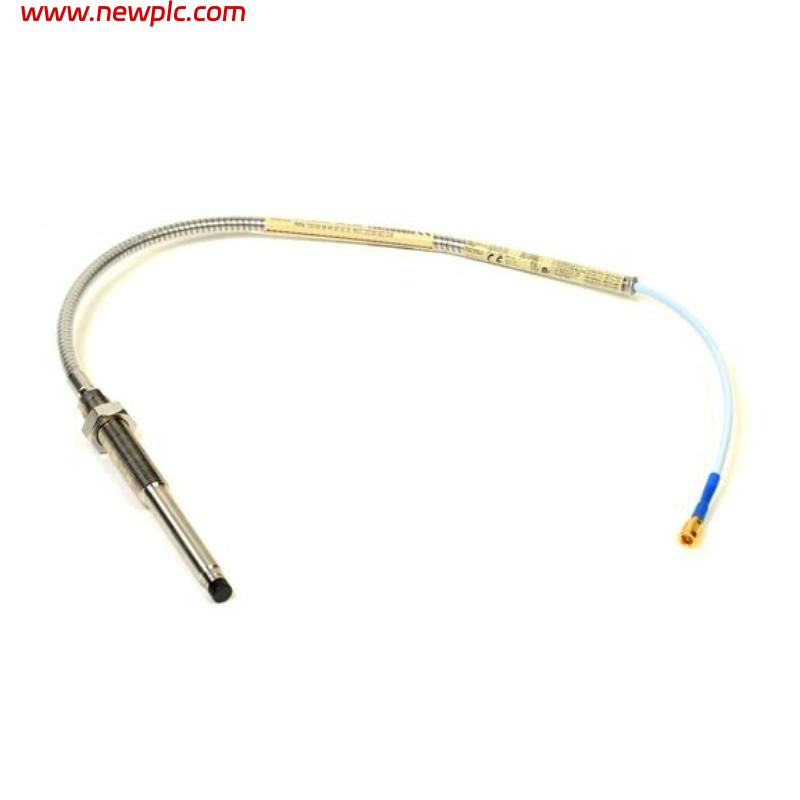

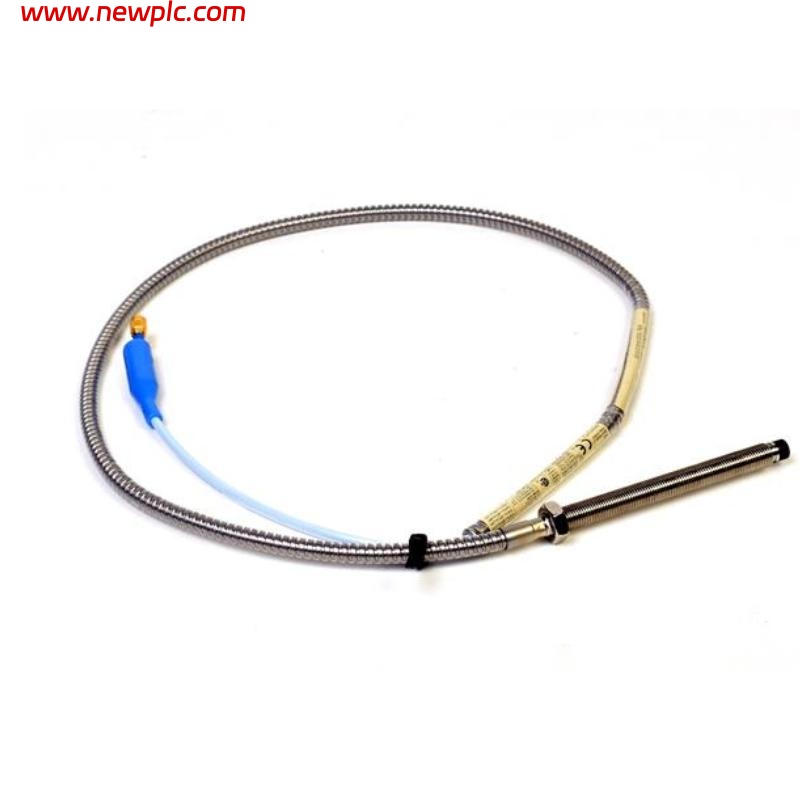

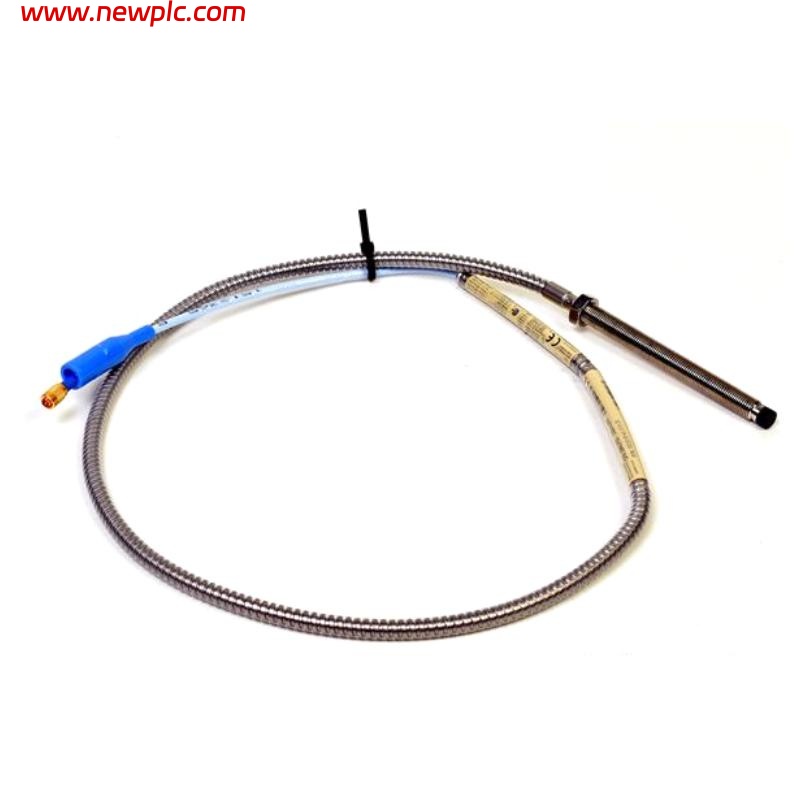

| Type | 3300 XL 8 mm Proximity Probe (armored) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | 3/8-24 UNF |
| Cable Type | FluidLoc, armored, ClickLoc connector with protector |
| Total Length | 5.0 meters (16.4 ft) |
| Weight | Approx. 1.615 kg |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Extended Temp Range (optional) | up to +218°C (probe tip), +260°C (cable) |
| Material (Probe Case) | Stainless Steel (AISI 303/304) |
| Material (Probe Tip) | Polyphenylene sulfide (PPS) |
| Cable Bend Radius | Minimum 25.4 mm (1.0 in) |
| Tensile Strength | Max. 330 N (probe to lead), 270 N (lead to cable) |
| Nominal DC Resistance (Probe) | Approx. 8.73 ± 0.50 Ω |
| Capacitance (Cable) | 69.9 pF/m typical |
FAQ
FAQ
Q1: Is the cable oil-resistant?
A1: Yes, it uses FluidLoc technology to prevent oil leakage through the cable interior.
Q2: What is the maximum operating temperature?
A2: Standard version supports up to 177°C; with the optional ETR version, the probe tip can withstand up to 218°C and the cable up to 260°C.
Q3: What measurements is this probe suitable for?
A3: It is primarily used for bearing position and vibration measurements, as well as Keyphasor reference and speed measurements.
Q4: What is the total weight of this probe?
A4: The total weight of the probe is approximately 1.615 kg.
Q5: Is it compatible with older 3300 series probes?
A5: Yes, the 3300 XL series is electrically and mechanically compatible with non-XL 3300 5mm and 8mm probes.
Q6: What is the minimum cable bend radius?
A6: The minimum bend radius for the cable is 25.4 mm (1.0 inch).
Q7: Does it have hazardous area certifications?
A7: Yes, it meets CE and ATEX requirements for hazardous area installations.
Q8: Can it be used on small diameter shafts?
A8: It is recommended for shaft diameters of at least 50.8 mm, with an ideal of 76.2 mm or larger for optimal performance.
