Technical Specifications
| Parameter | Specification |
|---|---|

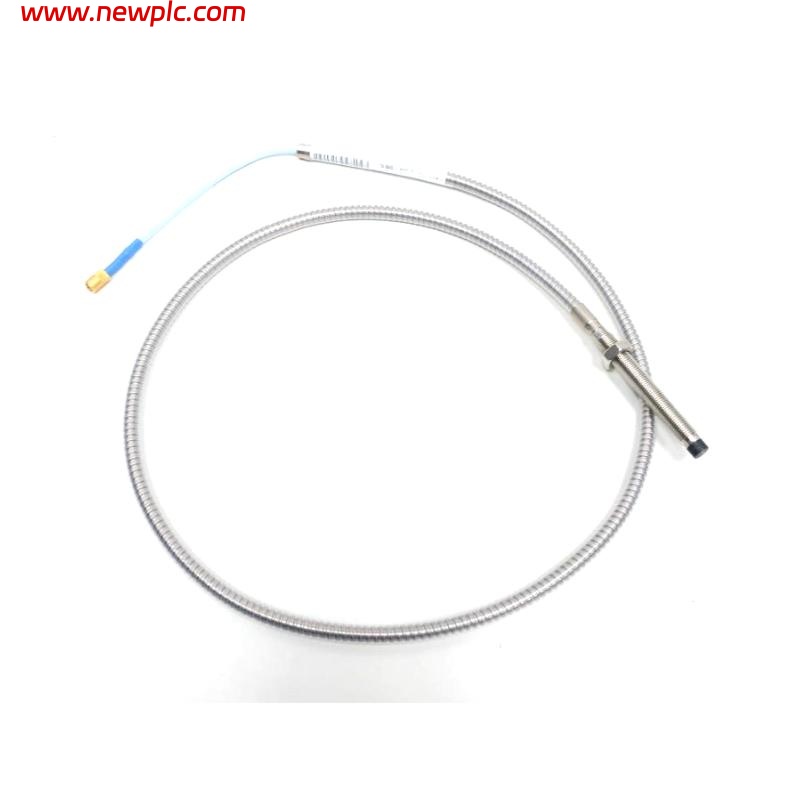

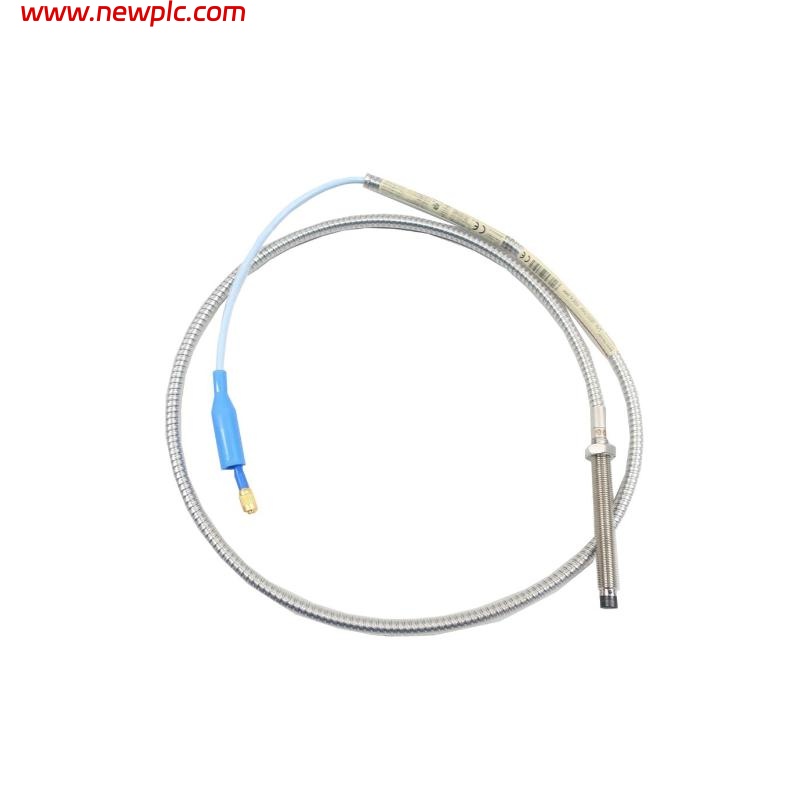

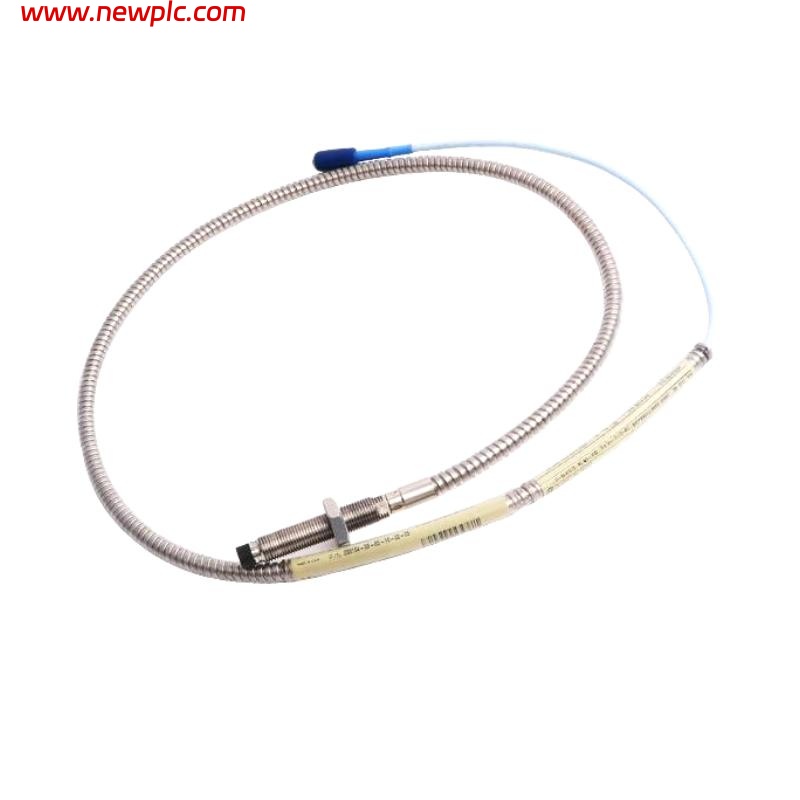

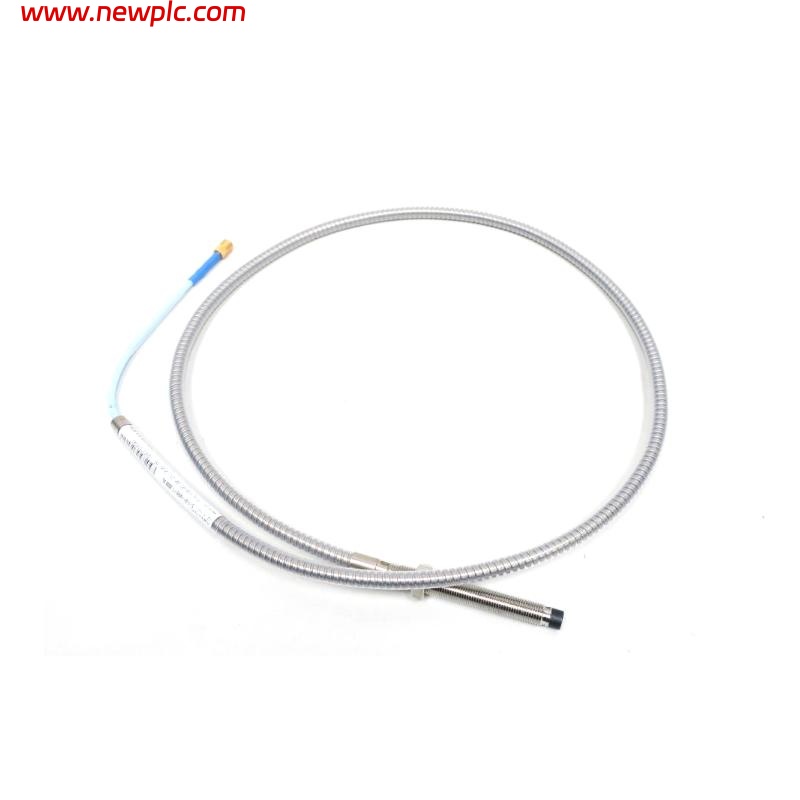

| Model | Bently Nevada 330102-00-27-10-02-05 3300 XL 8 mm Proximity Probe |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated, armored |
| Connector | Miniature coaxial ClickLoc, gold-plated brass or beryllium copper |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Operating Temperature (Cable) | -52°C to +177°C (Standard), up to +260°C (ETR) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Minimum Shaft Diameter | Recommended ≥76.2 mm (3 in) |
| Tensile Strength | 330 N (75 lbf) probe to lead, 270 N (60 lbf) lead to extension |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What measurements does this probe support?
A1: It supports vibration, displacement, Keyphasor reference, and speed measurements.
Q2: What is the minimum bend radius of the probe cable?
A2: The minimum allowable bend radius is 25.4 mm (1 inch).
Q3: Can this probe be used with non-XL 3300 series components?
A3: Yes, it is interchangeable but performance is limited to the non-XL specifications.
Q4: Are special tools required for installation?
A4: No special tools are required. The ClickLoc connectors can be hand-tightened with a “click” confirmation.
Q5: In what environments can this probe be installed?
A5: Suitable for high-density DIN rail or traditional panel installations with high RFI/EMI immunity.
Q6: What is the recommended minimum shaft diameter?
A6: The recommended minimum shaft diameter is 76.2 mm (3 inches), with no theoretical upper limit.
Q7: Does the probe prevent oil leakage through the cable?
A7: Yes, the optional FluidLoc cable effectively prevents oil and liquid leakage along the cable interior.
Q8: What is the recommended installation torque?
A8: The recommended installation torque is between 7.5–11.2 N•m (66–100 in•lbf).
