Technical Specifications
| Parameter | Value |
|---|---|

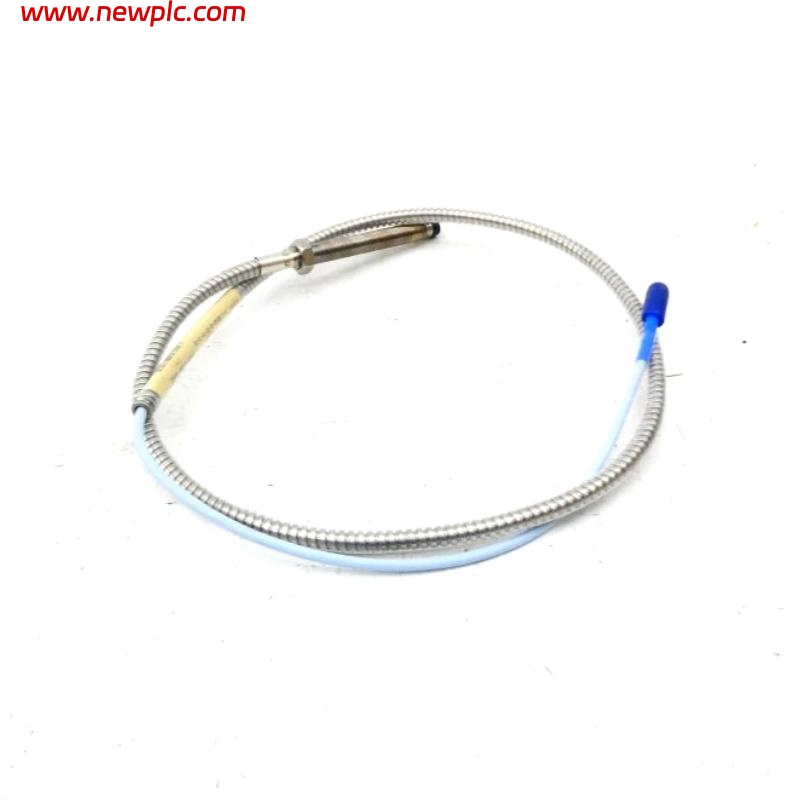

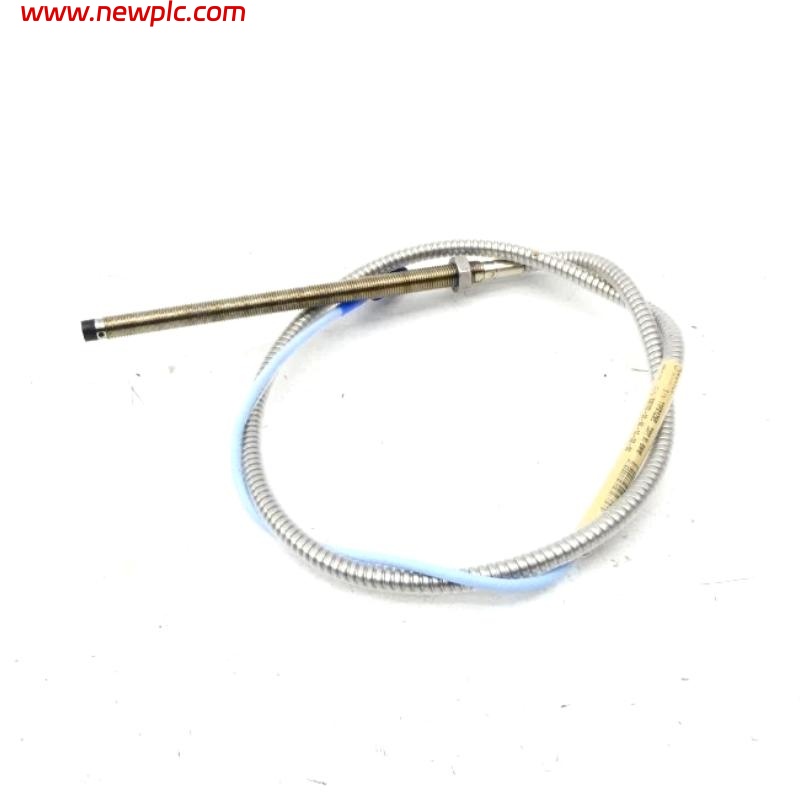

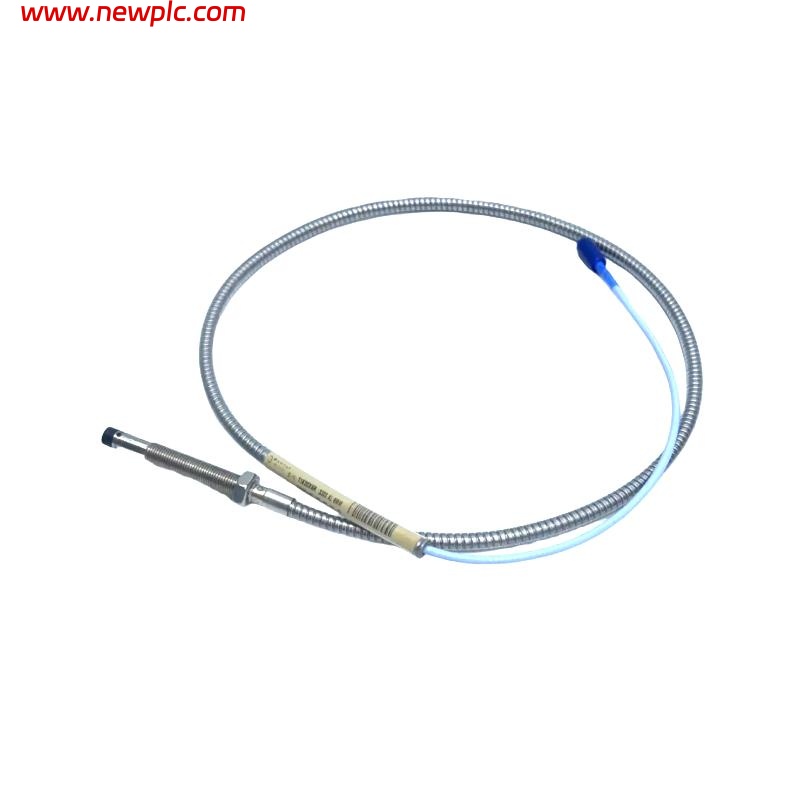

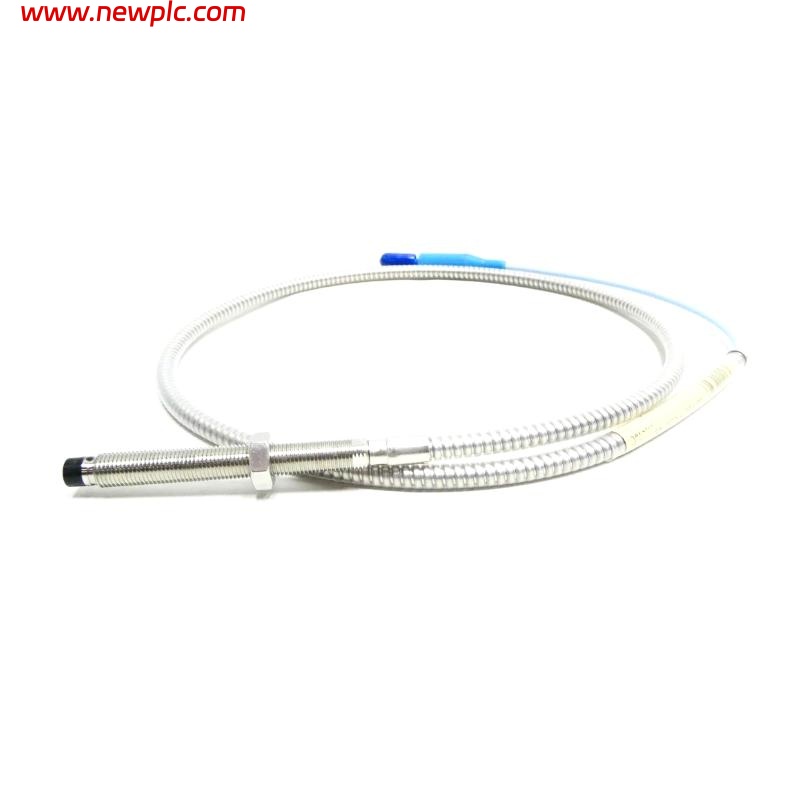

| Model | Bently Nevada 330102-00-72-10-01-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe (with armor) |
| Thread | 3/8-24 UNF |
| Cable Length | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc connector |
| Temperature Range | -52°C to +177°C (probe), -52°C to +177°C (cable) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Recommended Shaft Dia. | ≥76.2 mm (3 in) |
FAQ
FAQ
Q1: What is the typical application of this probe?
A1: It is used for vibration and position measurements on fluid-film bearing machines, and for Keyphasor reference and speed measurements.
Q2: What is the linear measurement range of the probe?
A2: The linear range is 0.25 mm to 2.3 mm (10 to 90 mils).
Q3: What is the recommended gap setting?
A3: The recommended gap is 1.27 mm (50 mils).
Q4: What is the maximum operating temperature?
A4: The operating temperature range is -52°C to +177°C.
Q5: What is the minimum target size?
A5: The minimum flat target diameter required is 15.2 mm (0.6 in).
Q6: How much does this probe weigh?
A6: The total weight is approximately 0.323 kg.
Q7: What is the frequency response of this probe?
A7: The frequency response is 0 to 10 kHz, +0/-3 dB.
Q8: Does the probe have safety or hazardous area certifications?
A8: Yes, it complies with CSA, ATEX, and IECEx certifications.
