Technical Specifications
| Parameter | Value |
|---|---|

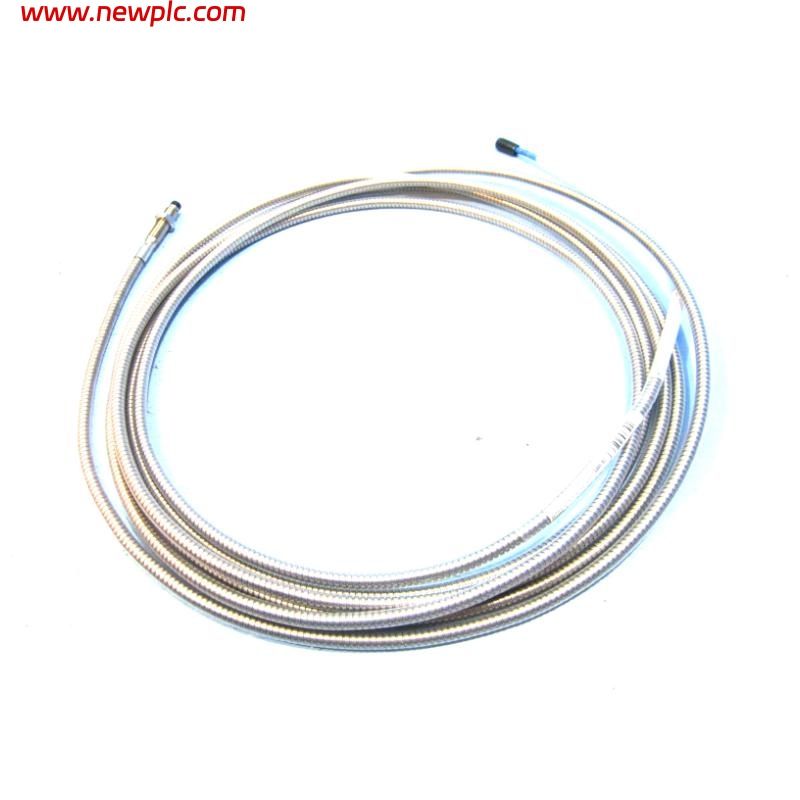

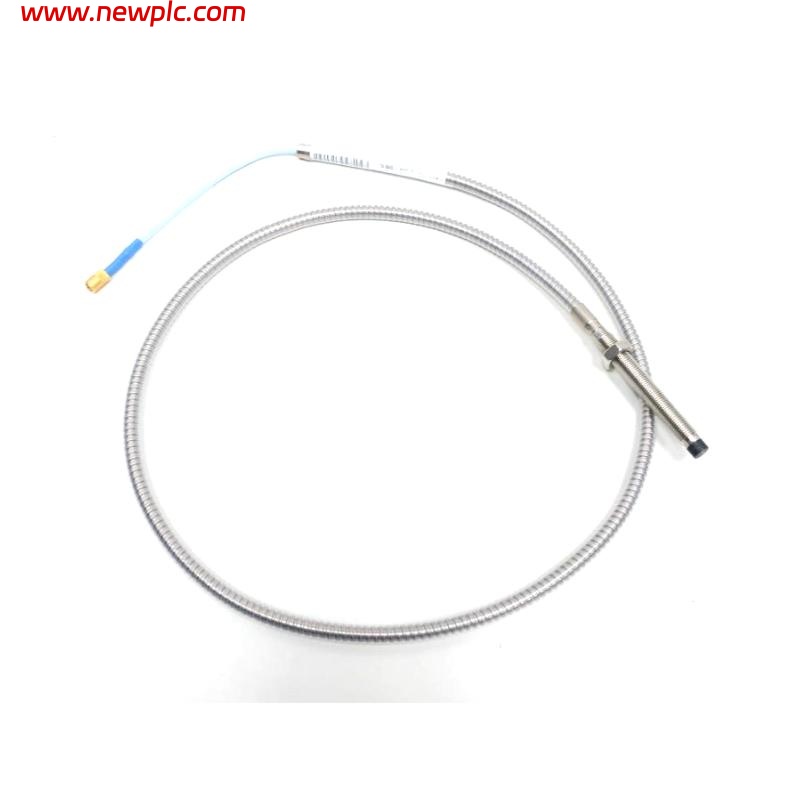

| Model | Bently Nevada 330102-00-80-10-02-00 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Minimum Bend Radius | 25.4 mm |
| Maximum Tensile Strength | 330 N (probe case to lead) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Linear Range | 0.25 – 2.3 mm |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Humidity | <3% ASF change at 93% RH (56 days) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Output Sensitivity | 7.87 V/mm ±5% (standard 1m system) |
| Shaft Minimum Diameter | 50.8 mm |
| Minimum Target Size | 15.2 mm diameter |

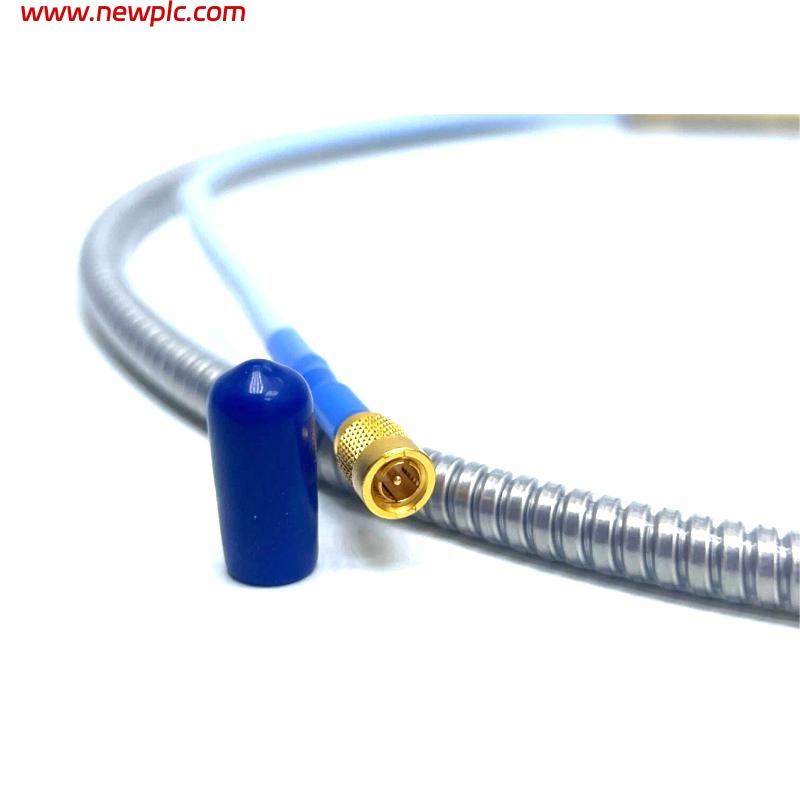

| Environmental Protection | Gold-plated ClickLoc connectors with optional protector |
FAQ
FAQ
Q1: What are the typical applications of this probe?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines, as well as for Keyphasor reference and speed measurements.
Q2: Does this product comply with API 670?
A2: Yes, the standard 5-meter system meets the API 670 standard for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Is the 330102 probe interchangeable with other 3300 XL components?
A3: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm system components.
Q4: How does the probe perform under high temperatures?
A4: The standard probe operates up to 177°C. An ETR (Extended Temperature Range) version is available for higher temperatures.
Q5: Does the cable resist oil leakage?
A5: Yes, if ordered with the optional FluidLoc cable, it prevents oil and other liquids from leaking through the cable interior.
Q6: Are any special tools required for installation?
A6: No, the ClickLoc connectors require only hand-tightening until you hear a “click”.
Q7: What is the recommended spacing between probes?
A7: For radial measurements, a minimum spacing of 38 mm between probes is recommended to limit crosstalk.
Q8: Does the 330102 probe require individual calibration?
A8: No, it is factory-calibrated to AISI 4140 steel and does not require field matching or calibration.
