Technical Specifications
| Parameter | Specification |
|---|---|

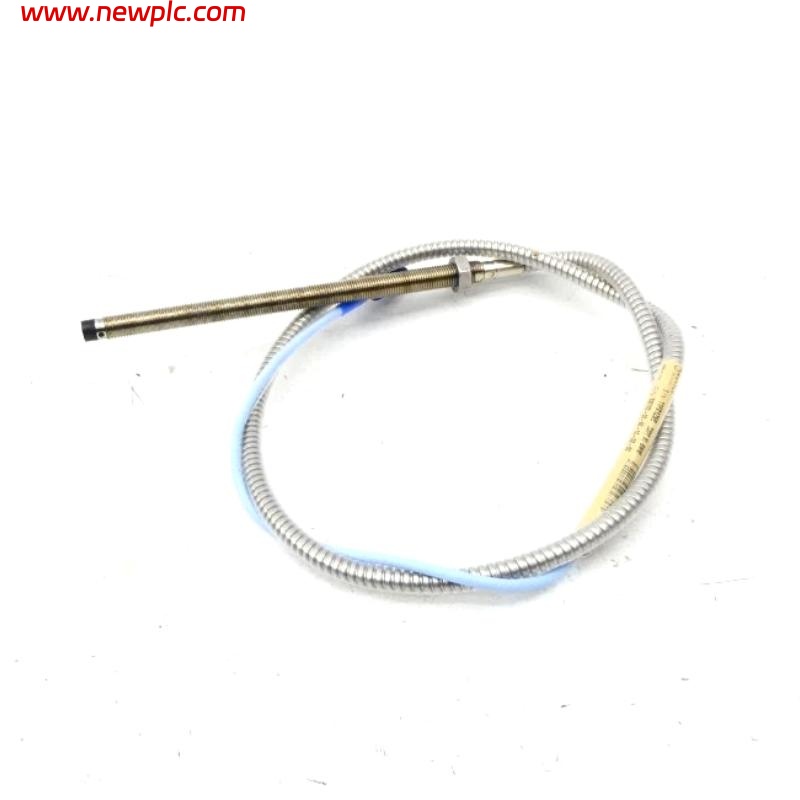

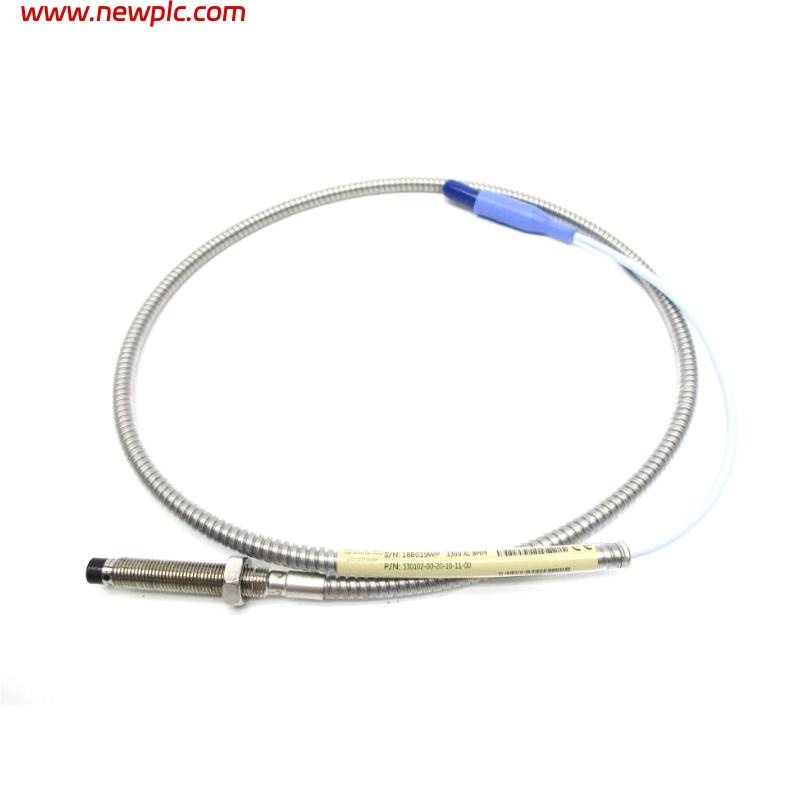

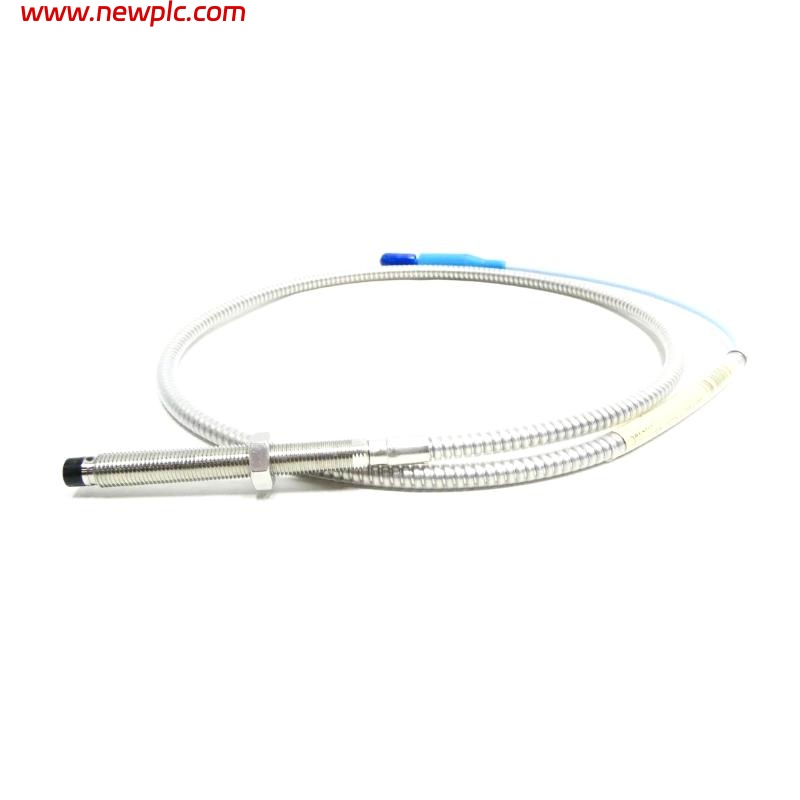

| Model | Bently Nevada 330102-10-40-05-01-00 3300 XL 8 mm Proximity Probe |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Probe Cable | 75Ω triaxial FEP insulated, armored with FEP jacket |
| Cable Minimum Bend Radius | 25.4 mm (1.0 in) |
| Tensile Strength | 330 N (75 lbf) probe to lead; 270 N (60 lbf) lead to extension cable connector |
| Connector Type | Miniature coaxial ClickLoc, gold-plated brass or beryllium copper |
| Operating Temperature Range | Probe: -52°C to +177°C; Extension cable: -52°C to +177°C; Proximitor sensor: -52°C to +100°C |
| Storage Temperature Range | Probe: -52°C to +177°C; Extension cable: -52°C to +177°C; Proximitor sensor: -52°C to +105°C |
| Linear Range | 2 mm (80 mils), typical gap setting at 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat surface) |
| Recommended Shaft Diameter | Minimum 76.2 mm (3 in) |
| Environmental Protection | Connector protectors recommended |
| Certifications | FCC, CE (EN 61000-6-2, EN 61000-6-4), RoHS, SIL 2/3, CSA, ATEX, IECEx approvals |
FAQ
FAQ
Q1: What are the typical applications of this probe?
A1: It is primarily used for vibration and position monitoring of fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Q2: Is it suitable for high-temperature environments?
A2: Yes, the standard probe can withstand temperatures up to +177°C, and the extension cable is rated for the same.
Q3: Does it require matched calibration?
A3: No, the 3300 XL series components are fully interchangeable and do not require matched calibration.
Q4: Does cable length affect accuracy?
A4: Yes, the standard 5-meter system provides optimal accuracy, while the 9-meter system has slightly lower accuracy.
Q5: Can it be installed in tight spaces?
A5: If 8 mm probe space is insufficient, consider using a 5 mm Bently Nevada probe instead.
Q6: Are special tools needed for installation?
A6: No special tools are required; ClickLoc connectors are designed to be finger-tightened.
Q7: Is it leak-proof against oil or other liquids?
A7: The standard cable is adequate for most applications. For additional protection, the optional FluidLoc cable is recommended.
Q8: What certifications does it meet?
A8: The probe complies with FCC, CE, RoHS, ATEX, IECEx, CSA, and is suitable for use in hazardous areas.
