Technical Specifications
| Parameter | Value |
|---|---|

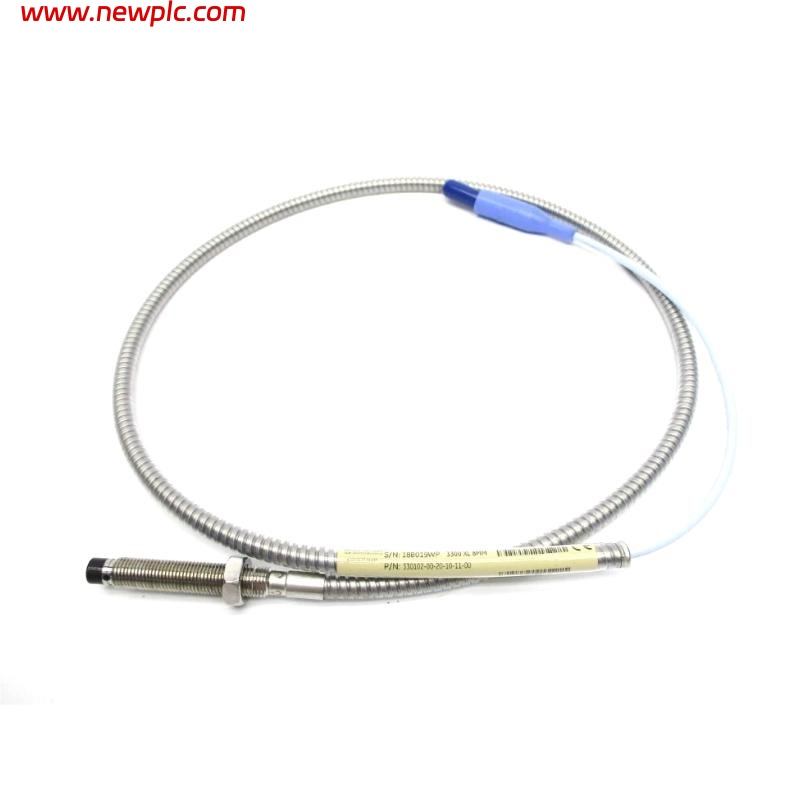

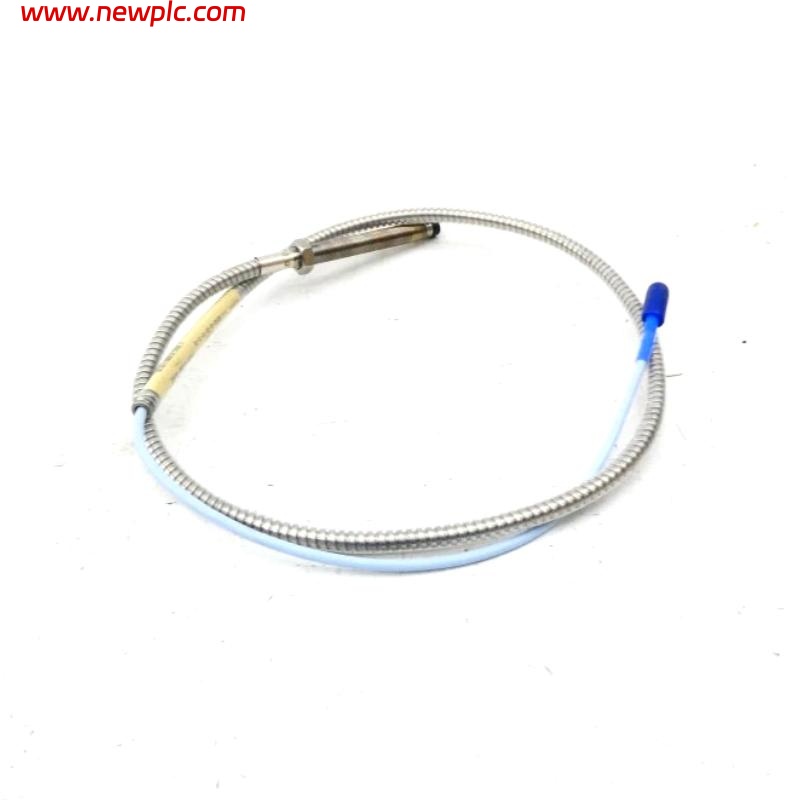

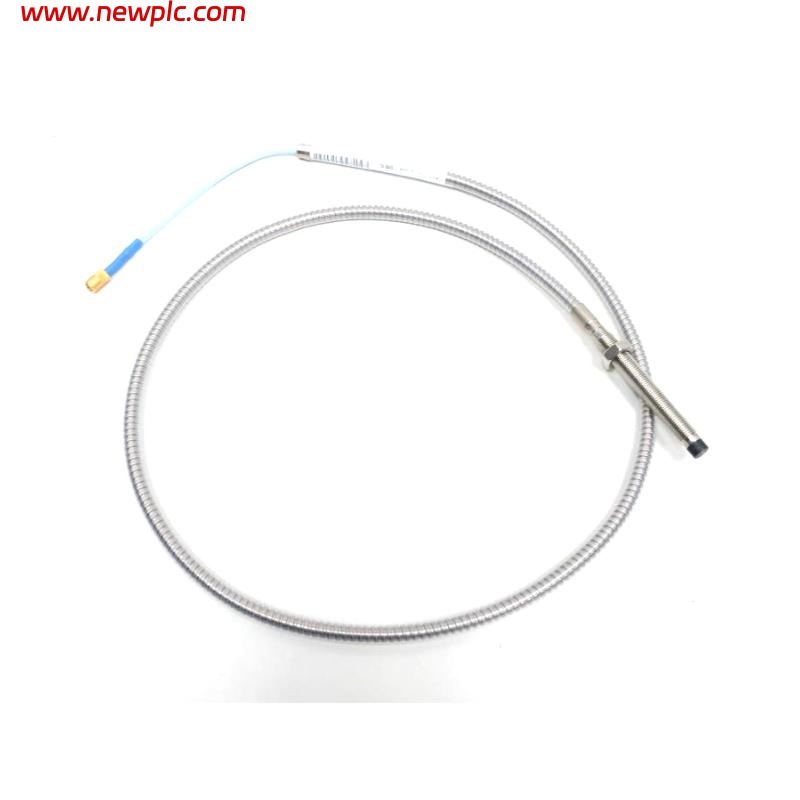

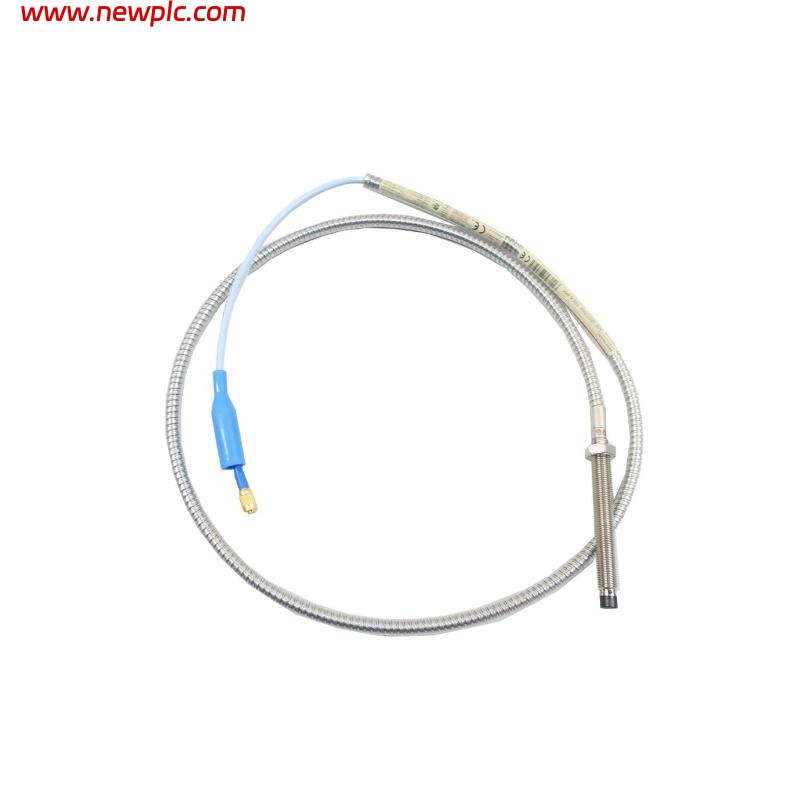

| Model | Bently Nevada 330102-20-96-10-02-05 |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Type | 75Ω triaxial FEP insulated with armor |
| Maximum Operating Temperature | Probe: -52°C to +177°C |
| Minimum Operating Temperature | Probe: -52°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% |
| Frequency Response | 0 to 10 kHz |
| Minimum Shaft Diameter | 50.8 mm |
| Recommended Shaft Diameter | ≥76.2 mm |
| Connector Type | Miniature coaxial ClickLoc |
| Tensile Strength | 330 N at probe-to-lead |
FAQ
FAQ
Q1: What is the operating temperature range of this probe?
A1: The probe operates between -52°C and +177°C.
Q2: What is the linear measurement range?
A2: The linear range is 2 mm (80 mils).
Q3: What is the recommended gap setting?
A3: The recommended gap setting is approximately 1.27 mm (50 mils).
Q4: What is the frequency response range?
A4: The frequency response is from 0 to 10 kHz.
Q5: What is the minimum required shaft diameter?
A5: The minimum shaft diameter is 50.8 mm, with 76.2 mm or more recommended.
Q6: Is the probe compatible with other series components?
A6: Yes, the 3300 XL series components are interchangeable with non-XL 5mm and 8mm components.
Q7: What is the tensile strength of the cable?
A7: The maximum tensile strength from probe housing to lead is 330 N.
Q8: Can this probe operate in high humidity environments?
A8: Yes, it maintains less than 3% change in ASF when tested at 93% relative humidity per IEC standards.
