Technical Specifications
| Parameter | Specification |
|---|---|

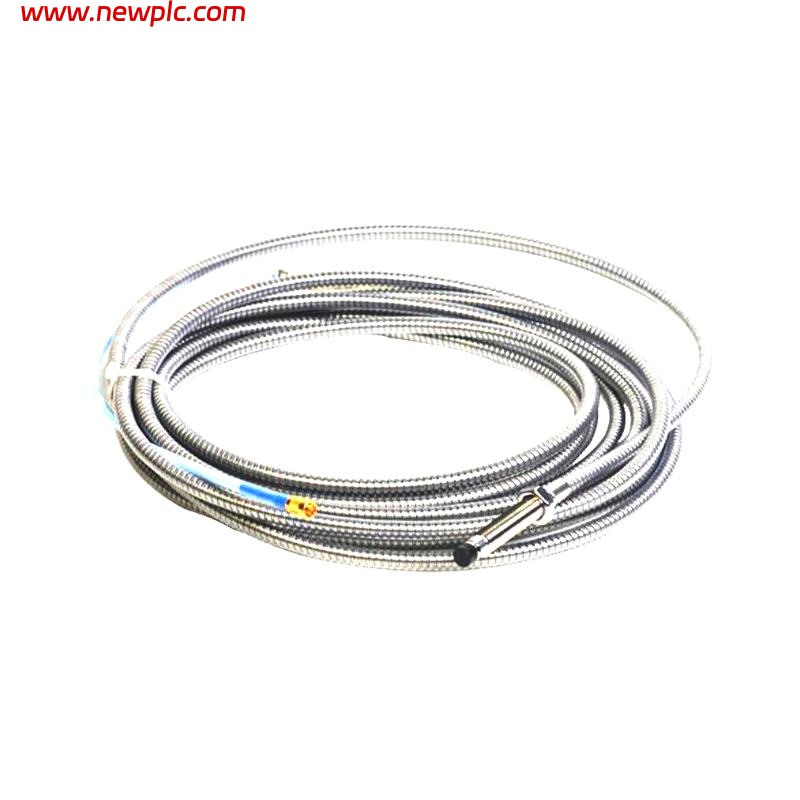

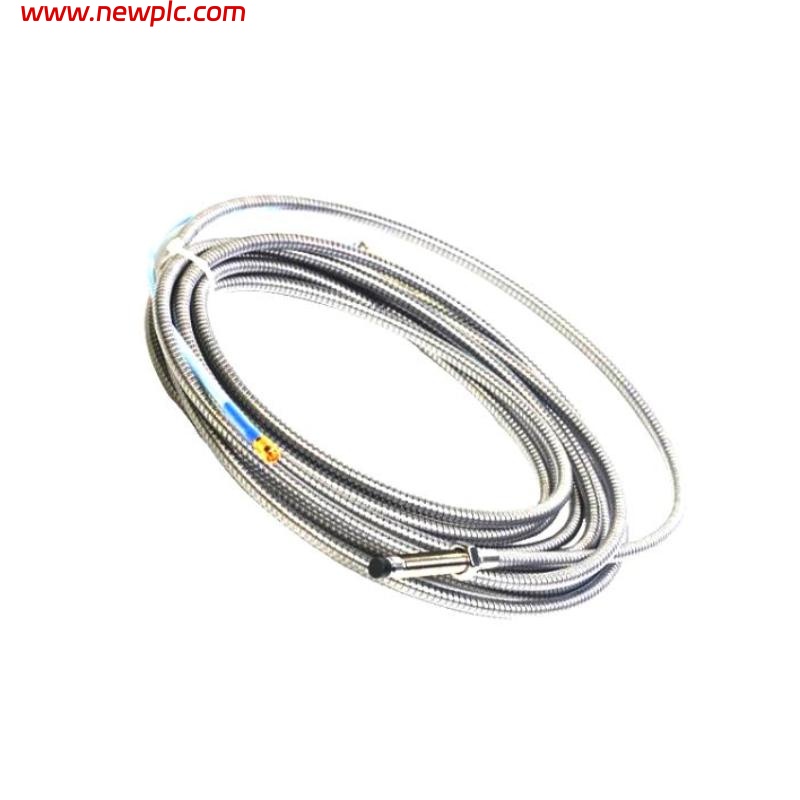

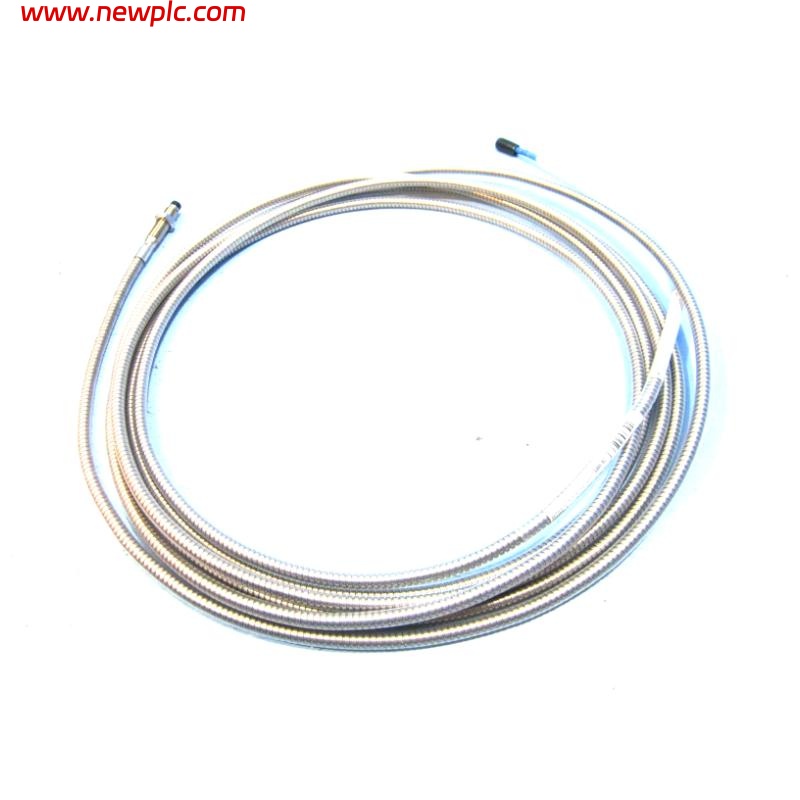

| Model | Bently Nevada 330102-24-10-02-05 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | 3/8-24 UNF-2A, armored |
| Case Material | Stainless Steel AISI 303/304 |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | 75Ω triaxial, FEP insulated, armored |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C |
| Extended Temperature Range (optional) | Up to +218°C (probe tip) / +260°C (cable) |
| Minimum Cable Bend Radius | 25.4 mm |
| Torque (max) | 33.9 N·m (standard) / 22.6 N·m (reverse-mount) |
| Recommended Gap Setting | Approx. 1.27 mm (-9 VDC) |
| Linear Range | 0.25 mm to 2.3 mm |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Compliance | API 670, CE, RoHS, SIL2/SIL3 |
| Hazardous Area Approvals | CSA, ATEX, IECEx (varies by option) |
| Minimum Shaft Diameter | Recommended ≥76.2 mm |
| Relative Humidity | ≤3% ASF change @ 93% RH for 56 days |
FAQ
FAQ
Q1: What are the main applications of the 330102-24-10-02-05 probe?
A1: It is mainly used for vibration and position monitoring of fluid-film bearing machines and as a Keyphasor reference and speed measurement.
Q2: Does the 330102 probe comply with API 670 standard?
A2: Yes, the product fully complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: What is the linear measurement range of this probe?
A3: The linear measurement range is 0.25 mm to 2.3 mm.
Q4: What is the operating temperature range of the probe?
A4: The standard operating temperature is -52°C to +177°C, and the ETR version can reach up to +218°C (probe tip).
Q5: What is the recommended minimum shaft diameter?
A5: The recommended minimum shaft diameter is 76.2 mm for optimal accuracy.
Q6: Does the 330102 probe require special tools for installation?

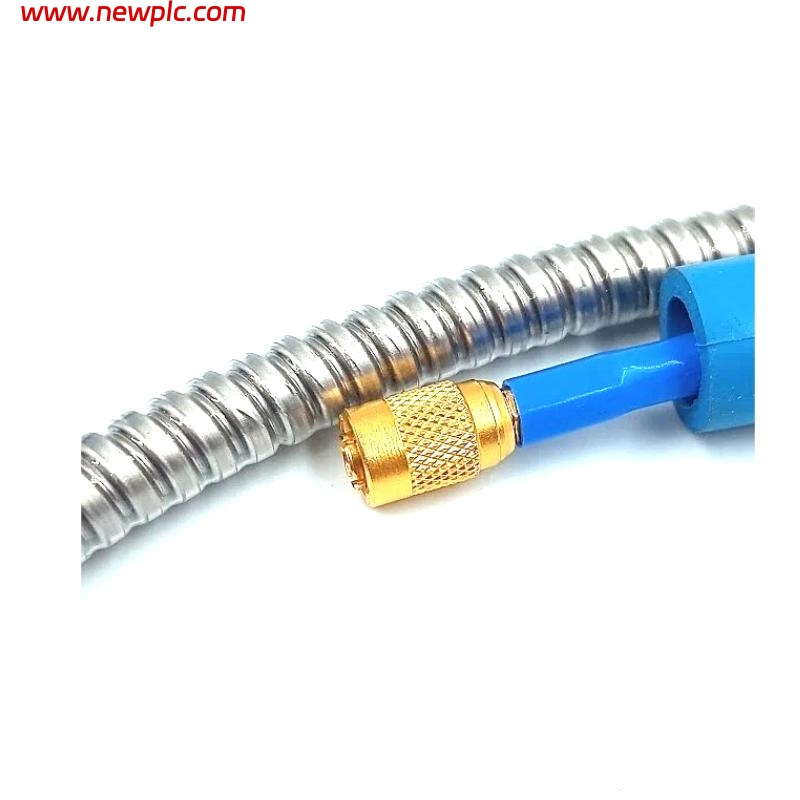

A6: No special tools are required. The ClickLoc connector allows easy installation with finger-tight or minimal wrench assistance.
Q7: Are the probe and extension cables interchangeable?
A7: Yes, the 3300 XL series probes, extension cables, and Proximitor sensors are fully interchangeable without recalibration.
Q8: Is the product certified for hazardous areas?
A8: Yes, CSA, ATEX, and IECEx certifications are available, supporting Zone 0/1/2 and Class I/II/III environments.
