Technical Specifications
| Parameter | Value |
|---|---|

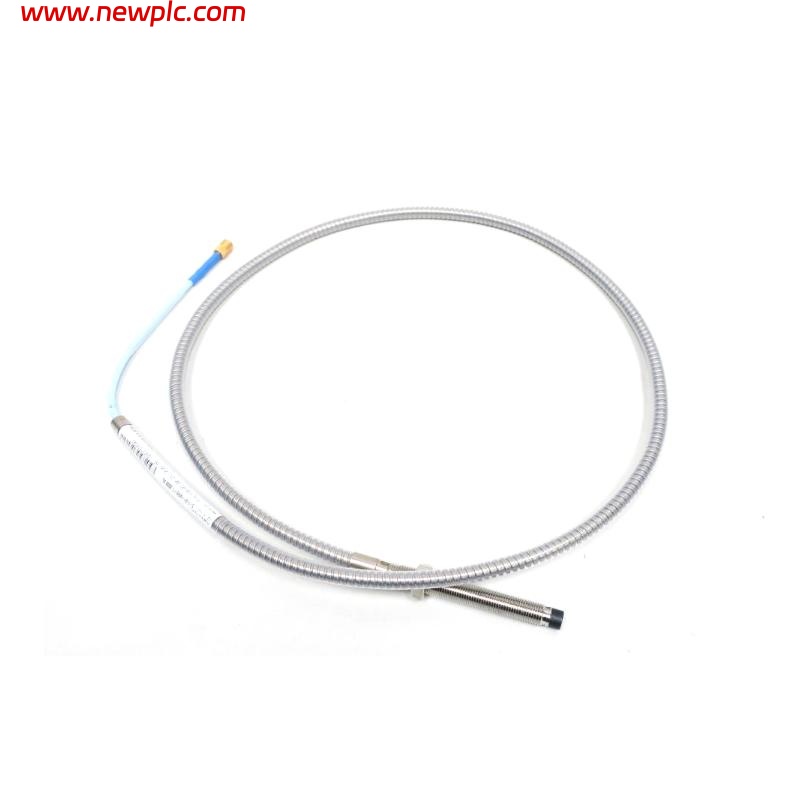

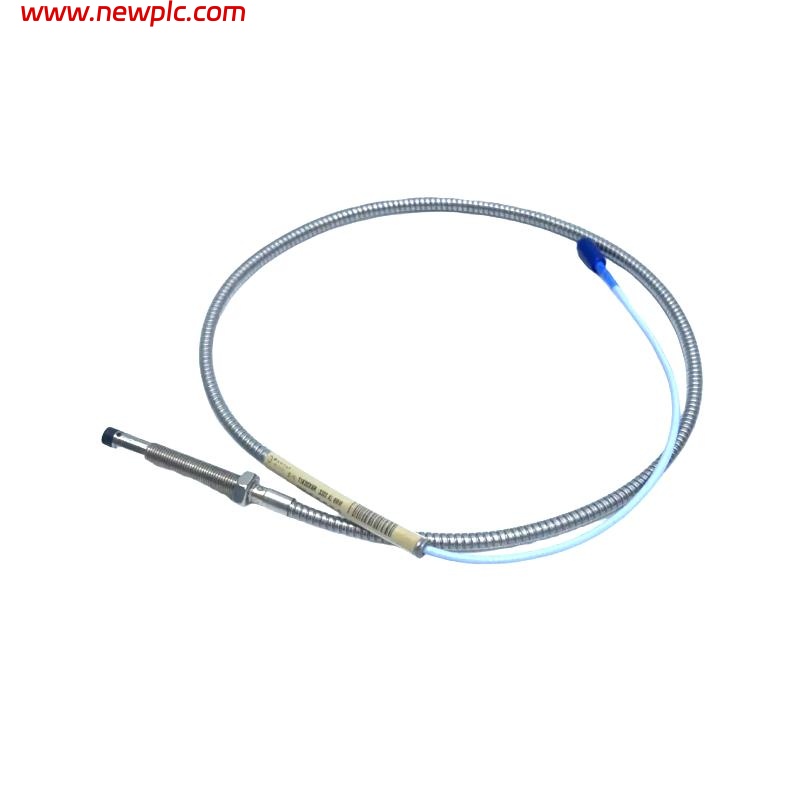

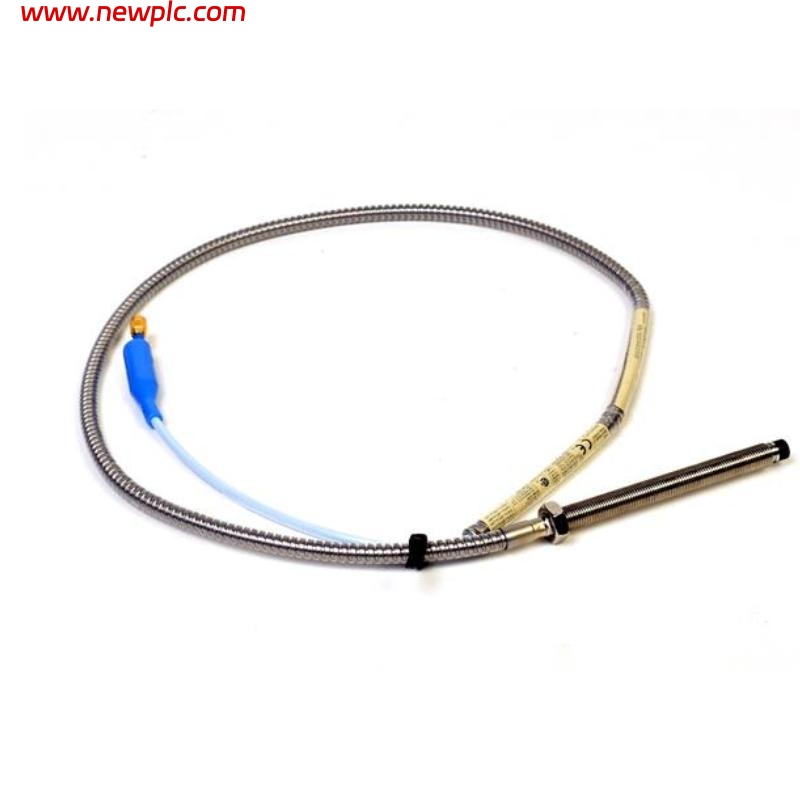

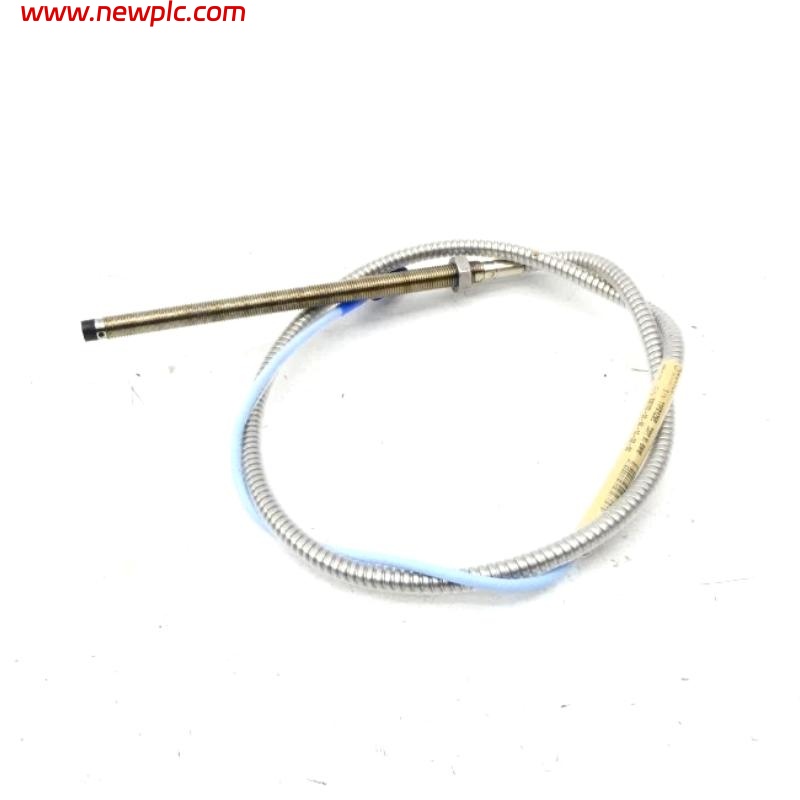

| Model | Bently Nevada 330102-24-48-05-01-RU |
| Type | 3300 XL 8 mm Proximity Probe |
| Diameter of probe tip | 8.0 mm |
| Case material | AISI 303/304 stainless steel |
| Tip material | Polyphenylene sulfide (PPS) |
| Cable type | 75Ω triaxial, FEP insulated with armor |
| Connector | Miniature coaxial ClickLoc with protector |
| Linear range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended gap | ~1.27 mm (50 mils) |
| Incremental scale factor | 7.87 V/mm ±5% (standard system) |
| Deviation from straight line | ≤ ±0.025 mm (standard 5 m system) |
| Frequency response | 0 to 10 kHz (+0, -3 dB) |
| Minimum target size | 15.2 mm diameter flat |
| Minimum shaft diameter | 50.8 mm recommended ≥76.2 mm |
| Probe operating temperature | -52°C to +177°C |
| Probe storage temperature | -52°C to +177°C |
| Extension cable temperature | -52°C to +177°C |
| Proximitor sensor temperature | -52°C to +100°C |
| Relative humidity | ≤3% ASF change at 93% RH |
| Power supply | -17.5 Vdc to -26 Vdc |
| Output resistance | 50 Ω |
| Field wiring max. length | 305 m |
| Probe length (total) | 0.5 meter |
| Weight | 0.162 kg |
FAQ
FAQ
Q1: What is the main application of the 330102-24-48-05-01-RU probe?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines and for Keyphasor reference and speed measurements.
Q2: Which standards does this probe comply with?
A2: It complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Is this probe compatible with older systems?
A3: Yes, the 3300 XL 8 mm probe is electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm components.
Q4: What is the recommended installation gap?
A4: The recommended installation gap is approximately 1.27 mm (50 mils).
Q5: What is the minimum shaft diameter for use?
A5: The minimum shaft diameter is 50.8 mm, and it is recommended to use ≥76.2 mm for optimal performance.
Q6: What is the operating temperature range?
A6: The standard probe operates from -52°C to +177°C.
Q7: Is the probe designed to prevent oil leakage?
A7: Yes, when ordered with the FluidLoc option, it effectively prevents oil and liquid leakage through the cable.
Q8: Are special tools required for installation?
A8: No, the ClickLoc connector is designed to be hand-tightened and clicks when properly secured.
