Technical Specifications
| Parameter | Specification |
|---|---|

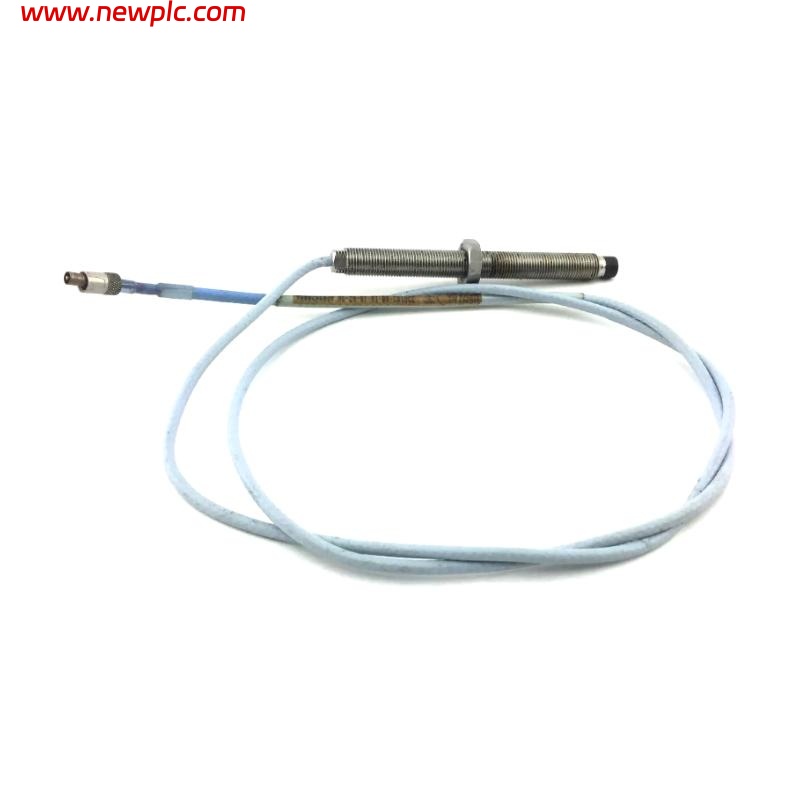

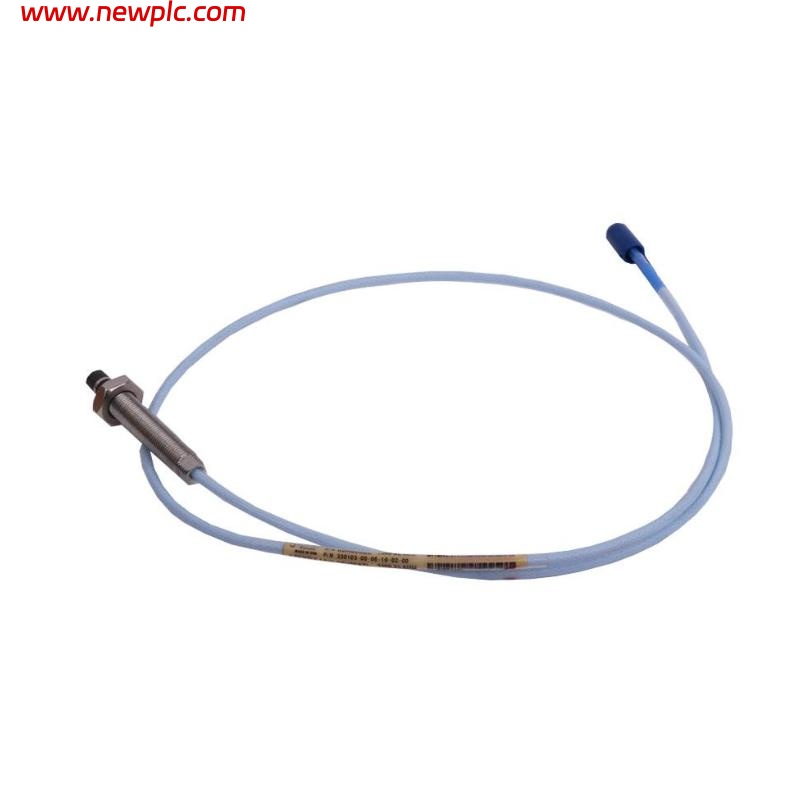

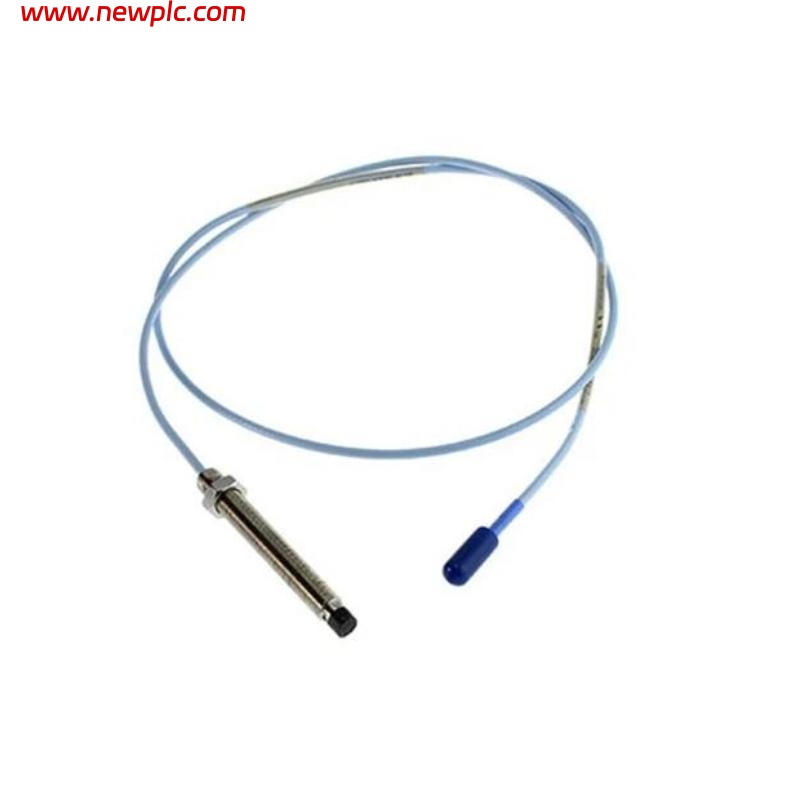

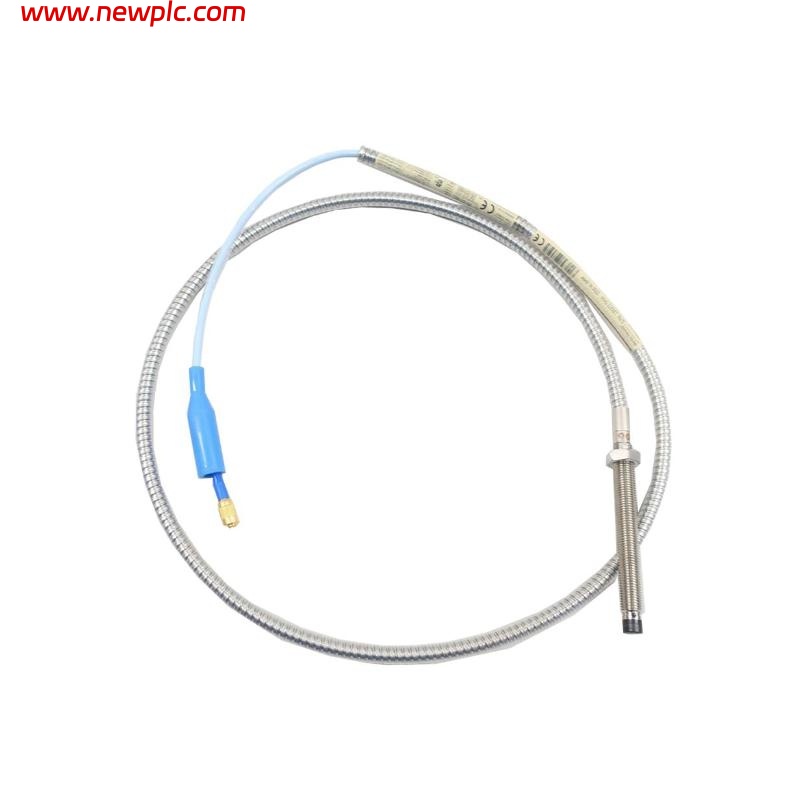

| Model | Bently Nevada 330103-00-11-10-12-00 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FluidLoc coating, ClickLoc connector |
| Cable Insulation | Fluoroethylene propylene (FEP) |
| Cable Bend Radius (Minimum) | 25.4 mm (1 inch) |
| Temperature Range (Operating) | -52°C to +177°C (standard), up to +218°C with ETR |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% |
| Deviation from Straight Line | ≤ ±0.025 mm (1 mil) |
| Recommended Gap | Approx. 1.27 mm (50 mils) |
| Shaft Diameter (Min Recommended) | 76.2 mm (3 in) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Output Resistance | 50 Ω |
| Humidity Resistance | ≤3% change at 93% RH up to 56 days |
| Probe Tensile Strength | 330 N (75 lbf) |
| Connector Material | Gold-plated brass or beryllium copper |
FAQ
FAQ
Q1: What is the standard length and weight of this probe?
A1: The standard total length is 1.0 meter, and the weight is 0.323 kg.
Q2: What is the operating temperature range of this probe?
A2: The standard probe operates from -52°C to +177°C, and up to +218°C with the ETR option.
Q3: What is the linear measurement range of this probe?
A3: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q4: What is the recommended installation gap?
A4: The recommended gap is approximately 1.27 mm (50 mils).
Q5: How is the frequency response of this probe?
A5: The frequency response range is 0–10 kHz (+0, -3 dB).
Q6: What materials are used for the probe body and tip?
A6: The probe case is made of AISI 303 or 304 stainless steel, and the tip is molded PPS plastic.
Q7: Does the cable have a design to prevent fluid leakage?
A7: Yes, the FluidLoc cable option prevents oil or other fluids from leaking through the cable interior.
Q8: Is the connector easy to install?
A8: Yes, it uses gold-plated ClickLoc connectors that lock with a click and require no special tools.
