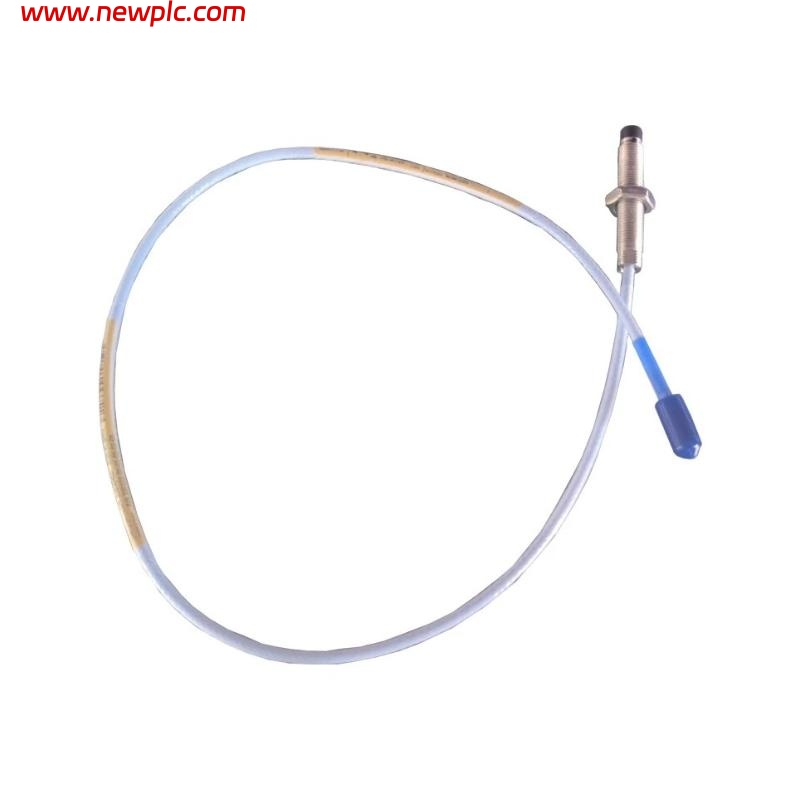

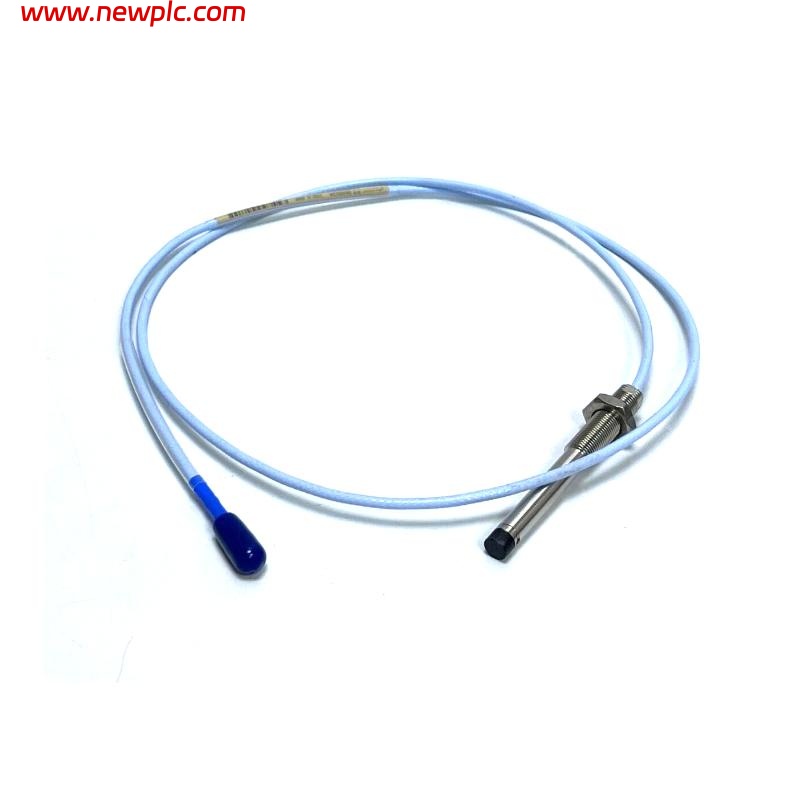

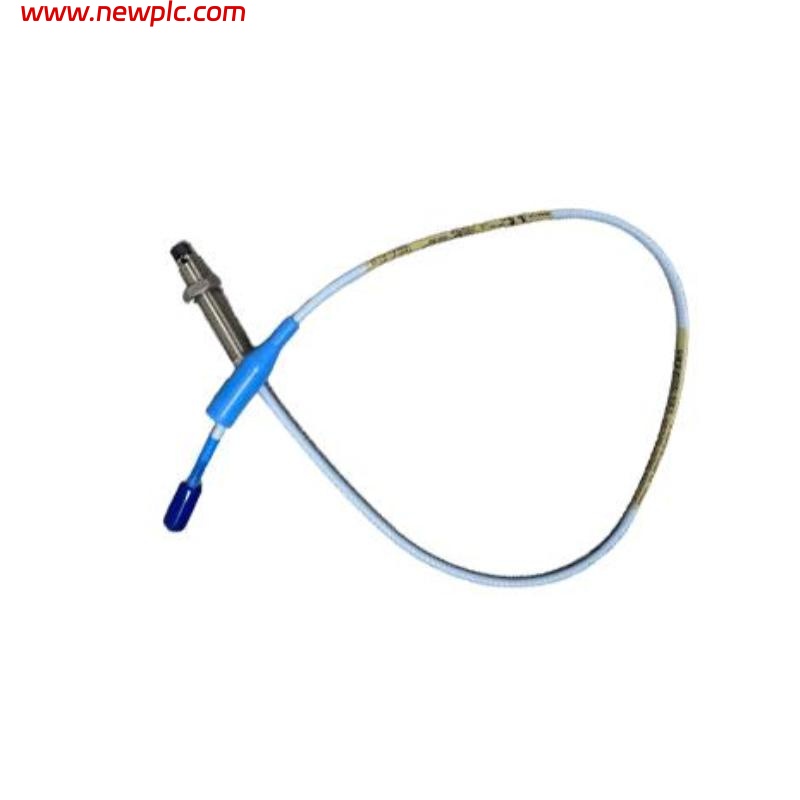

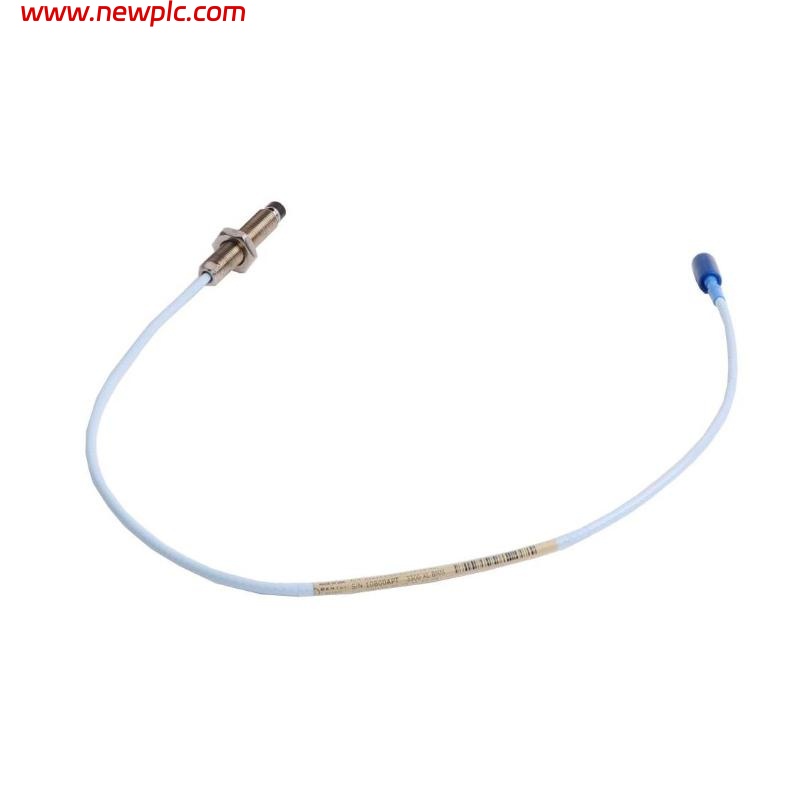

Bently Nevada 330103-00-14-05-02-00 3300 XL 8 mm Proximity Probe

FAQ

Q1: What is the linear measurement range of this probe?
A1: The linear range is 2.0 mm (80 mils), operating between approximately 0.25 mm and 2.3 mm.

Q2: What is the maximum operating temperature supported?
A2: The standard probe supports up to +177°C, and the extended temperature range (ETR) probe tip supports up to +218°C.

Q3: What is the recommended thread mounting torque?
A3: Recommended torque for standard probes is 7.5–11.2 N•m (66–100 in•lbf).

Q4: Does this model comply with API 670 standard?
A4: Yes, the 3300 XL 8 mm series meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.

Q5: What is the minimum shaft diameter applicable?
A5: It is suitable for shafts with a minimum diameter of 50.8 mm (2 in), but ≥76.2 mm (3 in) is recommended.

Q6: What is the weight of the probe?
A6: The 0.5-meter probe weighs approximately 0.162 kg.

Q7: Is this probe resistant to electromagnetic interference?
A7: Yes, it has excellent RFI/EMI immunity and meets CE standards.

Q8: What physical quantities can this probe measure?
A8: It measures static position and dynamic vibration values, and can also be used for Keyphasor reference and speed measurements.
