Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330103-00-14-10-02-05 |

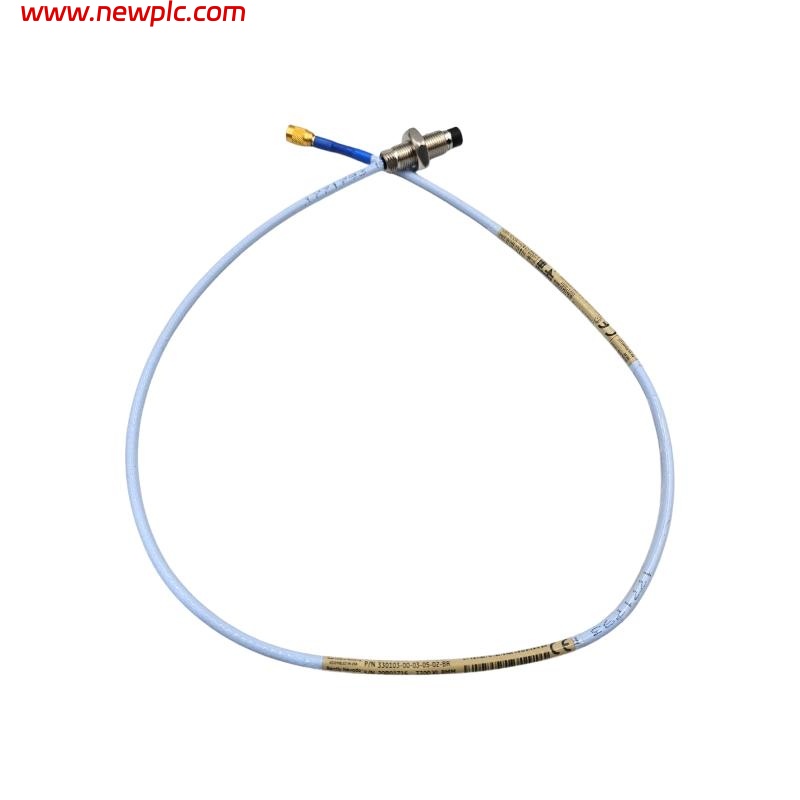

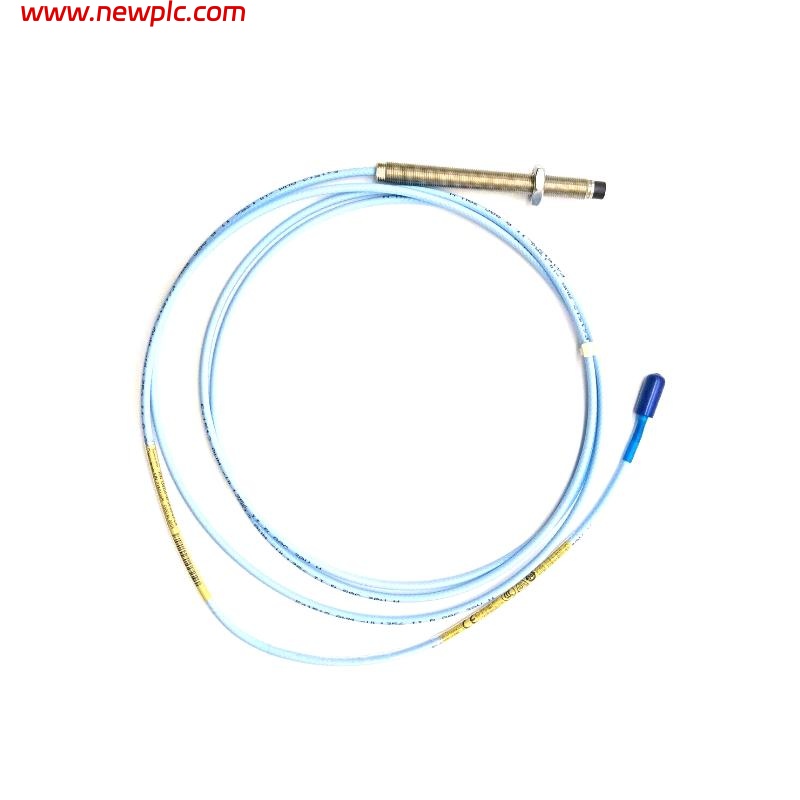

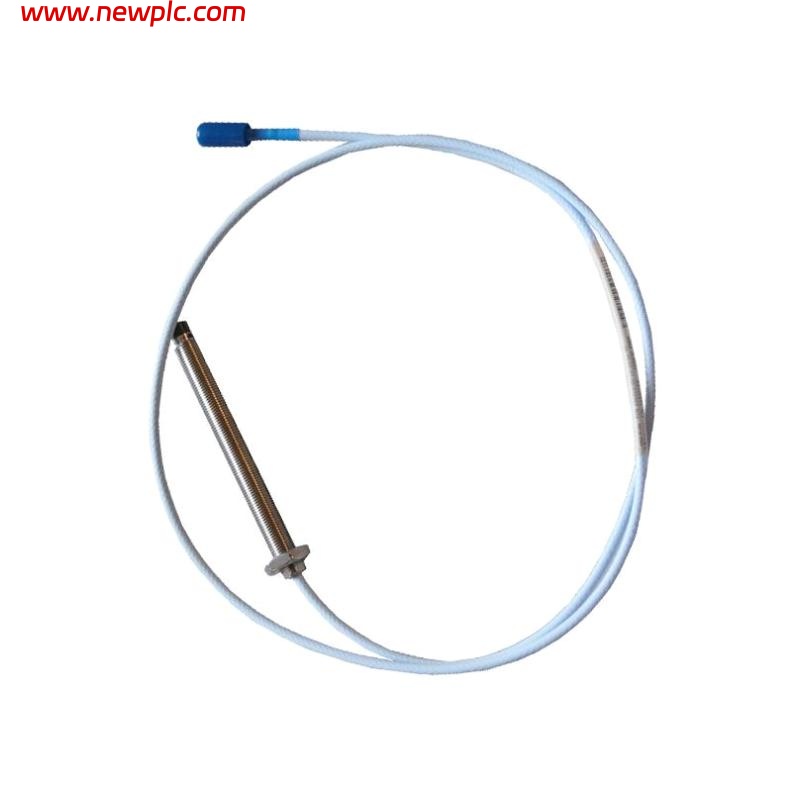

| Product Name | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 metric |
| Cable Type | Standard cable with ClickLoc connector |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Cable Insulation | FEP |
| Minimum Bend Radius | 25.4 mm |
| Maximum Tensile Strength | 330 N (probe to cable) |
| Linear Range | 0.25 mm to 2.3 mm |
| Frequency Response | 0 to 10 kHz |
FAQ
FAQ
Q1: What is the total length of this probe?
A1: The total length of this model is 1.0 meter.
Q2: How much does the probe weigh?
A2: The probe weighs approximately 0.323 kg.
Q3: What is the operating temperature range of the probe?
A3: The operating temperature range is -52°C to +177°C; storage range is the same.
Q4: What is the minimum cable bend radius?
A4: The minimum cable bend radius is 25.4 mm.
Q5: What is the linear measurement range of the probe?
A5: The linear range is 0.25 mm to 2.3 mm.
Q6: What materials are used in this probe?
A6: The probe housing is stainless steel, the tip is PPS, and the cable insulation is FEP.
Q7: What type of connector does this probe use?
A7: This model uses a ClickLoc miniature coaxial connector.
Q8: What is the frequency response of the probe?
A8: The frequency response is from 0 to 10 kHz.
