Technical Specifications
| Parameter | Specification |
|---|---|

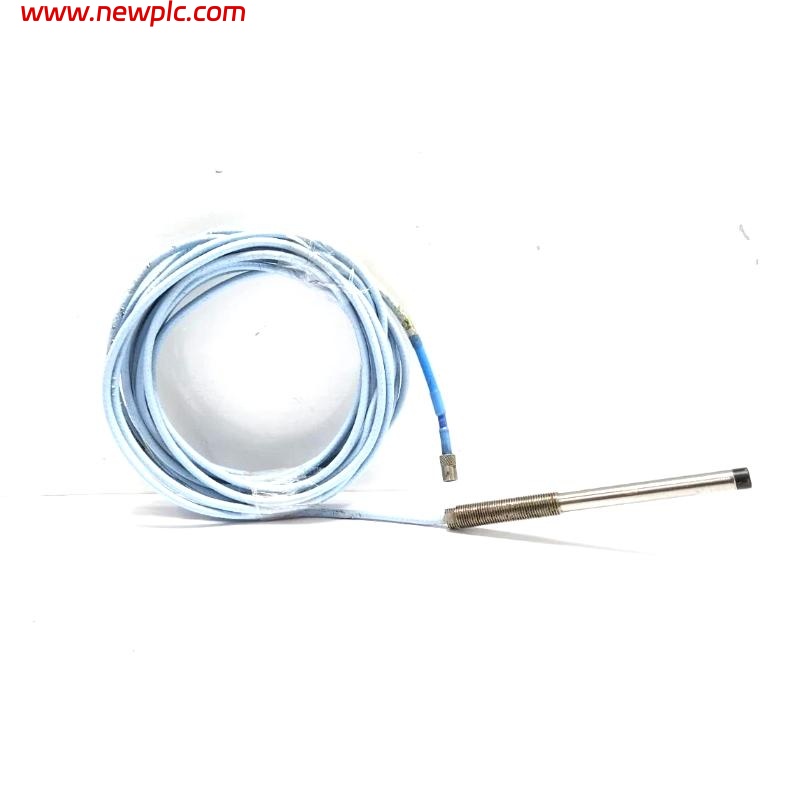

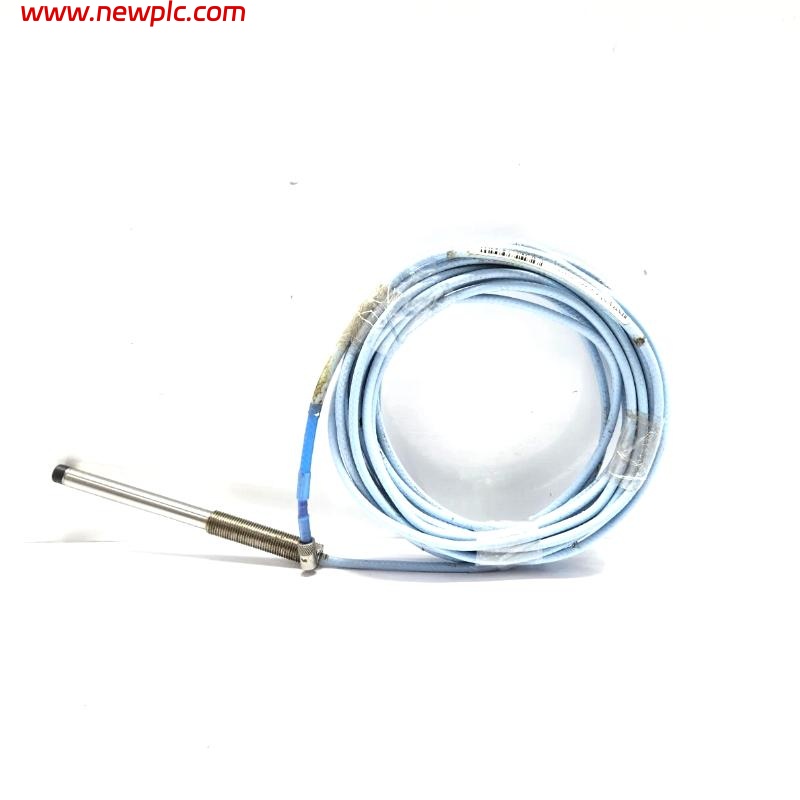

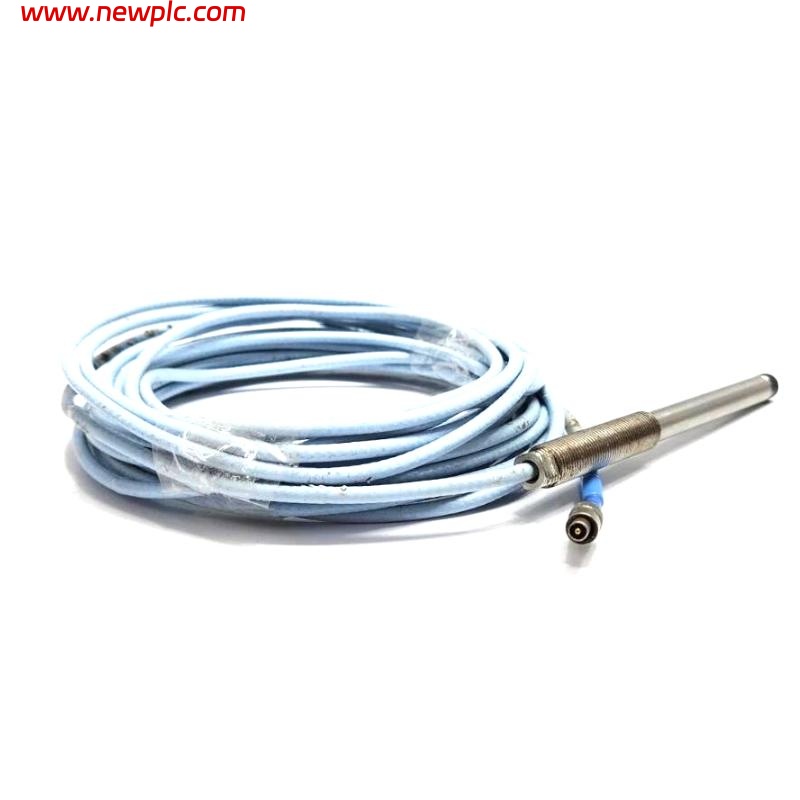

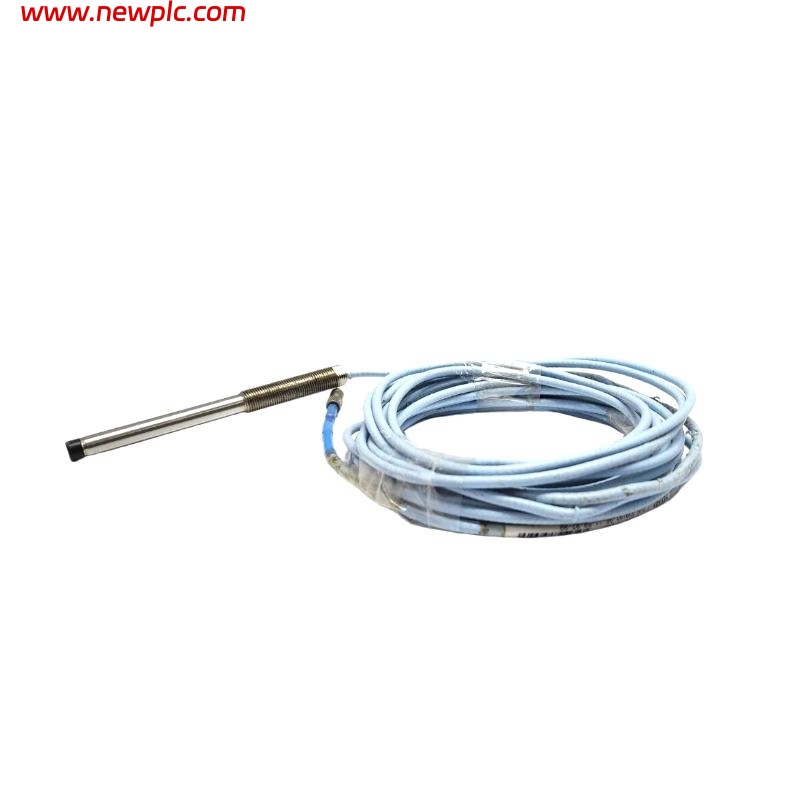

| Model | 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe |
| Thread | M10 × 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm |
| Temperature Range | -52°C to +177°C (standard) / up to +218°C (ETR) |
| Pressure Seal | Viton® O-ring |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (standard 1m system) |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap Setting | Approx. 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Compliance | CE, RoHS, FCC, SIL 2/3 certified |
FAQ
FAQ
Q1: What is the standard thread size of this probe?
A1: The standard thread for this model is M10 × 1.
Q2: What are the total length and weight?
A2: The total length is 1.0 meter, and the weight is approximately 0.323 kg.
Q3: What is the operating temperature range?
A3: Standard operating range is -52°C to +177°C, with Extended Temperature Range (ETR) up to +218°C.
Q4: What is the recommended installation gap?
A4: The recommended gap is approximately 1.27 mm (50 mils).
Q5: Is this probe compatible with non-XL series components?
A5: Yes, the 3300 XL 8 mm probe is electrically and physically interchangeable with non-XL 8 mm components.
Q6: What is the output sensitivity of the probe?
A6: The sensitivity for a standard 1-meter system is 7.87 V/mm (200 mV/mil) ±5%.
Q7: Does the probe offer protection against fluid leakage?
A7: Yes, an optional FluidLoc cable is available to prevent fluid leakage through the cable.
Q8: Does this probe comply with API 670 standard?
A8: Yes, the standard 3300 XL 8 mm system meets API 670 mechanical configuration, linear range, accuracy, and temperature stability requirements.
