Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-16-10-02-05 |

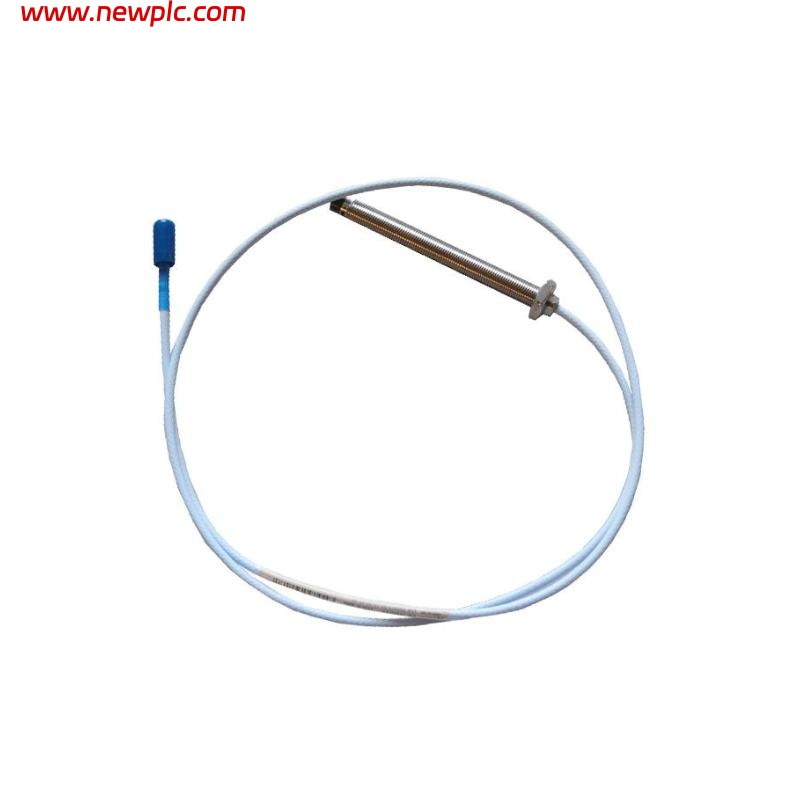

| Type | 8 mm Eddy-Current Proximity Probe (3300 XL Series) |
| Thread Size | 3/8-24 UNF |
| Probe Case Length | 1.6 in (Code “16”) |
| Cable Length | 1.0 m (Code “10”) |
| Connector Type | 02 – Mini-coax connector with locking sleeve |
| Approval Option | 05 – CSA, ATEX, IECEx certified version |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | 0.25 mm to 2.3 mm (typical linear range) |
| Sensitivity | 7.87 V/mm (≈200 mV/mil typical) |
| Recommended Gap Voltage | –9 V nominal (≈1.27 mm) |
| Front-End Material | PPS engineering polymer |
| Housing Material | Stainless steel |
| Operating Temperature | –52 °C to +177 °C |
| System Length Capability | Up to 305 m (1000 ft) with extension cable and Proximitor |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, rotor displacement, thrust measurement, and general rotating machinery monitoring |
| Dimensions | Probe tip diameter 8 mm; case length 1.6 in |
| Weight | Approx. 0.33 kg |
FAQ
FAQ
Q1: What is the primary function of the 330103-00-16-10-02-05 probe?
It measures shaft vibration, rotor position, and displacement in rotating machinery.
Q2: What does the “16” in the model number indicate?
It specifies a probe case length of 1.6 inches.
Q3: What does the “10” code represent?
It denotes a 1.0-meter integral cable length.
Q4: What does connector code “02” signify?
It represents a mini-coax connector with a locking sleeve for secure connections.
Q5: What does the approval code “05” mean?
It indicates CSA, ATEX, and IECEx certification suitable for hazardous or regulated environments.
Q6: Which Proximitor is compatible with this probe?
It is fully compatible with the 3300 XL Proximitor Sensor.
Q7: What is the typical linear measurement range?
Approximately 0.25 mm to 2.3 mm.
Q8: Can this probe operate in harsh industrial conditions?
Yes, the stainless-steel housing and PPS tip allow reliable operation in oil, vibration, and high-temperature environments.
