Technical Specifications
| Parameter | Description |
|---|---|

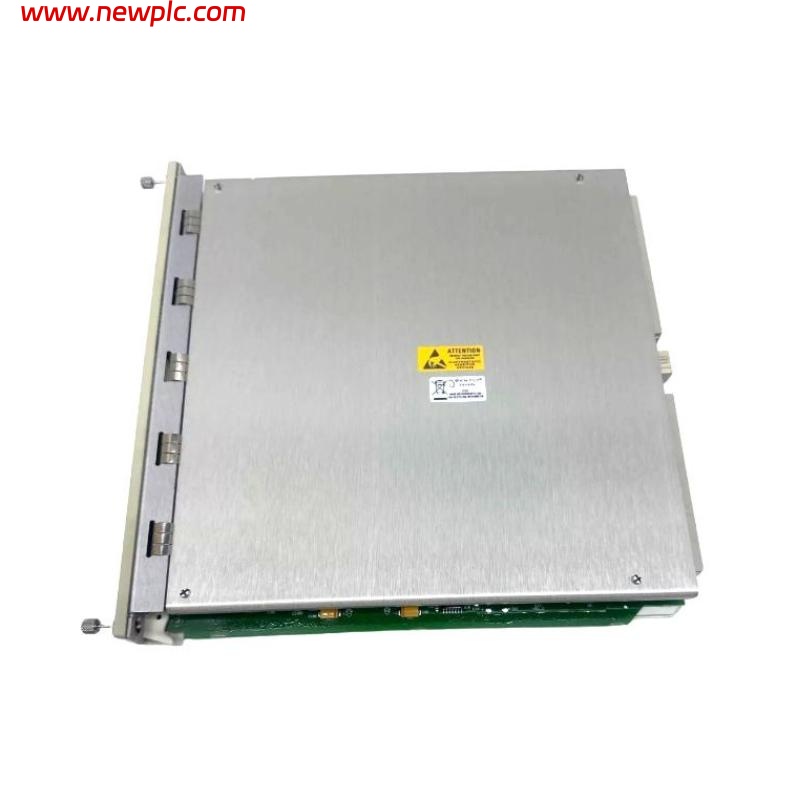

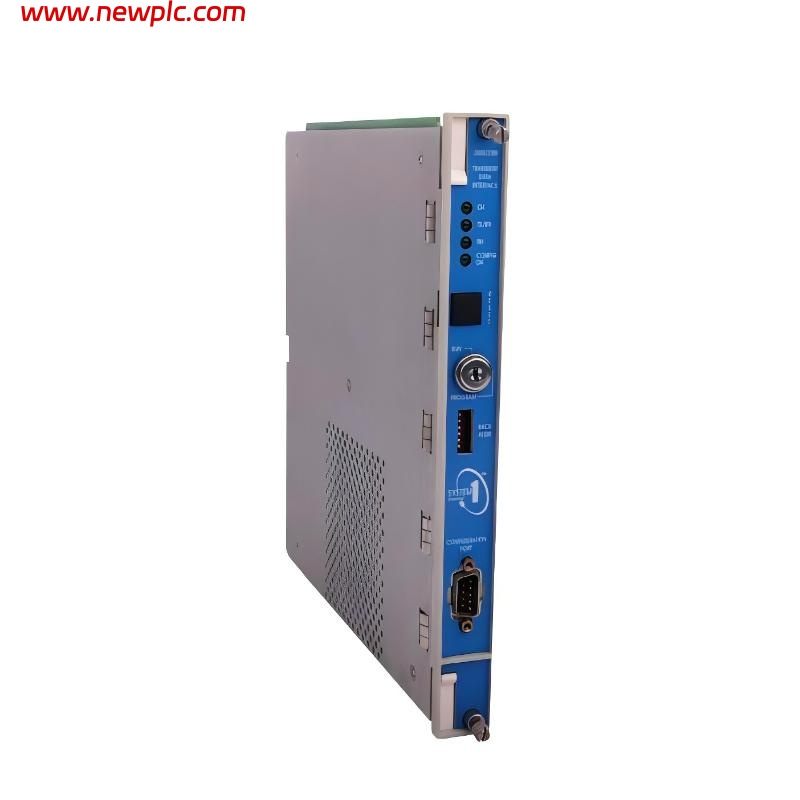

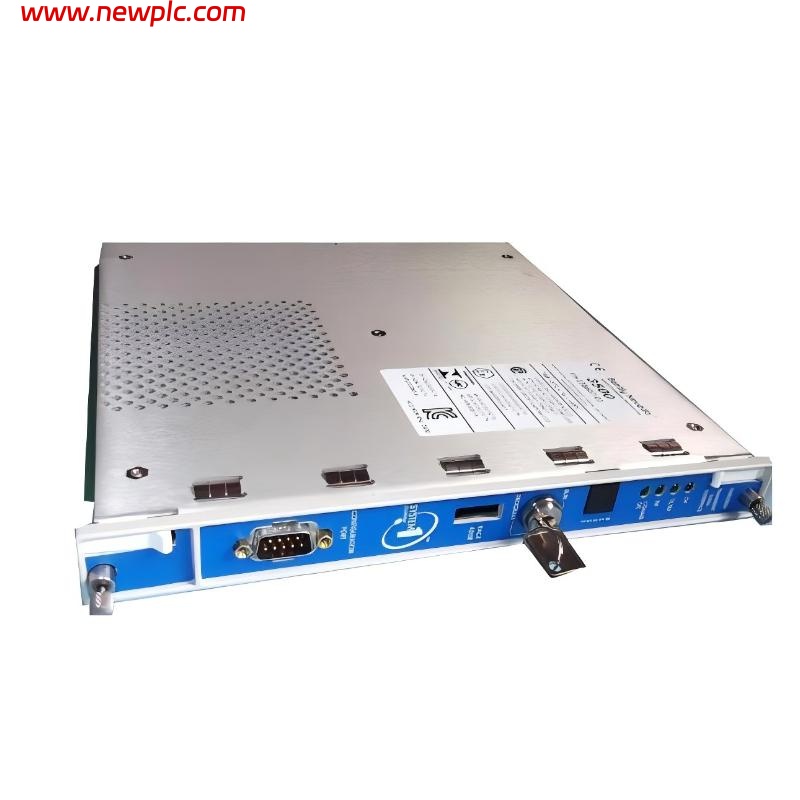

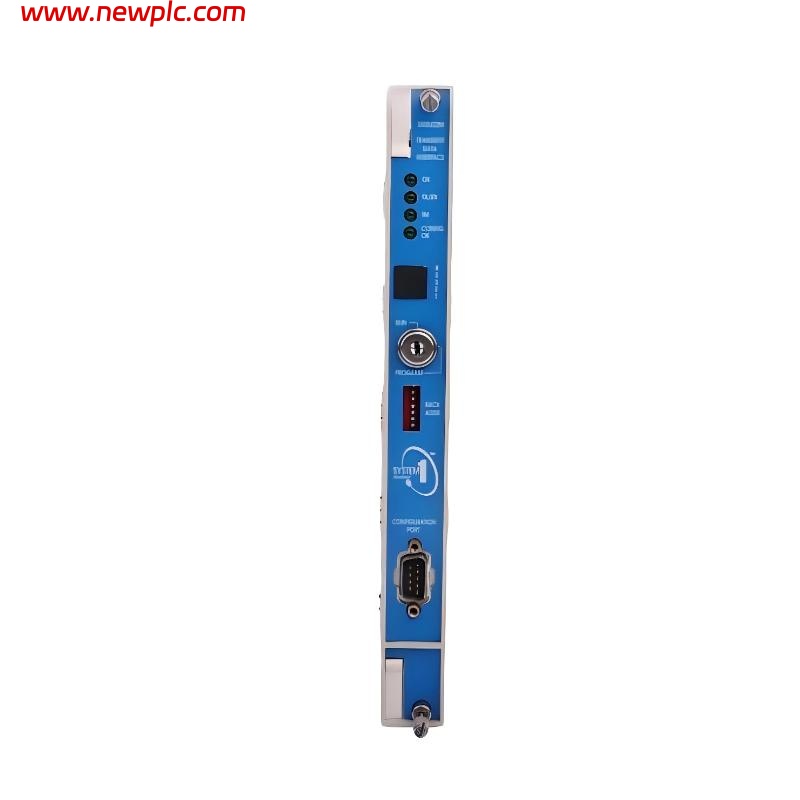

| Product Model | Bently Nevada 3500/22-01-01 |
| Product Type | Transient Data Interface Module |
| Application | Captures and transmits high-speed transient data from sensors to the 3500 Series rack |
| Compatibility | Bently Nevada 3500 Series Monitoring System racks |
| Function | Provides high-speed data acquisition, buffering, and interface to the system bus |
| Signal Types | Analog and digital transient signals from proximity probes, velocity sensors, and accelerometers |
| Communication | Interfaces with system bus for real-time monitoring and recording |
| Mounting | Rack-mounted for secure integration within the 3500 Series system |
| Environmental Rating | Designed for industrial temperature, vibration, and humidity conditions |
| Diagnostic Features | Supports online system monitoring, diagnostics, and signal verification |
| Material | Industrial-grade PCB and protective housing |
| Connector Type | Rack-specific edge connectors for easy installation and reliable connection |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/22-01-01 Transient Data Interface Module?
A1: It captures high-speed transient data from field sensors and transmits it to the 3500 Series rack for real-time analysis and recording.
Q2: Which types of signals can this module process?
A2: The module handles both analog and digital transient signals from proximity probes, velocity sensors, and accelerometers.
Q3: How is the module installed in the rack?
A3: It is rack-mounted using standard 3500 Series edge connectors, ensuring a secure and precise fit.
Q4: Does the module support system diagnostics?
A4: Yes, it enables online monitoring, signal verification, and diagnostic functions without disrupting other modules.
Q5: Can the module handle harsh industrial conditions?
A5: Yes, it is built to operate reliably under industrial temperatures, vibration, and humidity.
Q6: How does the module interface with the 3500 Series system?
A6: It connects directly to the system bus, allowing real-time data acquisition and seamless integration with other modules.
Q7: Can the module protect connected sensors from signal issues?
A7: Yes, it includes buffering and conditioning circuits to maintain signal integrity and protect the sensors.
Q8: Is it possible to replace or service the module without affecting the rest of the rack?
A8: Yes, it can be safely removed or replaced while the remaining modules continue operating uninterrupted.
