Technical Specifications
| Parameter | Specification |
|---|---|

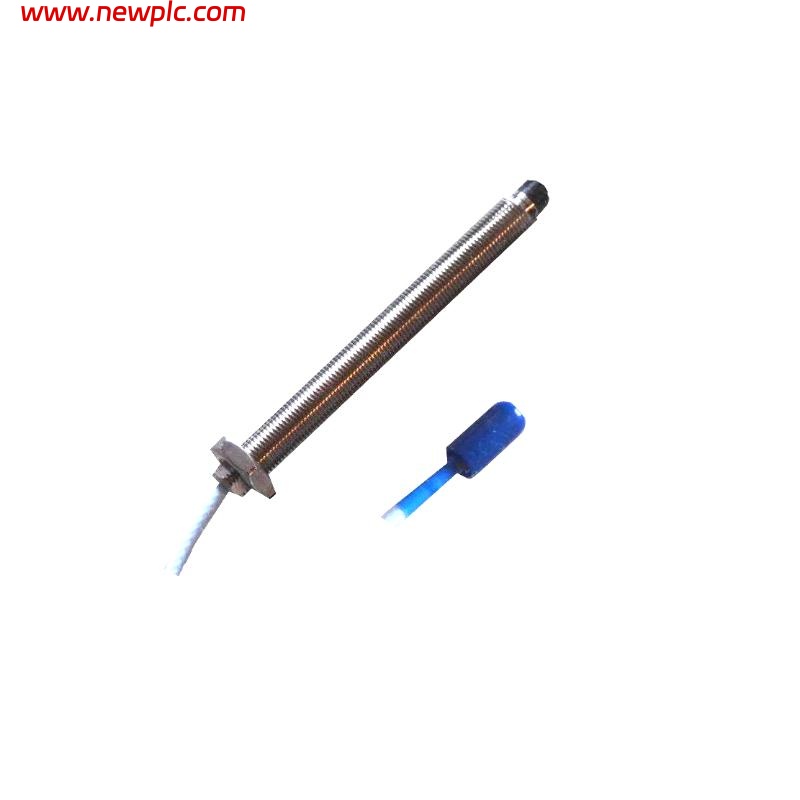

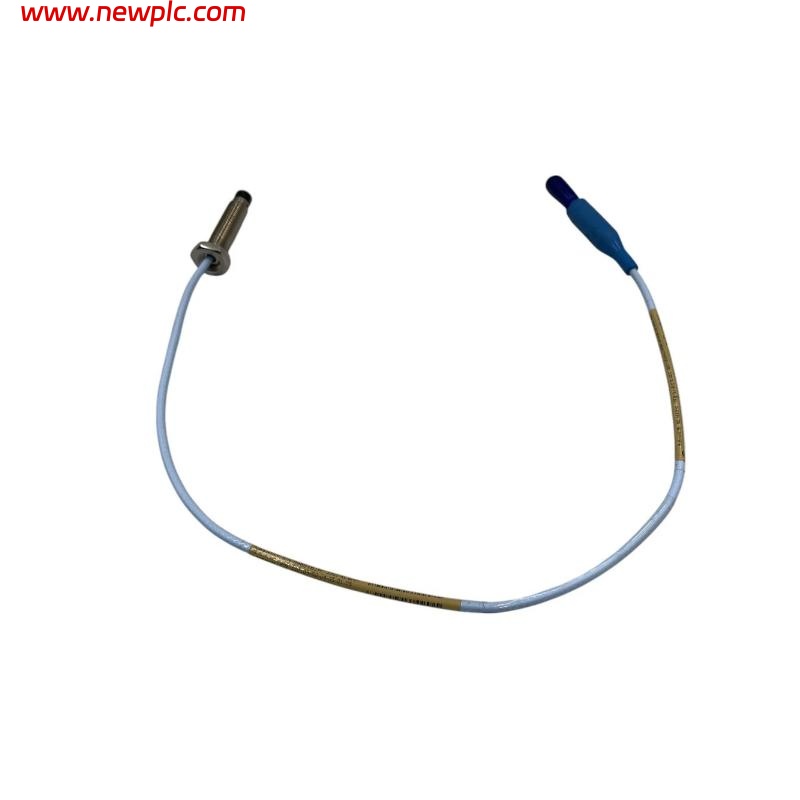

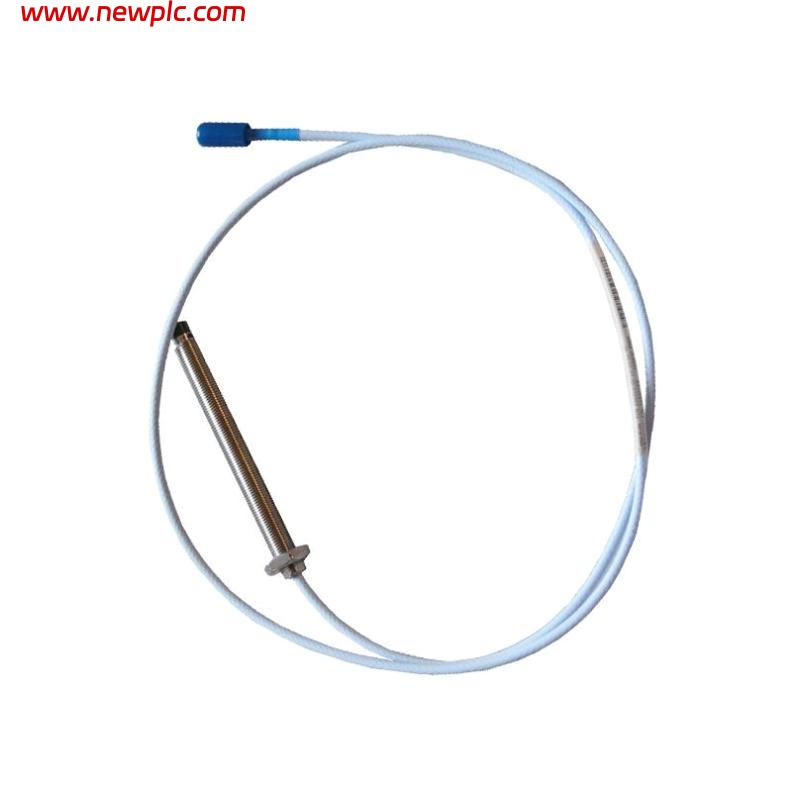

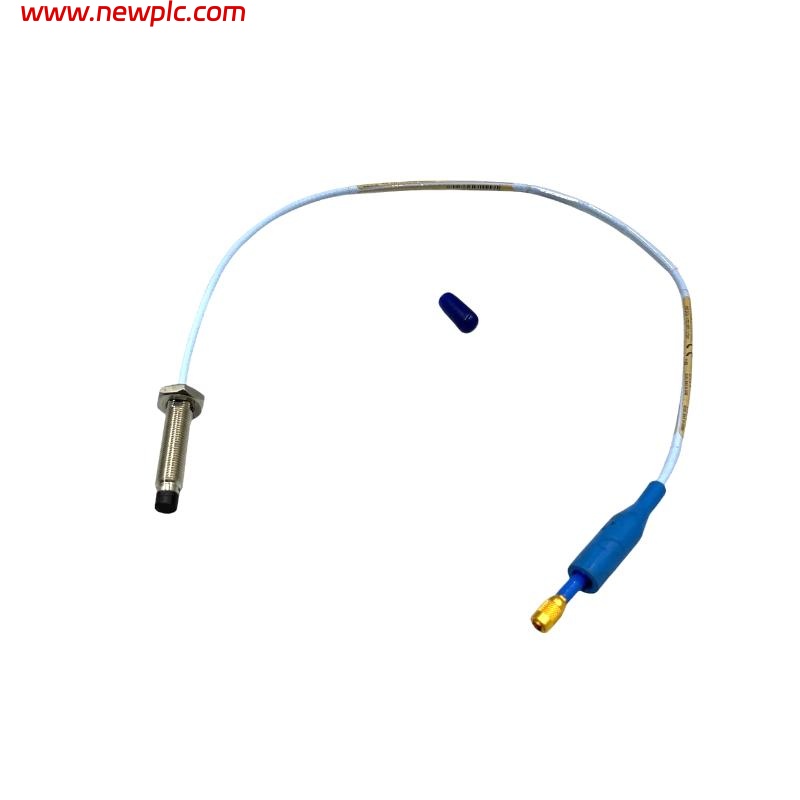

| Model | Bently Nevada 330103-00-19-10-12-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Cable Type | FluidLoc cable |
| Connector Type | Miniature ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (0.25–2.3 mm) |
| Frequency Response | 0–10 kHz |
| Recommended Gap Setting | 1.27 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303/304 |
| Cable Bend Radius (minimum) | 25.4 mm |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Relative Humidity Resistance | ≤3% change at 93% RH |
| Output Sensitivity | 200 mV/mil ±5% |
| Deviation from Best Fit Line | ≤ ±0.025 mm |
| Minimum Shaft Diameter | 50.8 mm |
| Minimum Target Size | 15.2 mm diameter |
| Maximum Tensile Strength | 330 N (probe) |
| Connector Material | Gold-plated brass or beryllium copper |
FAQ
FAQ
Q1: What is the operating temperature range of this probe?
A1: The probe operates from -52°C to +177°C, and the extension cable also supports this range.
Q2: What are the typical applications of the 330103 probe?
A2: It is mainly used for vibration and position measurements on fluid-film bearing machines, and also for Keyphasor reference and speed measurements.
Q3: What is the linear measurement range?
A3: The linear range is 2 mm, approximately from 0.25 mm to 2.3 mm.
Q4: What is the recommended gap setting?
A4: The recommended gap setting is 1.27 mm.
Q5: What is the minimum bend radius of the cable?
A5: The minimum bend radius is 25.4 mm.
Q6: What is the total length and weight of the probe?
A6: The total length is 1.0 meter, and the weight is approximately 0.323 kg.
Q7: What is the minimum target size requirement?
A7: The minimum target diameter is 15.2 mm, and the recommended minimum shaft diameter is 50.8 mm.
Q8: What is the deviation from best fit line (DSL) specification?
A8: For a standard 1-meter system, DSL is within ±0.025 mm.
