Technical Specifications
| Parameter | Specification |
|---|---|

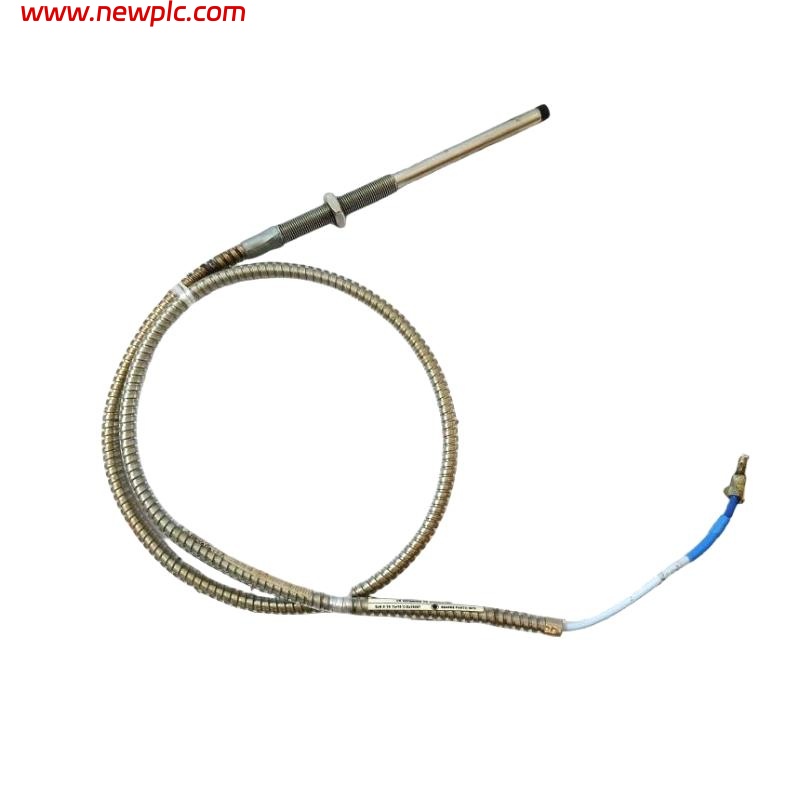

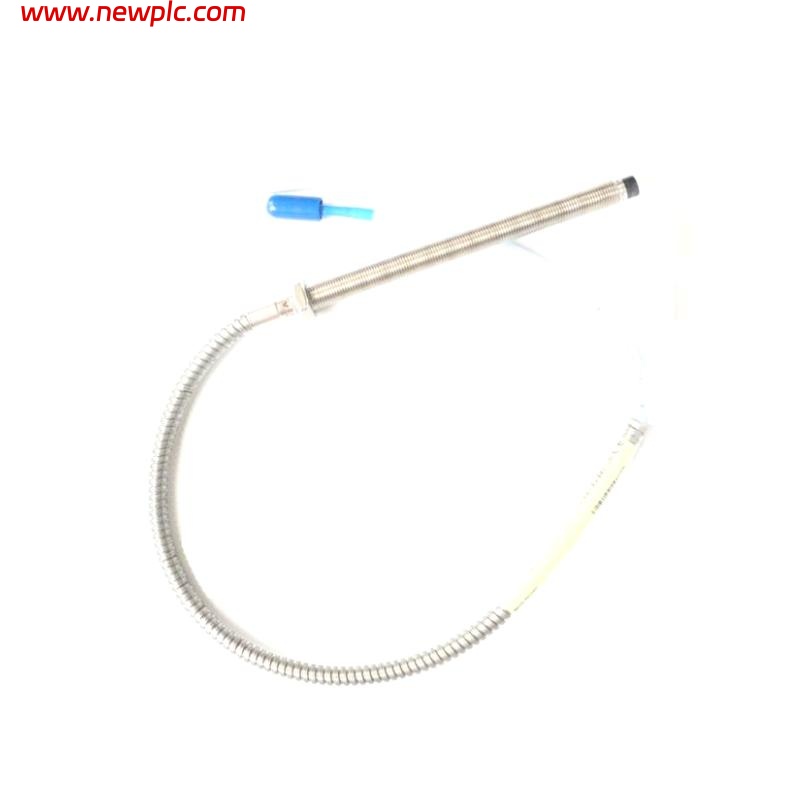

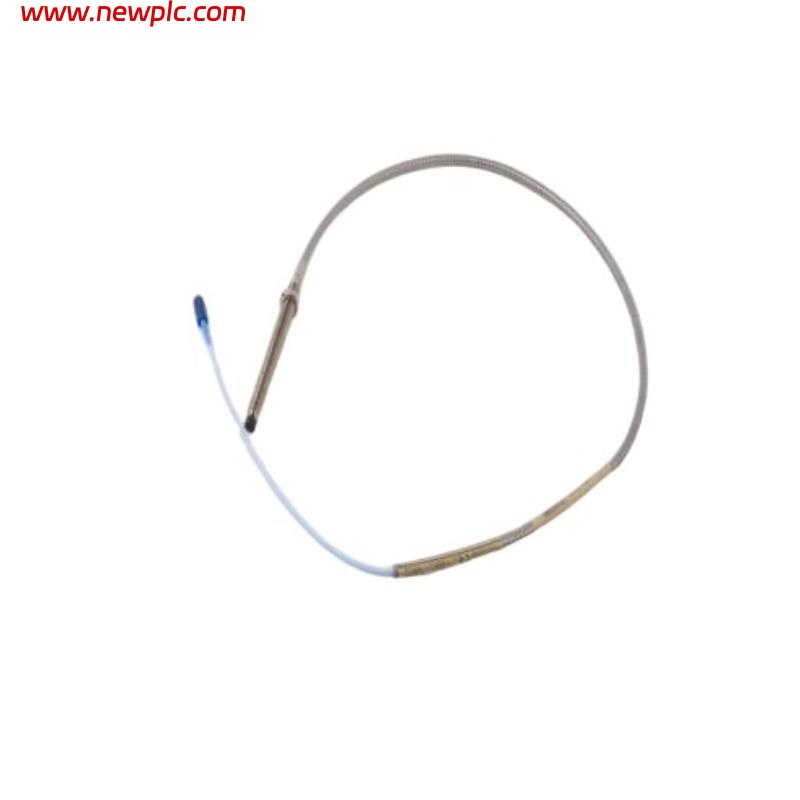

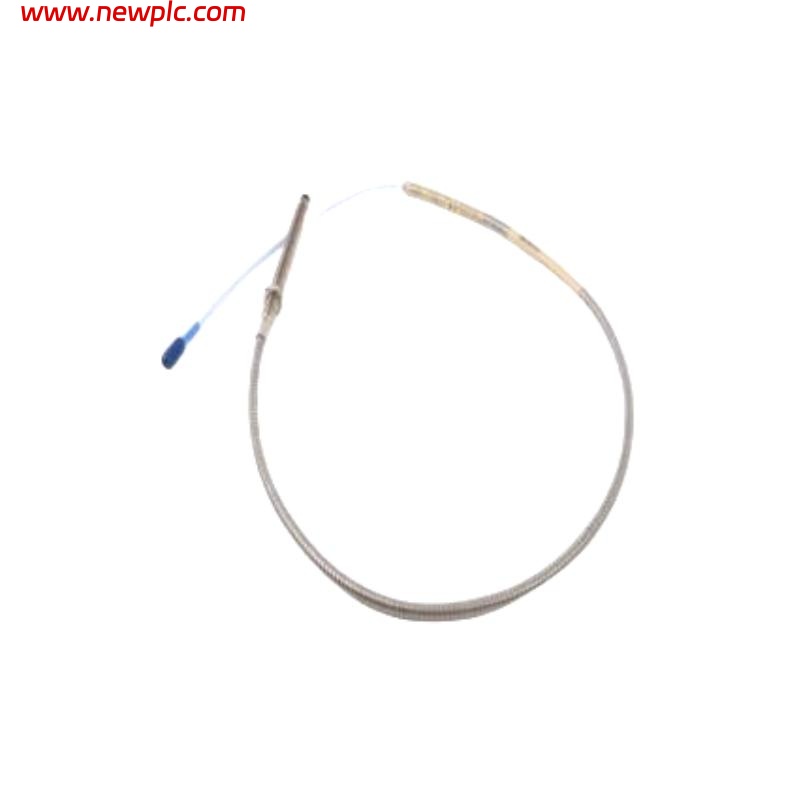

| Model | 330104-00-02-10-02-05 (3300 XL 8 mm Proximity Probe with Armor) |
| Thread Size | M10 x 1 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 / 304 Stainless Steel |
| Connector Type | Miniature coaxial ClickLoc with standard cable |
| Cable Type | 75 Ω triaxial FEP insulated |
| Armor | Flexible AISI 302 / 304 SST with FEP jacket |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Temperature Range (Probe) | -52°C to +177°C (standard) / -52°C to +218°C (ETR tip) |
| Pressure Sealing | Viton® O-ring (not pressure tested at factory) |
| Minimum Cable Bend Radius | 25.4 mm |
| Maximum Probe Case Torque | 22.6 N·m (reverse-mount) / 33.9 N·m (forward-mount) |
| Recommended Torque (M10) | 7.5 N·m |
| Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (1 m system) |
| Linear Range | 0.25 mm to 2.3 mm |
| Nominal DC Resistance (1 m Probe) | 7.59 ± 0.50 Ω |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Environmental Ratings | CSA, ATEX, IECEx compliant, SIL 2/3 |
FAQ
FAQ
Q1: What is the operating temperature range for this probe?
A1: The standard probe operates from -52°C to +177°C; the ETR version supports up to +218°C at the tip.
Q2: What is the total length of this model?
A2: The total length of the Bently Nevada 330104-00-02-10-02-05 is 1.0 meter.
Q3: How much does this probe weigh?
A3: The total weight is 0.323 kg.
Q4: What target material is this probe calibrated for?
A4: It is factory calibrated for AISI 4140 steel; other calibrations are available upon request.
Q5: What installation torque is recommended?
A5: For M10 threads, a torque of 7.5 N·m is recommended.
Q6: Is this probe compatible with older 3300 series systems?
A6: Yes, it is compatible with non-XL 3300 5 mm and 8 mm components.
Q7: What is the linear measuring range of the probe?
A7: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q8: Is this model suitable for use in hazardous areas?
A8: Yes, it is certified for use in hazardous areas, meeting CSA, ATEX, and IECEx standards.
