Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-40-10-02-05 |

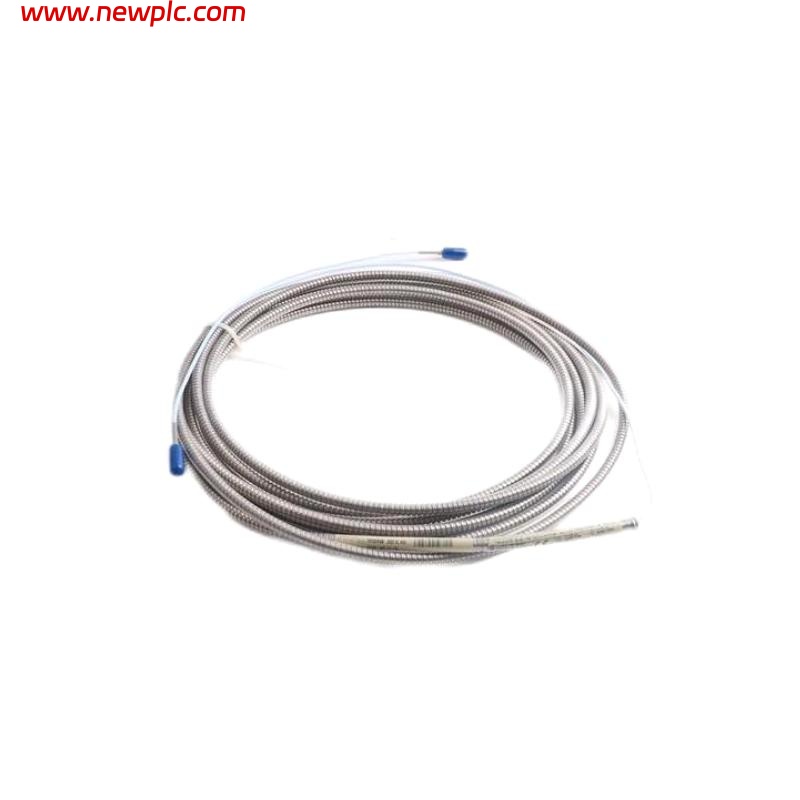

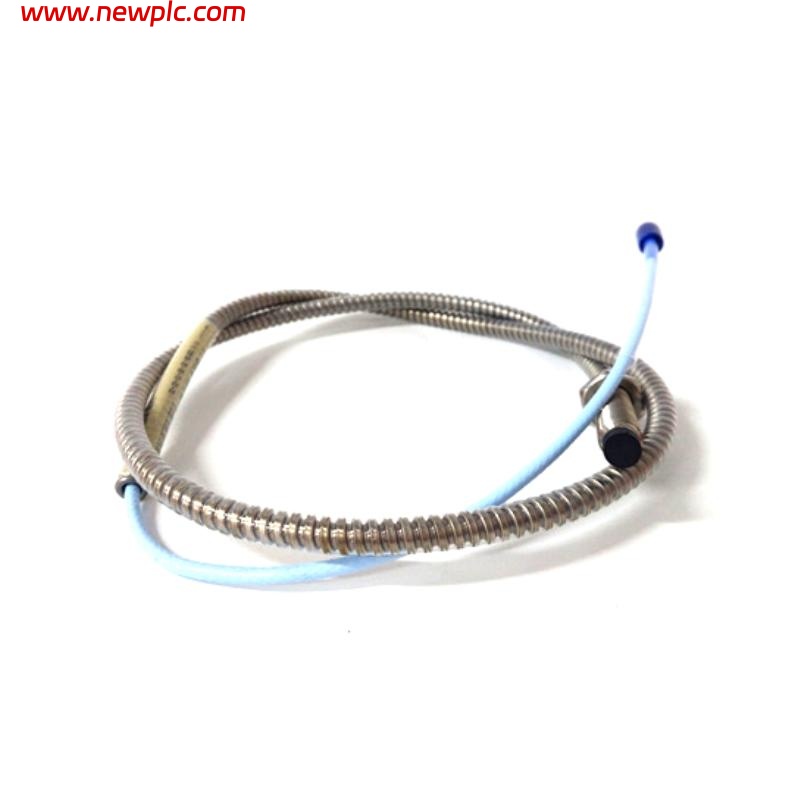

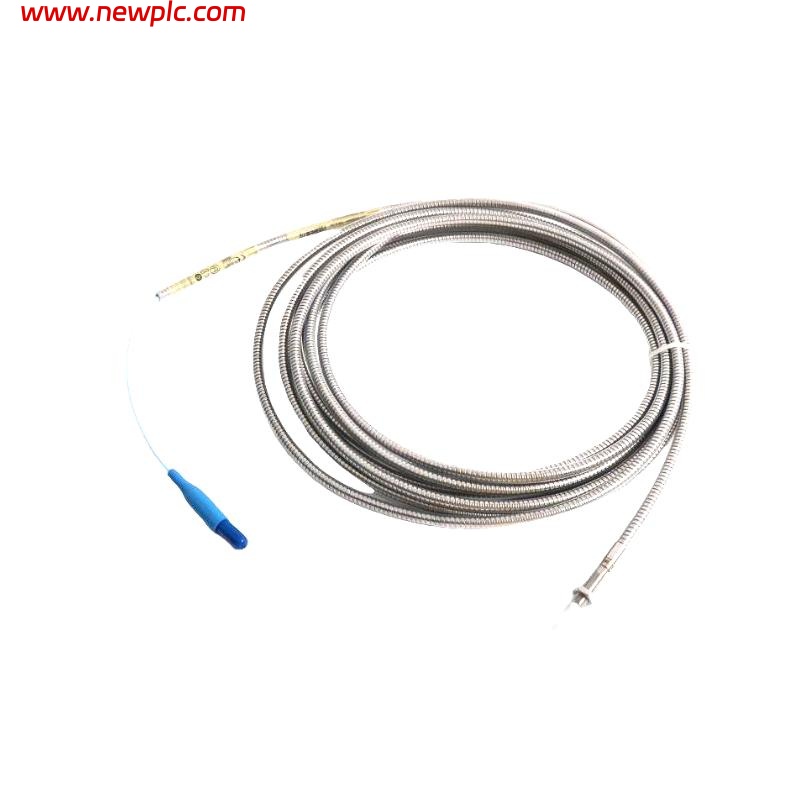

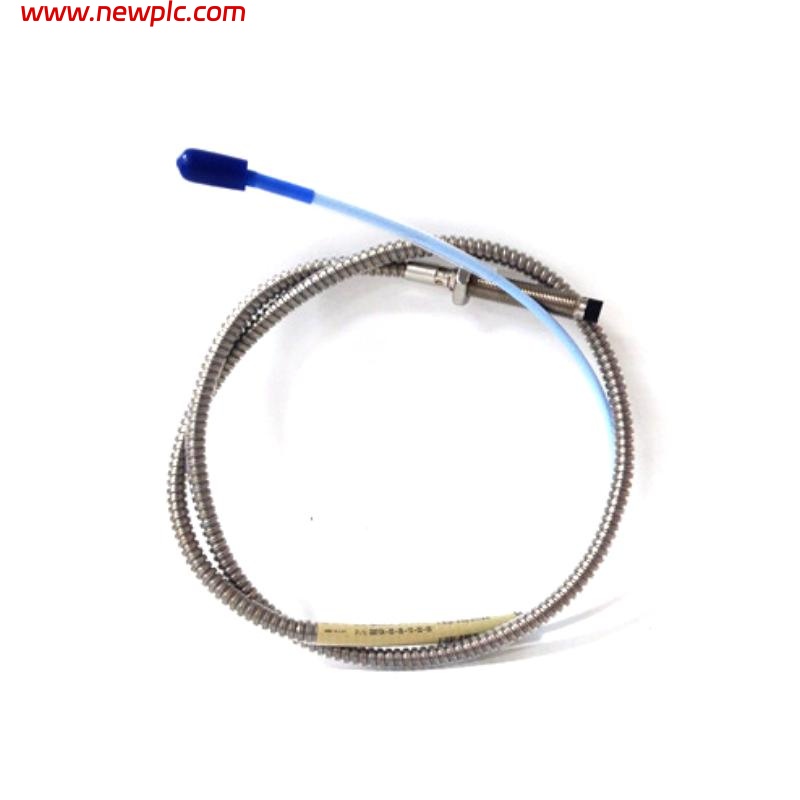

| System Components | 3300 XL 8 mm Probe (M10 x 1 thread), ClickLoc connector, standard cable with armor, 1.0 m total length |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Cable | 75Ω triaxial, FEP insulated |
| Armor (Optional) | Flexible AISI 302 or 304 SST with FEP jacket |
| Connector Type | Miniature coaxial ClickLoc connector with gold plating |
| Linear Range | 2 mm (80 mils) – from 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% for 1 m system |
| DSL (Linearity Deviation) | ≤ ±0.025 mm (±1 mil) over 0°C to +45°C |
| Operating Temp (Probe) | –52°C to +177°C |
| Operating Temp (Proximitor Sensor) | –52°C to +100°C |
| Cable Bend Radius (Min) | 25.4 mm |
| Power Supply Requirement | –17.5 Vdc to –26 Vdc, 12 mA |
| Output Resistance | 50 Ω |
| Frequency Response | 0 to 10 kHz, +0/–3 dB |
| Recommended Shaft Diameter | Minimum: 50.8 mm (2 in); Recommended: 76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Environmental Rating | RFI/EMI immune, compliant with EN61000-6-2 and EN61000-6-4 |
| Hazardous Area Certifications | ATEX, IECEx, CSA, cNRTLus |
| Thread Type | M10 x 1 |
| Torque (Recommended) | 7.5 N·m (66 in·lbf) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: Can this probe be used in high-temperature environments?
A1: Yes, it supports operating temperatures from –52°C to +177°C, suitable for harsh industrial conditions.
Q2: Is the 330104-00-40-10-02-05 probe certified for hazardous areas?
A2: Yes, it holds ATEX, IECEx, and CSA certifications for use in Zone 0 and Zone 2 hazardous locations.
Q3: Does this probe require a specific Proximitor sensor to work?
A3: Yes, it is recommended to use the 3300 XL Proximitor Sensor for optimal performance and accuracy.
Q4: What is the recommended probe gap setting?
A4: The recommended gap setting is –9 Vdc, corresponding to approximately 1.27 mm (50 mils).
Q5: Is this probe compatible with legacy 3300 systems?
A5: It is compatible with 3300-series 5 mm and 8 mm components, though performance defaults to the lower specification.
Q6: Can this probe prevent oil leakage?
A6: Yes, it can be configured with a FluidLoc cable option to prevent oil and liquid ingress.
Q7: What is the linear measurement range of the probe?
A7: The linear range is 0.25 mm to 2.3 mm (10 mils to 90 mils) with high accuracy output.
Q8: Can the probe be replaced independently without recalibration?
A8: Yes, components in the 3300 XL series are fully interchangeable and do not require bench recalibration.
