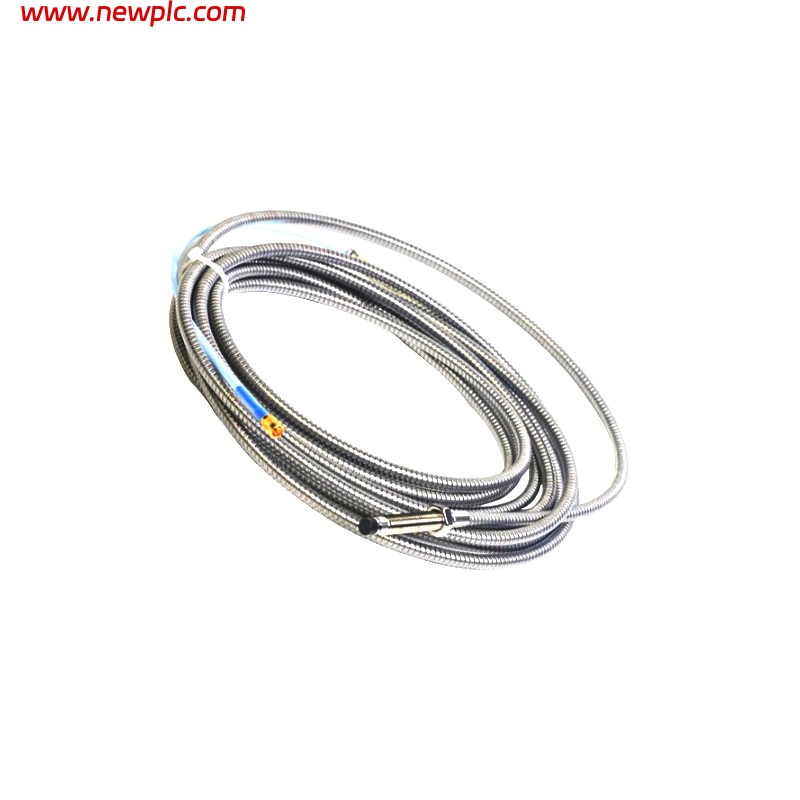

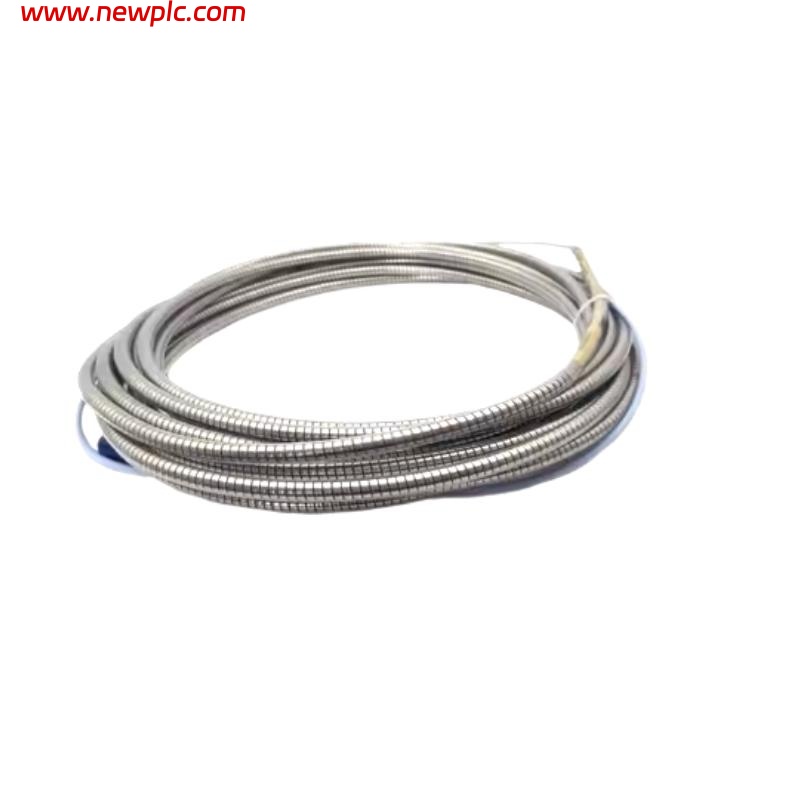

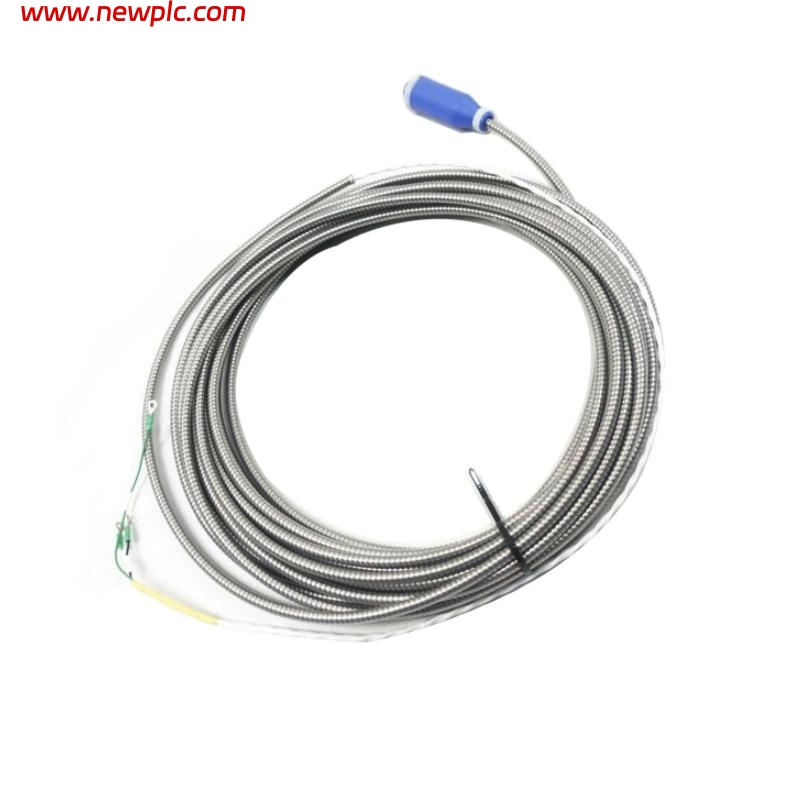

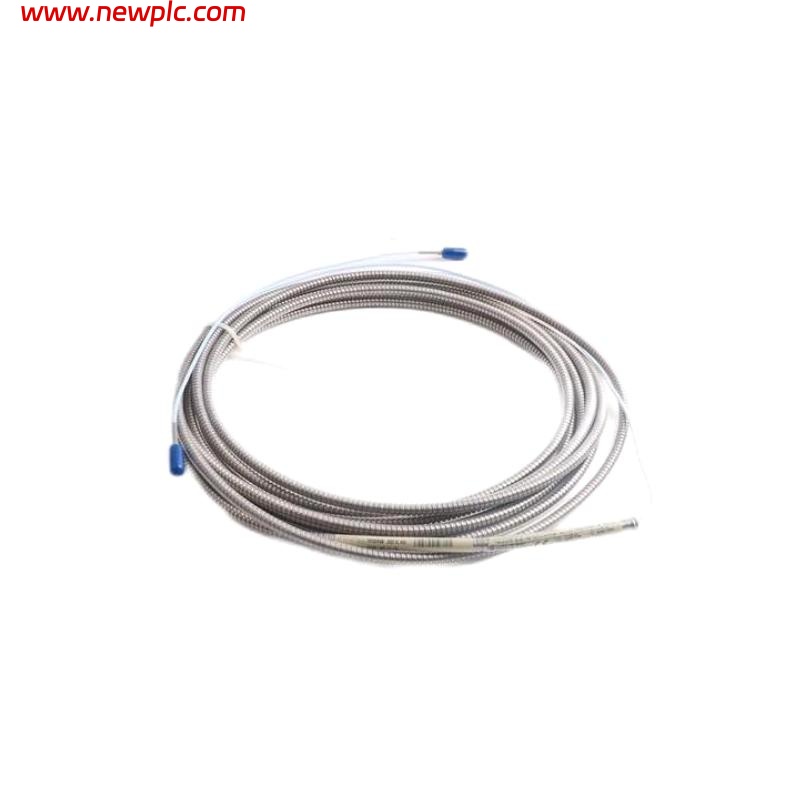

Bently Nevada 330104-00-03-05-02-00 3300 XL 8 mm Proximity Probe

FAQ

Q1: What are the typical applications of the 330104-00-03-05-02-00 probe?
A1: It is used primarily for measuring vibration and position on fluid-film bearing machines, as well as for Keyphasor reference and speed monitoring.

Q2: Is this probe compatible with non-XL 3300 components?
A2: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components. When mixed, system performance conforms to the lower-spec component.

Q3: What is the operating temperature range?
A3: The standard probe operates from -52°C to +177°C.

Q4: Does this probe require a matching extension cable and Proximitor sensor?
A4: Yes, for full accuracy and linear range, it should be used with 3300 XL extension cable and Proximitor sensor.

Q5: What is the recommended installation gap?
A5: The recommended gap is 1.27 mm (50 mils), yielding an output voltage around -9 Vdc.

Q6: What is the weight of this probe?
A6: It weighs approximately 0.162 kg with a total length of 0.5 meters.

Q7: Does the probe come with hazardous area certifications?
A7: Yes, it is certified under CSA, ATEX, and IECEx standards (option 05), making it suitable for hazardous locations.

Q8: Are tools required to install the ClickLoc connector?
A8: No tools are needed. The ClickLoc connector is designed for finger-tight installation with an audible click to indicate it is secure.
