Technical Specifications
| Parameter | Specification |
|---|---|

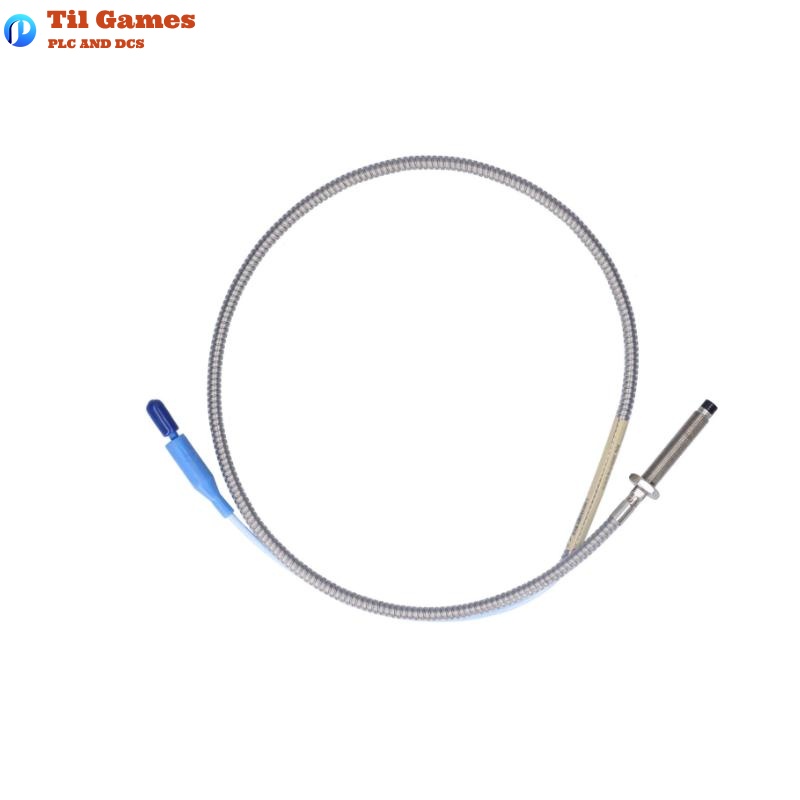

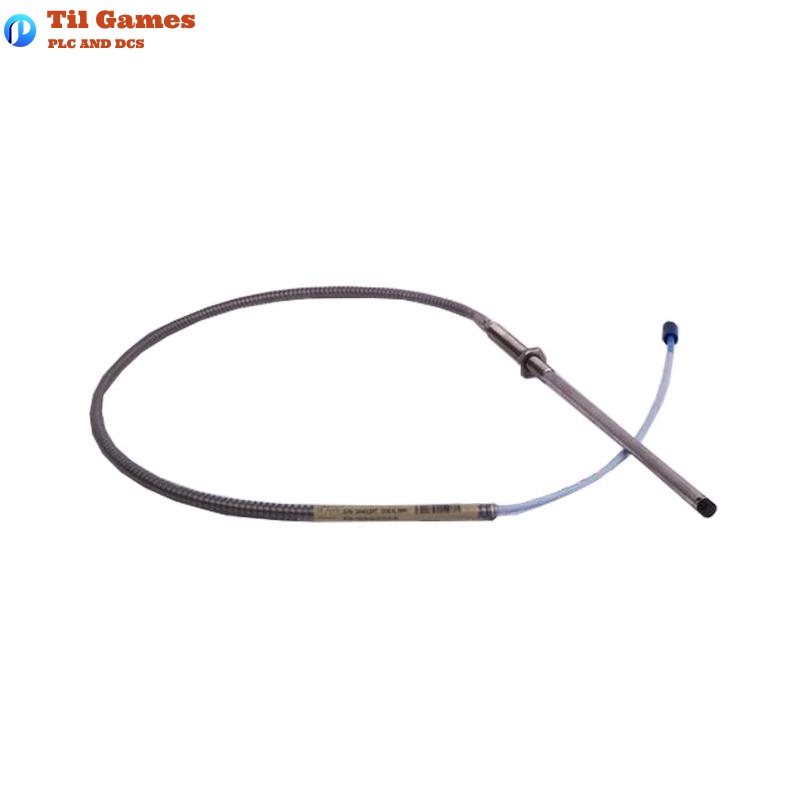

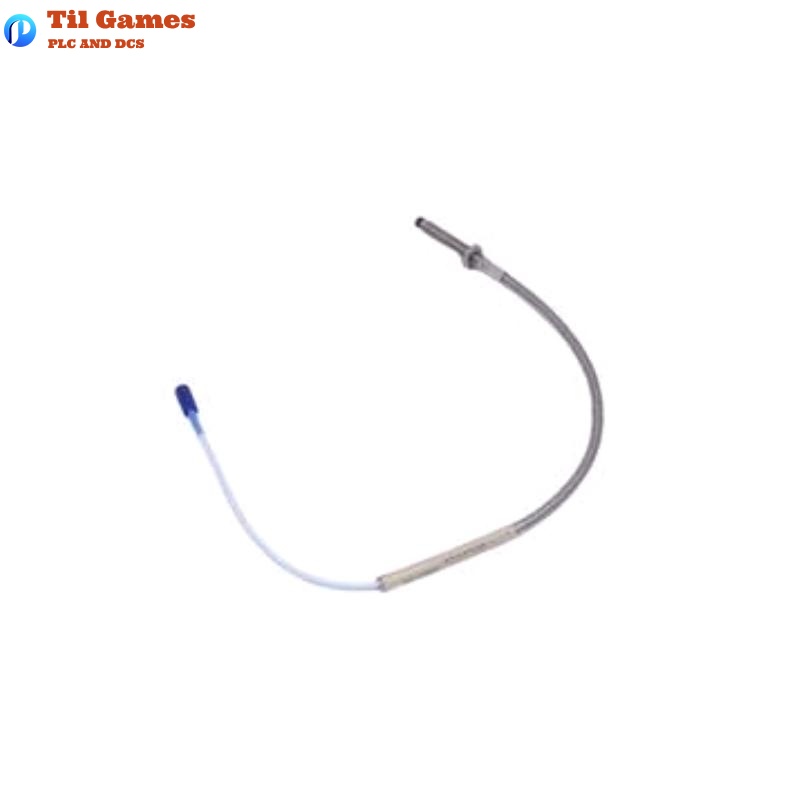

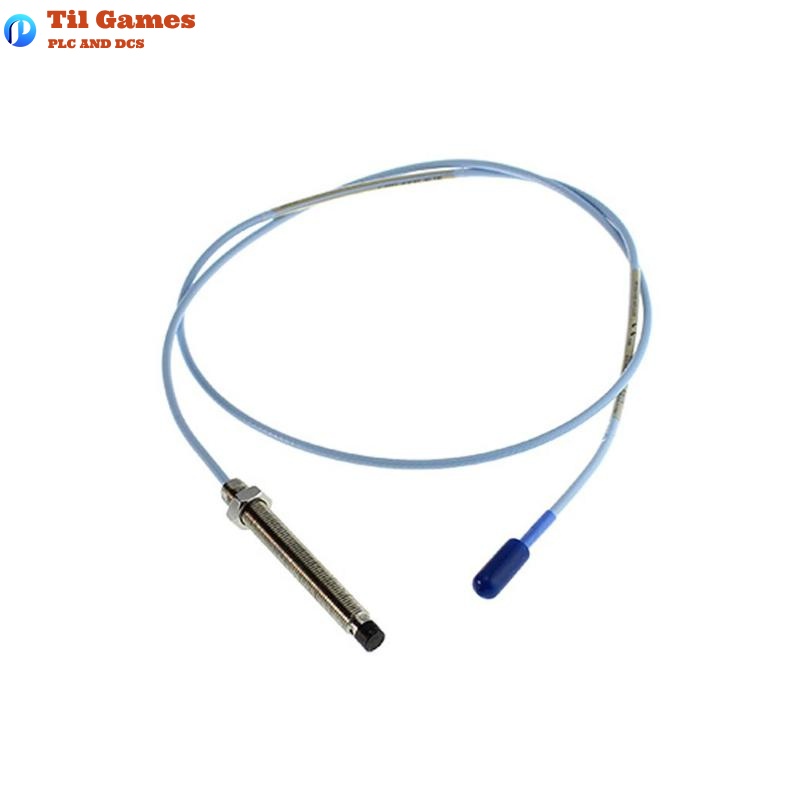

| Product Model | 330104-00-03-10-02-00 |
| Probe Diameter | 8.0 mm |
| Thread Type | M10 x 1 (metric), with armor |
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.323 kg (probe only) |
| Material – Probe Tip | Polyphenylene sulfide (PPS) |
| Material – Probe Case | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated (standard) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature coaxial ClickLoc gold-plated connector |
| Temperature Range – Probe | -52°C to +177°C (standard), up to +218°C (ETR) |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap Voltage | -9 VDC (~1.27 mm gap) |
| Shaft Diameter (min / recommended) | 50.8 mm / 76.2 mm |
| System Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Pressure Rating | Viton O-ring sealed, not pressure tested by default |
| Compliance | API 670 compliant; CE, FCC, RoHS, SIL 2/3 certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the thread type of the 330104-00-03-10-02-00 probe?
A1: It uses an M10 x 1 metric thread.
Q2: What is the total length and weight of this probe?
A2: The probe is 1.0 meter long and weighs approximately 0.323 kg.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, the standard version supports up to +177°C, and the ETR version supports up to +218°C.
Q4: What is the recommended shaft diameter for accurate measurements?
A4: The minimum shaft diameter is 50.8 mm, while the recommended is 76.2 mm.
Q5: Is this probe compatible with non-XL 3300 components?
A5: Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q6: What type of signal does this proximity probe measure?
A6: It provides a voltage output proportional to the distance to a conductive surface for vibration and position monitoring.
Q7: What materials are used in the probe construction?
A7: The tip is made of PPS, and the housing is stainless steel (AISI 303 or 304).
Q8: Does the probe require special tools for installation?
A8: No, the ClickLoc connector design allows for finger-tight installation without tools.
