Technical Specifications
| Parameter | Details |
|---|---|

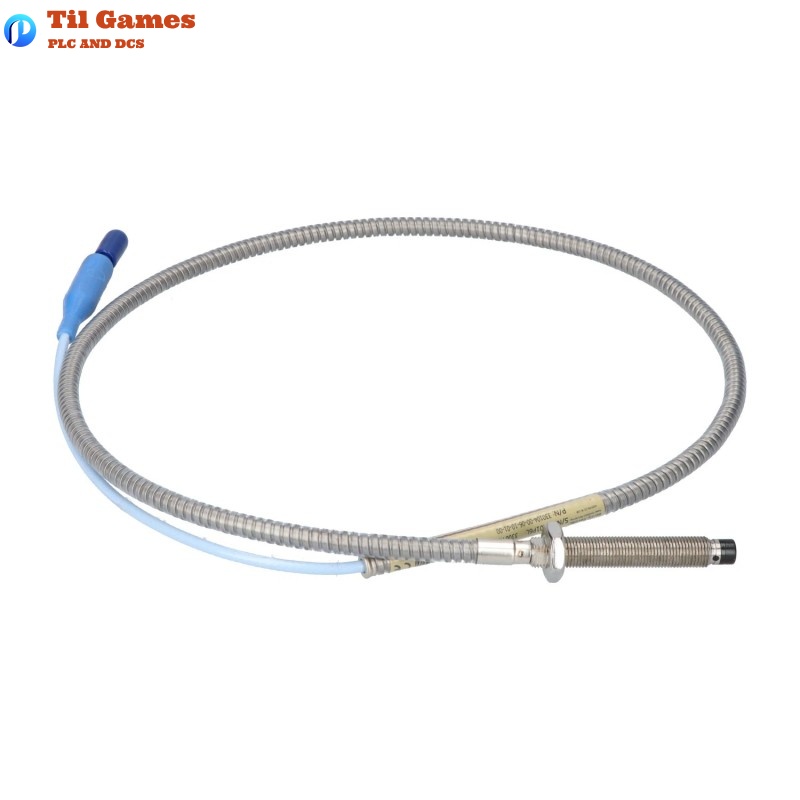

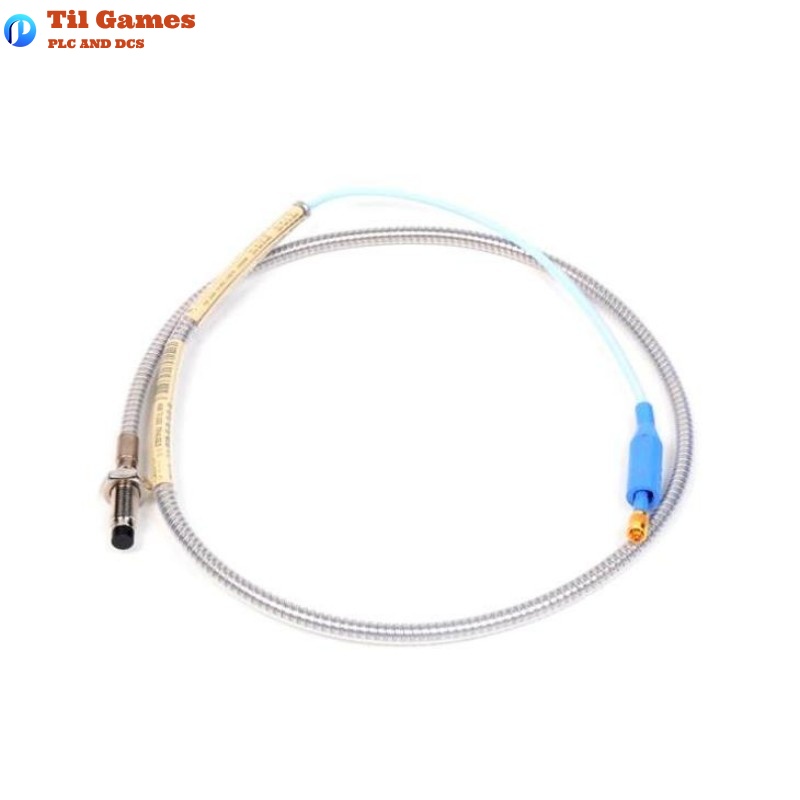

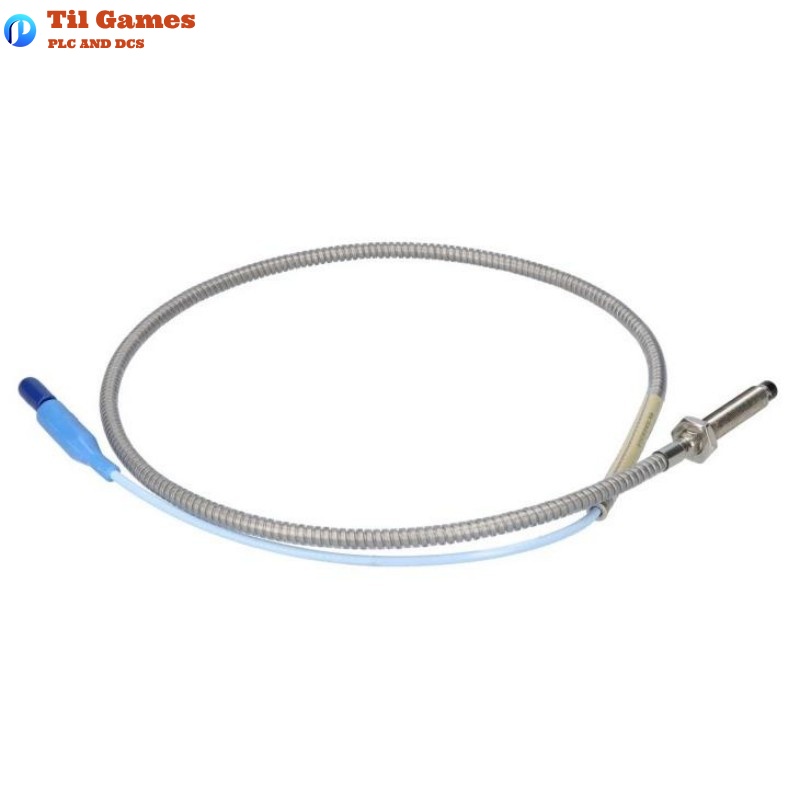

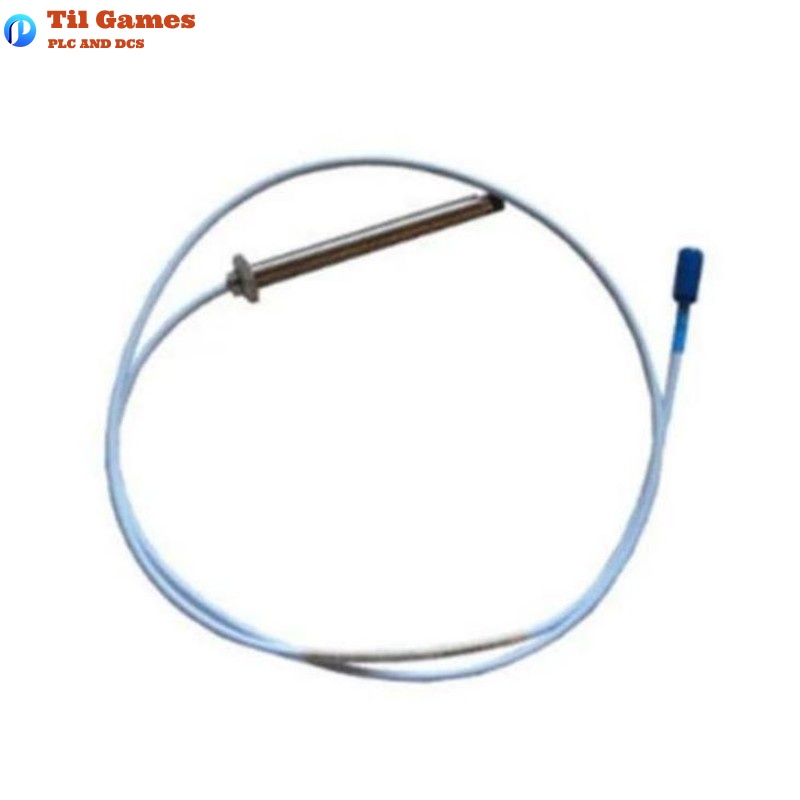

| Probe Type | 3300 XL 8 mm Proximity Probe (M10x1 thread, armored) |
| Tip Diameter | 8 mm |
| Probe Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated cable |
| Probe Tensile Strength | 330 N (probe housing to cable) |
| Extension Cable Strength | 270 N (connector point) |
| Connector Type | Gold-plated ClickLoc connector (tool-free with lock “click”) |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (ETR) | Tip: -52°C to +218°C; Cable: -51°C to +260°C |
| Linear Range | 0.25 mm to 2.3 mm (–1 V to –17 V) |
| Recommended Gap | –9 V (approx. 1.27 mm) |
| Incremental Scale Factor | 7.87 V/mm (±5% to ±6.5% depending on cable length) |
| Frequency Response | 0 to 10 kHz (+0, –3 dB) |
| Min Shaft Diameter | 76.2 mm |
| Mounting Thread Spec | M10 x 1 metric thread |
| Max Probe Torque | 22.6 N·m (Recommended: 7.5 N·m) |
| Power Requirements | –17.5 Vdc to –26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Cable Length | 1.0 meter |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (1 meter armored probe) |
FAQ
FAQ
Q1: What is the 330104-00-07-10-01-CN used for?
A1: It is a Bently Nevada 3300 XL 8 mm proximity probe designed for measuring vibration and shaft position in rotating machinery.
Q2: What kind of environments is it suitable for?
A2: It can operate in harsh conditions, including high temperatures up to 218°C and environments with high EMI/RFI interference.
Q3: Does this model come armored?
A3: Yes, the “-07” in the model number indicates it includes stainless steel armor for added durability.
Q4: How is the probe connected?
A4: It uses ClickLoc gold-plated connectors that require no tools—just finger-tighten until it clicks.
Q5: What kind of signal does it output?
A5: The probe outputs an analog voltage proportional to the distance between the probe tip and target surface.
Q6: Can the probe be replaced independently?
A6: Yes, all 3300 XL components are fully interchangeable without requiring re-calibration.
Q7: What types of equipment is it used with?
A7: It’s commonly used with turbines, compressors, pumps, and other rotating machines with fluid-film bearings.
Q8: What is the recommended initial gap setting?
A8: The recommended gap is –9 V, which corresponds to approximately 1.27 mm distance from the target.
