Technical Specifications
| Item | Specification |
|---|---|
| Model | Bently Nevada 330104-00-07-10-02-00 |

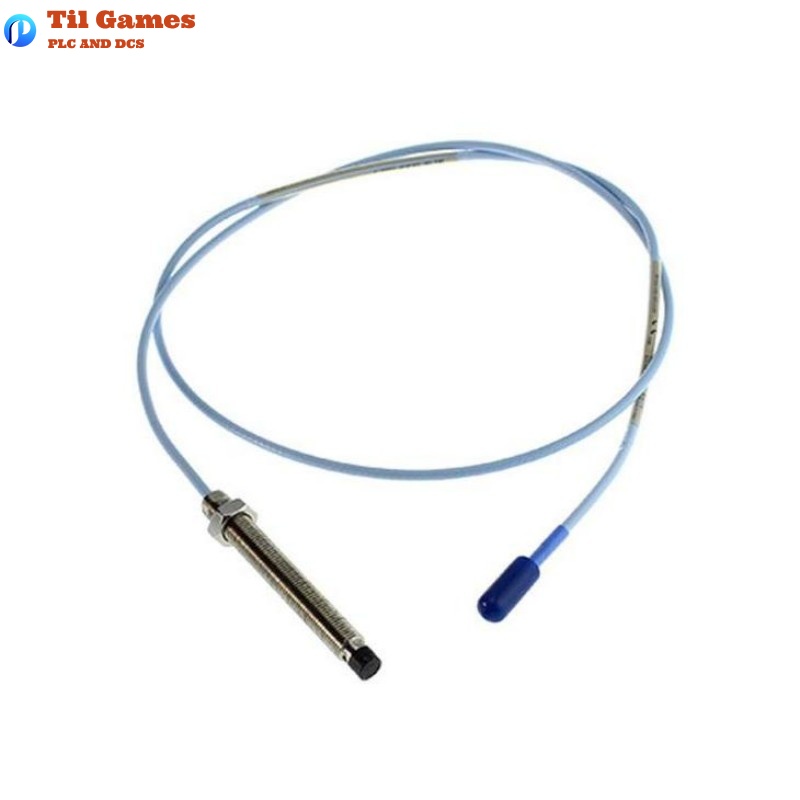

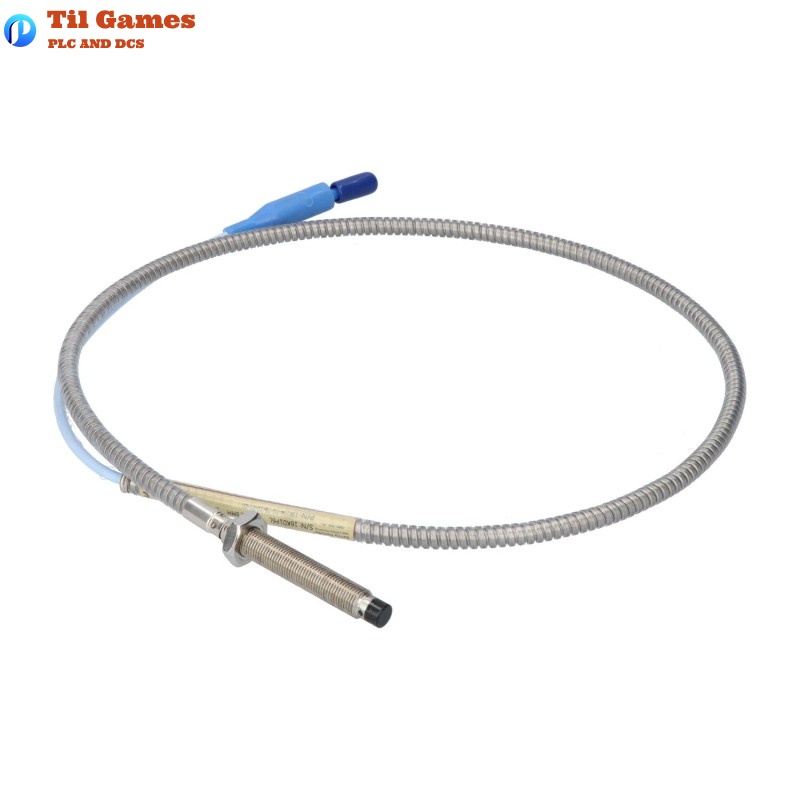

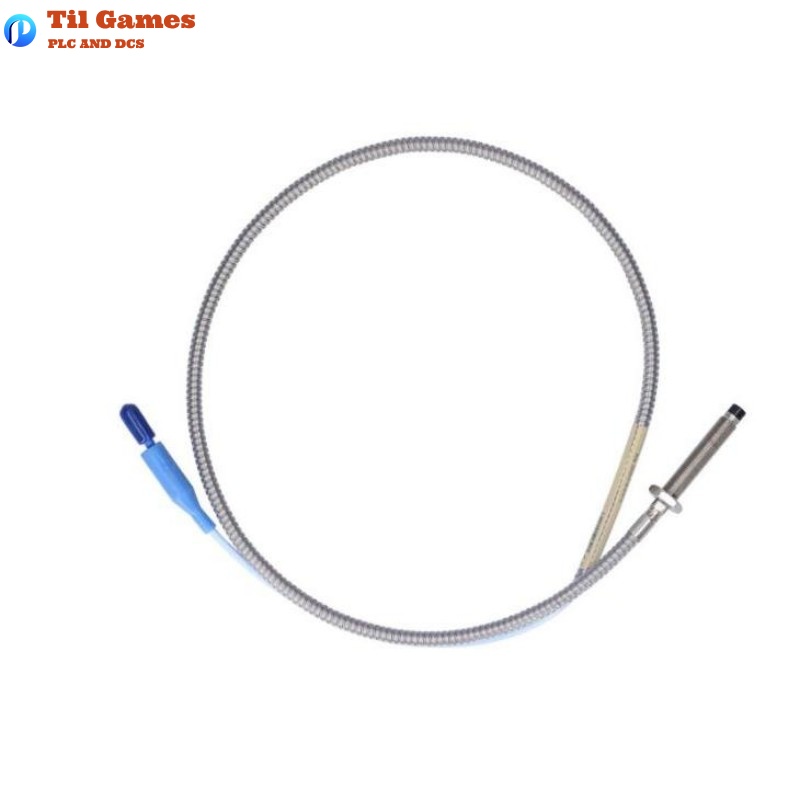

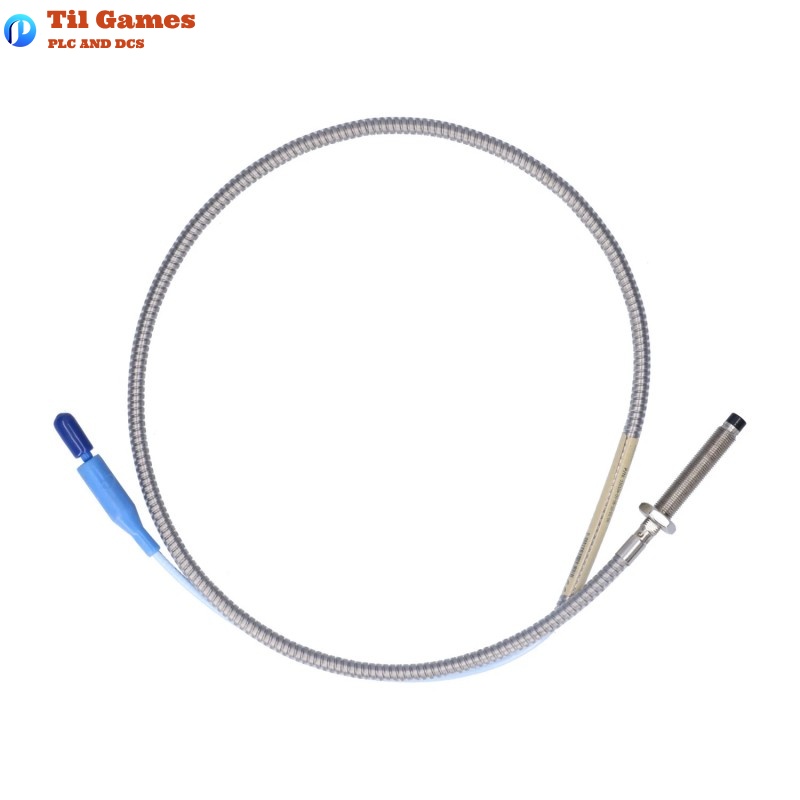

| Probe Type | 3300 XL 8 mm Proximity Probe with Armor |
| Thread Type | M10 x 1 |
| Probe Tip Material | PPS |
| Probe Case Material | SST 303/304 |
| Cable Type | 75Ω triaxial, FEP insulated with armor |
| Connector Type | ClickLoc gold-plated |
| Recommended Torque | 7.5 N·m (66 in·lbf) |
| Recommended Gap Voltage | -9 Vdc (approximately 1.27 mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (1 m system) |
| Power Requirement | -17.5 Vdc to -26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Cable Capacitance | 69.9 pF/m |
| Temperature Range (Standard) | -52°C to +177°C |
| Temperature Range (ETR) | Tip: -52°C to +218°C; Cable: -51°C to +260°C |
| Minimum Target Size | Ø15.2 mm (flat surface) |
| Recommended Shaft Diameter | Ø76.2 mm |
| Minimum Cable Bend Radius | 25.4 mm |
| Total Length | 1.0 meter |
| Total Weight | 0.323 kg |
FAQ
FAQ
Q1: What are the typical applications for this probe?
A1: It is used for vibration and position monitoring on fluid-film bearing machines, including Keyphasor and speed reference measurements.
Q2: Does it comply with API 670 standards?
A2: Yes, the 3300 XL 8 mm system fully complies with API 670 requirements for mechanical setup, linearity, accuracy, and thermal stability.
Q3: Is it backward compatible with older systems?
A3: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm components.
Q4: Is it suitable for high-temperature environments?
A4: Yes, standard probes operate up to 177°C, and ETR versions support up to 218°C (tip) and 260°C (cable).
Q5: Does it support tool-free installation?
A5: Yes, the ClickLoc connector allows finger-tight installation with a secure locking mechanism.
Q6: Is the probe corrosion resistant?
A6: Yes, it features stainless steel construction and gold-plated connectors for enhanced corrosion resistance.
Q7: Can it support long cable runs?
A7: Yes, it allows field wiring lengths up to 305 meters with reliable signal integrity.
Q8: Are connector protectors necessary?
A8: They are recommended to enhance environmental sealing and protect against contaminants or oil ingress.
