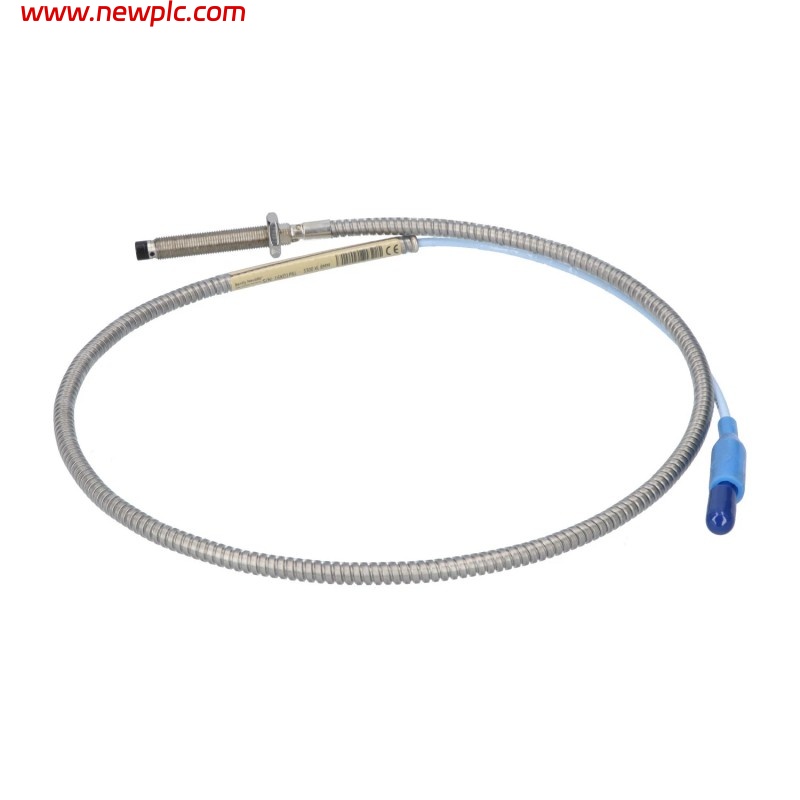

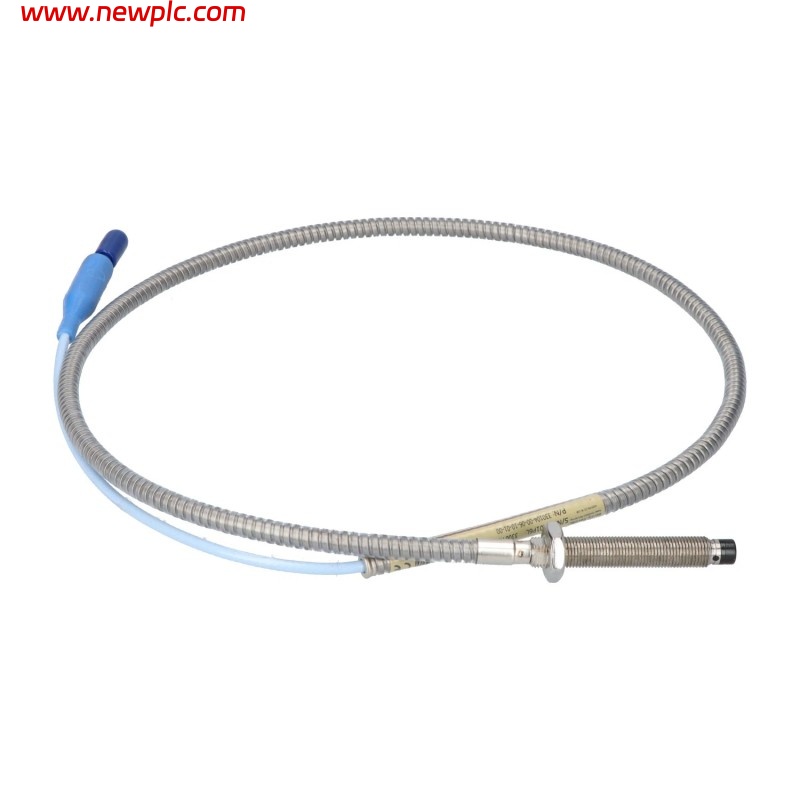

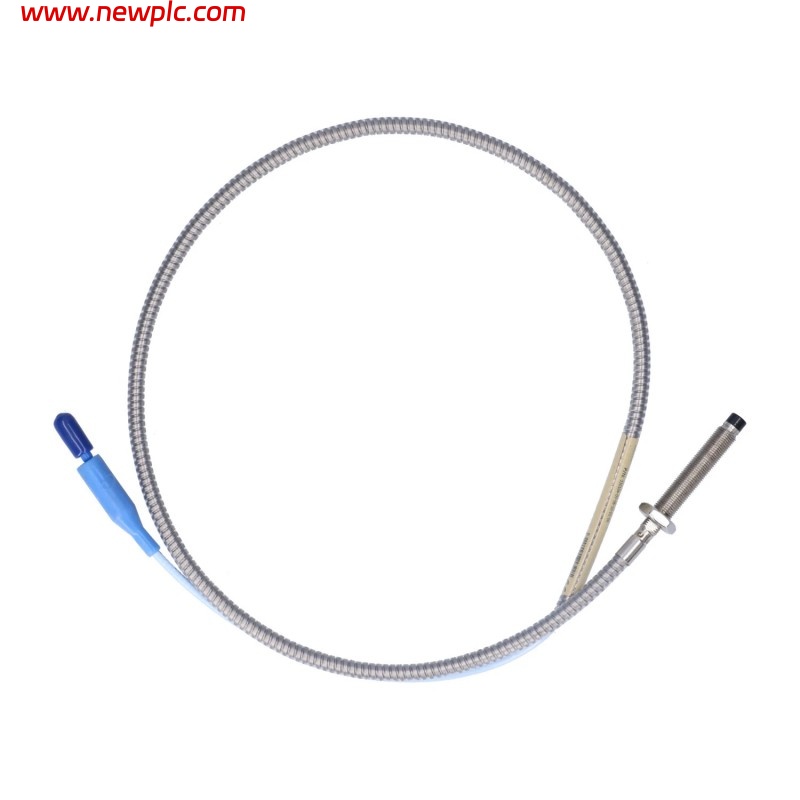

Bently Nevada 330104-00-09-05-02-CN 8 mm 3300 XL Eddy-Current Proximity Probe

FAQ

Q1: What is the main function of the 330104-00-09-05-02-CN probe?
It performs non-contact measurement of shaft displacement and position in rotating machinery.

Q2: What does each part of the model number indicate?
“00” = unthreaded length 0 mm; “09” = 90 mm probe case; “05” = 0.5 m cable; “02” = armored miniature connector; “CN” = China certification.

Q3: What materials are used in this probe?
It features a PPS tip and a stainless-steel armored housing designed for industrial durability.

Q4: What temperature range can this probe tolerate?
It operates from –52 °C up to +177 °C.

Q5: What kind of signal does the probe produce?
When paired with a compatible 3300 XL Proximitor, it outputs a voltage proportional to the probe-to-target distance.

Q6: Is this probe certified for hazardous areas?
The “CN” marking indicates China certification; hazardous-area suitability depends on the specific installation requirements.

Q7: What is the measurement sensitivity of the probe?
Typical system sensitivity is ~200 mV/mil (≈7.87 V/mm) within a linear range of roughly 0.25–2.5 mm.

Q8: What are the size and weight specifications for this model?
It has a 90 mm case length, an 8 mm tip diameter, and an approximate weight of 0.40 kg including the 0.5 m armored cable.

330104-00-09-05-02-CN Bently Nevada
