Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-00-22-10-02-05 |

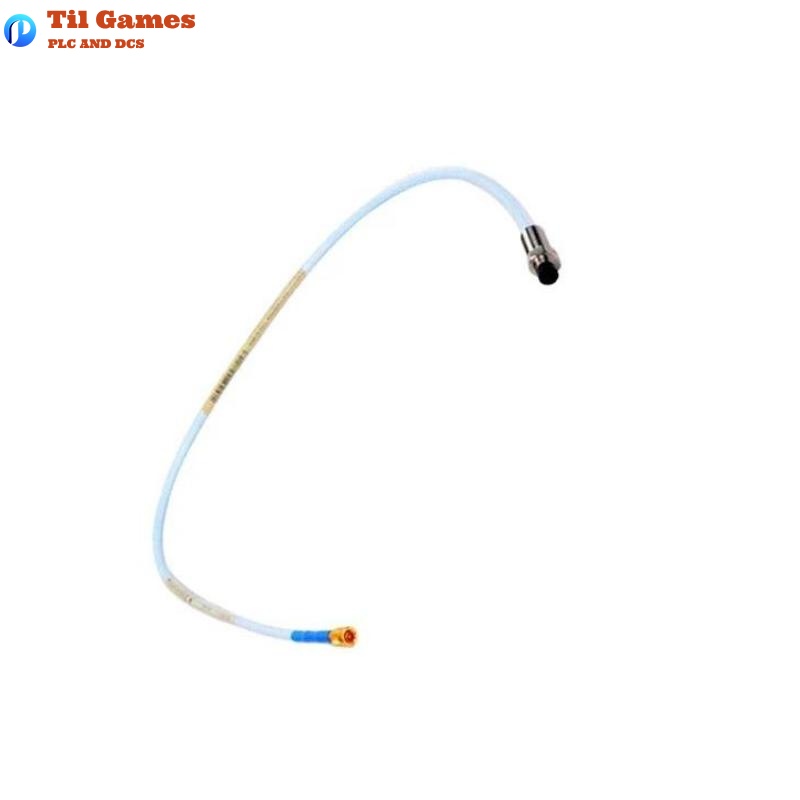

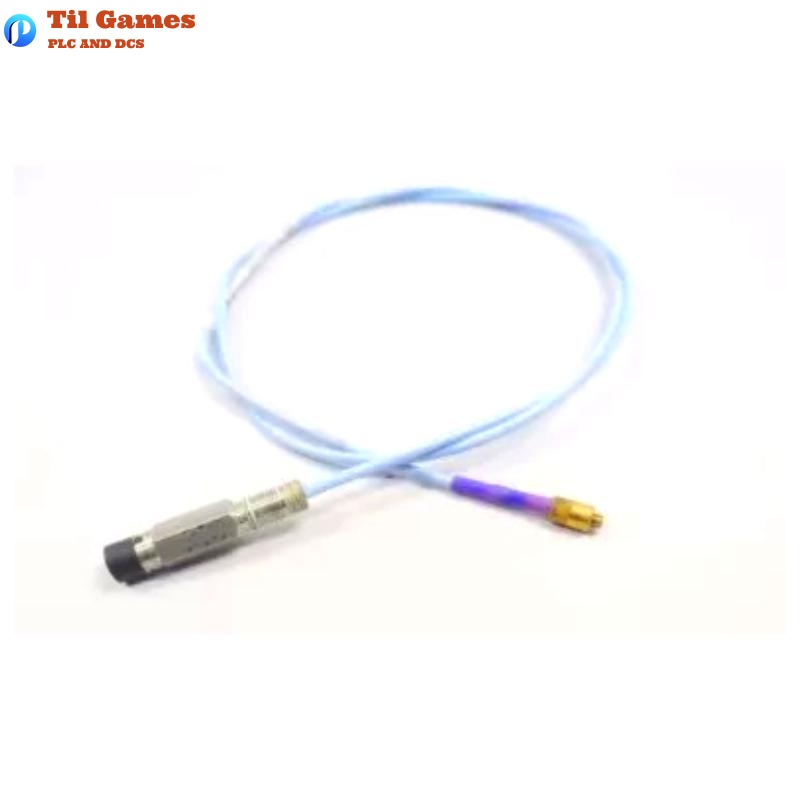

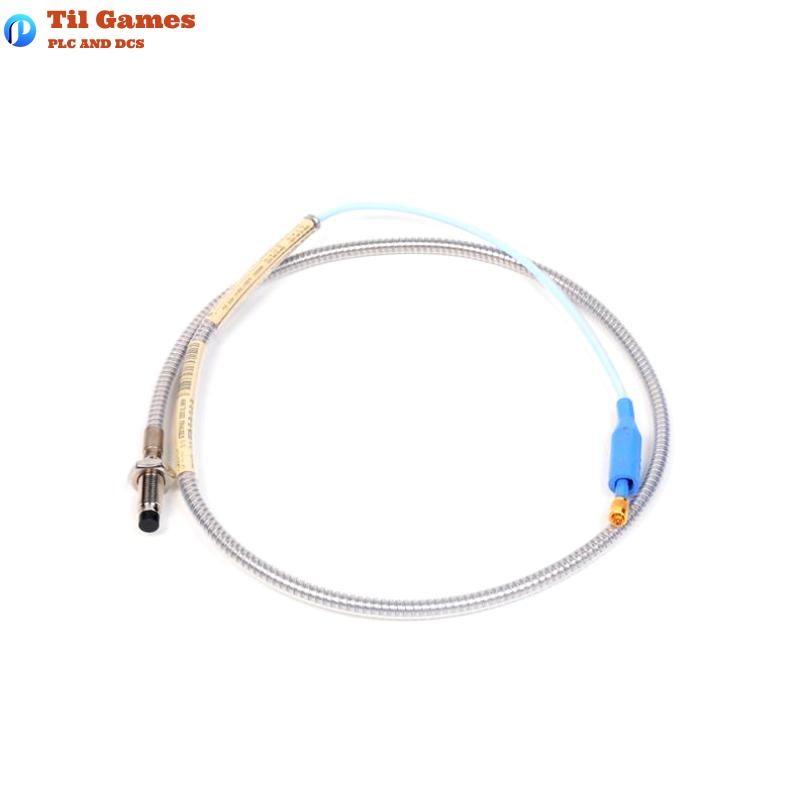

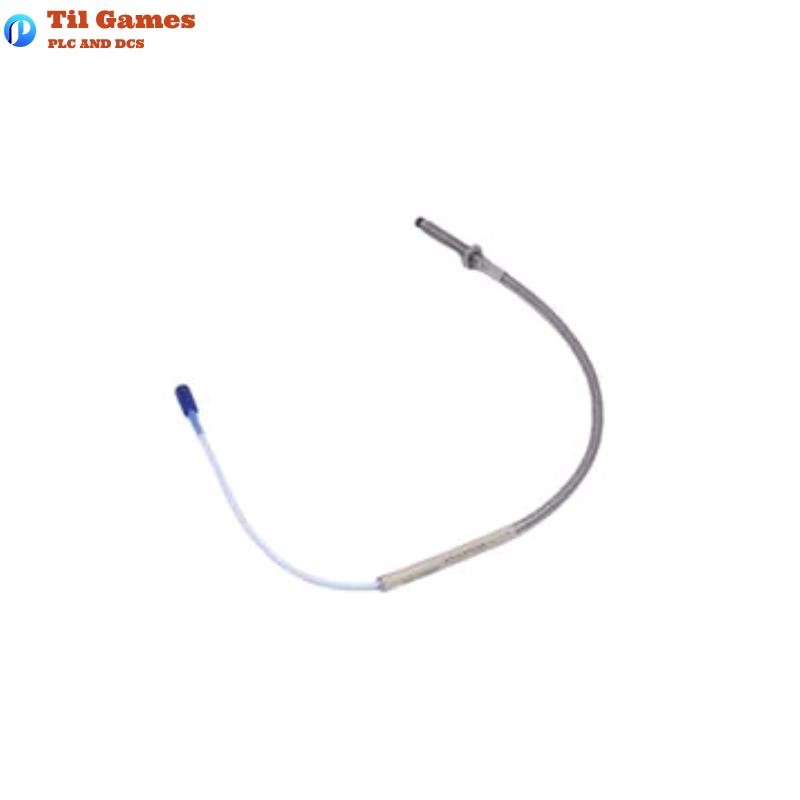

| Probe Type | 3300 XL 8 mm Proximity Probe (M10 x 1 thread, armored) |
| Probe Diameter | 8 mm |
| Probe Material | PPS tip, 303/304 SST housing |
| Cable Type | 75Ω triaxial, FEP insulated, ClickLoc miniature coaxial |
| Total Cable Length | 1.0 meter |
| Total Weight | 0.323 kg |
| Pull Strength (Max) | 330 N (probe case to lead); 270 N (lead to extension) |
| Recommended Gap | 1.27 mm (approx. -9 Vdc) |
| Linear Measurement Range | 0.25 mm to 2.3 mm (–1 Vdc to –17 Vdc) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (for 5 m system) |
| Probe Operating Temp. | -52°C to +177°C |
| Probe Storage Temp. | -52°C to +177°C |
| Sensor Temperature Range | Operating: -52°C to +100°C; Storage: -52°C to +105°C |
| Thread Engagement (Max) | M10x1, 15 mm |
| Min. Cable Bend Radius | 25.4 mm (1.0 inch) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the probe suitable for high-temperature applications?
A1: Yes. The standard version supports up to +177°C; the ETR version supports up to +218°C at the probe tip.
Q2: Is the probe compatible with older 3300 series components?
A2: Yes. It is both electrically and mechanically compatible with 3300 5 mm and 8 mm series components.
Q3: Are special tools required for installation?
A3: No. The ClickLoc connectors are designed for finger-tight installation with an audible “click.”
Q4: Can the cable prevent fluid leakage?
A4: Yes, if ordered with the optional FluidLoc cable, it effectively prevents internal oil leakage.
Q5: What are the typical applications for this product?
A5: It is mainly used in fluid-film bearing machines such as turbines and compressors for displacement and vibration monitoring.
Q6: What is the recommended thread engagement length?
A6: Maximum thread engagement for M10x1 thread is 15 mm. Exceeding this may cause thread binding.
Q7: Can the Proximitor be installed in non-metallic enclosures?
A7: Yes, it is RFI/EMI resistant and suitable for use in fiberglass housings.
Q8: Is this model certified for hazardous areas?
A8: Yes. It holds CSA, ATEX, and IECEx approvals and can be used in Zone 0/1/2 classified areas.
