Technical Specifications
| Item | Description |
|---|---|
| Model Number | 330104-00-24-10-02-00 |

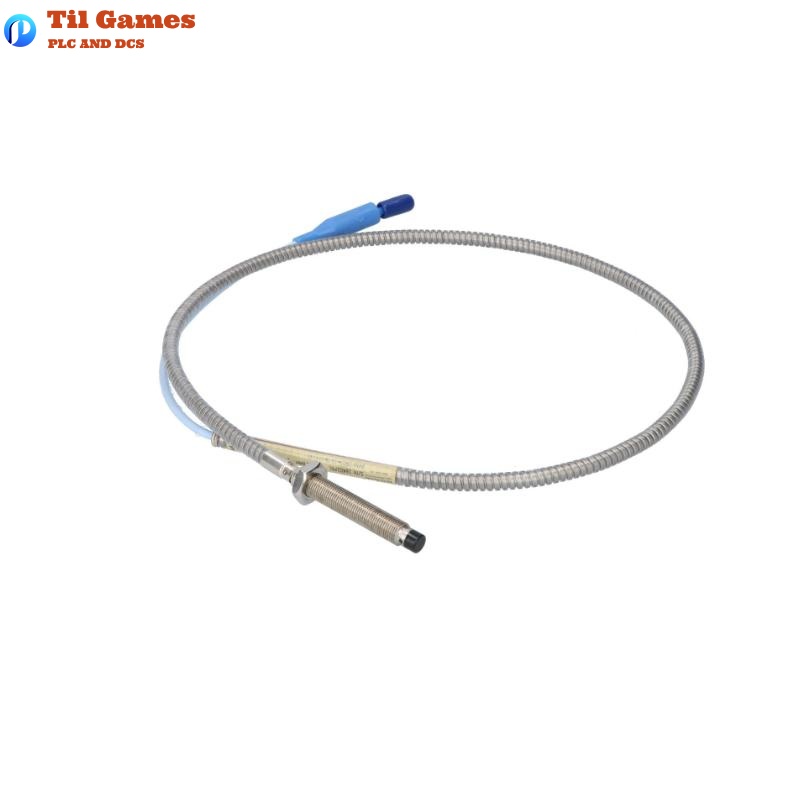

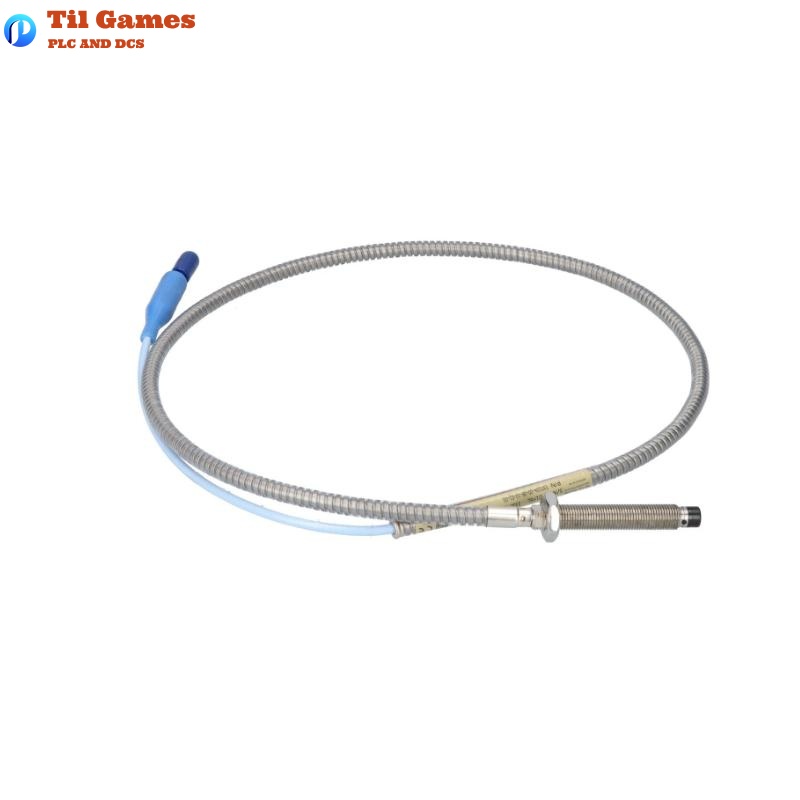

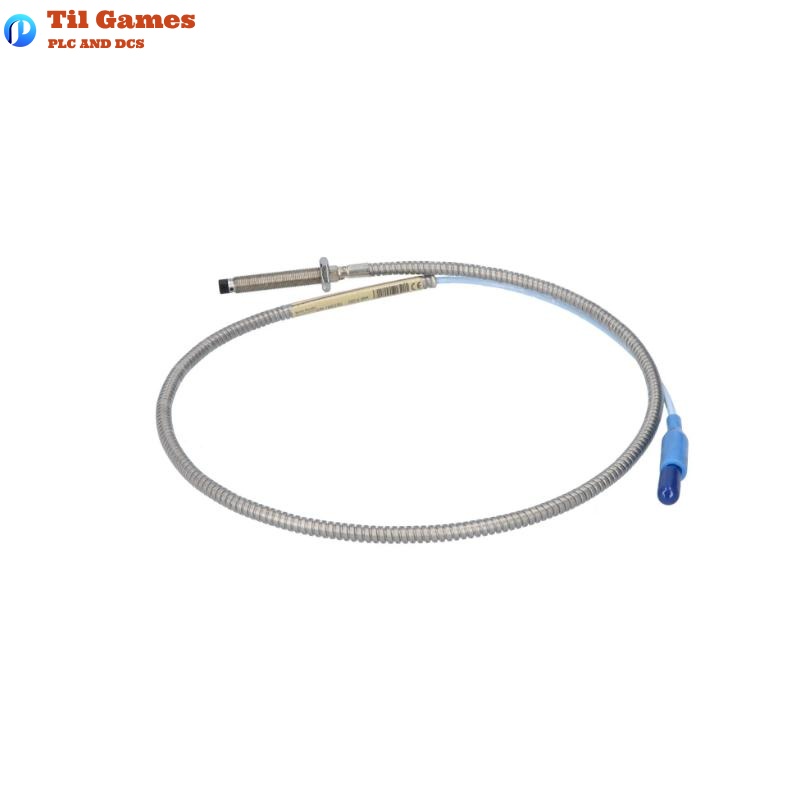

| Probe Type | 8 mm Proximity Probe, M10x1 Thread, Armored |
| Measurement Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm) |
| Sensitivity | 7.87 V/mm ±5% (5 m system), ±6.5% (9 m system) |
| Linearity Error | Less than ±0.025 mm (±1 mil) for 5/1 m system |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Recommended Shaft OD | 76.2 mm |
| Probe Temperature | -52°C to +177°C (standard); -52°C to +218°C (ETR probe) |
| Cable Temperature | -52°C to +177°C (standard); -52°C to +260°C (ETR cable) |
| Probe Materials | PPS tip, 303/304 Stainless Steel housing |
| Cable Type | 75Ω triaxial, FEP insulated (standard), PFA insulated (ETR) |
| Min. Cable Bend Radius | 25.4 mm |
| Connector Type | ClickLoc Miniature Coaxial (Gold-Plated) |
| Mounting Torque | Max 33.9 N•m (standard forward), recommended 11.2 N•m |
| Power Supply | -17.5V to -26V (non-intrinsically safe); -23V to -26V (with barriers) |
| Output Impedance | 50 Ω |
| Frequency Response | 0 Hz to 10 kHz, ±3 dB |
| Total Length | 1.0 meter |
| Total Weight | 0.323 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this probe compliant with API 670?
A1: Yes, the 3300 XL 8 mm probe system meets the API 670 standard.
Q2: Can this probe be used with older non-XL 3300 components?
A2: Yes, but system performance will be limited to that of the non-XL components.
Q3: What is the recommended installation torque?
A3: Recommended torque is 11.2 N•m, maximum is 33.9 N•m for standard forward-mount probes.
Q4: What is the operating temperature range of the probe?
A4: Standard probes operate from -52°C to +177°C; ETR probes can go up to +218°C.
Q5: Does the probe have RFI/EMI immunity?
A5: Yes, it is designed with excellent immunity to RFI and EMI.
Q6: Is the cable resistant to oil or fluid leakage?
A6: Yes, with the optional FluidLoc cable, it prevents internal fluid leakage.
Q7: What is the maximum allowed field wiring length?
A7: The wiring from the Proximitor sensor to the monitor can be up to 305 meters.
Q8: What shaft diameter is recommended?
A8: A shaft diameter of 76.2 mm or greater is recommended for optimal performance.
