Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Bently Nevada 330105-02-12-05–02-00 |

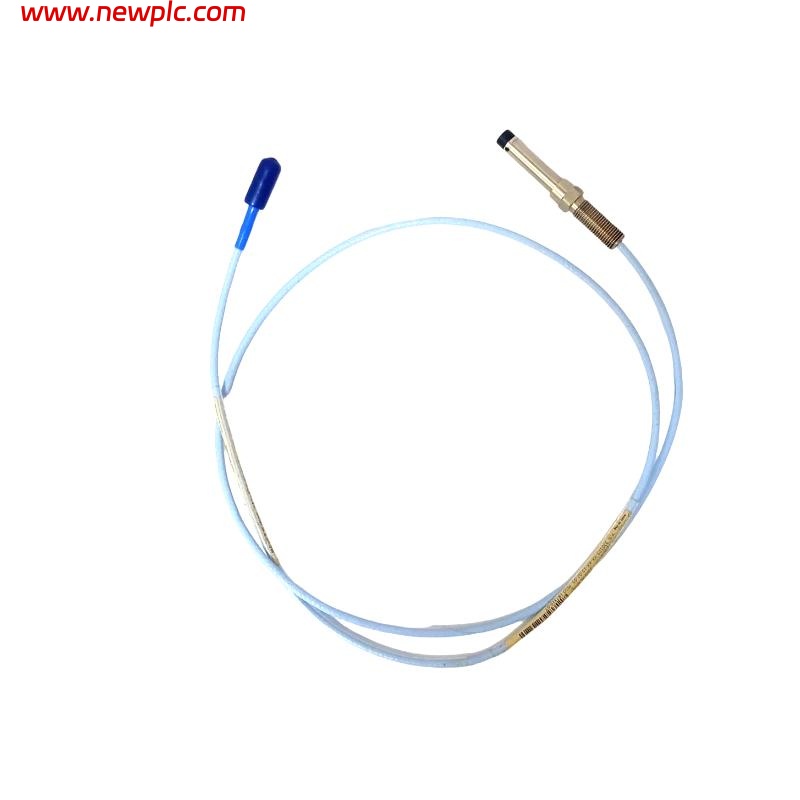

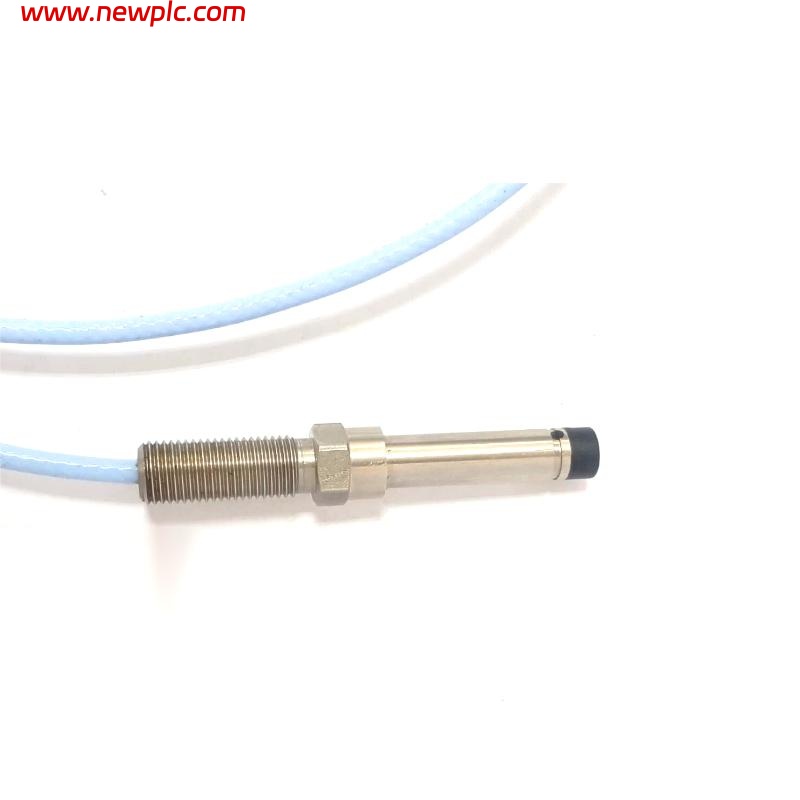

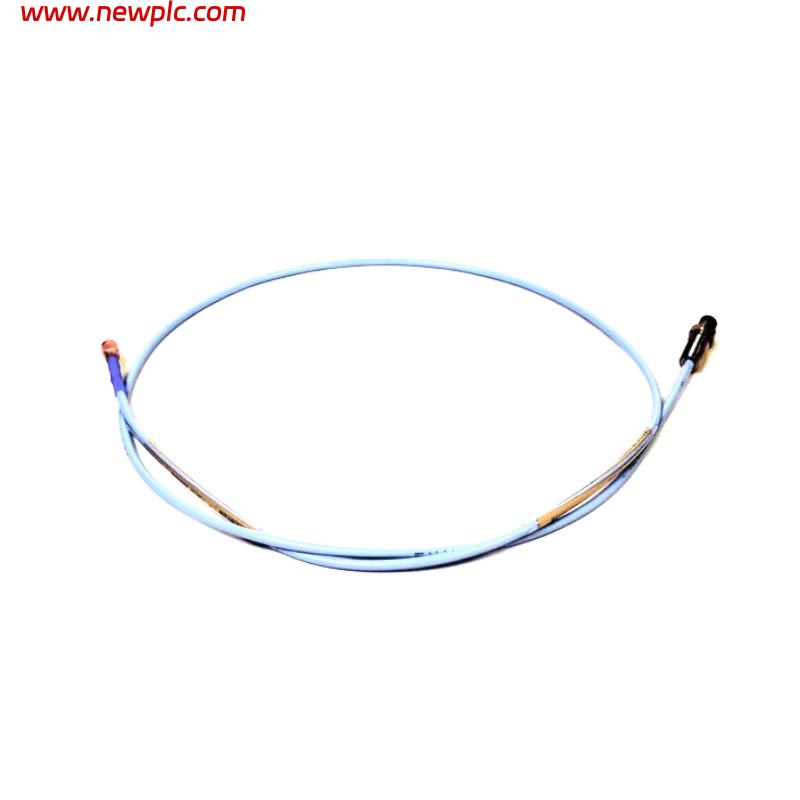

| Probe Type | 3300 XL 8 mm Reverse Mount Probe |
| Thread Size | 3/8-24 UNF |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Connector Type | Miniature ClickLoc Coaxial Connector (Standard Cable) |
| Cable Insulation | FEP (Fluoroethylene Propylene) |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Torque Limit (Reverse Mount) | Max: 22.6 N•m (200 in•lbf), Recommended: 7.5 N•m (66 in•lbf) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Pressure Seal | Viton® O-ring for differential pressure sealing |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Recommended Minimum Shaft Size | 76.2 mm (3 in) |
| Linear Range | 2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | -9 Vdc ≈ 1.27 mm (50 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (for 5 m system) |
| Deviation from Best Fit Line | ±0.025 mm (±1 mil) (5 m system) |
| Environmental Rating | Suitable for hazardous areas with CSA, ATEX, IECEx approvals |
FAQ
FAQ
Q1: What is the total length of the 330105-02-12-05–02-00 probe?
A1: The total length is 0.5 meter.
Q2: What is the weight of this reverse mount probe?
A2: The weight is approximately 0.162 kg.
Q3: What type of thread does this probe use?
A3: It uses a 3/8-24 UNF thread.
Q4: Is this probe suitable for high-temperature environments?
A4: Yes, it operates in temperatures from -52°C to +177°C.
Q5: What is the recommended shaft diameter for accurate measurement?
A5: The recommended minimum shaft diameter is 76.2 mm (3 in).
Q6: What is the linear measurement range of the probe?
A6: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q7: Does the product comply with hazardous area certifications?
A7: Yes, it meets CSA, ATEX, and IECEx standards.
Q8: What type of connector does the probe feature?
A8: It features a miniature ClickLoc coaxial connector.
