Technical Specifications
| Parameter | Specification |
|---|---|

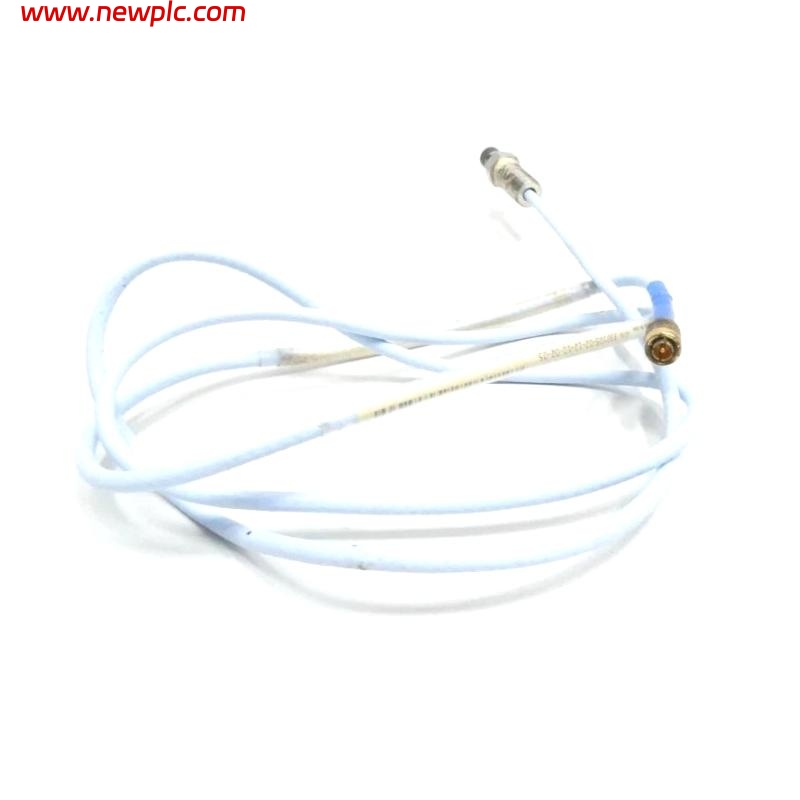

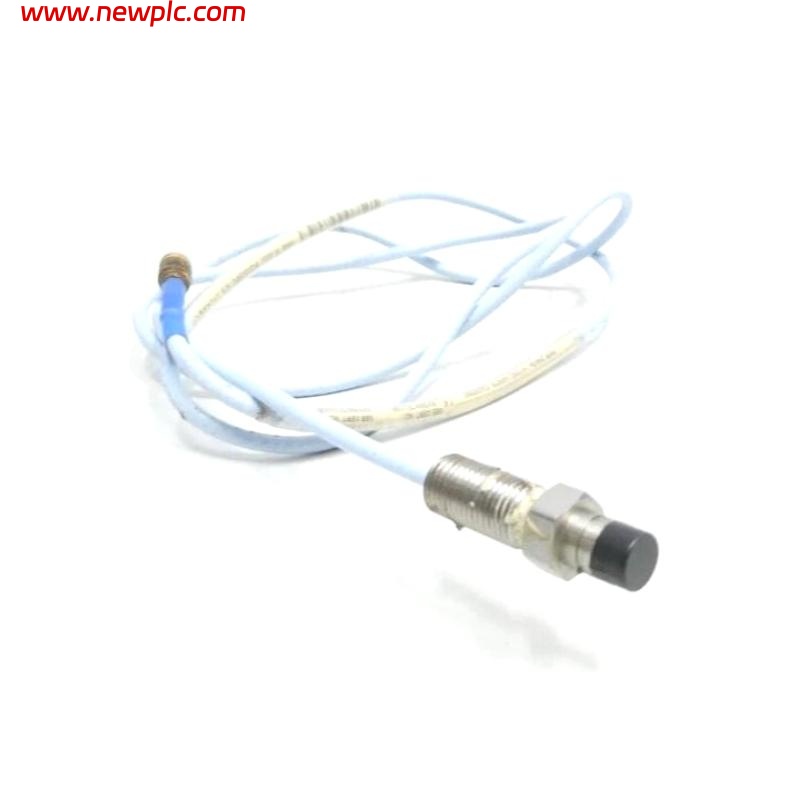

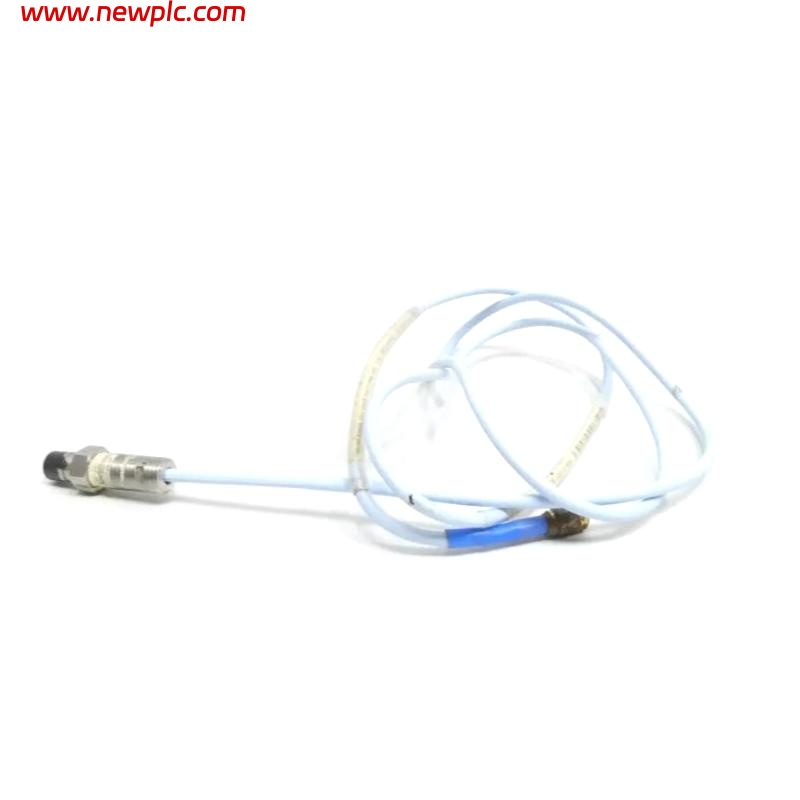

| Probe Type | 3300 XL 8 mm Reverse Mount Probe |
| Part Number | 330105-02-12-15-02-05 |
| Thread Size | 3/8-24 UNF (reverse mount) |
| Total Length | 1.5 meters |
| Cable Type | Miniature ClickLoc coaxial connector, standard cable |
| Cable Impedance | 75 Ω triaxial |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Case Torque – Max Rated | 22.6 N•m (200 in•lbf) |
| Case Torque – Recommended | 7.5 N•m (66 in•lbf) |
| Operating Temperature | -52°C to +177°C (Standard), -52°C to +218°C (Extended Tip), +260°C (Cable) |
| Storage Temperature | Same as operating |
| Pressure Seal | Viton® O-ring (not pressure-tested by default) |
| Environmental Rating | RFI/EMI resistant, CE marked |
| Relative Humidity Effect | <3% change in scale factor at 93% RH |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Mounting Thread Engagement | Max 0.563 in (for 3/8-24 UNF) |
| Output Sensitivity | 7.87 V/mm ± 5% (5 m system); ±6.5% (9 m system) |
| Linear Range | 2 mm (80 mils), -1 to -17 VDC |
| Recommended Gap | -9 VDC (≈1.27 mm or 50 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Weight | 0.485 kg |

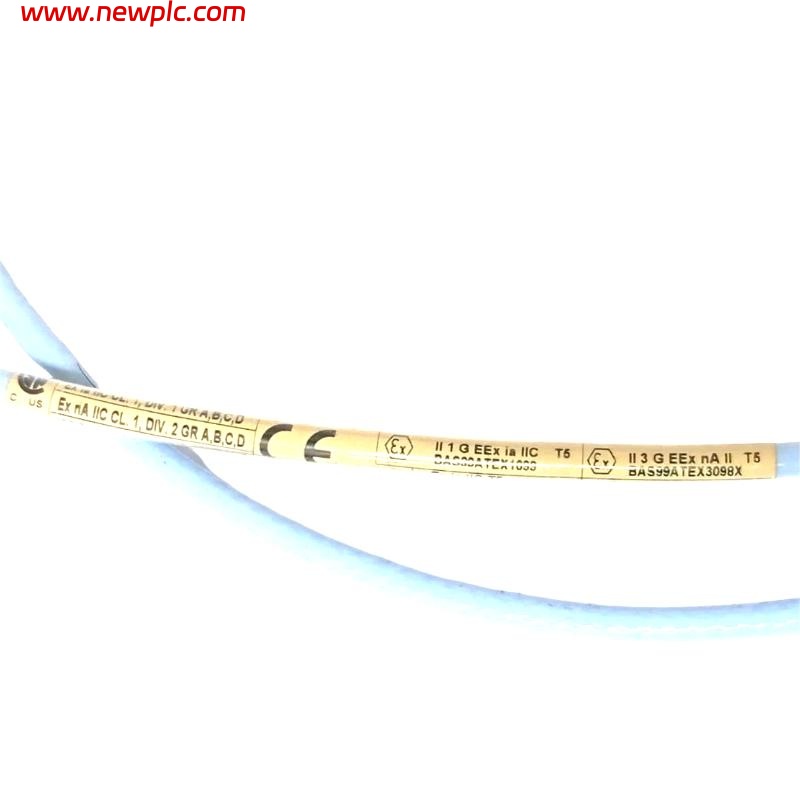

| Compliance Certifications | SIL 2/3, FCC Part 15, CE, CSA, ATEX, IECEx |
FAQ
FAQ
Q1: What thread type is supported by this probe model?
A1: The 330105-02-12-15-02-05 probe supports 3/8-24 UNF reverse-mount threads.
Q2: What is the supported operating temperature range?
A2: The standard probe operates from -52°C to +177°C. The extended temperature range (ETR) version supports up to +218°C at the tip and +260°C at the cable.
Q3: What is the linear measurement range of this probe?
A3: The linear range is 2 mm (80 mils), with output voltage ranging from -1 VDC to -17 VDC.
Q4: Can this probe be mixed with non-XL 3300 series components?
A4: Yes, the 3300 XL 8 mm probe is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q5: Does this probe comply with the API 670 standard?
A5: Yes, the complete 3300 XL 8 mm system meets the mechanical, linear range, and temperature stability requirements of the API 670 standard.
Q6: What is the recommended mounting torque for this reverse mount probe?
A6: The recommended mounting torque is 7.5 N·m (66 in·lbf); the maximum allowed is 22.6 N·m (200 in·lbf).
Q7: What is the recommended shaft diameter for optimal performance?
A7: A shaft diameter of at least 76.2 mm (3 inches) is recommended to minimize cross-talk and maintain measurement accuracy.
Q8: Is field calibration or matching of components required for this model?
A8: No. All components in the 3300 XL system are factory pre-calibrated and fully interchangeable. Field calibration is not required.
