Technical Specifications
| Parameter | Specification |
|---|---|

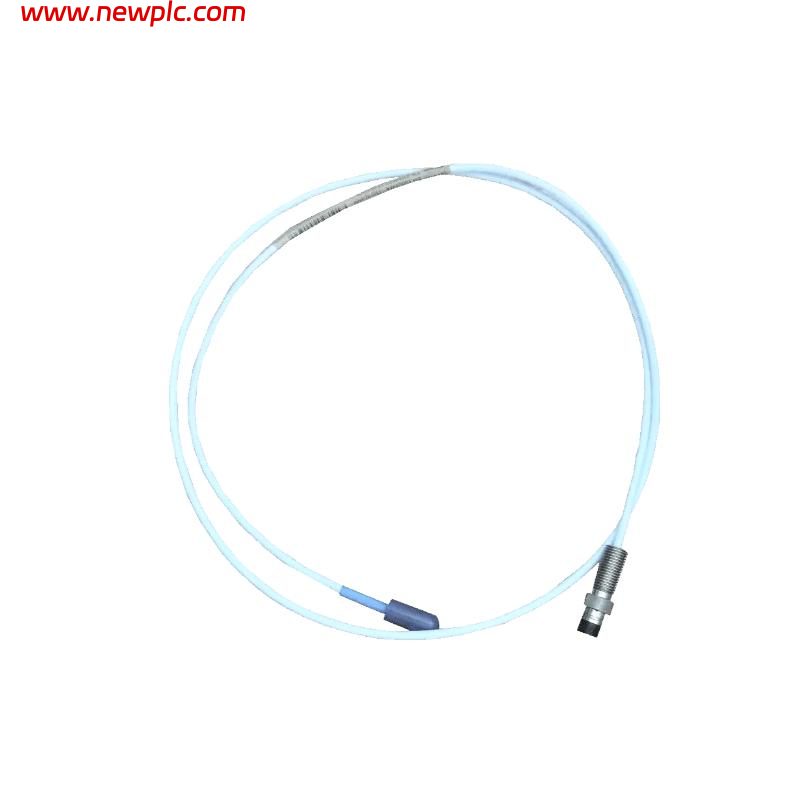

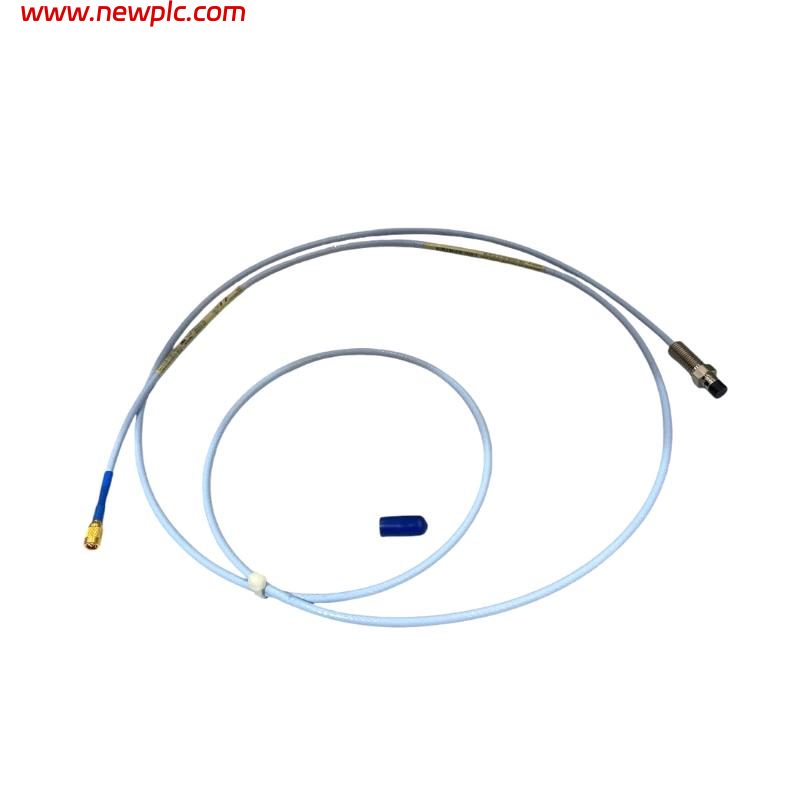

| Product Name | Bently Nevada 330105-XX-XX-10-02-05 (MOD 165931-01) |
| Product ID | 330105-XX-XX-10-02-05 |
| Modification Number | 165931-01 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Function | Non-contact measurement of shaft vibration, shaft position, speed, and phase reference |
| Probe Type | Reverse Mount Probe |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF Reverse Mount Thread |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Agency Approval | CSA, ATEX, IECEx Approvals (Option 05) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 / 304 Stainless Steel |
| Cable Type | 75 Ω Triaxial Cable |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz (system dependent) |
| Operating Temperature | −35°C to +177°C (system dependent) |
| Storage Temperature | −52°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximity Transducer System |
| Application | Turbines, compressors, pumps, motors, generators, and rotating machinery |
| Mounting Type | Reverse Mount Installation |
| Dimensions (H × W × D) | Approx. 204 × 22 × 37 mm |
| Weight | Approx. 0.32 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330105-XX-XX-10-02-05 used for?
It is a 3300 XL 8 mm reverse mount proximity probe designed for non-contact measurement of shaft vibration and shaft position in rotating machinery.
Q2: What does the MOD 165931-01 designation mean?
MOD 165931-01 identifies a specific modified manufacturing configuration of the standard 330105 reverse mount probe assembly.
Q3: What is the total probe length for this configuration?
Option “10” specifies a total probe length of 1.0 meter (3.3 feet).
Q4: What connector type does this probe use?
The probe is equipped with a Miniature ClickLoc coaxial connector, identified by option “02”.
Q5: What approvals are included with option “05”?
Option “05” includes CSA, ATEX, and IECEx hazardous-area certifications.
Q6: What is the difference between 330105 and 330106 probes?
The 330105 model uses a 3/8-24 UNF thread, while the 330106 version uses an M10 × 1 metric thread.
Q7: What applications is this probe commonly used in?
It is widely used for vibration monitoring, shaft position measurement, Keyphasor reference, and speed measurement on fluid-film bearing machines.
Q8: Does the probe require matched calibration with other components?
No. The 3300 XL system supports full interchangeability of probes, extension cables, and Proximitor sensors without individual component matching or bench calibration.
