Technical Specifications
| Parameter | Specification |
|---|---|

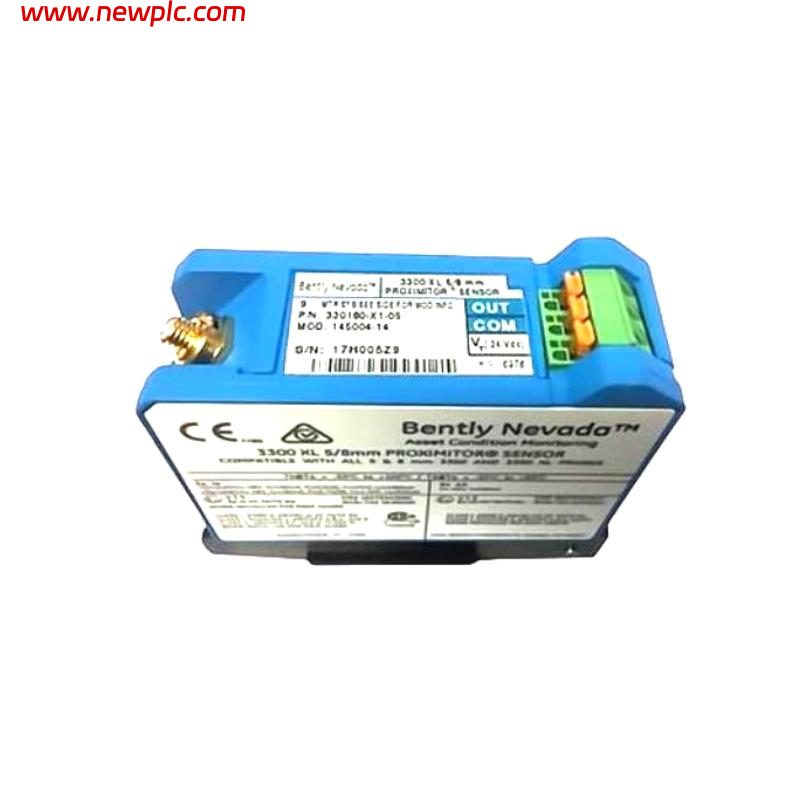

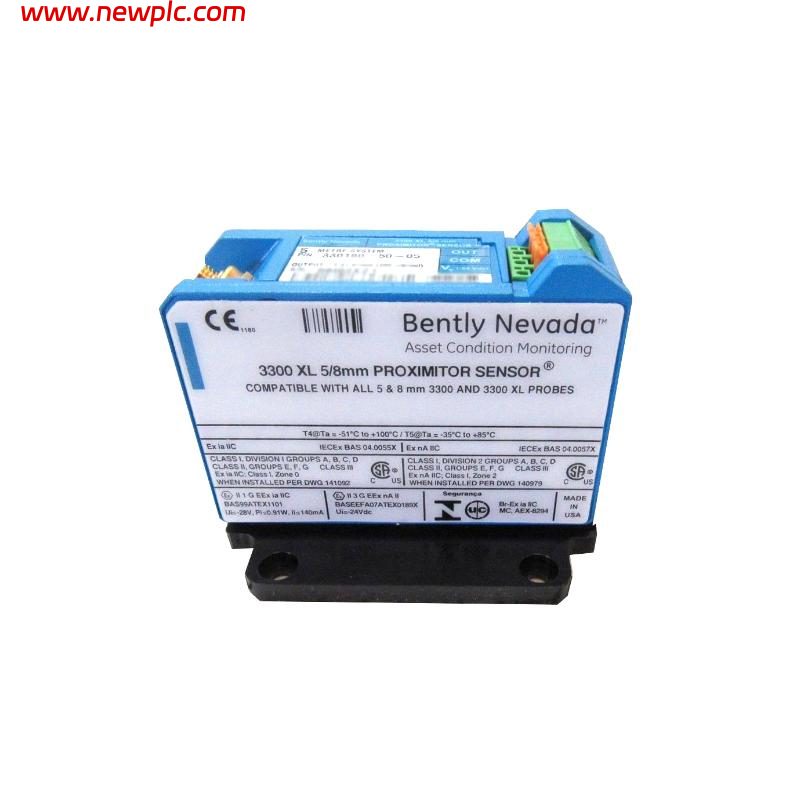

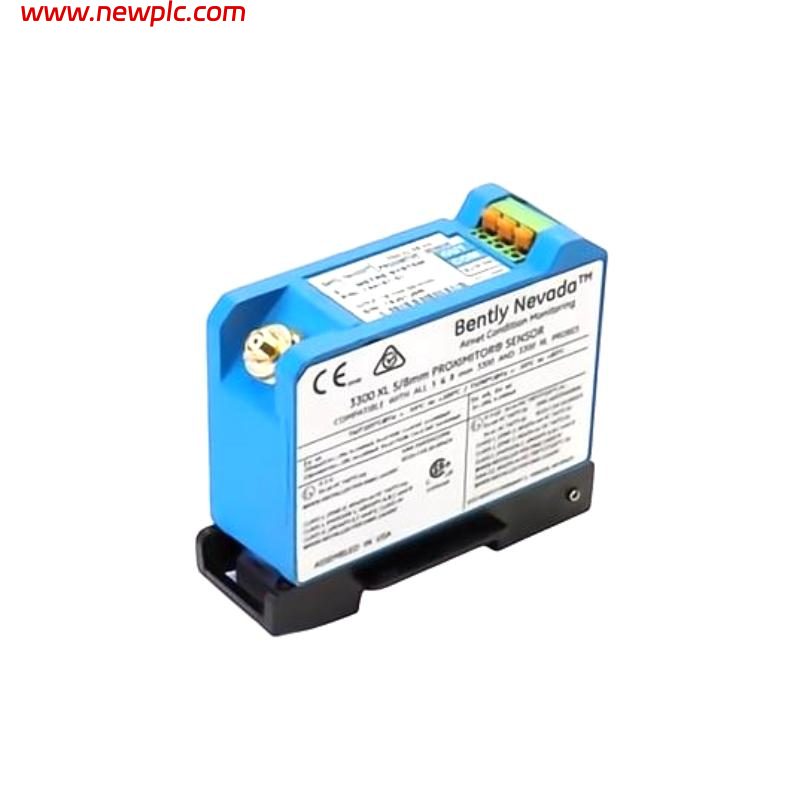

| Product Name | Bently Nevada 330180-X1-00 |
| Product ID | 330180-X1-00 |
| Modification Number | 145004-138 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL Proximitor® Sensor |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Function | Signal conditioning and conversion of proximity probe signals into proportional vibration and position outputs |
| Input Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Output Signal | 200 mV/mil (7.87 V/mm) |
| System Length Option | 5 m and 9 m system configurations supported |
| Frequency Response | 0.5 Hz to 10 kHz (system dependent) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Power Supply | −17.5 VDC to −26 VDC |
| Current Consumption | Typically less than 12 mA |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm probes and extension cables |
| Mounting Type | DIN rail mounting or panel mounting |
| Connector Type | Spring clamp terminal block |
| Housing Material | Molded high-impact industrial-grade polymer |
| Operating Temperature | −35°C to +85°C |
| Storage Temperature | −51°C to +100°C |
| Relative Humidity | 95% non-condensing |
| EMC Compliance | CE compliant |
| Hazardous Area Certifications | Configuration dependent |
| Application | Shaft vibration, thrust position, differential expansion, speed, and phase measurements |
| Dimensions (H × W × D) | Approx. 120 × 50 × 75 mm |
| Weight | Approx. 0.32 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330180-X1-00 used for?
It is a Proximitor® sensor that conditions and converts signals from a proximity probe into a calibrated output used for machinery protection and condition monitoring systems.
Q2: Which probe systems are compatible with this sensor?
It is designed for use with Bently Nevada 3300 XL 8 mm proximity probes and matching extension cables.
Q3: What measurements can this sensor support?
It supports shaft vibration, shaft position, thrust position, differential expansion, eccentricity, speed, and phase reference measurements.
Q4: What output sensitivity does the sensor provide?
The standard output sensitivity is 200 mV/mil (7.87 V/mm), which is widely used in machinery monitoring applications.
Q5: What power supply is required?
The sensor operates from a DC power source ranging from −17.5 VDC to −26 VDC.
Q6: What is the purpose of the X1 option?
The X1 option identifies a specific factory configuration within the 330180 Proximitor® sensor family and is associated with the required probe and extension cable combination.
Q7: Can this sensor be used in hazardous areas?
Yes, depending on the complete system configuration and certification options, the sensor can be installed in hazardous-area applications.
Q8: What should be verified before replacing a 330180-X1-00 sensor?
Users should confirm the probe type, extension cable length, system length (5 m or 9 m), power supply requirements, and monitoring system compatibility to ensure proper calibration and operation.
