Technical Specifications
| Parameter | Specification |
|---|---|

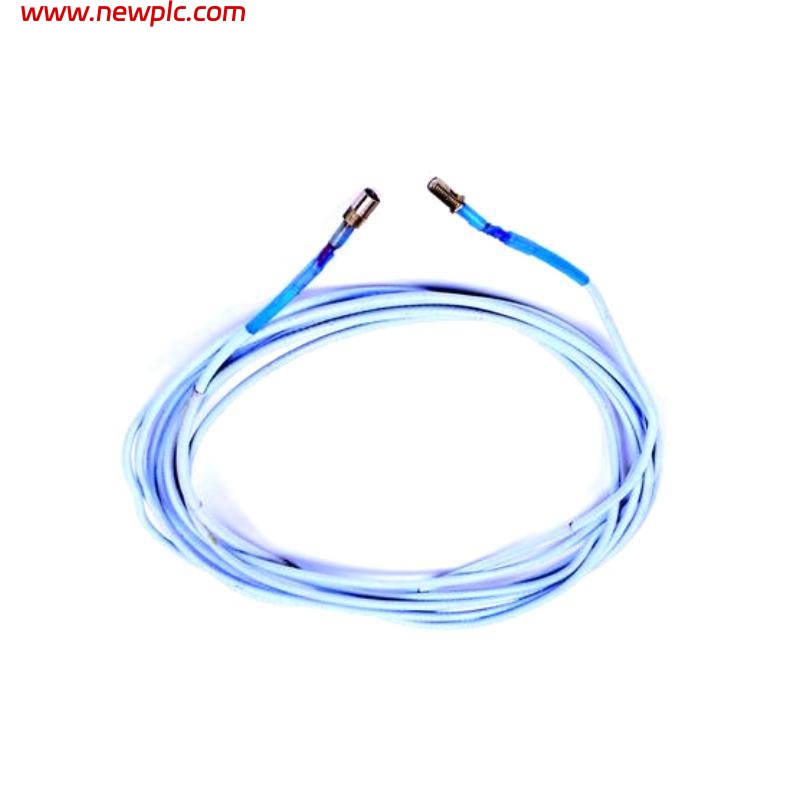

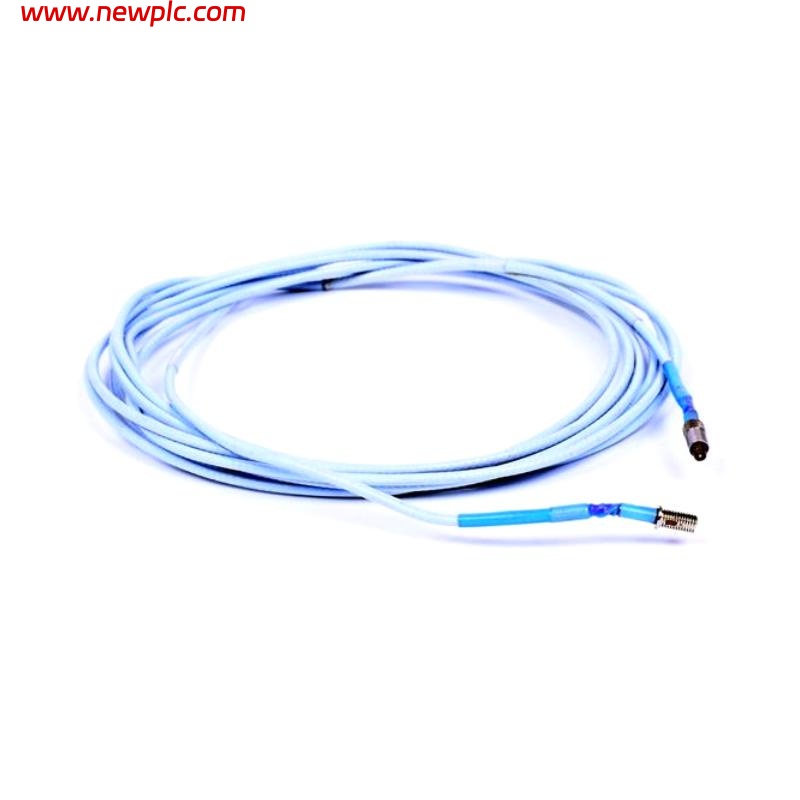

| Product Model | 330130-040-00-TW |
| Manufacturer | Bently Nevada |
| Product Series | 3300 XL Series |
| Product Type | Proximity Transducer System Extension Cable |
| Cable Type | Shielded coaxial extension cable |
| Cable Construction | Fluoroethylene propylene (FEP) insulated triaxial cable |
| Cable Length | 4 meters |
| Characteristic Impedance | 50 Ω ±5% |
| Cable Capacitance | Approximately 69.9 pF/m |
| Conductor | 26 AWG tinned copper strands |
| Voltage Rating | Up to 300 VAC insulation rating |
| Connector Type | ClickLoc coaxial connectors |
| Shielding | Double-shielded for EMI protection |
| Operating Temperature | −40°C to +120°C (typical industrial range) |
| Minimum Bend Radius | Approximately 50 mm |
| Dimensions (Cable Assembly) | Cable length 4 m × outer diameter approx. 6 mm |
| Weight | Approximately 0.14 kg |
| Application | Signal transmission between proximity probe and Proximitor sensor in vibration monitoring systems |
| Compliance Standards | API 670 compatible machinery protection systems |
FAQ
FAQ
Q1. What is the purpose of the 330130-040-00-TW extension cable?
It connects the proximity probe to the Proximitor sensor, transmitting measurement signals within the vibration monitoring system.
Q2. What is the cable length of this model?
This configuration provides a 4-meter extension cable.
Q3. Which systems is this cable designed for?
It is designed for the Bently Nevada 3300 XL proximity transducer system.
Q4. What type of connectors does the cable use?
It uses corrosion-resistant ClickLoc coaxial connectors to ensure secure installation.
Q5. What type of cable construction is used?
The cable uses FEP-insulated triaxial construction with double shielding to reduce electromagnetic interference.
Q6. What temperature range can the cable operate in?
Typical operating temperature ranges from −40°C to about +120°C depending on configuration.
Q7. What industrial applications commonly use this cable?
It is widely used in turbines, compressors, pumps, and other rotating equipment vibration monitoring systems.
Q8. Why is shielding important in proximity probe extension cables?
Shielding protects the signal from electromagnetic interference, ensuring accurate vibration and displacement measurements.
