Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-045-01-05-CN |
| Manufacturer | Bently Nevada |
| Product Series | 3300 XL Series |

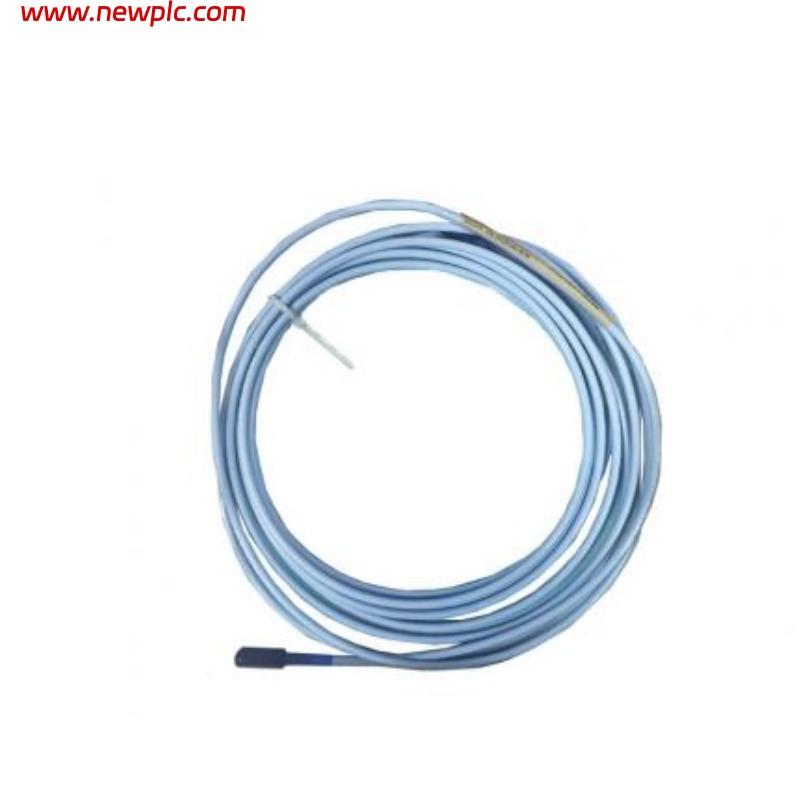

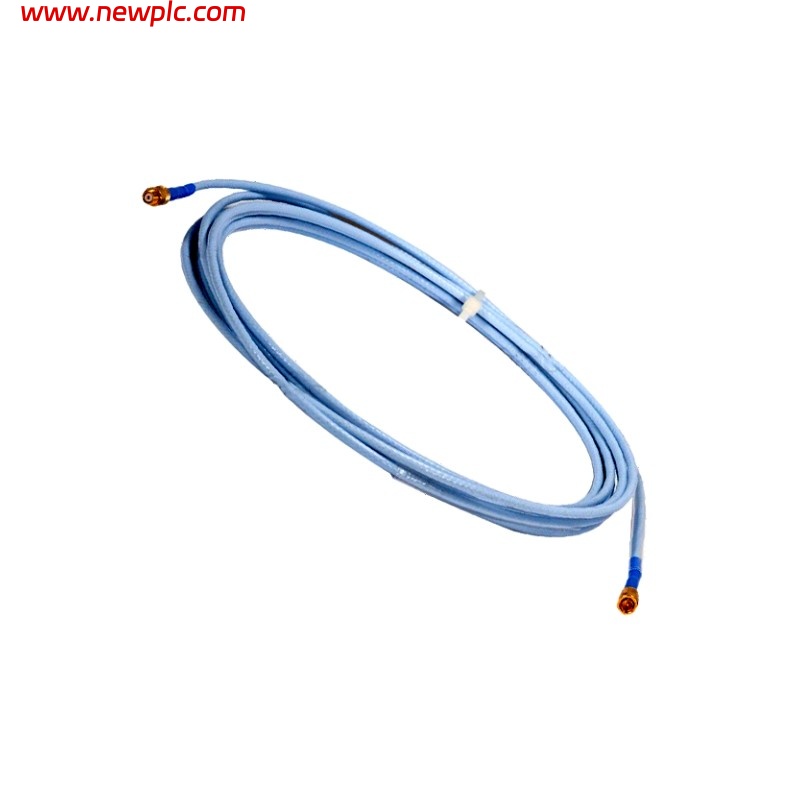

| Product Type | Extension Cable for Proximity Transducer System |
| Cable Length | 4.5 meters (14.8 ft) |
| Cable Construction | Armored triaxial industrial cable |
| Connector Type | Miniature coaxial connectors (male–female) |
| Characteristic Impedance | 75 Ω triaxial cable |
| Capacitance | Approximately 69.9 pF/m |
| Shielding | Foil and braided shielding for EMI protection |
| Conductor Material | High-grade copper conductor |
| Minimum Bend Radius | Approx. 25.4 mm |
| Operating Temperature | −51°C to +177°C |
| Voltage Requirement | −17.5 VDC to −26 VDC (system supply) |
| Dimensions (Cable Assembly) | Cable length 4.5 m × cable diameter approx. 7.5 mm |
| Weight | Approximately 0.5 kg |
| Approval Option | CN (country-specific hazardous-area approvals such as NEPSI/ATEX options) |
| Typical Application | Connection between proximity probe and Proximitor sensor in vibration monitoring systems |
FAQ
FAQ
Q1. What is the function of the 330130-045-01-05-CN extension cable?
It connects the proximity probe to the Proximitor sensor and transmits vibration and displacement signals in the monitoring system.
Q2. What is the cable length of this model?
The cable length option “045” indicates a length of 4.5 meters (14.8 feet).
Q3. What does the “01” option in the model number indicate?
The “01” option means the cable uses an armored construction for improved mechanical protection.
Q4. What does the “CN” suffix represent?
It indicates country-specific hazardous-area approvals, commonly used for Chinese industrial compliance standards.
Q5. What temperature range can this cable operate in?
Typical operating temperature ranges from −51°C to +177°C, suitable for harsh industrial environments.
Q6. Is the cable shielded against interference?
Yes, it includes foil and braided shielding to minimize electromagnetic interference and maintain signal accuracy.
Q7. Which systems are compatible with this cable?
It is designed for the Bently Nevada 3300 XL proximity transducer system used in machinery protection and vibration monitoring.
Q8. In what industries is this cable commonly used?
It is widely used in turbines, compressors, pumps, generators, and other rotating machinery where vibration monitoring is required.
