Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-085-13-CN |
| Manufacturer | Bently Nevada |
| Product Series | 3300 XL Series |

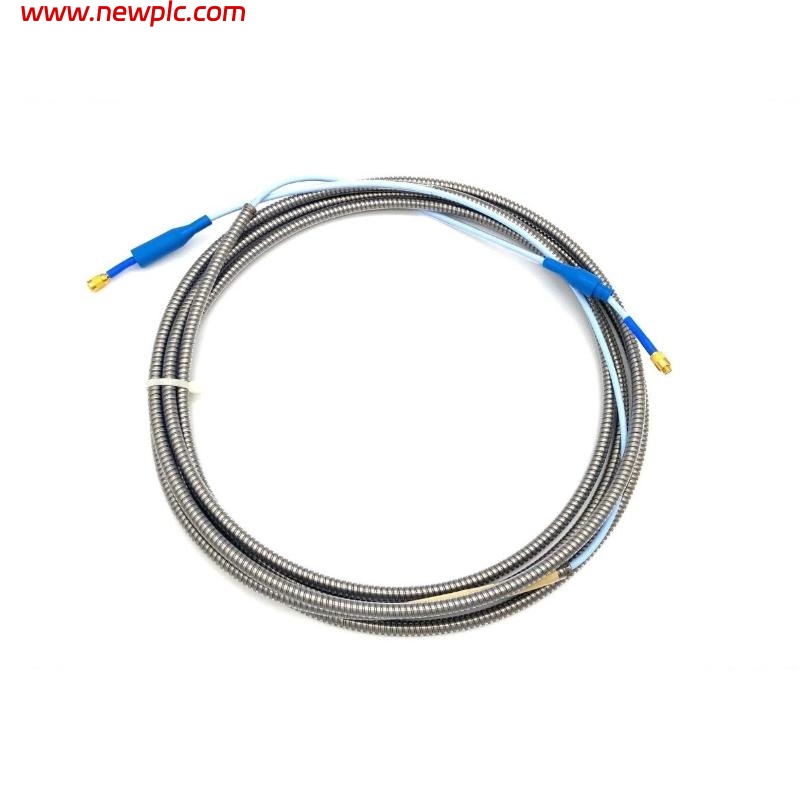

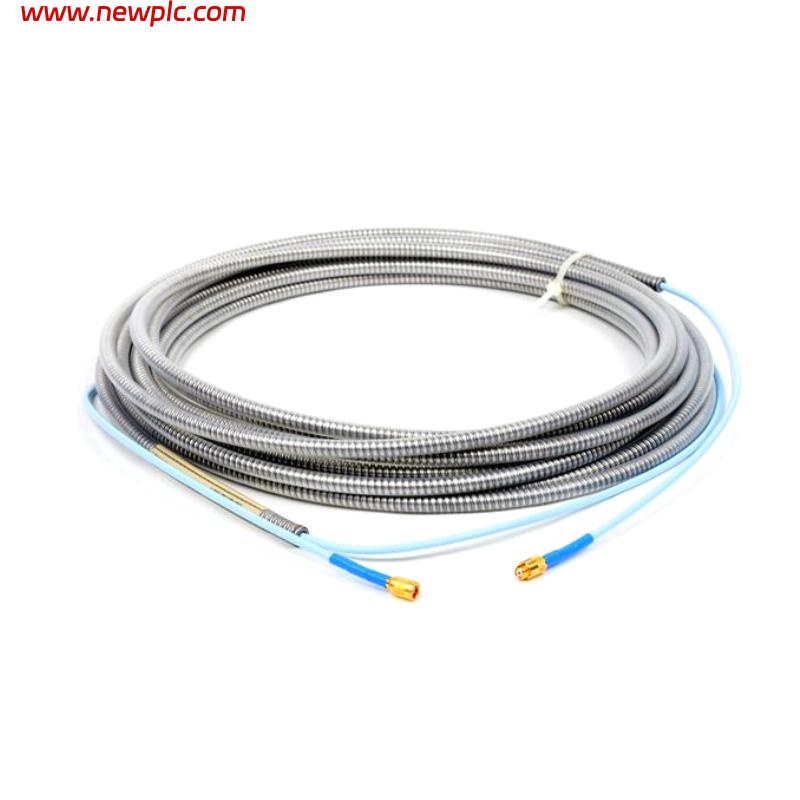

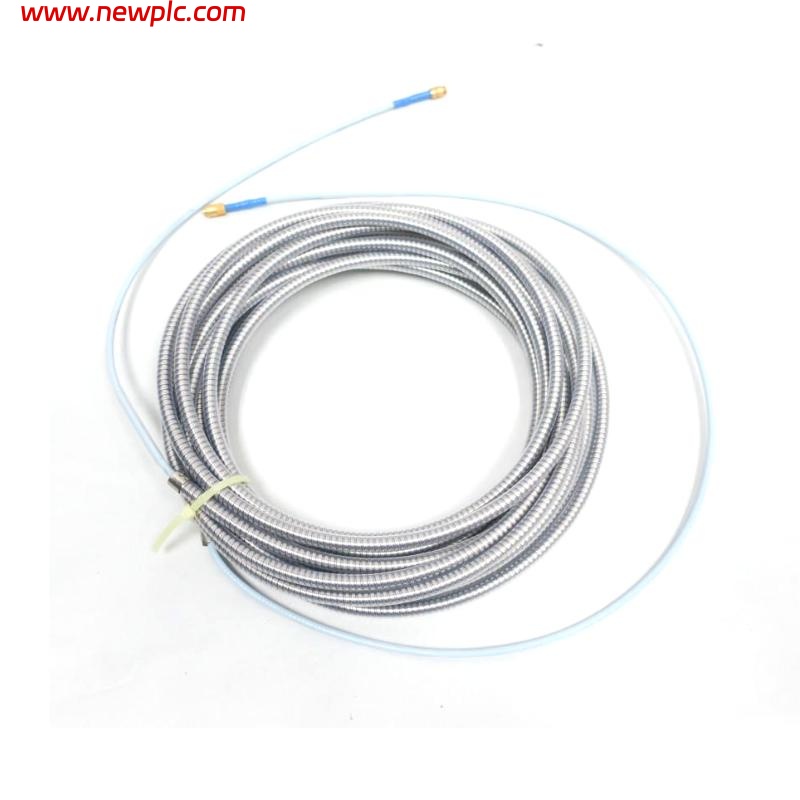

| Product Type | Proximity Transducer System Extension Cable |
| Cable Length | 8.5 meters (27.9 ft) |
| Cable Construction | Armored FluidLoc® triaxial cable with connector protectors |
| Cable Material | 75 Ω triaxial cable with FEP insulation |
| Connector Type | Coaxial connectors with protective sleeves |
| Capacitance | 69.9 pF/m (typical) |
| Center Conductor Resistance | 1.87 ± 0.28 Ω |
| Outer Conductor Resistance | 0.56 ± 0.11 Ω |
| Output Resistance | 50 Ω |
| Maximum Current Consumption | 12 mA |
| Voltage Requirement | −17.5 VDC to −26 VDC |
| Minimum Bend Radius | 25.4 mm |
| Operating Temperature | −51°C to +177°C |
| Dimensions (Cable Assembly) | Cable length 8.5 m × cable diameter approx. 6–7 mm |
| Weight | Approximately 0.82–0.88 kg |
| Approval Option | CN – Country-specific hazardous-area approvals |
| Application | Connection between proximity probe and Proximitor sensor in vibration monitoring systems |
FAQ
FAQ
Q1. What is the purpose of the 330130-085-13-CN extension cable?
It connects the proximity probe to the Proximitor sensor, transmitting vibration and displacement signals in the monitoring system.
Q2. What does the “085” option represent in the model number?
It indicates a cable length of 8.5 meters (27.9 feet).
Q3. What does the “13” option mean?
The “13” option indicates an armored FluidLoc® cable with connector protectors, designed for harsh industrial environments.
Q4. What does the “CN” suffix indicate?
It represents country-specific approvals, often used to meet regional regulatory requirements.
Q5. What temperature range can the cable operate in?
The typical operating range is −51°C to +177°C, suitable for most industrial environments.
Q6. What type of cable construction is used?
It uses 75-ohm triaxial cable with FEP insulation, designed to minimize electrical noise and signal loss.
Q7. What industrial applications commonly use this cable?
It is widely used in turbines, compressors, pumps, and other rotating machinery where vibration monitoring is required.
Q8. Why is the FluidLoc cable design important?
FluidLoc technology helps prevent oil and liquids from migrating through the cable, improving durability and reliability in harsh environments.
