Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-045-03-05 |

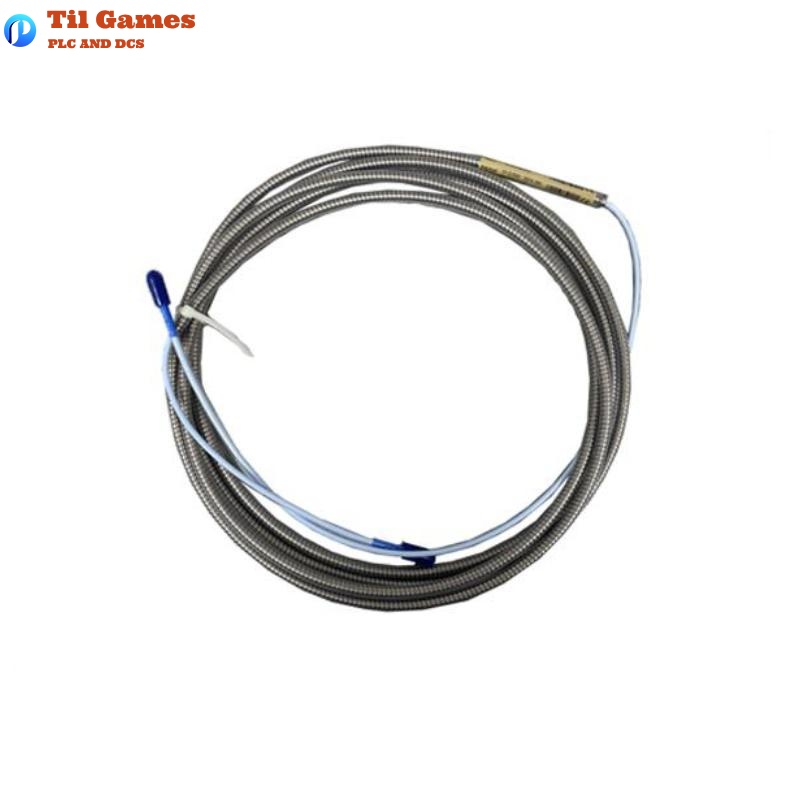

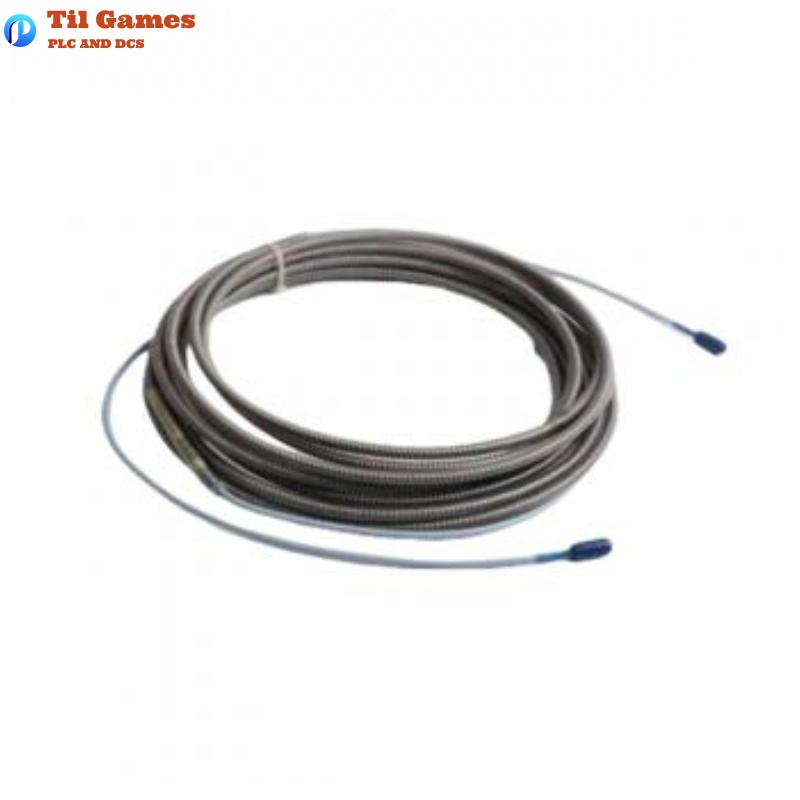

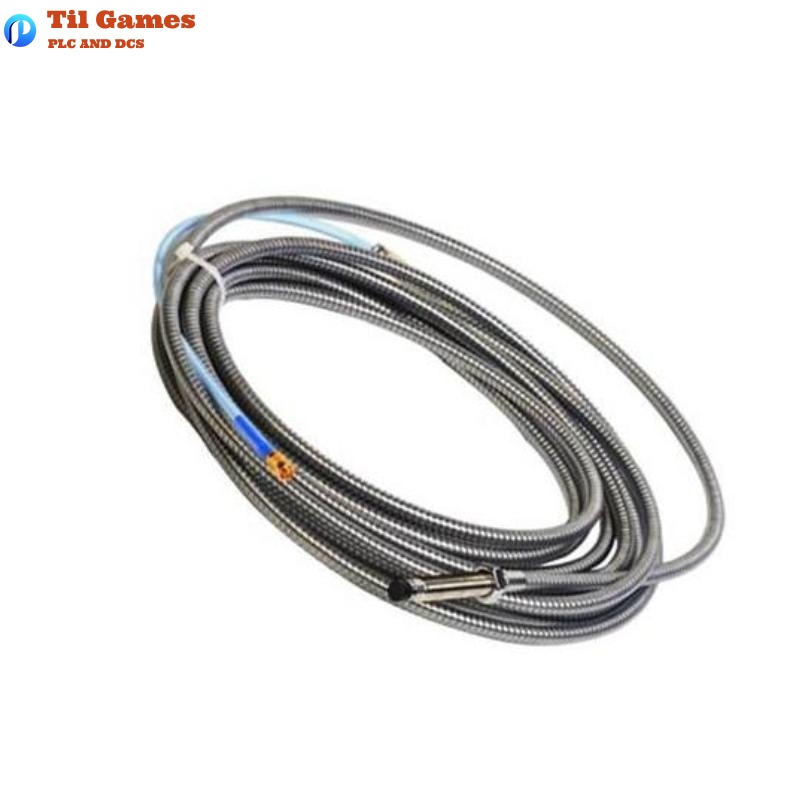

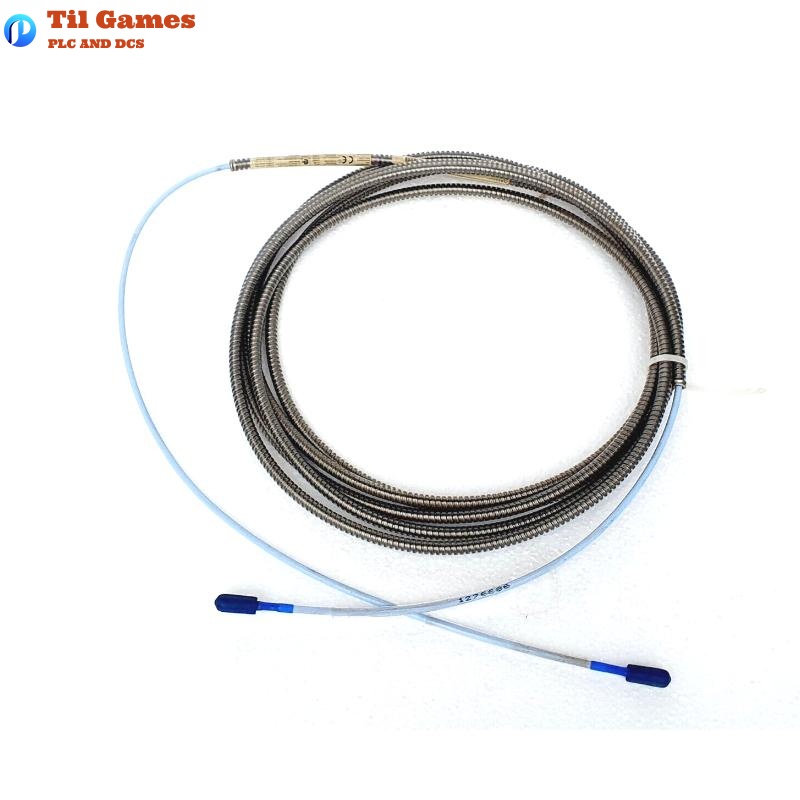

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Cable Weight | 0.464 kg (typical) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Capacitance | Approx. 69.9 pF/m |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated brass or beryllium copper ClickLoc connectors |
| Connector Torque (max) | 0.565 N·m (5 in·lbf) |
| RCORE Resistance | 0.99 ± 0.15 Ω |
| RJACKET Resistance | 0.30 ± 0.06 Ω |
| Temperature Range (standard) | –52°C to +177°C (–62°F to +350°F) |
| Material | FEP jacket; optional armored SST 302/304 |
| Compatibility | Fully compatible with all 3300 XL 8 mm and non-XL 3300 5 mm/8 mm components |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the standard cable length of the 330130-045-03-05 model?
A1: The cable length is 4.5 meters.
Q2: What is the weight of the 330130-045-03-05 extension cable?
A2: The typical weight is 0.464 kg.
Q3: What type of connector is used on this extension cable?
A3: It uses gold-plated ClickLoc connectors requiring only finger-tight torque.
Q4: Can this extension cable be used in high-temperature environments?
A4: Yes, the standard version supports –52°C to +177°C. An ETR version supports up to +260°C.
Q5: Is the 330130-045-03-05 compatible with older non-XL 3300 systems?
A5: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q6: What is the typical capacitance of this cable?
A6: Approximately 69.9 pF per meter.
Q7: What is the minimum bend radius for this cable?
A7: The minimum bend radius is 25.4 mm (1 inch).
Q8: Is there an option for armored cable with this model?
A8: Yes, armored versions are available upon request for additional mechanical protection.
