Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 330130-045-12-00 |

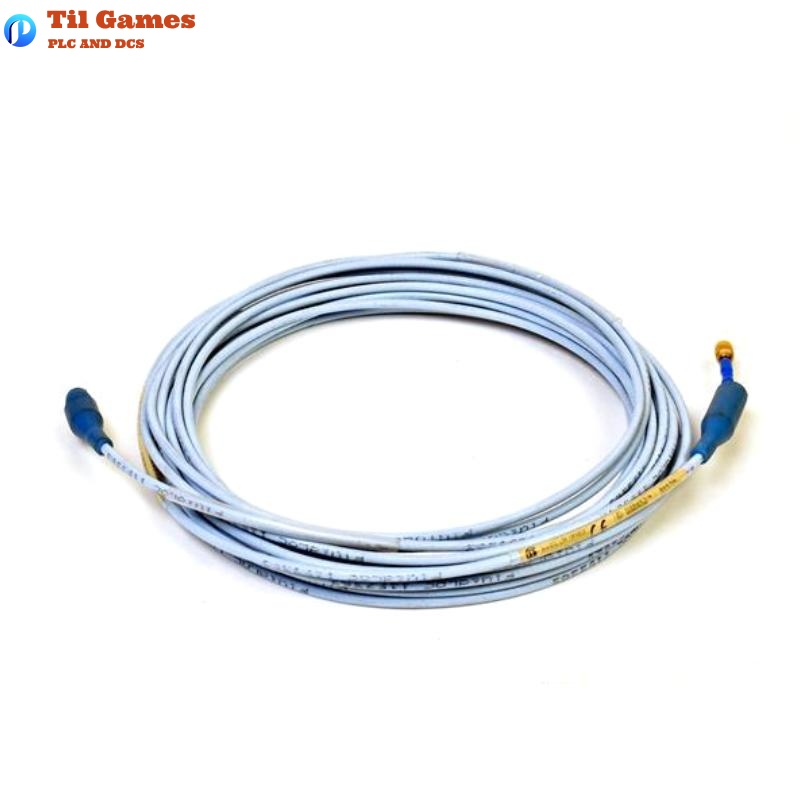

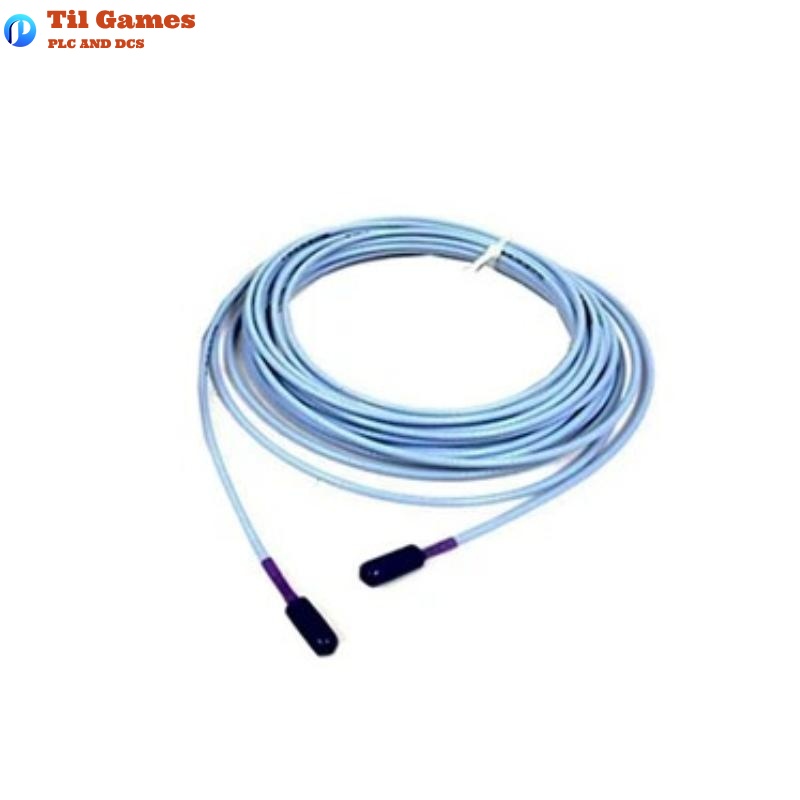

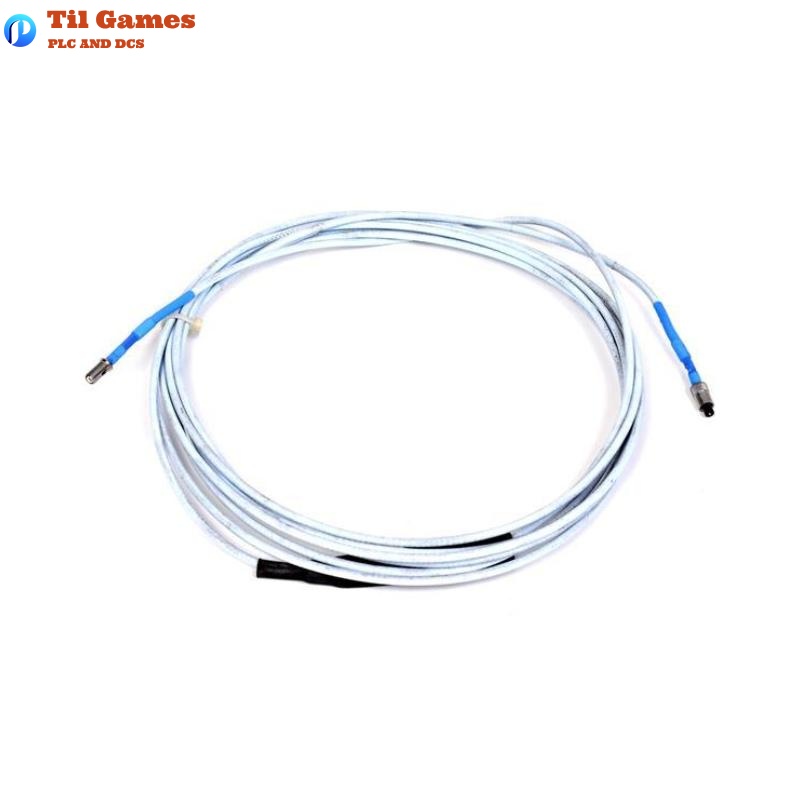

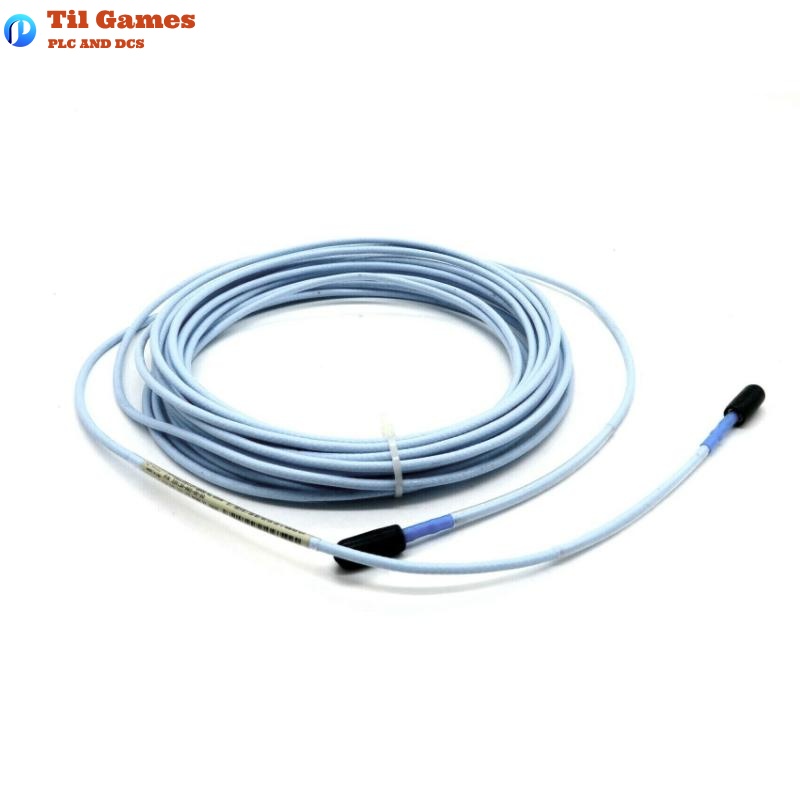

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Weight | 0.153 kg |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (RCORE) | 0.99 ± 0.15 Ω (center conductor) |
| DC Resistance (RJACKET) | 0.30 ± 0.06 Ω (outer conductor) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Temperature Range (Standard) | -52°C to +177°C |
| Temperature Range (Extended) | -52°C to +260°C (for ETR cable version) |
| Connector Type | Gold-plated ClickLoc connectors |
| Connector Torque | 0.565 N·m (5 in·lbf) max |
| Installation | Finger-tight, click-lock mechanism |
| Armor Option | Available (adds weight, improves strength) |
| Environmental Rating | With protector: improved sealing |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the length of the 330130-045-12-00 extension cable?
A1: The cable length is 4.5 meters.
Q2: What is the weight of this extension cable?
A2: The total weight is approximately 0.153 kg.
Q3: What type of insulation does the cable use?
A3: It uses FEP (fluoroethylene propylene) insulation.
Q4: What is the resistance of the extension cable?
A4: The center conductor resistance (RCORE) is 0.99 ± 0.15 ohms, and the outer conductor resistance (RJACKET) is 0.30 ± 0.06 ohms.
Q5: Is the cable suitable for high-temperature environments?
A5: Yes, an extended temperature version (ETR) is available and rated up to 260°C.
Q6: Are tools required to tighten the connectors?
A6: No special tools are needed. Connectors are finger-tightened and click into place.
Q7: Can this cable be used with non-XL 3300 systems?
A7: Yes, it is backward compatible with 3300 5 mm and 8 mm systems.
Q8: What is the recommended minimum bend radius during installation?
A8: The minimum bend radius is 25.4 mm (1.0 inch).
