Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

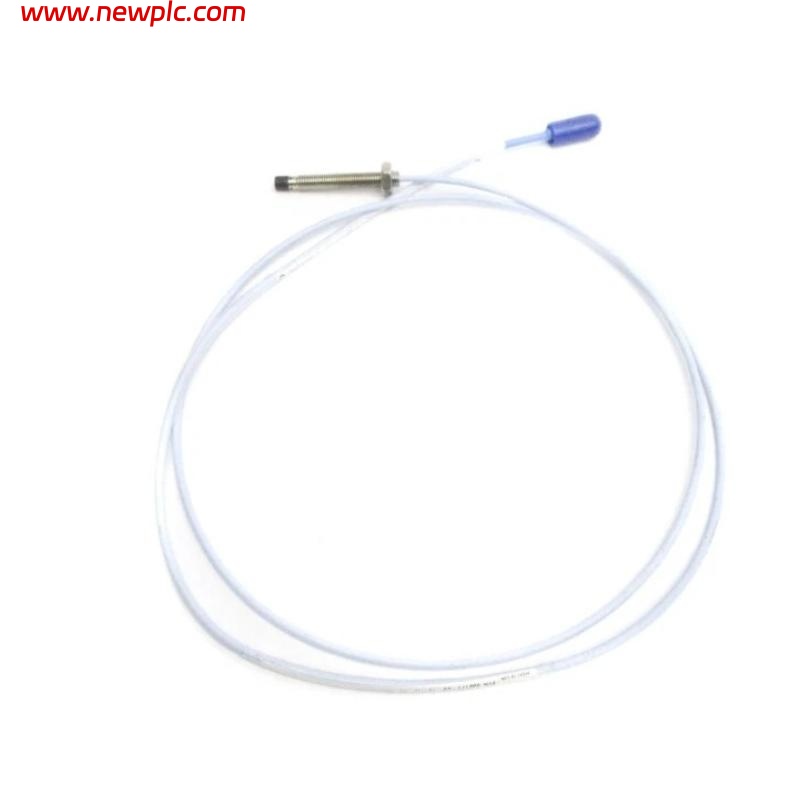

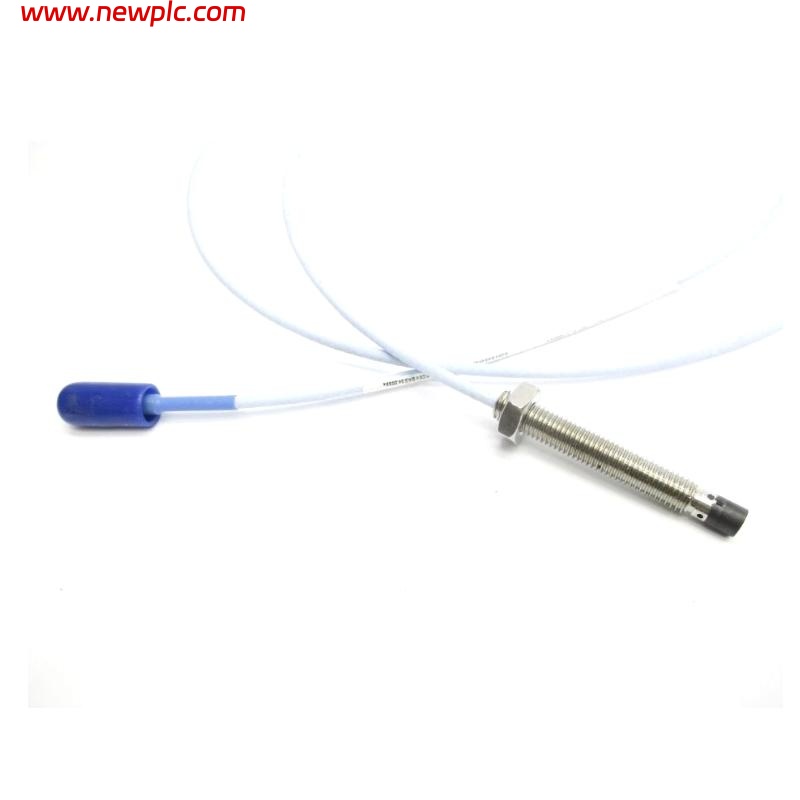

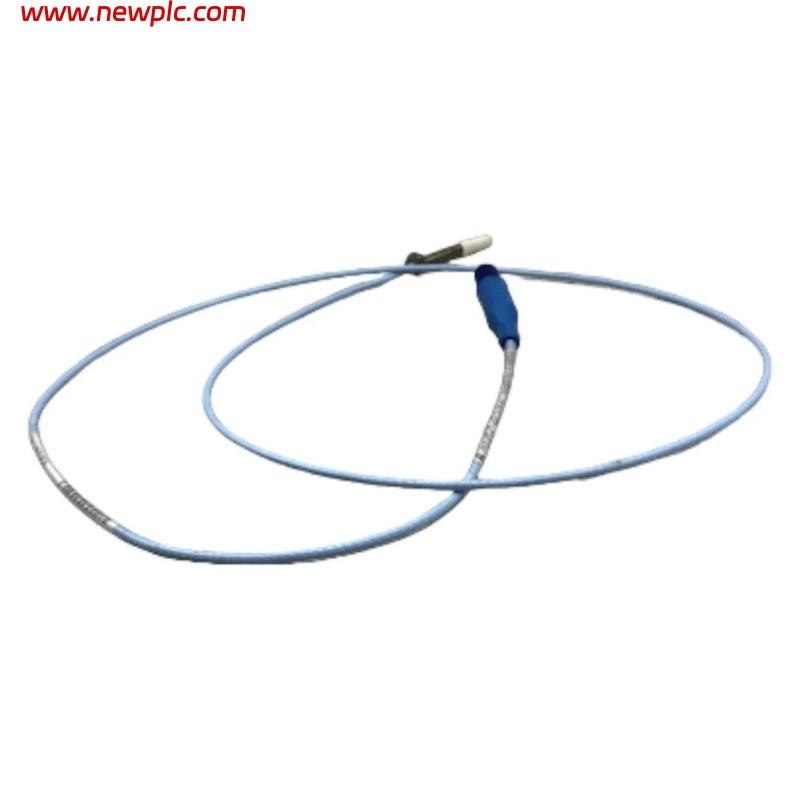

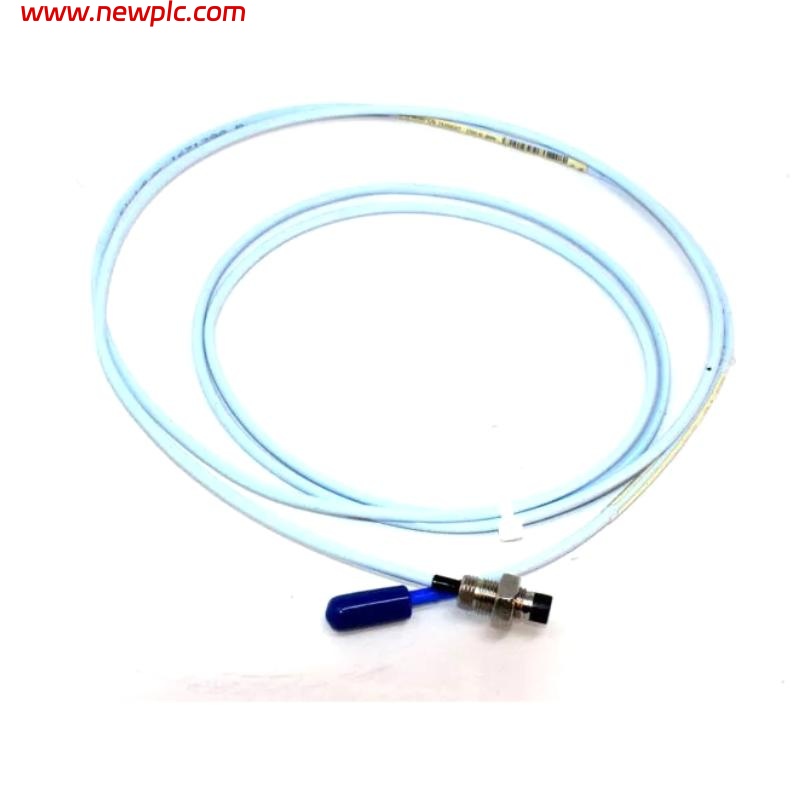

| Product Model | **Bently Nevada 330171‑24‑57‑10‑01‑05 |
| Product Type | 3300 Series 5 mm Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact displacement & vibration measurement using eddy‑current sensing |
| Probe Tip Diameter | 5 mm |
| Unthreaded Length | 2.4 in (61 mm) standard for this code segment |
| Overall Case Length | 5.7 in (145 mm) |
| Cable Length | 1.0 m (3.3 ft) integral cable |
| Connector Type | Miniature coaxial ClickLoc with connector protector |
| Linear Sensing Range | ~0.25 mm – 2.0 mm typical for 5 mm probes |
| Output Signal | Analog voltage proportional to gap/displacement (requires proximitor conditioning) |
| Frequency Response | DC – ~10 kHz typical for 3300 series probes |
| Operating Temperature | –35 °C to +177 °C (industrial range) |
| Housing Material | Stainless steel probe body |
| Cable Jacket | FEP insulated, coaxial cable with shielding |
| Dimensions (Overall) | Probe body length 145 mm + cable 1000 mm; tip diameter 5 mm |
| Weight | 0.255 kg |
| Operating Environment | Designed for industrial machinery condition monitoring systems |
FAQ
FAQ
Q1: What is the Bently Nevada 330171‑24‑57‑10‑01‑05 used for?
A1: It is a precision eddy‑current proximity probe used for non‑contact measurement of shaft displacement and vibration on rotating machinery as part of condition monitoring systems.
Q2: What size is the sensing tip on this probe?
A2: The probe has a 5 mm diameter sensing tip, ideal for installations with limited space.
Q3: How long is the probe’s cable?
A3: This configuration includes a 1.0 meter integral cable with a ClickLoc connector for easy connection.
Q4: What type of connector does this probe use?
A4: It uses a miniature coaxial ClickLoc connector with a connector protector for secure and reliable connection.
Q5: What is the typical measurement range?
A5: It typically provides a linear sensing range from about 0.25 mm up to approximately 2.0 mm from the target surface.
Q6: What environments can this probe operate in?
A6: It is suitable for harsh industrial environments with wide temperature variations and continuous service requirements.
Q7: Do I need additional hardware to use this probe?
A7: Yes, it needs to be connected to a compatible proximitor sensor or conditioning module to produce a conditioned analog output signal.
Q8: What are typical applications for this probe?
A8: This probe is commonly used in turbine, compressor, pump, and motor vibration and position monitoring applications where precise non‑contact sensing is required.
